ZZE130L-DEPSKK (2002)
Toyota Corolla/Matrix (Nap)

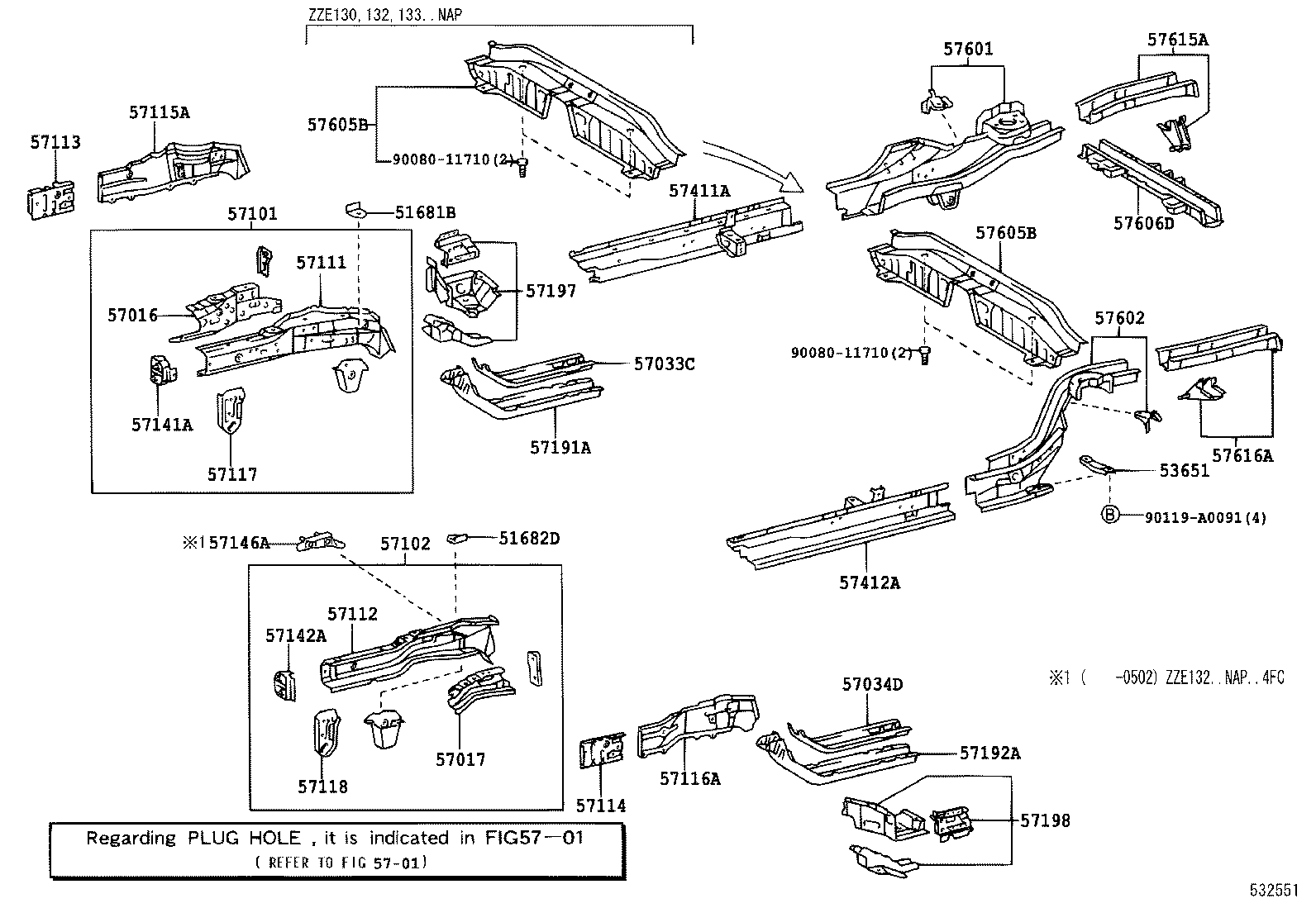

(0201-0405)NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51681B - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH | ||||
| 51681-02020 |
ZZE130..NAP |
1 | ||
| 51681-02020 |
ZZE130..NAP |
1 | ||
| 51682D - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH | ||||
| 51682-02020 |
ZZE130..NAP |
1 | ||
| 51682-02020 |
ZZE130..NAP |
1 | ||
| 53651 - BRACE, REAR FLOOR SIDE MEMBER | ||||
| 53651-32010 |
ZZE130..NAP |
2 | ||
| 53651-32010 |
ZZE130..NAP |
2 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-02070 |
ZZE130..NAP |
1 | ||
| 57016-02070 |
ZZE130..NAP |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-02060 |
ZZE130..NAP |
1 | ||
| 57017-02060 |
ZZE130..NAP |
1 | ||
| 57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57033-02030 |
ZZE130..NAP |
1 | ||
| 57033-02030 |
ZZE130..NAP |
1 | ||
| 57034D - REINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH | ||||
| 57034-02030 |
ZZE130..NAP |
1 | ||
| 57034-02030 |
ZZE130..NAP |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-02902 |
ZZE130..NAP |
1 | ||
| 57101-02902 |
ZZE130,131..NAP |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-02904 |
ZZE130..NAP |
1 | ||
| 57102-01903 |
ZZE130..NAP..4FC |
1 | ||
| 57102-02904 |
ZZE130..NAP..4FC |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-02050 |
ZZE130..NAP |
1 | ||
| 57111-02050 |
ZZE130..NAP |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-02080 |
ZZE130..NAP |
1 | ||
| 57112-02080 |
ZZE130..NAP |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-02040 |
ZZE130..NAP |
1 | ||
| 57113-02040 |
ZZE130..NAP |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-02040 |
ZZE130..NAP |
1 | ||
| 57114-02040 |
ZZE130..NAP |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-02030 |
ZZE130..NAP |
1 | ||
| 57115-02030 |
ZZE130..NAP |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-02030 |
ZZE130..NAP |
1 | ||
| 57116-02030 |
ZZE130..NAP |
1 | ||
| 57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH | ||||
| 57117-02010 |
ZZE130..NAP |
1 | ||
| 57117-02010 |
ZZE130..NAP |
1 | ||
| 57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH | ||||
| 57118-02010 |
ZZE130..NAP |
1 | ||
| 57118-02010 |
ZZE130..NAP |
1 | ||
| 57141A - SUPPORT, FRONT BUMPER ARM, RH | ||||
| 57141-02020 |
ZZE130..NAP |
1 | ||
| 57141-02020 |
ZZE130..NAP |
1 | ||
| 57142A - SUPPORT, FRONT BUMPER ARM, LH | ||||
| 57142-02010 |
ZZE130..NAP |
1 | ||
| 57142-02010 |
ZZE130..NAP |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-02090 |
ZZE130..NAP |
1 | ||
| 57191-02090 |
ZZE130..NAP |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-02090 |
ZZE130..NAP |
1 | ||
| 57192-02090 |
ZZE130..NAP |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57107-02900 |
ZZE130..NAP |
1 | ||
| 57107-02900 |
ZZE130..NAP |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-02900 |
ZZE130..NAP |
1 | ||
| 57198-02900 |
ZZE130..NAP |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-02100 |
ZZE130,131..NAP |
1 | ||
| 57401-02100 |
ZZE130..NAP |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-02100 |
ZZE130,131..NAP |
1 | ||
| 57402-02100 |
ZZE130..NAP |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-02910 |
ZZE130..NAP |
1 | ||
| 57601-02910 |
ZZE130,131..NAP |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-02909 |
ZZE130,131..NAP |
1 | ||
| 57602-02909 |
ZZE130..NAP W(SEPARATE REAR SEAT) |
1 | ||
| 57602-02908 |
ZZE130..NAP..(LE,S) |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-02902 |
ZZE130..NAP |
1 | ||
| 57605-02902 |
ZZE130,131..NAP |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-02902 |
ZZE130..NAP |
1 | ||
| 57605-02902 |
ZZE130,131..NAP |
1 | ||
| 57606D - MEMBER SUB-ASSY, REAR ABSORBER MOUNTING | ||||
| 57606-02050 |
ZZE130..NAP |
1 | ||
| 57606-02050 |
ZZE130..NAP |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-02908 |
ZZE130..NAP |
1 | ||
| 57615-02908 |
ZZE130..NAP |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-02907 |
ZZE130..NAP |
1 | ||
| 57616-02907 |
ZZE130..NAP |
1 | ||
| Common parts | ||||
| 90080-11710 | ||||
| 90119-A0091 | ||||
| Linked diagrams | ||||
| 5701 | ||||

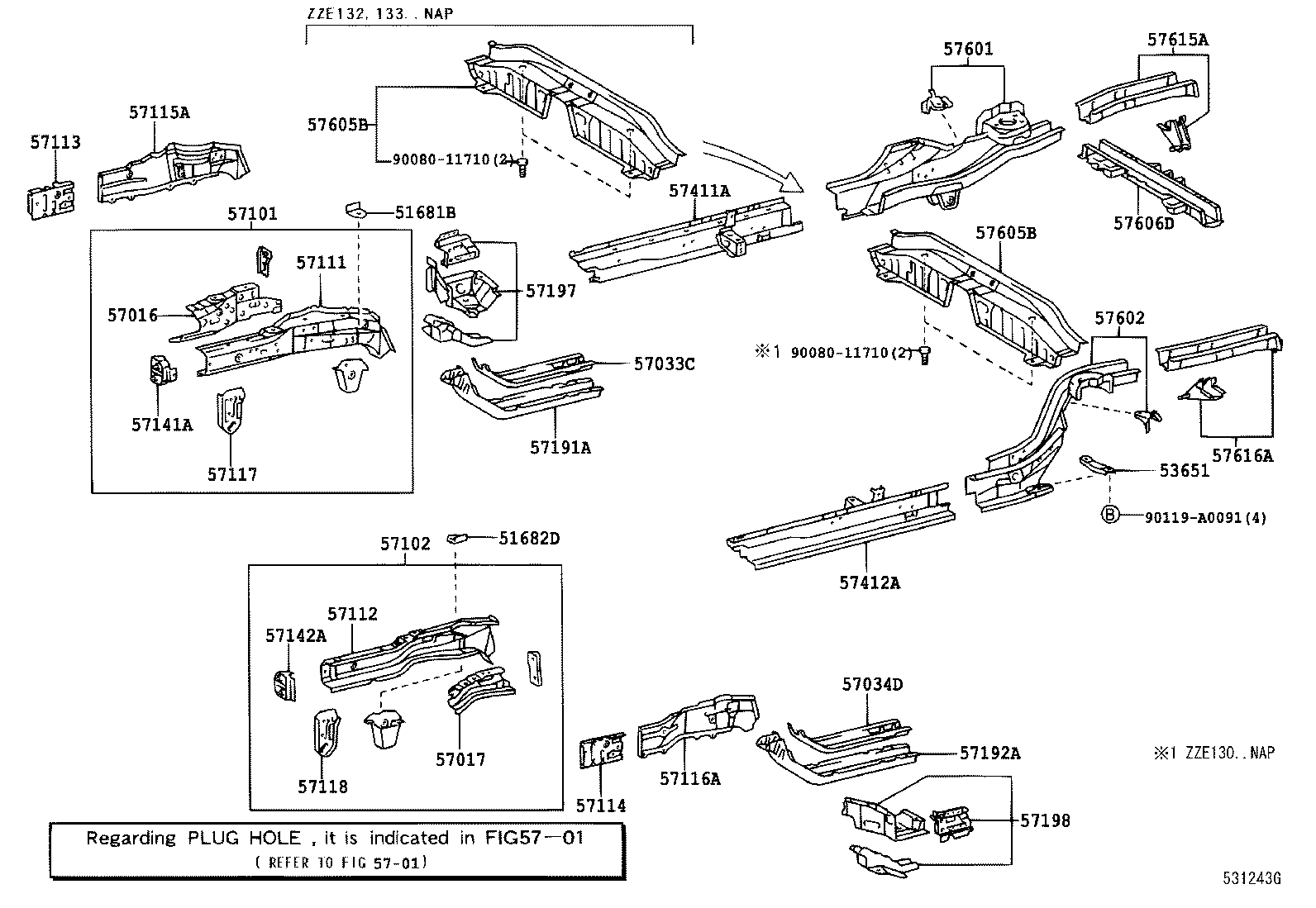

(0405- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51681B - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH | ||||
| 51681-02020 |
ZZE130..NAP |
1 | ||
| 51681-02020 |
ZZE130..NAP |
1 | ||
| 51682D - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH | ||||
| 51682-02020 |
ZZE130..NAP |
1 | ||
| 51682-02020 |
ZZE130..NAP |
1 | ||
| 53651 - BRACE, REAR FLOOR SIDE MEMBER | ||||
| 53651-32010 |
ZZE130..NAP |
2 | ||
| 53651-32010 |
ZZE130..NAP |
2 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-02070 |
ZZE130..NAP |
1 | ||
| 57016-02070 |
ZZE130..NAP |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-02060 |
ZZE130..NAP |
1 | ||
| 57017-02060 |
ZZE130..NAP |
1 | ||
| 57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57033-02030 |
ZZE130..NAP |
1 | ||
| 57033-02030 |
ZZE130..NAP |
1 | ||
| 57034D - REINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH | ||||
| 57034-02030 |
ZZE130..NAP |
1 | ||
| 57034-02030 |
ZZE130..NAP |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-02902 |
ZZE130..NAP |
1 | ||
| 57101-02902 |
ZZE130,131..NAP |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-02904 |
ZZE130..NAP |
1 | ||
| 57102-01903 |
ZZE130..NAP..4FC |
1 | ||
| 57102-02904 |
ZZE130..NAP..4FC |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-02050 |
ZZE130..NAP |
1 | ||
| 57111-02050 |
ZZE130..NAP |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-02080 |
ZZE130..NAP |
1 | ||
| 57112-02080 |
ZZE130..NAP |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-02040 |
ZZE130..NAP |
1 | ||
| 57113-02040 |
ZZE130..NAP |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-02040 |
ZZE130..NAP |
1 | ||
| 57114-02040 |
ZZE130..NAP |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-02030 |
ZZE130..NAP |
1 | ||
| 57115-02030 |
ZZE130..NAP |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-02030 |
ZZE130..NAP |
1 | ||
| 57116-02030 |
ZZE130..NAP |
1 | ||
| 57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH | ||||
| 57117-02010 |
ZZE130..NAP |
1 | ||
| 57117-02010 |
ZZE130..NAP |
1 | ||
| 57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH | ||||
| 57118-02010 |
ZZE130..NAP |
1 | ||
| 57118-02010 |
ZZE130..NAP |
1 | ||
| 57141A - SUPPORT, FRONT BUMPER ARM, RH | ||||
| 57141-02020 |
ZZE130..NAP |
1 | ||
| 57141-02020 |
ZZE130..NAP |
1 | ||
| 57142A - SUPPORT, FRONT BUMPER ARM, LH | ||||
| 57142-02010 |
ZZE130..NAP |
1 | ||
| 57142-02010 |
ZZE130..NAP |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-02090 |
ZZE130..NAP |
1 | ||
| 57191-02090 |
ZZE130..NAP |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-02090 |
ZZE130..NAP |
1 | ||
| 57192-02090 |
ZZE130..NAP |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57107-02900 |
ZZE130..NAP |
1 | ||
| 57107-02900 |
ZZE130..NAP |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-02900 |
ZZE130..NAP |
1 | ||
| 57198-02900 |
ZZE130..NAP |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-02100 |
ZZE130,131..NAP |
1 | ||
| 57401-02100 |
ZZE130..NAP |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-02100 |
ZZE130,131..NAP |
1 | ||
| 57402-02100 |
ZZE130..NAP |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-02910 |
ZZE130..NAP |
1 | ||
| 57601-02910 |
ZZE130,131..NAP |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-02909 |
ZZE130,131..NAP |
1 | ||
| 57602-02909 |
ZZE130..NAP W(SEPARATE REAR SEAT) |
1 | ||
| 57602-02908 |
ZZE130..NAP..(LE,S) |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-02902 |
ZZE130..NAP |
1 | ||
| 57605-02902 |
ZZE130,131..NAP |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-02902 |
ZZE130..NAP |
1 | ||
| 57605-02902 |
ZZE130,131..NAP |
1 | ||
| 57606D - MEMBER SUB-ASSY, REAR ABSORBER MOUNTING | ||||
| 57606-02050 |
ZZE130..NAP |
1 | ||
| 57606-02050 |
ZZE130..NAP |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-02908 |
ZZE130..NAP |
1 | ||
| 57615-02908 |
ZZE130..NAP |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-02907 |
ZZE130..NAP |
1 | ||
| 57616-02907 |
ZZE130..NAP |
1 | ||
| Common parts | ||||
| 90080-11710 | ||||
| 90119-A0091 | ||||
| Linked diagrams | ||||
| 5701 | ||||
