Toyota Corolla/matrix (nap) ZZE130 AIR BAG

ZZE130L-DEPNKK (2002)

Toyota Corolla/Matrix (Nap)

Production Jan 2002 - Jan 2008

Engine 1ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0201-0405)NAP

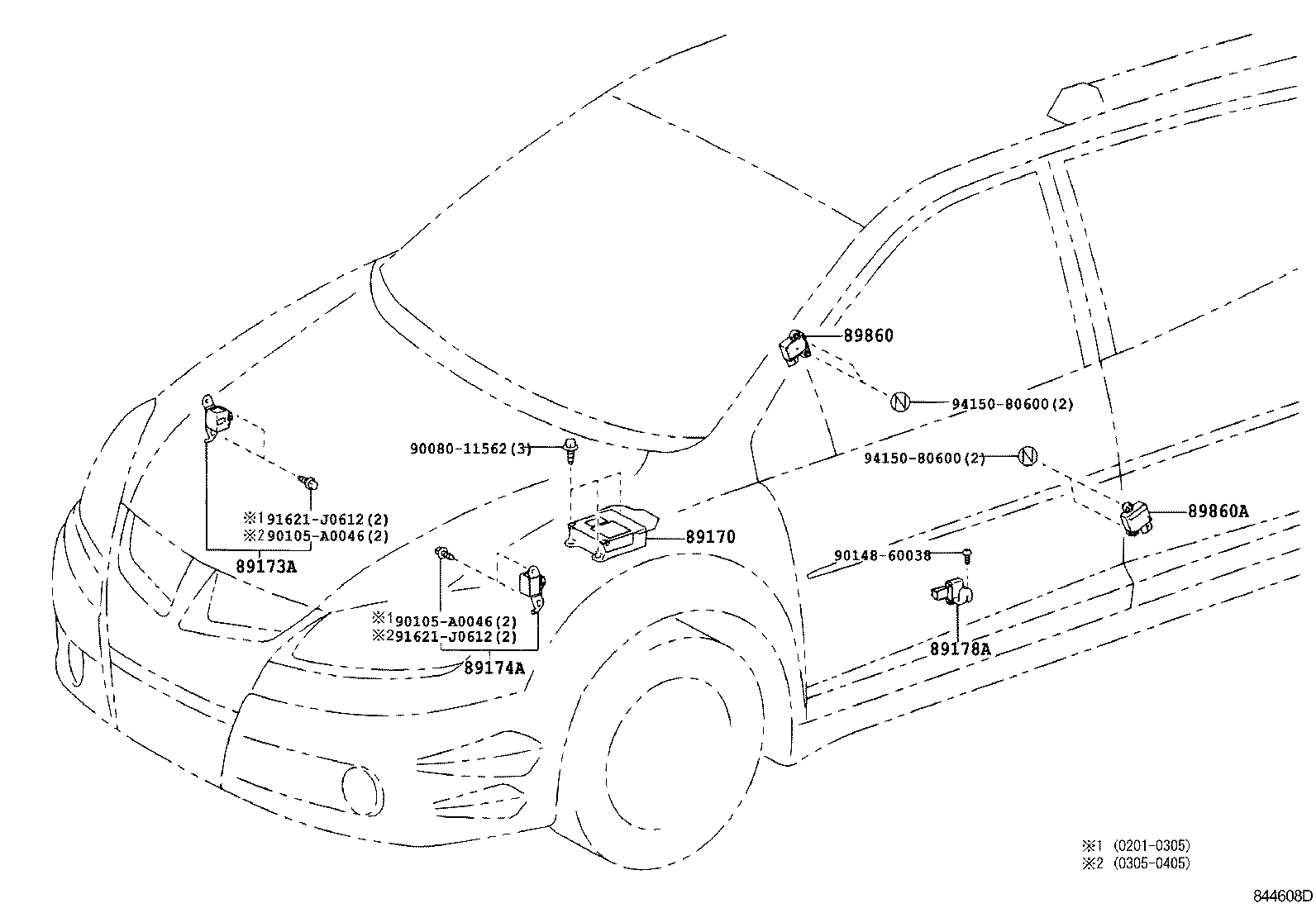

Click highlighted areas on diagram

Part #	Description	Period	Qty
89170 - SENSOR ASSY, AIR BAG
89170-02190	ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND	01/2002 - 05/2004	1
89170-02200	ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(SIDE AIR BAG)	01/2002 - 05/2004	1
89170-02420	ZZE130,131..NAP W(SIDE AIR BAG)	05/2004 - 08/2006	1
89170-02421	ZZE130..NAP W(SIDE AIR BAG)	09/2006 - 01/2008	1
89170-02411	ZZE130..NAP	09/2006 - 01/2008	1
89170-02410	ZZE130,131..NAP	05/2004 - 08/2006	1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09120	ZZE130,131..NAP	05/2004 - 01/2008	1
89173-19305	ZZE130..NAP..4FC..CND;ZZE130..NAP..5F..(CE,S)..CND	01/2002 - 05/2004	1
89174A - SENSOR, AIR BAG, FRONT LH
89174-19105	ZZE130..NAP..4FC..CND;ZZE130..NAP..5F..(CE,S)..CND	01/2002 - 05/2004	1
89173-09120	ZZE130,131..NAP	05/2004 - 01/2008	1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-33020	ZZE130,131..NAP	05/2004 - 02/2006	1
89178-06030	ZZE130..NAP	02/2006 - 12/2999	1
89178-06020	ZZE130..NAP	01/2002 - 05/2004	1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-02040	ZZE130..NAP	01/2002 - 05/2004	1
89831-02040	ZZE130..NAP NO.2	05/2004 - 12/2999	1
89831-02030	ZZE130..NAP NO.1	05/2004 - 12/2999	1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89860-02040	ZZE130..NAP	01/2002 - 05/2004	1
89831-02040	ZZE130..NAP NO.2	05/2004 - 12/2999	1
89831-02030	ZZE130..NAP NO.1	05/2004 - 12/2999	1
Common parts
90080-11562
90105-A0046
90148-60038
91621-J0612
94150-80600

(0405- )NAP

Click highlighted areas on diagram

Part #	Description	Period	Qty
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-02010	ZZE130..NAP (L)	05/2004 - 12/2999	1
72277-33010	ZZE130..NAP (J)	05/2004 - 12/2999	1
89170 - SENSOR ASSY, AIR BAG
89170-02190	ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND	01/2002 - 05/2004	1
89170-02200	ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(SIDE AIR BAG)	01/2002 - 05/2004	1
89170-02420	ZZE130,131..NAP W(SIDE AIR BAG)	05/2004 - 08/2006	1
89170-02421	ZZE130..NAP W(SIDE AIR BAG)	09/2006 - 01/2008	1
89170-02411	ZZE130..NAP	09/2006 - 01/2008	1
89170-02410	ZZE130,131..NAP	05/2004 - 08/2006	1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09120	ZZE130,131..NAP	05/2004 - 01/2008	1
89173-19305	ZZE130..NAP..4FC..CND;ZZE130..NAP..5F..(CE,S)..CND	01/2002 - 05/2004	1
89174A - SENSOR, AIR BAG, FRONT LH
89174-19105	ZZE130..NAP..4FC..CND;ZZE130..NAP..5F..(CE,S)..CND	01/2002 - 05/2004	1
89173-09120	ZZE130,131..NAP	05/2004 - 01/2008	1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-33020	ZZE130,131..NAP	05/2004 - 02/2006	1
89178-06030	ZZE130..NAP	02/2006 - 12/2999	1
89178-06020	ZZE130..NAP	01/2002 - 05/2004	1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-02040	ZZE130..NAP	01/2002 - 05/2004	1
89831-02040	ZZE130..NAP NO.2	05/2004 - 12/2999	1
89831-02030	ZZE130..NAP NO.1	05/2004 - 12/2999	1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-02040	ZZE130..NAP	01/2002 - 05/2004	1
89831-02040	ZZE130..NAP NO.2	05/2004 - 12/2999	1
89831-02030	ZZE130..NAP NO.1	05/2004 - 12/2999	1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89860-02040	ZZE130..NAP	01/2002 - 05/2004	1
89831-02040	ZZE130..NAP NO.2	05/2004 - 12/2999	1
89831-02030	ZZE130..NAP NO.1	05/2004 - 12/2999	1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-02030	ZZE130..NAP NO.1	05/2004 - 12/2999	1
89860-02040	ZZE130..NAP	01/2002 - 05/2004	1
89831-02040	ZZE130..NAP NO.2	05/2004 - 12/2999	1
89952 - COMPUTER, OCCUPANT DETECTION
89952-33011	ZZE130,131..NAP	06/2004 - 04/2005	1
89952-35011	ZZE130,131..NAP	05/2005 - 01/2008	1
89952-33010	ZZE130,131..NAP	05/2004 - 06/2004	1
Common parts
72702-AA010
90080-11562
90105-A0031
90178-A0023
