ZZE130L-DEPNKK (2002)
Toyota Corolla/Matrix (Nap)

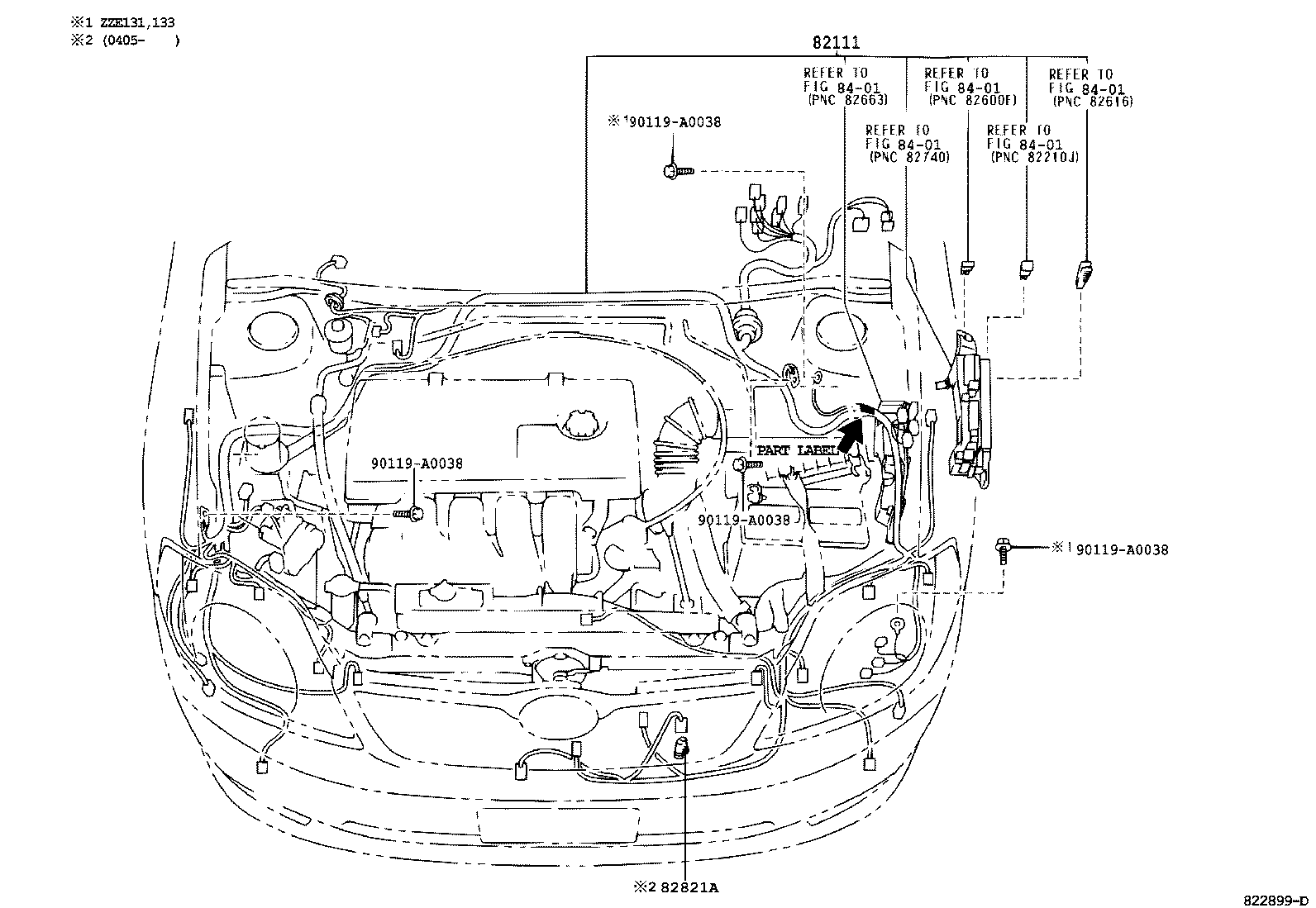

ILLUST NO. 1 OF 7(0201- )NAP
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82116-02230 |
ZZE130..NAP PART NUMBER LABEL=82116-02230 |
1 | ||
| 82116-02241 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND PART NUMBER LABEL=82116-02241 |
1 | ||
| 82116-02261 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND PART NUMBER LABEL=82116-02261 |
1 | ||
| 82116-02260 |
ZZE130..NAP PART NUMBER LABEL=82116-02260 |
1 | ||
| 82116-02240 |
ZZE130..NAP PART NUMBER LABEL=82116-02240 |
1 | ||
| 82116-02250 |
ZZE130..NAP PART NUMBER LABEL=82116-02250 |
1 | ||
| 82116-02231 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND PART NUMBER LABEL=82116-02231 |
1 | ||
| 82116-02251 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND PART NUMBER LABEL=82116-02251 |
1 | ||
| 82111-02D20 |
ZZE130..NAP..4FC PART NUMBER LABEL=82111-02D20 |
1 | ||
| 82111-02C90 |
ZZE130..NAP..4FC PART NUMBER LABEL=82111-02C90 |
1 | ||
| 82111-02D21 |
ZZE130..NAP..4FC PART NUMBER LABEL=82111-02D21 |
1 | ||
| 82111-02C91 |
ZZE130..NAP..4FC PART NUMBER LABEL=82111-02C91 |
1 | ||
| 82111-02D40 |
ZZE130..NAP..4FC..(LE,S) PART NUMBER LABEL=82111-02D40 |
1 | ||
| 82111-02D41 |
ZZE130..NAP..4FC..(LE,S) PART NUMBER LABEL=82111-02D41 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-10050 |
ZZE130..NAP |
1 | ||
| Common parts | ||||
| 90119-A0038 | ||||
| Linked diagrams | ||||
| 8401 | ||||

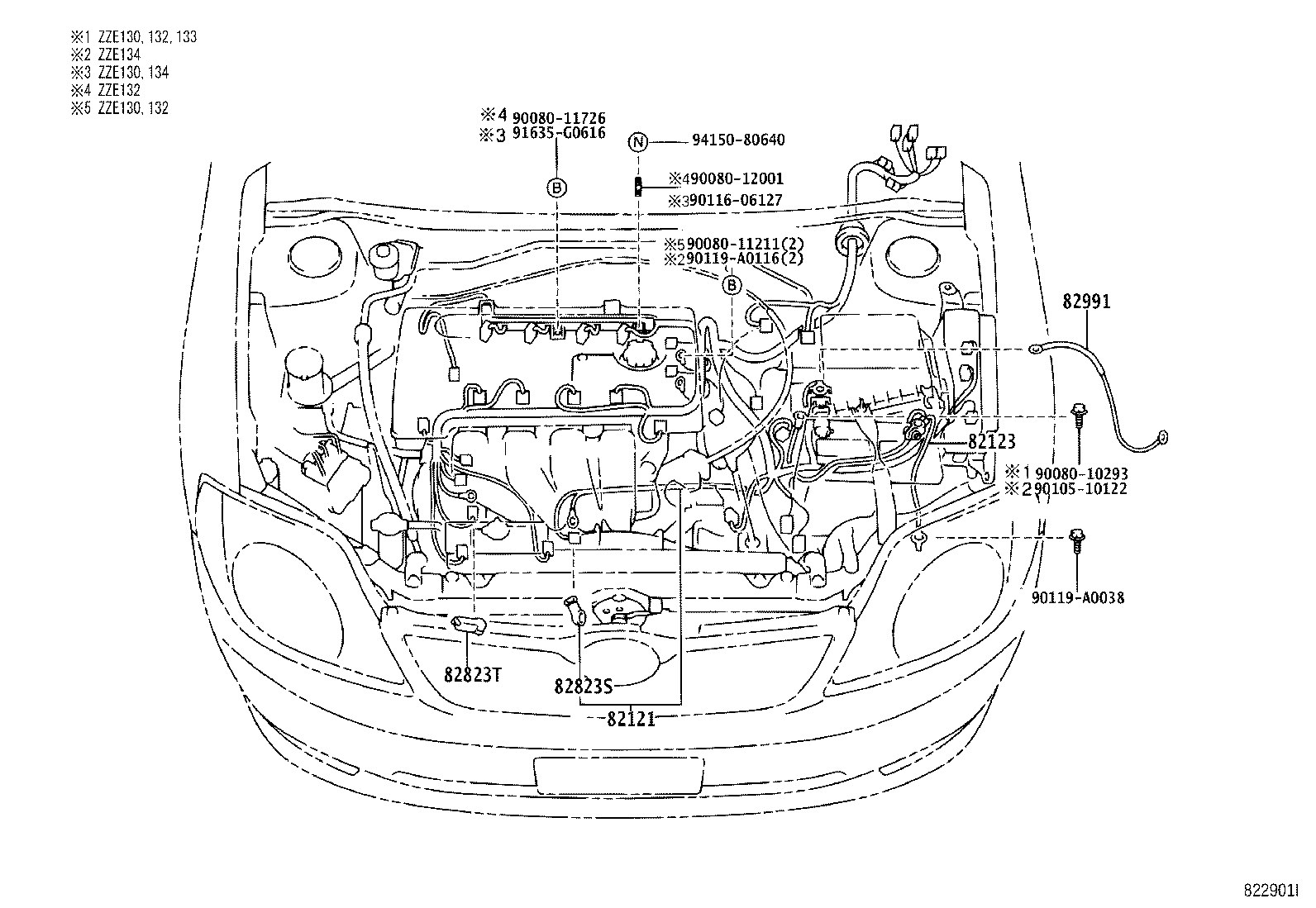

ILLUST NO. 2 OF 7(0201- )ZZE130,132,134..NAP
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82126-02020 |
ZZE130..NAP..4FC |
1 | ||
| 82126-02030 |
ZZE130..NAP..4FC W(ABS) |
1 | ||
| 82121-02C70 |
ZZE130..NAP..4FC |
1 | ||
| 82121-02C60 |
ZZE130..NAP..4FC W(ABS) |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02250 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 82123-02250 |
ZZE130..NAP |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12090 |
ZZE130,131..NAP |
1 | ||
| 82823-12090 |
ZZE130..NAP |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ZZE130,131..NAP |
1 | ||
| 82823-22050 |
ZZE130..NAP |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12090 |
ZZE130..NAP |
1 | ||
| 82991-12090 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| Common parts | ||||
| 90080-10293 | ||||
| 90080-11211 | ||||
| 90080-11726 | ||||
| 90080-12001 | ||||
| 90105-10122 | ||||
| 90116-06127 | ||||
| 90119-A0038 | ||||
| 90119-A0116 | ||||
| 91635-G0616 | ||||
| 94150-80640 | ||||

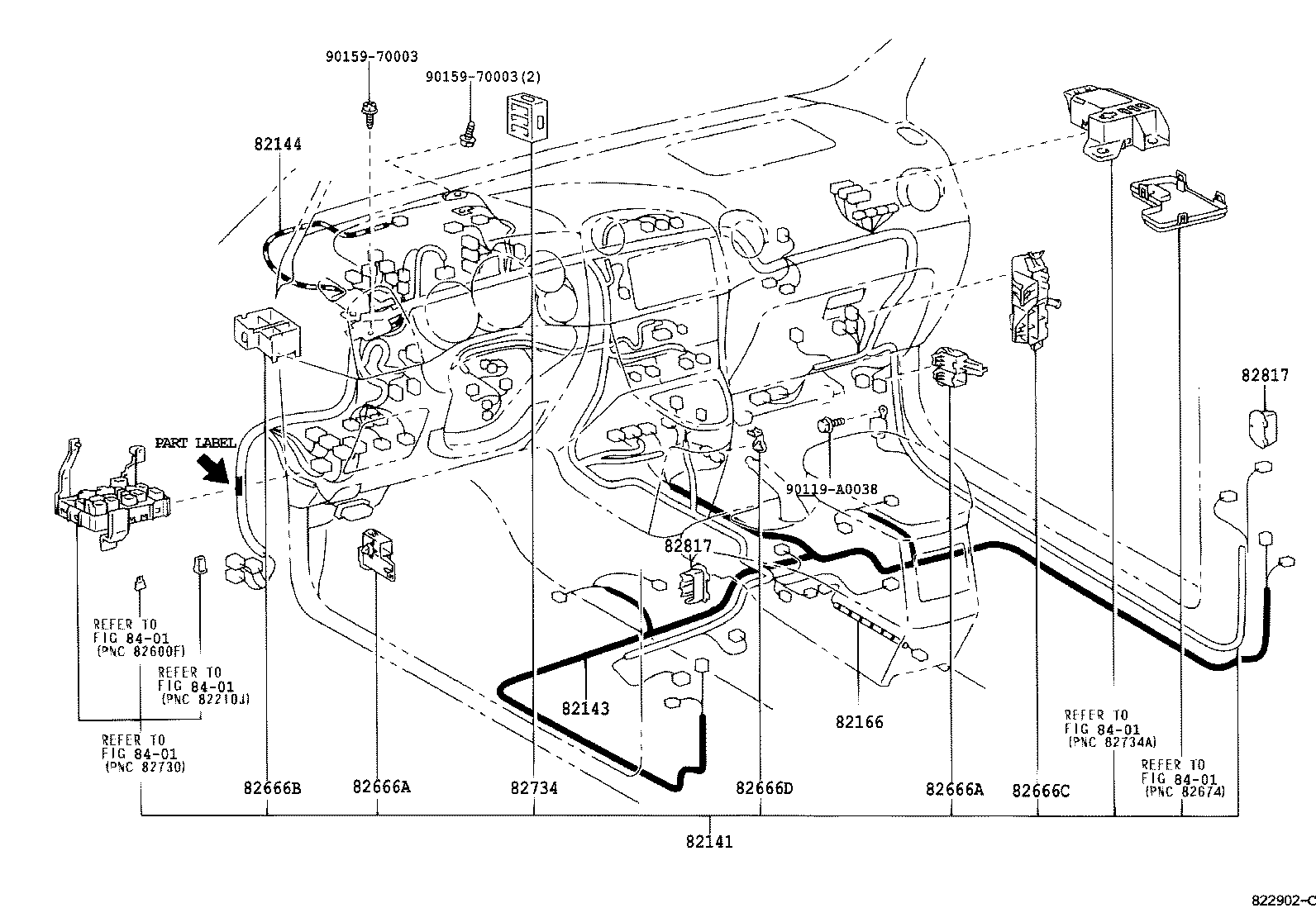

ILLUST NO. 3 OF 7(0201- )NAP
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82117-02600 |
ZZE130..NAP..CND |
1 | ||
| 82117-02590 |
ZZE130..NAP..CND W(POWER DOOR LOCK) |
1 | ||
| 82138-02060 |
ZZE130..NAP..CND W(ANTI-THEFT DEVICE & KEY LESS ENTRY & POWER DOOR LOCK) |
1 | ||
| 82117-02601 |
ZZE130..4FC..CND;ZZE130..5F..(CE,S)..CND |
1 | ||
| 82138-02061 |
ZZE130..4FC..CND;ZZE130..5F..(CE,S)..CND W(ANTI-THEFT DEVICE & KEY LESS ENTRY & POWER DOOR LOCK) |
1 | ||
| 82117-02591 |
ZZE130..4FC..CND;ZZE130..5F..(CE,S)..CND W(POWER DOOR LOCK) |
1 | ||
| 82141-02G10 |
ZZE130..NAP..CND PART NUMBER LABEL=82141-02G10 |
1 | ||
| 82141-02G30 |
ZZE130..NAP..(LE,S)..CND PART NUMBER LABEL=82141-02G30 |
1 | ||
| 82141-02G20 |
ZZE130..NAP..CND PART NUMBER LABEL=82141-02G20 |
1 | ||
| 82141-02G50 |
ZZE130..NAP..CND PART NUMBER LABEL=82141-02G50 |
1 | ||
| 82141-02G40 |
ZZE130..NAP..(LE,S)..CND PART NUMBER LABEL=82141-02G40 |
1 | ||
| 82141-02K20 |
ZZE130..NAP..4FC..(LE,S)..CND PART NUMBER LABEL=82141-02K20 |
1 | ||
| 82141-02K00 |
ZZE130..NAP..4FC..(LE,S)..CND PART NUMBER LABEL=82141-02K00 |
1 | ||
| 82141-02K10 |
ZZE130..NAP..4FC..(LE,S)..CND PART NUMBER LABEL=82141-02K10 |
1 | ||
| 82141-02G11 |
ZZE130..NAP..CND PART NUMBER LABEL=82141-02G11 |
1 | ||
| 82141-02K30 |
ZZE130..NAP..4FC..(LE,S)..CND PART NUMBER LABEL=82141-02K30 |
1 | ||
| 82141-02G21 |
ZZE130..NAP..CND PART NUMBER LABEL=82141-02G21 |
1 | ||
| 82141-02K01 |
ZZE130..NAP..4FC..(LE,S)..CND PART NUMBER LABEL=82141-02K01 |
1 | ||
| 82141-02G41 |
ZZE130..NAP..(LE,S)..CND PART NUMBER LABEL=82141-02G41 |
1 | ||
| 82141-02G51 |
ZZE130..NAP..CND PART NUMBER LABEL=82141-02G51 |
1 | ||
| 82141-02K21 |
ZZE130..NAP..4FC..(LE,S)..CND PART NUMBER LABEL=82141-02K21 |
1 | ||
| 82141-02G31 |
ZZE130..NAP..(LE,S)..CND PART NUMBER LABEL=82141-02G31 |
1 | ||
| 82141-02K11 |
ZZE130..NAP..4FC..(LE,S)..CND PART NUMBER LABEL=82141-02K11 |
1 | ||
| 82141-02K31 |
ZZE130..NAP..4FC..(LE,S)..CND PART NUMBER LABEL=82141-02K31 |
1 | ||
| 82141-02G12 |
ZZE130..NAP..CND PART NUMBER LABEL=82141-02G12 |
1 | ||
| 82141-02G42 |
ZZE130..NAP..(LE,S)..CND PART NUMBER LABEL=82141-02G42 |
1 | ||
| 82141-02K02 |
ZZE130..NAP..4FC..(LE,S)..CND PART NUMBER LABEL=82141-02K02 |
1 | ||
| 82141-02G22 |
ZZE130..NAP..CND PART NUMBER LABEL=82141-02G22 |
1 | ||
| 82141-02K22 |
ZZE130..NAP..4FC..(LE,S)..CND PART NUMBER LABEL=82141-02K22 |
1 | ||
| 82141-02K32 |
ZZE130..NAP..4FC..(LE,S)..CND PART NUMBER LABEL=82141-02K32 |
1 | ||
| 82141-02G32 |
ZZE130..NAP..(LE,S)..CND PART NUMBER LABEL=82141-02G32 |
1 | ||
| 82141-02G33 |
ZZE130..NAP..(LE,S)..CND PART NUMBER LABEL=82141-02G33 |
1 | ||
| 82141-02G43 |
ZZE130..NAP..(LE,S)..CND PART NUMBER LABEL=82141-02G43 |
1 | ||
| 82141-02G13 |
ZZE130..NAP..CND PART NUMBER LABEL=82141-02G13 |
1 | ||
| 82141-02G52 |
ZZE130..NAP..CND PART NUMBER LABEL=82141-02G52 |
1 | ||
| 82141-02K12 |
ZZE130..NAP..4FC..(LE,S)..CND PART NUMBER LABEL=82141-02K12 |
1 | ||
| 82141-02G53 |
ZZE130..NAP..CND PART NUMBER LABEL=82141-02G53 |
1 | ||
| 82141-02G23 |
ZZE130..NAP..CND PART NUMBER LABEL=82141-02G23 |
1 | ||
| 82141-02K23 |
ZZE130..NAP..4FC..(LE,S)..CND PART NUMBER LABEL=82141-02K23 |
1 | ||
| 82141-02K33 |
ZZE130..NAP..4FC..(LE,S)..CND PART NUMBER LABEL=82141-02K33 |
1 | ||
| 82141-02K13 |
ZZE130..NAP..4FC..(LE,S)..CND PART NUMBER LABEL=82141-02K13 |
1 | ||
| 82141-02K03 |
ZZE130..NAP..4FC..(LE,S)..CND PART NUMBER LABEL=82141-02K03 |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-02120 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 82143-02130 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(SRS AIR BAG) |
1 | ||
| 82143-02080 |
ZZE130..NAP |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-02010 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 82166-02010 |
ZZE130..NAP |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-02130 |
ZZE130..NAP |
2 | ||
| 82666-02130 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-02130 |
ZZE130..NAP |
2 | ||
| 82666-02130 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-02140 |
ZZE130..NAP |
1 | ||
| 82666-02140 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-02150 |
ZZE130..NAP |
1 | ||
| 82666-02150 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-02160 |
ZZE130..NAP |
1 | ||
| 82666-02160 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-02020 |
ZZE130..NAP |
1 | ||
| 82734-02020 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-02190 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND RH |
1 | ||
| 82817-02230 |
ZZE130..NAP LH |
1 | ||
| 82817-02230 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND LH |
1 | ||
| 82817-02190 |
ZZE130..NAP RH |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-02190 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND RH |
1 | ||
| 82817-02230 |
ZZE130..NAP LH |
1 | ||
| 82817-02230 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND LH |
1 | ||
| 82817-02190 |
ZZE130..NAP RH |
1 | ||
| Common parts | ||||
| 90119-A0038 | ||||
| 90159-70003 | ||||
| Linked diagrams | ||||
| 8401 | ||||

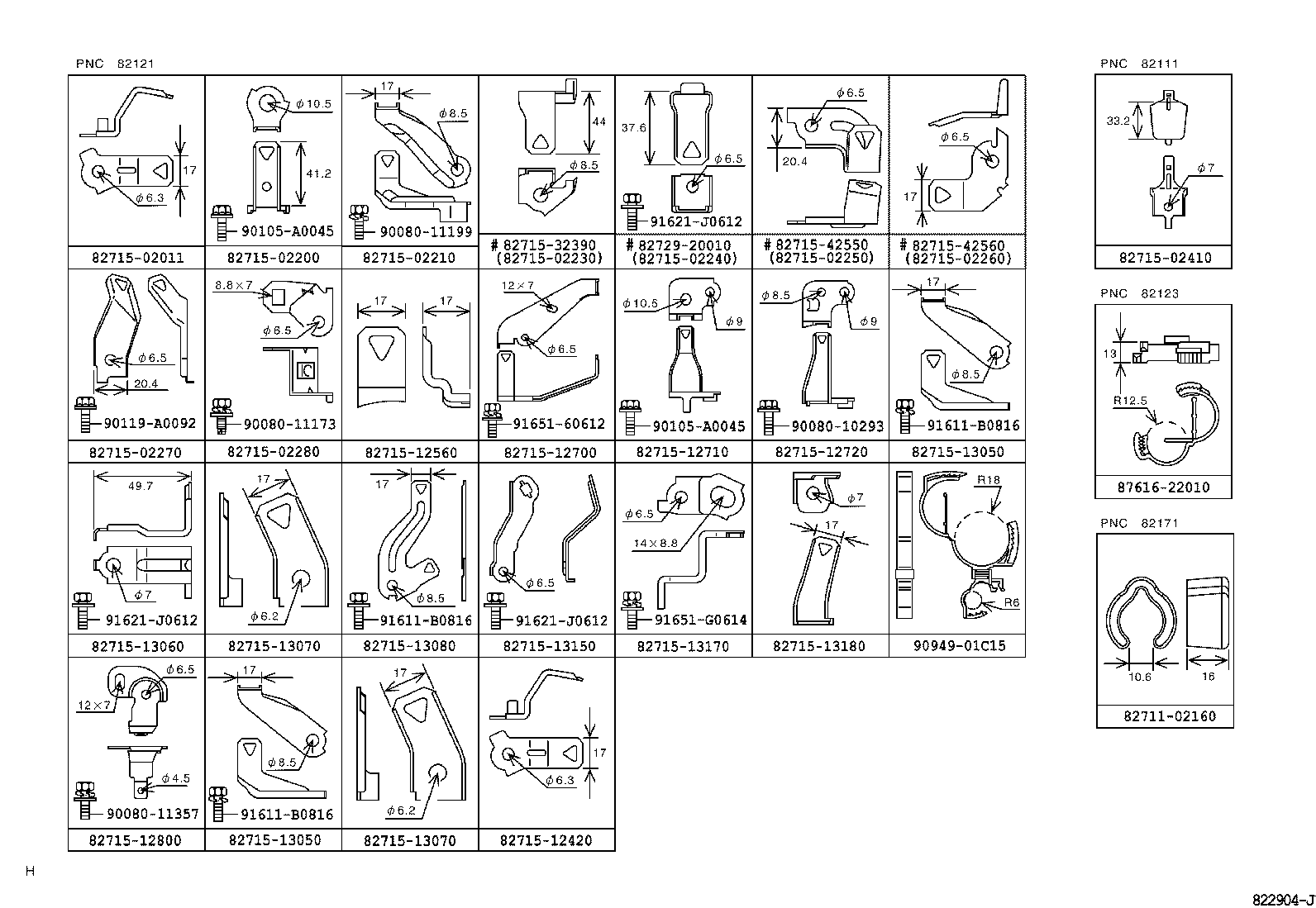

ILLUST NO. 5 OF 7(0201- )NAP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-02160 | ||||
| 82715-02011 | ||||
| 82715-02200 | ||||
| 82715-02210 | ||||
| 82715-02230 | ||||
| 82715-02240 | ||||
| 82715-02250 | ||||
| 82715-02260 | ||||
| 82715-02270 | ||||
| 82715-02280 | ||||
| 82715-02410 | ||||
| 82715-12420 | ||||
| 82715-12560 | ||||
| 82715-12700 | ||||
| 82715-12710 | ||||
| 82715-12720 | ||||
| 82715-12800 | ||||
| 82715-13050 | ||||
| 82715-13060 | ||||
| 82715-13070 | ||||
| 82715-13080 | ||||
| 82715-13150 | ||||
| 82715-13170 | ||||
| 82715-13180 | ||||
| 82715-32390 | ||||
| 82715-42550 | ||||
| 82715-42560 | ||||
| 82729-20010 | ||||
| 87616-22010 | ||||
| 90080-10293 | ||||
| 90080-11173 | ||||
| 90080-11199 | ||||
| 90080-11357 | ||||
| 90105-A0045 | ||||
| 90119-A0092 | ||||
| 90949-01C15 | ||||
| 91611-B0816 | ||||
| 91621-J0612 | ||||
| 91651-60612 | ||||
| 91651-G0614 | ||||

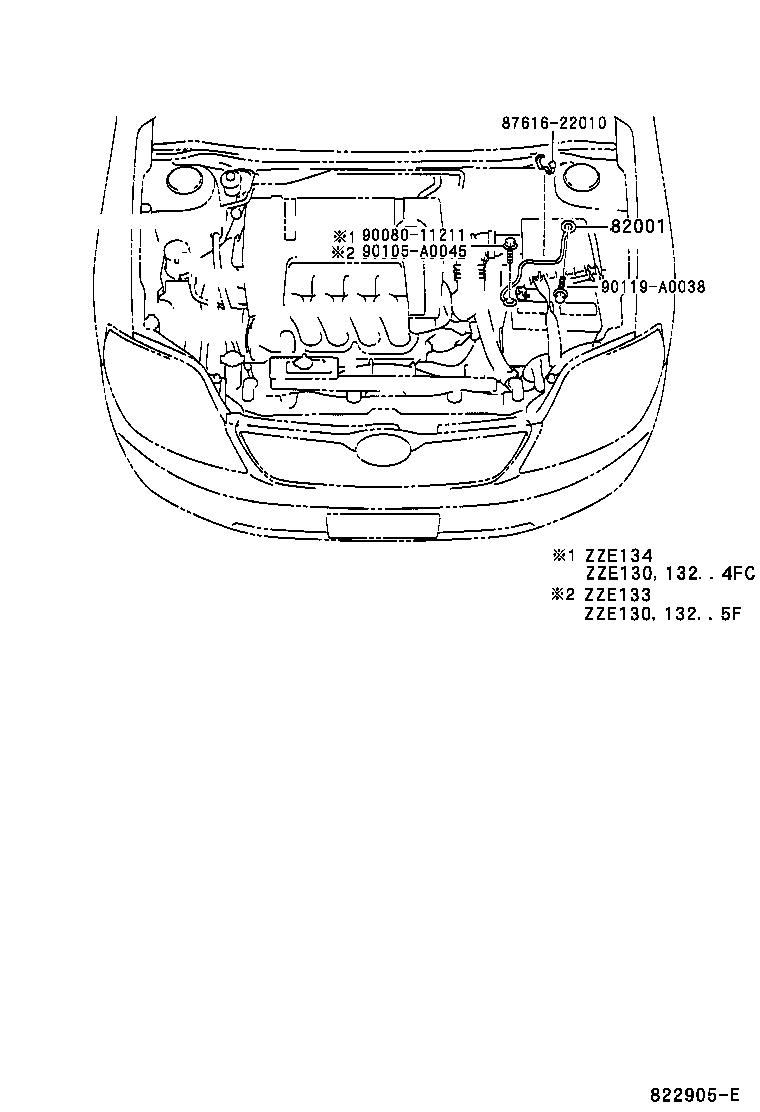

ILLUST NO. 6 OF 7(0201- )NAP
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07324 |
ZZE130..NAP..4FC |
1 | ||
| 90980-07324 |
ZZE130..NAP..4FC |
1 | ||
| Common parts | ||||
| 87616-22010 | ||||
| 90080-11211 | ||||
| 90105-A0045 | ||||
| 90119-A0038 | ||||

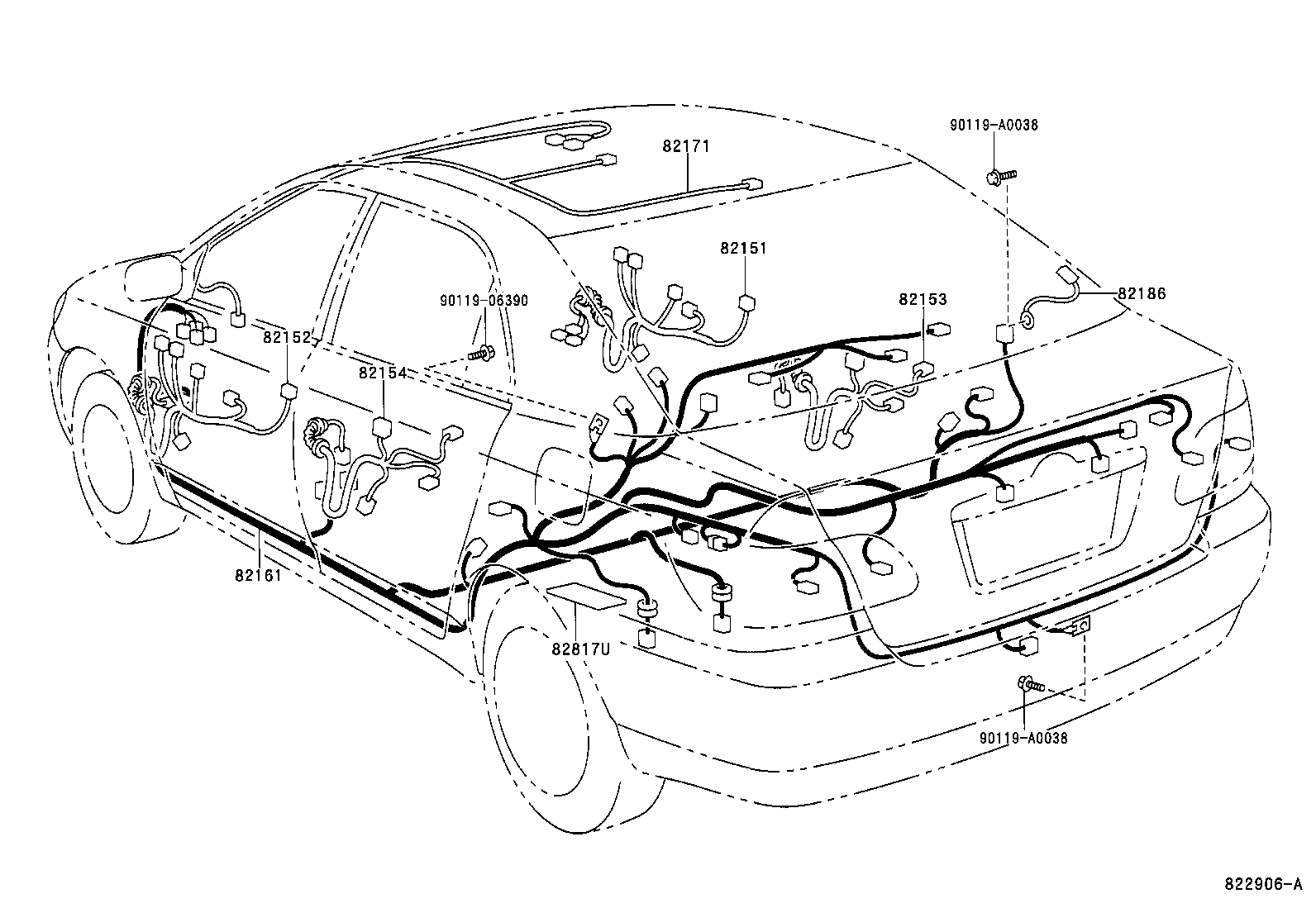

ILLUST NO. 4 OF 7(0201-0405)ZZE130..NAP
DOOR,FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82197-02160 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 82197-02140 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82197-02150 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK) |
1 | ||
| 82197-02170 |
ZZE130..5F..S..CND;ZZE130..4FC..(LE,S);ZZE130..5F..(LE,S)..USA W(POWER DOOR LOCK & POWER WINDOW & TWEETER SPEAKER) |
1 | ||
| 82151-02A50 |
ZZE130..NAP..(LE,S) W(POWER DOOR LOCK & POWER WINDOW & 8 SPEAKER) |
1 | ||
| 82151-02A60 |
ZZE130..NAP W(POWER DOOR LOCK) |
1 | ||
| 82151-02A30 |
ZZE130..NAP W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82151-02A80 |
ZZE130..NAP |
1 | ||
| 82151-02A40 |
ZZE130..NAP..(LE,S) W(POWER DOOR LOCK & POWER WINDOW & 6 SPEAKER) |
1 | ||
| 82151-02A70 |
ZZE130..NAP..(LE,S) W(POWER DOOR LOCK & 8 SPEAKER) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82198-02050 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82198-02070 |
ZZE130..5F..S..CND;ZZE130..4FC..(LE,S);ZZE130..5F..(LE,S)..USA W(POWER DOOR LOCK & POWER WINDOW & TWEETER SPEAKER) |
1 | ||
| 82197-02160 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 82198-02060 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK) |
1 | ||
| 82152-02A40 |
ZZE130..NAP..(LE,S) W(POWER DOOR LOCK & POWER WINDOW & 8 SPEAKER) |
1 | ||
| 82152-02A30 |
ZZE130..NAP..(LE,S) W(POWER DOOR LOCK & POWER WINDOW & 6 SPEAKER) |
1 | ||
| 82152-02A70 |
ZZE130..NAP |
1 | ||
| 82152-02A60 |
ZZE130..NAP..(LE,S) W(POWER DOOR LOCK & 8 SPEAKER) |
1 | ||
| 82152-02A20 |
ZZE130..NAP W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82152-02A50 |
ZZE130..NAP W(POWER DOOR LOCK) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-02290 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK) |
1 | ||
| 82153-02280 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82153-02380 |
ZZE130..NAP;ZZE131..NAP..CND W(POWER WINDOW) |
1 | ||
| 82153-02390 |
ZZE130..NAP;ZZE131..NAP..CND |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-02280 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82153-02290 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK) |
1 | ||
| 82153-02380 |
ZZE130..NAP;ZZE131..NAP..CND W(POWER WINDOW) |
1 | ||
| 82153-02390 |
ZZE130..NAP;ZZE131..NAP..CND |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-02830 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK) |
1 | ||
| 82161-02860 |
ZZE130..NAP W(ABS & POWER DOOR LOCK) |
1 | ||
| 82161-02840 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(ABS) |
1 | ||
| 82199-02110 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(ANTI-THEFT DEVICE & KEY LESS ENTRY & POWER DOOR LOCK) |
1 | ||
| 82161-02850 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 82161-02870 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK & POWER WINDOW) OR W(POWER DOOR ROCK & REAR SPOILER) |
1 | ||
| 82161-02C50 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02C50 |
1 | ||
| 82161-02D20 |
ZZE130..NAP PART NUMBER LABEL=82161-02D20 |
1 | ||
| 82161-02C60 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02C60 |
1 | ||
| 82161-02C90 |
ZZE130..NAP PART NUMBER LABEL=82161-02C90 |
1 | ||
| 82161-02D30 |
ZZE130..NAP PART NUMBER LABEL=82161-02D30 |
1 | ||
| 82161-02C40 |
ZZE130,131..NAP PART NUMBER LABEL=82161-02C40 |
1 | ||
| 82161-02C80 |
ZZE130..NAP PART NUMBER LABEL=82161-02C80 |
1 | ||
| 82161-02D00 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02D00 |
1 | ||
| 82161-02D40 |
ZZE130..NAP PART NUMBER LABEL=82161-02D40 |
1 | ||
| 82161-02D50 |
ZZE130..NAP PART NUMBER LABEL=82161-02D50 |
1 | ||
| 82161-02D11 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02D11 |
1 | ||
| 82161-02C41 |
ZZE130,131..NAP PART NUMBER LABEL=82161-02C41 |
1 | ||
| 82161-02C70 |
ZZE130..NAP PART NUMBER LABEL=82161-02C70 |
1 | ||
| 82161-02C32 |
ZZE130..NAP PART NUMBER LABEL=82161-02C32 |
1 | ||
| 82161-02C31 |
ZZE130,131..NAP PART NUMBER LABEL=82161-02C31 |
1 | ||
| 82161-02C81 |
ZZE130..NAP PART NUMBER LABEL=82161-02C81 |
1 | ||
| 82161-02C51 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02C51 |
1 | ||
| 82161-02D41 |
ZZE130..NAP PART NUMBER LABEL=82161-02D41 |
1 | ||
| 82161-02D21 |
ZZE130..NAP PART NUMBER LABEL=82161-02D21 |
1 | ||
| 82161-02C91 |
ZZE130..NAP PART NUMBER LABEL=82161-02C91 |
1 | ||
| 82161-02D10 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02D10 |
1 | ||
| 82161-02C30 |
ZZE130,131..NAP PART NUMBER LABEL=82161-02C30 |
1 | ||
| 82161-02C62 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02C62 |
1 | ||
| 82161-02C61 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02C61 |
1 | ||
| 82161-02C52 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02C52 |
1 | ||
| 82161-02D01 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02D01 |
1 | ||
| 82161-02C71 |
ZZE130..NAP PART NUMBER LABEL=82161-02C71 |
1 | ||
| 82161-02C92 |
ZZE130..NAP PART NUMBER LABEL=82161-02C92 |
1 | ||
| 82161-02D31 |
ZZE130..NAP PART NUMBER LABEL=82161-02D31 |
1 | ||
| 82161-02D12 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02D12 |
1 | ||
| 82161-02D32 |
ZZE130..NAP PART NUMBER LABEL=82161-02D32 |
1 | ||
| 82161-02C42 |
ZZE130..NAP PART NUMBER LABEL=82161-02C42 |
1 | ||
| 82161-02C72 |
ZZE130..NAP PART NUMBER LABEL=82161-02C72 |
1 | ||
| 82161-02D42 |
ZZE130..NAP PART NUMBER LABEL=82161-02D42 |
1 | ||
| 82161-02D51 |
ZZE130..NAP PART NUMBER LABEL=82161-02D51 |
1 | ||
| 82161-02C82 |
ZZE130..NAP PART NUMBER LABEL=82161-02C82 |
1 | ||
| 82161-02D22 |
ZZE130..NAP PART NUMBER LABEL=82161-02D22 |
1 | ||
| 82161-02D02 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02D02 |
1 | ||
| 82161-02D52 |
ZZE130..NAP PART NUMBER LABEL=82161-02D52 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-02440 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 82171-02430 |
ZZE130..NAP..(LE,S) W(MAP LAMP) |
1 | ||
| 82171-02461 |
ZZE130..NAP..(LE,S) W(EC GLARE PROOF MIRROR & MOON ROOF) |
1 | ||
| 82171-02431 |
ZZE130..5F..S..CND;ZZE130..4FC..(LE,S);ZZE130..5F..(LE,S)..USA W(MAP LAMP) |
1 | ||
| 82171-02450 |
ZZE130..NAP W(MOON ROOF) |
1 | ||
| 82171-02451 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(MOON ROOF) |
1 | ||
| 82171-02470 |
ZZE130..5F..S..CND;ZZE130..4FC..(LE,S);ZZE130..5F..(LE,S)..USA W(EC GLARE PROOF MIRROR) |
1 | ||
| 82171-02460 |
ZZE130..NAP..(LE,S) W(EC GLARE PROOF MIRROR & MOON ROOF) |
1 | ||
| 82171-02690 |
ZZE130,131..NAP..(LE,S) W(DAY & NIGHT MIRROR) |
1 | ||
| 82171-02680 |
ZZE130,131..NAP..(LE,S) W(EC MIRROR) |
1 | ||
| 82171-02700 |
ZZE130,131..NAP |
1 | ||
| 82171-02681 |
ZZE130..NAP..(LE,S) W(EC MIRROR) |
1 | ||
| 82171-02691 |
ZZE130..NAP..(LE,S) W(DAY & NIGHT MIRROR) |
1 | ||
| 82171-02451 |
ZZE130,131..NAP W(MOON ROOF) |
1 | ||
| 82171-02452 |
ZZE130..NAP W(MOON ROOF) |
1 | ||
| 82171-02701 |
ZZE130..NAP |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82187-02110 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 82187-02110 |
ZZE130..NAP |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-1A640 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 82817-1A640 |
ZZE130..NAP |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-A0038 | ||||

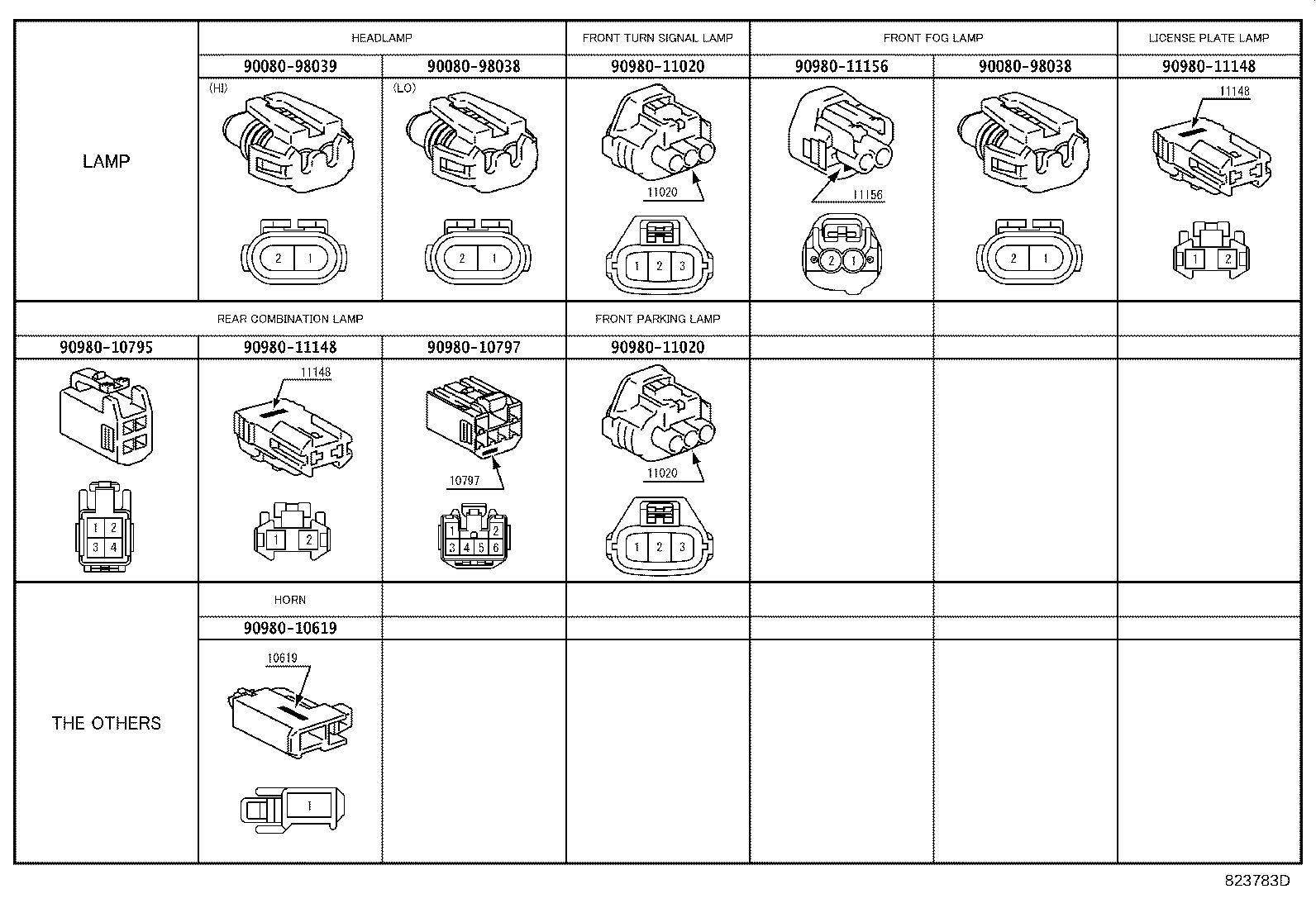

ILLUST NO. 7 OF 7(0201- )NAP
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-98038 | ||||
| 90080-98039 | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-10797 | ||||
| 90980-11020 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
ILLUST NO. 4 OF 7(0405- )ZZE130,131..NAP
DOOR,FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82197-02160 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 82197-02140 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82197-02150 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK) |
1 | ||
| 82197-02170 |
ZZE130..5F..S..CND;ZZE130..4FC..(LE,S);ZZE130..5F..(LE,S)..USA W(POWER DOOR LOCK & POWER WINDOW & TWEETER SPEAKER) |
1 | ||
| 82151-02A50 |
ZZE130..NAP..(LE,S) W(POWER DOOR LOCK & POWER WINDOW & 8 SPEAKER) |
1 | ||
| 82151-02A60 |
ZZE130..NAP W(POWER DOOR LOCK) |
1 | ||
| 82151-02A30 |
ZZE130..NAP W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82151-02A80 |
ZZE130..NAP |
1 | ||
| 82151-02A40 |
ZZE130..NAP..(LE,S) W(POWER DOOR LOCK & POWER WINDOW & 6 SPEAKER) |
1 | ||
| 82151-02A70 |
ZZE130..NAP..(LE,S) W(POWER DOOR LOCK & 8 SPEAKER) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82198-02050 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82198-02070 |
ZZE130..5F..S..CND;ZZE130..4FC..(LE,S);ZZE130..5F..(LE,S)..USA W(POWER DOOR LOCK & POWER WINDOW & TWEETER SPEAKER) |
1 | ||
| 82197-02160 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 82198-02060 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK) |
1 | ||
| 82152-02A40 |
ZZE130..NAP..(LE,S) W(POWER DOOR LOCK & POWER WINDOW & 8 SPEAKER) |
1 | ||
| 82152-02A30 |
ZZE130..NAP..(LE,S) W(POWER DOOR LOCK & POWER WINDOW & 6 SPEAKER) |
1 | ||
| 82152-02A70 |
ZZE130..NAP |
1 | ||
| 82152-02A60 |
ZZE130..NAP..(LE,S) W(POWER DOOR LOCK & 8 SPEAKER) |
1 | ||
| 82152-02A20 |
ZZE130..NAP W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82152-02A50 |
ZZE130..NAP W(POWER DOOR LOCK) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-02290 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK) |
1 | ||
| 82153-02280 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82153-02380 |
ZZE130..NAP;ZZE131..NAP..CND W(POWER WINDOW) |
1 | ||
| 82153-02390 |
ZZE130..NAP;ZZE131..NAP..CND |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-02280 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82153-02290 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK) |
1 | ||
| 82153-02380 |
ZZE130..NAP;ZZE131..NAP..CND W(POWER WINDOW) |
1 | ||
| 82153-02390 |
ZZE130..NAP;ZZE131..NAP..CND |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-02830 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK) |
1 | ||
| 82161-02860 |
ZZE130..NAP W(ABS & POWER DOOR LOCK) |
1 | ||
| 82161-02840 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(ABS) |
1 | ||
| 82199-02110 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(ANTI-THEFT DEVICE & KEY LESS ENTRY & POWER DOOR LOCK) |
1 | ||
| 82161-02850 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 82161-02870 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(POWER DOOR LOCK & POWER WINDOW) OR W(POWER DOOR ROCK & REAR SPOILER) |
1 | ||
| 82161-02C50 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02C50 |
1 | ||
| 82161-02D20 |
ZZE130..NAP PART NUMBER LABEL=82161-02D20 |
1 | ||
| 82161-02C60 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02C60 |
1 | ||
| 82161-02C90 |
ZZE130..NAP PART NUMBER LABEL=82161-02C90 |
1 | ||
| 82161-02D30 |
ZZE130..NAP PART NUMBER LABEL=82161-02D30 |
1 | ||
| 82161-02C40 |
ZZE130,131..NAP PART NUMBER LABEL=82161-02C40 |
1 | ||
| 82161-02C80 |
ZZE130..NAP PART NUMBER LABEL=82161-02C80 |
1 | ||
| 82161-02D00 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02D00 |
1 | ||
| 82161-02D40 |
ZZE130..NAP PART NUMBER LABEL=82161-02D40 |
1 | ||
| 82161-02D50 |
ZZE130..NAP PART NUMBER LABEL=82161-02D50 |
1 | ||
| 82161-02D11 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02D11 |
1 | ||
| 82161-02C41 |
ZZE130,131..NAP PART NUMBER LABEL=82161-02C41 |
1 | ||
| 82161-02C70 |
ZZE130..NAP PART NUMBER LABEL=82161-02C70 |
1 | ||
| 82161-02C32 |
ZZE130..NAP PART NUMBER LABEL=82161-02C32 |
1 | ||
| 82161-02C31 |
ZZE130,131..NAP PART NUMBER LABEL=82161-02C31 |
1 | ||
| 82161-02C81 |
ZZE130..NAP PART NUMBER LABEL=82161-02C81 |
1 | ||
| 82161-02C51 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02C51 |
1 | ||
| 82161-02D41 |
ZZE130..NAP PART NUMBER LABEL=82161-02D41 |
1 | ||
| 82161-02D21 |
ZZE130..NAP PART NUMBER LABEL=82161-02D21 |
1 | ||
| 82161-02C91 |
ZZE130..NAP PART NUMBER LABEL=82161-02C91 |
1 | ||
| 82161-02D10 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02D10 |
1 | ||
| 82161-02C30 |
ZZE130,131..NAP PART NUMBER LABEL=82161-02C30 |
1 | ||
| 82161-02C62 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02C62 |
1 | ||
| 82161-02C61 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02C61 |
1 | ||
| 82161-02C52 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02C52 |
1 | ||
| 82161-02D01 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02D01 |
1 | ||
| 82161-02C71 |
ZZE130..NAP PART NUMBER LABEL=82161-02C71 |
1 | ||
| 82161-02C92 |
ZZE130..NAP PART NUMBER LABEL=82161-02C92 |
1 | ||
| 82161-02D31 |
ZZE130..NAP PART NUMBER LABEL=82161-02D31 |
1 | ||
| 82161-02D12 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02D12 |
1 | ||
| 82161-02D32 |
ZZE130..NAP PART NUMBER LABEL=82161-02D32 |
1 | ||
| 82161-02C42 |
ZZE130..NAP PART NUMBER LABEL=82161-02C42 |
1 | ||
| 82161-02C72 |
ZZE130..NAP PART NUMBER LABEL=82161-02C72 |
1 | ||
| 82161-02D42 |
ZZE130..NAP PART NUMBER LABEL=82161-02D42 |
1 | ||
| 82161-02D51 |
ZZE130..NAP PART NUMBER LABEL=82161-02D51 |
1 | ||
| 82161-02C82 |
ZZE130..NAP PART NUMBER LABEL=82161-02C82 |
1 | ||
| 82161-02D22 |
ZZE130..NAP PART NUMBER LABEL=82161-02D22 |
1 | ||
| 82161-02D02 |
ZZE130..NAP..(LE,S) PART NUMBER LABEL=82161-02D02 |
1 | ||
| 82161-02D52 |
ZZE130..NAP PART NUMBER LABEL=82161-02D52 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-02440 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 82171-02430 |
ZZE130..NAP..(LE,S) W(MAP LAMP) |
1 | ||
| 82171-02461 |
ZZE130..NAP..(LE,S) W(EC GLARE PROOF MIRROR & MOON ROOF) |
1 | ||
| 82171-02431 |
ZZE130..5F..S..CND;ZZE130..4FC..(LE,S);ZZE130..5F..(LE,S)..USA W(MAP LAMP) |
1 | ||
| 82171-02450 |
ZZE130..NAP W(MOON ROOF) |
1 | ||
| 82171-02451 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND W(MOON ROOF) |
1 | ||
| 82171-02470 |
ZZE130..5F..S..CND;ZZE130..4FC..(LE,S);ZZE130..5F..(LE,S)..USA W(EC GLARE PROOF MIRROR) |
1 | ||
| 82171-02460 |
ZZE130..NAP..(LE,S) W(EC GLARE PROOF MIRROR & MOON ROOF) |
1 | ||
| 82171-02690 |
ZZE130,131..NAP..(LE,S) W(DAY & NIGHT MIRROR) |
1 | ||
| 82171-02680 |
ZZE130,131..NAP..(LE,S) W(EC MIRROR) |
1 | ||
| 82171-02700 |
ZZE130,131..NAP |
1 | ||
| 82171-02681 |
ZZE130..NAP..(LE,S) W(EC MIRROR) |
1 | ||
| 82171-02691 |
ZZE130..NAP..(LE,S) W(DAY & NIGHT MIRROR) |
1 | ||
| 82171-02451 |
ZZE130,131..NAP W(MOON ROOF) |
1 | ||
| 82171-02452 |
ZZE130..NAP W(MOON ROOF) |
1 | ||
| 82171-02701 |
ZZE130..NAP |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82187-02110 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 82187-02110 |
ZZE130..NAP |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-AA040 |
ZZE130,131..NAP |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-1A640 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 82817-1A640 |
ZZE130..NAP |
1 | ||
| Common parts | ||||
| 90119-A0038 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
