ZZE130L-DEPNKA (2002)
Toyota Corolla/Matrix (Nap)

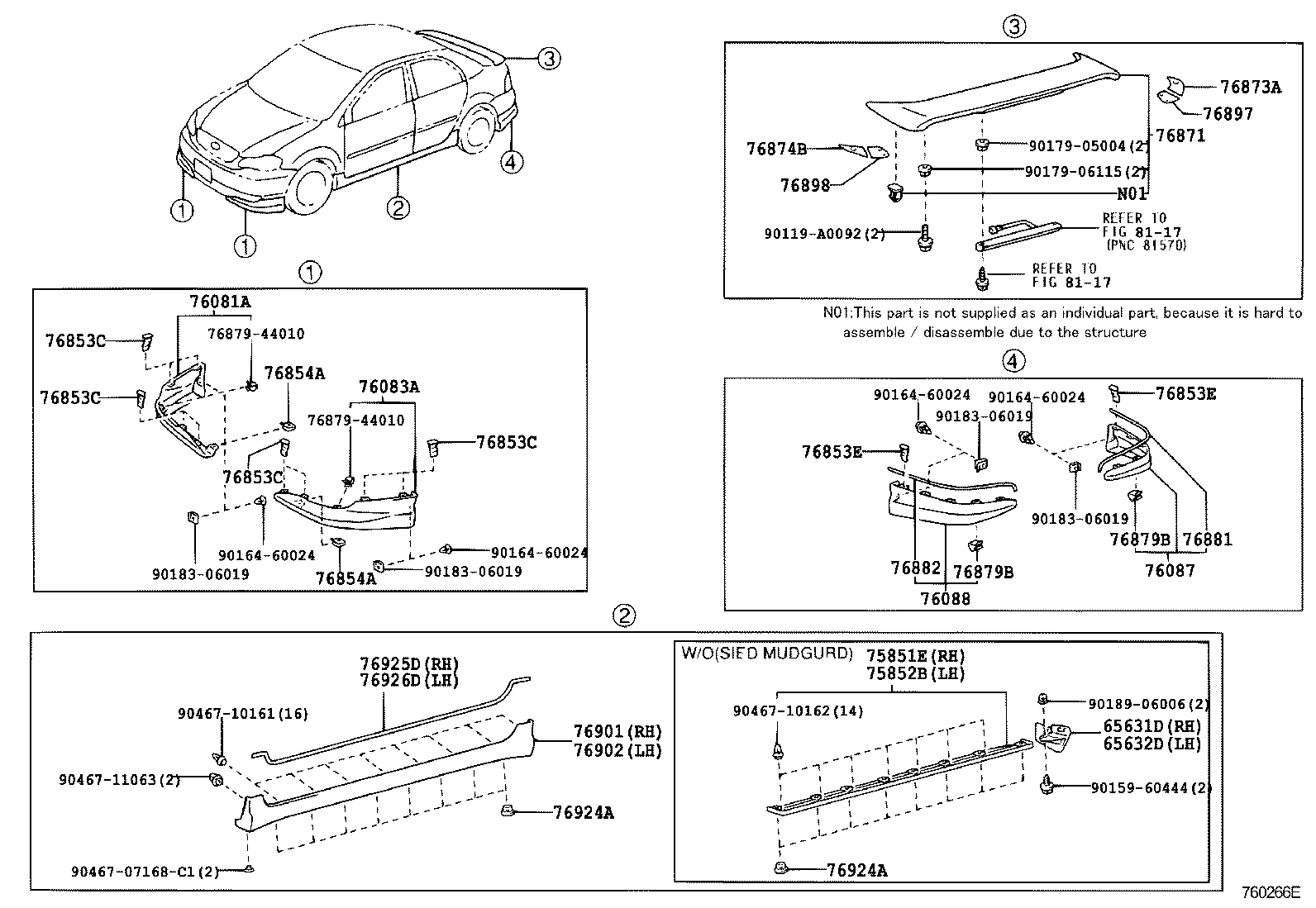

(0201-0405)ZZE130..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-02030 |
ZZE130..NAP..(CE,LE)..USA |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-02030 |
ZZE130..NAP..(CE,LE)..USA |
1 | ||
| 75851E - MOULDING, BODY ROCKER PANEL, RH | ||||
| 75851-02030 |
ZZE130..NAP..5F..CE..CND;ZZE130..NAP..4FC..(CE,LE);ZZE130..NAP..5F..(CE,LE)..USA |
1 | ||
| 75851-02030 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 75852B - MOULDING, BODY ROCKER PANEL, LH | ||||
| 75852-02030 |
ZZE130..NAP..5F..CE..CND;ZZE130..NAP..4FC..(CE,LE);ZZE130..NAP..5F..(CE,LE)..USA |
1 | ||
| 75852-02030 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 76081A - SPOILER SUB-ASSY, FRONT RH | ||||
| 76081-02010D1 |
ZZE130..NAP..S RED M.M.,3P1 |
1 | ||
| 76081-02010B2 |
ZZE130..NAP..S SILVER ME.,1C8 |
1 | ||
| 76081-02010G1 |
ZZE130..NAP..S GRAYISH GREEN M.M.OP,6R6 |
1 | ||
| 76081-02010B3 |
ZZE130..NAP..S CHARCOAL GRAY ME.,1E6 |
1 | ||
| 76081-02010A1 |
ZZE130..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76081-02030D0 |
ZZE130,131..NAP..S RED M.M.,3P1 |
1 | ||
| 76081-02030B1 |
ZZE130,131..NAP..S SILVER M.M.,1E7 |
1 | ||
| 76081-02010J1 |
ZZE130..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76081-02030C0 |
ZZE130,131..NAP..S BLACK MC.,209 |
1 | ||
| 76081-02030A0 |
ZZE130,131..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76081-02030J1 |
ZZE130..NAP..S BLUE ME.,8P1 |
1 | ||
| 76081-02030B0 |
ZZE130,131..NAP..S GRAY M.M.,1E3 |
1 | ||
| 76081-02010C1 |
ZZE130..NAP..S BLACK MC.,209 |
1 | ||
| 76081-02030J0 |
ZZE130,131..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76083A - SPOILER SUB-ASSY, FRONT LH | ||||
| 76083-02010D1 |
ZZE130..NAP..S RED M.M.,3P1 |
1 | ||
| 76083-02010C1 |
ZZE130..NAP..S BLACK MC.,209 |
1 | ||
| 76083-02010B3 |
ZZE130..NAP..S CHARCOAL GRAY ME.,1E6 |
1 | ||
| 76083-02010A1 |
ZZE130..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76083-02030C0 |
ZZE130,131..NAP..S BLACK MC.,209 |
1 | ||
| 76083-02030J0 |
ZZE130,131..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76083-02010G1 |
ZZE130..NAP..S GRAYISH GREEN M.M.OP,6R6 |
1 | ||
| 76083-02030B0 |
ZZE130,131..NAP..S GRAY M.M.,1E3 |
1 | ||
| 76083-02030D0 |
ZZE130,131..NAP..S RED M.M.,3P1 |
1 | ||
| 76083-02010J1 |
ZZE130..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76083-02010B2 |
ZZE130..NAP..S SILVER ME.,1C8 |
1 | ||
| 76083-02030A0 |
ZZE130,131..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76083-02030J1 |
ZZE130..NAP..S BLUE ME.,8P1 |
1 | ||
| 76083-02030B1 |
ZZE130,131..NAP..S SILVER M.M.,1E7 |
1 | ||
| 76087 - SPOILER SUB-ASSY, REAR NO.1 | ||||
| 76087-02010A1 |
ZZE130..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76087-02010C1 |
ZZE130..NAP..S BLACK MC.,209 |
1 | ||
| 76087-02010B5 |
ZZE130,131..NAP..S SILVER M.M.,1E7 |
1 | ||
| 76087-02010J1 |
ZZE130..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76087-02010B2 |
ZZE130..NAP..S SILVER ME.,1C8 |
1 | ||
| 76087-02010C1 |
ZZE130,131..NAP..S BLACK MC.,209 |
1 | ||
| 76087-02010B4 |
ZZE130,131..NAP..S GRAY,1E3 |
1 | ||
| 76087-02010G1 |
ZZE130..NAP..S GRAYISH GREEN M.M.OP,6R6 |
1 | ||
| 76087-02010J1 |
ZZE130,131..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76087-02010B3 |
ZZE130..NAP..S CHARCOAL GRAY ME.,1E6 |
1 | ||
| 76087-02010D1 |
ZZE130,131..NAP..S RED M.M.,3P1 |
1 | ||
| 76087-02010A1 |
ZZE130,131..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76087-02010J2 |
ZZE130..NAP..S BLUE ME.,8P1 |
1 | ||
| 76087-02010D1 |
ZZE130..NAP..S RED M.M.,3P1 |
1 | ||
| 76088 - SPOILER SUB-ASSY, REAR NO.2 | ||||
| 76088-02010D1 |
ZZE130..NAP..S RED M.M.,3P1 |
1 | ||
| 76088-02010C1 |
ZZE130..NAP..S BLACK MC.,209 |
1 | ||
| 76088-02010A1 |
ZZE130,131..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76088-02010B2 |
ZZE130..NAP..S SILVER ME.,1C8 |
1 | ||
| 76088-02010J1 |
ZZE130..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76088-02010C1 |
ZZE130,131..NAP..S BLACK MC.,209 |
1 | ||
| 76088-02010A1 |
ZZE130..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76088-02010B5 |
ZZE130,131..NAP..S SILVER M.M.,1E7 |
1 | ||
| 76088-02010B3 |
ZZE130..NAP..S CHARCOAL GRAY ME.,1E6 |
1 | ||
| 76088-02010B4 |
ZZE130,131..NAP..S GRAY,1E3 |
1 | ||
| 76088-02010G1 |
ZZE130..NAP..S GRAYISH GREEN M.M.OP,6R6 |
1 | ||
| 76088-02010J1 |
ZZE130,131..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76088-02010D1 |
ZZE130,131..NAP..S RED M.M.,3P1 |
1 | ||
| 76088-02010J2 |
ZZE130..NAP..S BLUE ME.,8P1 |
1 | ||
| 76853C - RETAINER, FRONT SPOILER, NO.1 | ||||
| 76853-10010 |
ZZE130..NAP..S |
8 | ||
| 76853C - RETAINER, FRONT SPOILER, NO.1 | ||||
| 76853-10010 |
ZZE130..NAP..S |
8 | ||
| 76853C - RETAINER, FRONT SPOILER, NO.1 | ||||
| 76853-10010 |
ZZE130..NAP..S |
8 | ||
| 76853C - RETAINER, FRONT SPOILER, NO.1 | ||||
| 76853-10010 |
ZZE130..NAP..S |
8 | ||
| 76853E - RETAINER, REAR SPOILER, NO.1 | ||||
| 76853-10010 |
ZZE130..NAP..S |
10 | ||
| 76853-10010 |
ZZE130,131..NAP..S |
10 | ||
| 76853E - RETAINER, REAR SPOILER, NO.1 | ||||
| 76853-10010 |
ZZE130..NAP..S |
10 | ||
| 76853-10010 |
ZZE130,131..NAP..S |
10 | ||
| 76854A - RETAINER, FRONT SPOILER, NO.2 | ||||
| 76854-44010 |
ZZE130..NAP..S |
2 | ||
| 76854A - RETAINER, FRONT SPOILER, NO.2 | ||||
| 76854-44010 |
ZZE130..NAP..S |
2 | ||
| 76871 - SPOILER, REAR | ||||
| 76871-02900 |
ZZE130..NAP PAINT REQ. |
1 | ||
| 76871-02900 |
ZZE130,131..NAP PAINT REQ. |
1 | ||
| 76873A - PROTECTOR, REAR SPOILER, RH | ||||
| 76783-02020 |
ZZE130,131..NAP |
1 | ||
| 76783-02020 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 76874B - PROTECTOR, REAR SPOILER, LH | ||||
| 76784-02020 |
ZZE130,131..NAP |
1 | ||
| 76784-02020 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 76879B - CLIP, REAR SPOILER, NO.2 | ||||
| 76879-44010 |
ZZE130..NAP..S |
2 | ||
| 76879-44010 |
ZZE130,131..NAP..S |
2 | ||
| 76879B - CLIP, REAR SPOILER, NO.2 | ||||
| 76879-44010 |
ZZE130..NAP..S |
2 | ||
| 76879-44010 |
ZZE130,131..NAP..S |
2 | ||
| 76881 - PROTECTOR, REAR SPOILER SIDE, NO.1 RH | ||||
| 76881-02010B0 |
ZZE130..NAP..S GRAY,040 ,1C8 ,1E6 ,6R6 ,8P4 |
1 | ||
| 76881-02010B0 |
ZZE130,131..NAP..S GRAY,040 ,1E3 ,1E7 |
1 | ||
| 76881-02010C0 |
ZZE130..NAP..S BLACK,209 ,3P1 |
1 | ||
| 76881-02010C0 |
ZZE130..NAP..S BLACK,209 ,3P1 ,8P1 ,8P4 |
1 | ||
| 76882 - PROTECTOR, REAR SPOILER SIDE, NO.1 LH | ||||
| 76882-02010C0 |
ZZE130..NAP..S BLACK,209 ,3P1 |
1 | ||
| 76882-02010B0 |
ZZE130..NAP..S GRAY,040 ,1C8 ,1E6 ,6R6 ,8P4 |
1 | ||
| 76882-02010B0 |
ZZE130,131..NAP..S GRAY,040 ,1E3 ,1E7 |
1 | ||
| 76882-02010C0 |
ZZE130..NAP..S BLACK,209 ,3P1 ,8P1 ,8P4 |
1 | ||
| 76897 - PROTECTOR, REAR SPOILER, SIDE RH | ||||
| 76897-02020 |
ZZE130,131..NAP |
1 | ||
| 76897-02020 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 76898 - PROTECTOR, REAR SPOILER, SIDE LH | ||||
| 76898-02020 |
ZZE130,131..NAP |
1 | ||
| 76898-02020 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 76901 - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76911-02030B1 |
ZZE130..NAP..S CHARCOAL GRAY ME.,1E6 |
1 | ||
| 76911-02030A0 |
ZZE130..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76911-02030C0 |
ZZE130..NAP..S BLACK MC.,209 |
1 | ||
| 76911-02030G0 |
ZZE130..NAP..S GRAYISH GREEN M.M.OP,6R6 |
1 | ||
| 76911-02030J0 |
ZZE130..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76911-02030D0 |
ZZE130..NAP..S RED M.M.,3P1 |
1 | ||
| 76911-02030B0 |
ZZE130..NAP..S SILVER ME.,1C8 |
1 | ||
| 76911-02030A0 |
ZZE130,131..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76911-02030B3 |
ZZE130,131..NAP..S SILVER M.M.,1E7 |
1 | ||
| 76911-02030B2 |
ZZE130,131..NAP..S GRAY M.M.,1E3 |
1 | ||
| 76911-02030J1 |
ZZE130..NAP..S BLUE ME.,8P1 |
1 | ||
| 76911-02030J0 |
ZZE130,131..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76911-02030D0 |
ZZE130,131..NAP..S RED M.M.,3P1 |
1 | ||
| 76911-02030C0 |
ZZE130,131..NAP..S BLACK MC.,209 |
1 | ||
| 76902 - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76912-02030A0 |
ZZE130..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76912-02030B0 |
ZZE130..NAP..S SILVER ME.,1C8 |
1 | ||
| 76912-02030C0 |
ZZE130..NAP..S BLACK MC.,209 |
1 | ||
| 76912-02030J0 |
ZZE130..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76912-02030D0 |
ZZE130..NAP..S RED M.M.,3P1 |
1 | ||
| 76912-02030B1 |
ZZE130..NAP..S CHARCOAL GRAY ME.,1E6 |
1 | ||
| 76912-02030G0 |
ZZE130..NAP..S GRAYISH GREEN M.M.OP,6R6 |
1 | ||
| 76912-02030J0 |
ZZE130,131..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76912-02030B2 |
ZZE130,131..NAP..S GRAY M.M.,1E3 |
1 | ||
| 76912-02030C0 |
ZZE130,131..NAP..S BLACK MC.,209 |
1 | ||
| 76912-02030B3 |
ZZE130,131..NAP..S SILVER M.M.,1E7 |
1 | ||
| 76912-02030D0 |
ZZE130,131..NAP..S RED M.M.,3P1 |
1 | ||
| 76912-02030J1 |
ZZE130..NAP..S BLUE ME.,8P1 |
1 | ||
| 76912-02030A0 |
ZZE130,131..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76924A - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-02010 |
ZZE130..NAP |
16 | ||
| 76924-02010 |
ZZE130,131..NAP |
16 | ||
| 76924-52021 |
ZZE130..NAP |
16 | ||
| 76924A - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-02010 |
ZZE130..NAP |
16 | ||
| 76924-02010 |
ZZE130,131..NAP |
16 | ||
| 76924-52021 |
ZZE130..NAP |
16 | ||
| 76925D - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76925-02030B0 |
ZZE130..NAP..S GRAY,040 ,1C8 ,1E6 ,6R6 |
1 | ||
| 76925-02030C0 |
ZZE130..NAP..S BLACK,209 ,3P1 ,8P4 |
1 | ||
| 76925-02030C0 |
ZZE130..NAP..S BLACK,209 ,3P1 ,8P1 ,8P4 |
1 | ||
| 76925-02030B0 |
ZZE130,131..NAP..S GRAY,040 ,1E3 ,1E7 |
1 | ||
| 76926D - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76925-02030C0 |
ZZE130..NAP..S BLACK,209 ,3P1 ,8P4 |
1 | ||
| 76925-02030B0 |
ZZE130..NAP..S GRAY,040 ,1C8 ,1E6 ,6R6 |
1 | ||
| 76925-02030B0 |
ZZE130,131..NAP..S GRAY,040 ,1E3 ,1E7 |
1 | ||
| 76925-02030C0 |
ZZE130..NAP..S BLACK,209 ,3P1 ,8P1 ,8P4 |
1 | ||
| Common parts | ||||
| 76879-44010 | ||||
| 90119-A0092 | ||||
| 90159-60444 | ||||
| 90164-60024 | ||||
| 90179-05004 | ||||
| 90179-06115 | ||||
| 90183-06019 | ||||
| 90189-06006 | ||||
| 90467-07168C1 | ||||
| 90467-10161 | ||||
| 90467-10162 | ||||
| 90467-11063 | ||||
| Linked diagrams | ||||
| 8117 | ||||

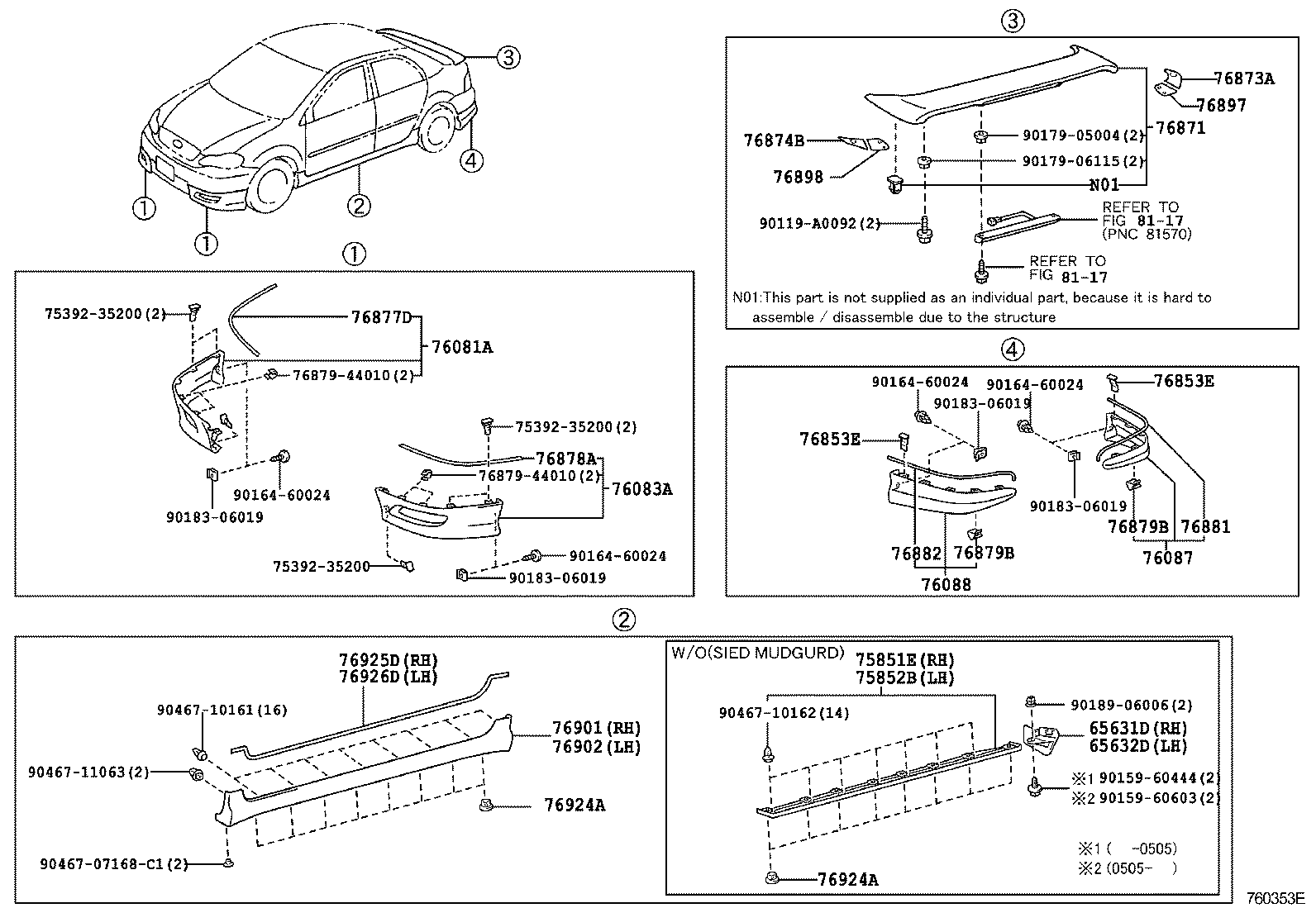

(0405- )ZZE130,131..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-02030 |
ZZE130..NAP..(CE,LE)..USA |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-02030 |
ZZE130..NAP..(CE,LE)..USA |
1 | ||
| 75851E - MOULDING, BODY ROCKER PANEL, RH | ||||
| 75851-02030 |
ZZE130..NAP..5F..CE..CND;ZZE130..NAP..4FC..(CE,LE);ZZE130..NAP..5F..(CE,LE)..USA |
1 | ||
| 75851-02030 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 75852B - MOULDING, BODY ROCKER PANEL, LH | ||||
| 75852-02030 |
ZZE130..NAP..5F..CE..CND;ZZE130..NAP..4FC..(CE,LE);ZZE130..NAP..5F..(CE,LE)..USA |
1 | ||
| 75852-02030 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 76081A - SPOILER SUB-ASSY, FRONT RH | ||||
| 76081-02010D1 |
ZZE130..NAP..S RED M.M.,3P1 |
1 | ||
| 76081-02010B2 |
ZZE130..NAP..S SILVER ME.,1C8 |
1 | ||
| 76081-02010G1 |
ZZE130..NAP..S GRAYISH GREEN M.M.OP,6R6 |
1 | ||
| 76081-02010B3 |
ZZE130..NAP..S CHARCOAL GRAY ME.,1E6 |
1 | ||
| 76081-02010A1 |
ZZE130..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76081-02030D0 |
ZZE130,131..NAP..S RED M.M.,3P1 |
1 | ||
| 76081-02030B1 |
ZZE130,131..NAP..S SILVER M.M.,1E7 |
1 | ||
| 76081-02010J1 |
ZZE130..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76081-02030C0 |
ZZE130,131..NAP..S BLACK MC.,209 |
1 | ||
| 76081-02030A0 |
ZZE130,131..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76081-02030J1 |
ZZE130..NAP..S BLUE ME.,8P1 |
1 | ||
| 76081-02030B0 |
ZZE130,131..NAP..S GRAY M.M.,1E3 |
1 | ||
| 76081-02010C1 |
ZZE130..NAP..S BLACK MC.,209 |
1 | ||
| 76081-02030J0 |
ZZE130,131..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76083A - SPOILER SUB-ASSY, FRONT LH | ||||
| 76083-02010D1 |
ZZE130..NAP..S RED M.M.,3P1 |
1 | ||
| 76083-02010C1 |
ZZE130..NAP..S BLACK MC.,209 |
1 | ||
| 76083-02010B3 |
ZZE130..NAP..S CHARCOAL GRAY ME.,1E6 |
1 | ||
| 76083-02010A1 |
ZZE130..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76083-02030C0 |
ZZE130,131..NAP..S BLACK MC.,209 |
1 | ||
| 76083-02030J0 |
ZZE130,131..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76083-02010G1 |
ZZE130..NAP..S GRAYISH GREEN M.M.OP,6R6 |
1 | ||
| 76083-02030B0 |
ZZE130,131..NAP..S GRAY M.M.,1E3 |
1 | ||
| 76083-02030D0 |
ZZE130,131..NAP..S RED M.M.,3P1 |
1 | ||
| 76083-02010J1 |
ZZE130..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76083-02010B2 |
ZZE130..NAP..S SILVER ME.,1C8 |
1 | ||
| 76083-02030A0 |
ZZE130,131..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76083-02030J1 |
ZZE130..NAP..S BLUE ME.,8P1 |
1 | ||
| 76083-02030B1 |
ZZE130,131..NAP..S SILVER M.M.,1E7 |
1 | ||
| 76087 - SPOILER SUB-ASSY, REAR NO.1 | ||||
| 76087-02010A1 |
ZZE130..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76087-02010C1 |
ZZE130..NAP..S BLACK MC.,209 |
1 | ||
| 76087-02010B5 |
ZZE130,131..NAP..S SILVER M.M.,1E7 |
1 | ||
| 76087-02010J1 |
ZZE130..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76087-02010B2 |
ZZE130..NAP..S SILVER ME.,1C8 |
1 | ||
| 76087-02010C1 |
ZZE130,131..NAP..S BLACK MC.,209 |
1 | ||
| 76087-02010B4 |
ZZE130,131..NAP..S GRAY,1E3 |
1 | ||
| 76087-02010G1 |
ZZE130..NAP..S GRAYISH GREEN M.M.OP,6R6 |
1 | ||
| 76087-02010J1 |
ZZE130,131..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76087-02010B3 |
ZZE130..NAP..S CHARCOAL GRAY ME.,1E6 |
1 | ||
| 76087-02010D1 |
ZZE130,131..NAP..S RED M.M.,3P1 |
1 | ||
| 76087-02010A1 |
ZZE130,131..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76087-02010J2 |
ZZE130..NAP..S BLUE ME.,8P1 |
1 | ||
| 76087-02010D1 |
ZZE130..NAP..S RED M.M.,3P1 |
1 | ||
| 76088 - SPOILER SUB-ASSY, REAR NO.2 | ||||
| 76088-02010D1 |
ZZE130..NAP..S RED M.M.,3P1 |
1 | ||
| 76088-02010C1 |
ZZE130..NAP..S BLACK MC.,209 |
1 | ||
| 76088-02010A1 |
ZZE130,131..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76088-02010B2 |
ZZE130..NAP..S SILVER ME.,1C8 |
1 | ||
| 76088-02010J1 |
ZZE130..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76088-02010C1 |
ZZE130,131..NAP..S BLACK MC.,209 |
1 | ||
| 76088-02010A1 |
ZZE130..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76088-02010B5 |
ZZE130,131..NAP..S SILVER M.M.,1E7 |
1 | ||
| 76088-02010B3 |
ZZE130..NAP..S CHARCOAL GRAY ME.,1E6 |
1 | ||
| 76088-02010B4 |
ZZE130,131..NAP..S GRAY,1E3 |
1 | ||
| 76088-02010G1 |
ZZE130..NAP..S GRAYISH GREEN M.M.OP,6R6 |
1 | ||
| 76088-02010J1 |
ZZE130,131..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76088-02010D1 |
ZZE130,131..NAP..S RED M.M.,3P1 |
1 | ||
| 76088-02010J2 |
ZZE130..NAP..S BLUE ME.,8P1 |
1 | ||
| 76853E - RETAINER, REAR SPOILER, NO.1 | ||||
| 76853-10010 |
ZZE130..NAP..S |
10 | ||
| 76853-10010 |
ZZE130,131..NAP..S |
10 | ||
| 76853E - RETAINER, REAR SPOILER, NO.1 | ||||
| 76853-10010 |
ZZE130..NAP..S |
10 | ||
| 76853-10010 |
ZZE130,131..NAP..S |
10 | ||
| 76871 - SPOILER, REAR | ||||
| 76871-02900 |
ZZE130..NAP PAINT REQ. |
1 | ||
| 76871-02900 |
ZZE130,131..NAP PAINT REQ. |
1 | ||
| 76873A - PROTECTOR, REAR SPOILER, RH | ||||
| 76783-02020 |
ZZE130,131..NAP |
1 | ||
| 76783-02020 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 76874B - PROTECTOR, REAR SPOILER, LH | ||||
| 76784-02020 |
ZZE130,131..NAP |
1 | ||
| 76784-02020 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 76877D - PROTECTOR, FRONT SPOILER SIDE, RH | ||||
| 76877-02030C0 |
ZZE130,131..NAP..S BLACK MC.,209 ,3P1 ,8P1 ,8P4 |
1 | ||
| 76877-02030B0 |
ZZE130,131..NAP..S GRAY M.M.,040 ,1E3 ,1E7 |
1 | ||
| 76878A - PROTECTOR, FRONT SPOILER SIDE, LH | ||||
| 76878-02030C0 |
ZZE130,131..NAP..S BLACK MC.,209 ,3P1 ,8P1 ,8P4 |
1 | ||
| 76878-02030B0 |
ZZE130,131..NAP..S GRAY M.M.,040 ,1E3 ,1E7 |
1 | ||
| 76879B - CLIP, REAR SPOILER, NO.2 | ||||
| 76879-44010 |
ZZE130..NAP..S |
2 | ||
| 76879-44010 |
ZZE130,131..NAP..S |
2 | ||
| 76879B - CLIP, REAR SPOILER, NO.2 | ||||
| 76879-44010 |
ZZE130..NAP..S |
2 | ||
| 76879-44010 |
ZZE130,131..NAP..S |
2 | ||
| 76881 - PROTECTOR, REAR SPOILER SIDE, NO.1 RH | ||||
| 76881-02010B0 |
ZZE130..NAP..S GRAY,040 ,1C8 ,1E6 ,6R6 ,8P4 |
1 | ||
| 76881-02010B0 |
ZZE130,131..NAP..S GRAY,040 ,1E3 ,1E7 |
1 | ||
| 76881-02010C0 |
ZZE130..NAP..S BLACK,209 ,3P1 |
1 | ||
| 76881-02010C0 |
ZZE130..NAP..S BLACK,209 ,3P1 ,8P1 ,8P4 |
1 | ||
| 76882 - PROTECTOR, REAR SPOILER SIDE, NO.1 LH | ||||
| 76882-02010C0 |
ZZE130..NAP..S BLACK,209 ,3P1 |
1 | ||
| 76882-02010B0 |
ZZE130..NAP..S GRAY,040 ,1C8 ,1E6 ,6R6 ,8P4 |
1 | ||
| 76882-02010B0 |
ZZE130,131..NAP..S GRAY,040 ,1E3 ,1E7 |
1 | ||
| 76882-02010C0 |
ZZE130..NAP..S BLACK,209 ,3P1 ,8P1 ,8P4 |
1 | ||
| 76897 - PROTECTOR, REAR SPOILER, SIDE RH | ||||
| 76897-02020 |
ZZE130,131..NAP |
1 | ||
| 76897-02020 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 76898 - PROTECTOR, REAR SPOILER, SIDE LH | ||||
| 76898-02020 |
ZZE130,131..NAP |
1 | ||
| 76898-02020 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 76901 - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76911-02030B1 |
ZZE130..NAP..S CHARCOAL GRAY ME.,1E6 |
1 | ||
| 76911-02030A0 |
ZZE130..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76911-02030C0 |
ZZE130..NAP..S BLACK MC.,209 |
1 | ||
| 76911-02030G0 |
ZZE130..NAP..S GRAYISH GREEN M.M.OP,6R6 |
1 | ||
| 76911-02030J0 |
ZZE130..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76911-02030D0 |
ZZE130..NAP..S RED M.M.,3P1 |
1 | ||
| 76911-02030B0 |
ZZE130..NAP..S SILVER ME.,1C8 |
1 | ||
| 76911-02030A0 |
ZZE130,131..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76911-02030B3 |
ZZE130,131..NAP..S SILVER M.M.,1E7 |
1 | ||
| 76911-02030B2 |
ZZE130,131..NAP..S GRAY M.M.,1E3 |
1 | ||
| 76911-02030J1 |
ZZE130..NAP..S BLUE ME.,8P1 |
1 | ||
| 76911-02030J0 |
ZZE130,131..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76911-02030D0 |
ZZE130,131..NAP..S RED M.M.,3P1 |
1 | ||
| 76911-02030C0 |
ZZE130,131..NAP..S BLACK MC.,209 |
1 | ||
| 76902 - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76912-02030A0 |
ZZE130..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76912-02030B0 |
ZZE130..NAP..S SILVER ME.,1C8 |
1 | ||
| 76912-02030C0 |
ZZE130..NAP..S BLACK MC.,209 |
1 | ||
| 76912-02030J0 |
ZZE130..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76912-02030D0 |
ZZE130..NAP..S RED M.M.,3P1 |
1 | ||
| 76912-02030B1 |
ZZE130..NAP..S CHARCOAL GRAY ME.,1E6 |
1 | ||
| 76912-02030G0 |
ZZE130..NAP..S GRAYISH GREEN M.M.OP,6R6 |
1 | ||
| 76912-02030J0 |
ZZE130,131..NAP..S DK.BLUE M.M.,8P4 |
1 | ||
| 76912-02030B2 |
ZZE130,131..NAP..S GRAY M.M.,1E3 |
1 | ||
| 76912-02030C0 |
ZZE130,131..NAP..S BLACK MC.,209 |
1 | ||
| 76912-02030B3 |
ZZE130,131..NAP..S SILVER M.M.,1E7 |
1 | ||
| 76912-02030D0 |
ZZE130,131..NAP..S RED M.M.,3P1 |
1 | ||
| 76912-02030J1 |
ZZE130..NAP..S BLUE ME.,8P1 |
1 | ||
| 76912-02030A0 |
ZZE130,131..NAP..S SUPER WHITE 2,040 |
1 | ||
| 76924A - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-02010 |
ZZE130..NAP |
16 | ||
| 76924-02010 |
ZZE130,131..NAP |
16 | ||
| 76924-52021 |
ZZE130..NAP |
16 | ||
| 76924A - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-02010 |
ZZE130..NAP |
16 | ||
| 76924-02010 |
ZZE130,131..NAP |
16 | ||
| 76924-52021 |
ZZE130..NAP |
16 | ||
| 76925D - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76925-02030B0 |
ZZE130..NAP..S GRAY,040 ,1C8 ,1E6 ,6R6 |
1 | ||
| 76925-02030C0 |
ZZE130..NAP..S BLACK,209 ,3P1 ,8P4 |
1 | ||
| 76925-02030C0 |
ZZE130..NAP..S BLACK,209 ,3P1 ,8P1 ,8P4 |
1 | ||
| 76925-02030B0 |
ZZE130,131..NAP..S GRAY,040 ,1E3 ,1E7 |
1 | ||
| 76926D - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76925-02030C0 |
ZZE130..NAP..S BLACK,209 ,3P1 ,8P4 |
1 | ||
| 76925-02030B0 |
ZZE130..NAP..S GRAY,040 ,1C8 ,1E6 ,6R6 |
1 | ||
| 76925-02030B0 |
ZZE130,131..NAP..S GRAY,040 ,1E3 ,1E7 |
1 | ||
| 76925-02030C0 |
ZZE130..NAP..S BLACK,209 ,3P1 ,8P1 ,8P4 |
1 | ||
| Common parts | ||||
| 75392-35200 | ||||
| 76879-44010 | ||||
| 90119-A0092 | ||||
| 90159-60444 | ||||
| 90159-60603 | ||||
| 90164-60024 | ||||
| 90179-05004 | ||||
| 90179-06115 | ||||
| 90183-06019 | ||||
| 90189-06006 | ||||
| 90467-07168C1 | ||||
| 90467-10161 | ||||
| 90467-10162 | ||||
| 90467-11063 | ||||
| Linked diagrams | ||||
| 8117 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
