ZZE130L-DEPDKA (2002)
Toyota Corolla/Matrix (Nap)

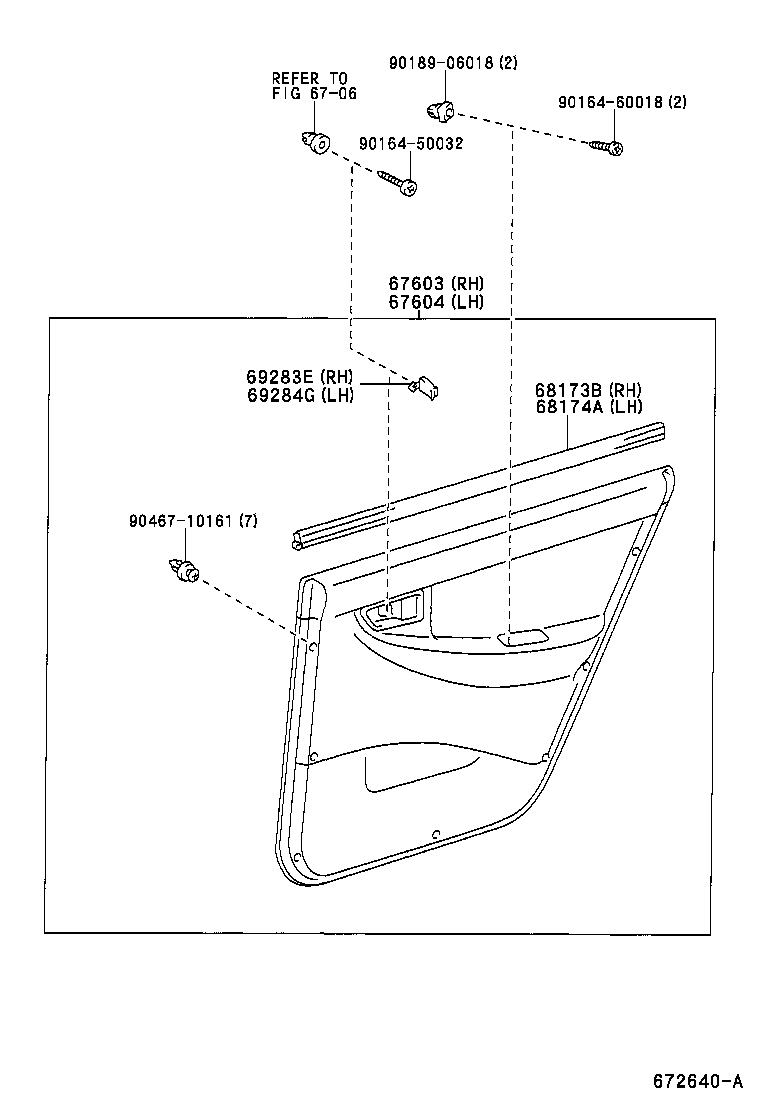

ILLUST NO. 1 OF 2(0201- )ZZE130,131..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-02780B3 |
ZZE130..NAP..CE STONE,TRIM1# |
1 | ||
| 67630-02780B4 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
1 | ||
| 67630-02820E1 |
ZZE130..NAP..CE W(POWER WINDOW),NEUTRAL BONE,TRIM4# |
1 | ||
| 67630-02820B3 |
ZZE130..NAP..CE W(POWER WINDOW),STONE,TRIM1# |
1 | ||
| 67630-02780E2 |
ZZE130..NAP..CE NEUTRAL BONE,TRIM4# |
1 | ||
| 67630-02B80E0 |
ZZE130..NAP..CE MD. NEUTRAL,TRIM4# |
1 | ||
| 67630-02B80B0 |
ZZE130..NAP..CE STONE,TRIM1# |
1 | ||
| 67630-02B90B0 |
ZZE130..NAP..CE W(POWER WINDOW),STONE,TRIM1# |
1 | ||
| 67630-02820B4 |
ZZE130..NAP..S W(POWER WINDOW),DK. GRAY,TRIM1# |
1 | ||
| 67630-02B90E0 |
ZZE130..NAP..CE W(POWER WINDOW),MD. NEUTRAL,TRIM4# |
1 | ||
| 67630-02B90B1 |
ZZE130..NAP..S W(POWER WINDOW),DK. GRAY,TRIM1# |
1 | ||
| 67630-02B80B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-02780B4 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
1 | ||
| 67640-02780E2 |
ZZE130..NAP..CE NEUTRAL BONE,TRIM4# |
1 | ||
| 67640-02820B3 |
ZZE130..NAP..CE W(POWER WINDOW),STONE,TRIM1# |
1 | ||
| 67640-02780B3 |
ZZE130..NAP..CE STONE,TRIM1# |
1 | ||
| 67640-02820B4 |
ZZE130..NAP..S W(POWER WINDOW),DK. GRAY,TRIM1# |
1 | ||
| 67640-02B80E0 |
ZZE130..NAP..CE MD. NEUTRAL,TRIM4# |
1 | ||
| 67640-02B80B0 |
ZZE130..NAP..CE STONE,TRIM1# |
1 | ||
| 67640-02820E1 |
ZZE130..NAP..CE W(POWER WINDOW),NEUTRAL BONE,TRIM4# |
1 | ||
| 67640-02B90B0 |
ZZE130..NAP..CE W(POWER WINDOW),STONE,TRIM1# |
1 | ||
| 67640-02B90B1 |
ZZE130..NAP..S W(POWER WINDOW),DK. GRAY,TRIM1# |
1 | ||
| 67640-02B90E0 |
ZZE130..NAP..CE W(POWER WINDOW),MD. NEUTRAL,TRIM4# |
1 | ||
| 67640-02B80B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-02090 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 68173-02090 |
ZZE130,131..NAP |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-02060 |
ZZE130,131..NAP |
1 | ||
| 68174-02060 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 69283E - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-02010B0 |
ZZE130..NAP..(CE,LE) STONE,TRIM1# |
1 | ||
| 69283-02010E0 |
ZZE130..NAP..(CE,LE) MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 69283-02010B1 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 69283-02010B0 |
ZZE130..NAP..(CE,LE) STONE,TRIM1# |
1 | ||
| 69283-02010B1 |
ZZE130,131..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 69283-02010E0 |
ZZE130..NAP..(CE,LE) MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 69284G - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69283-02010B1 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 69283-02010B0 |
ZZE130..NAP..(CE,LE) STONE,TRIM1# |
1 | ||
| 69283-02010B0 |
ZZE130..NAP..(CE,LE) STONE,TRIM1# |
1 | ||
| 69283-02010E0 |
ZZE130..NAP..(CE,LE) MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 69283-02010B1 |
ZZE130,131..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 69283-02010E0 |
ZZE130..NAP..(CE,LE) MD.NEUTRAL BONE,TRIM4# |
1 | ||
| Common parts | ||||
| 90164-50032 | ||||
| 90164-60018 | ||||
| 90189-06018 | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 6706 | ||||

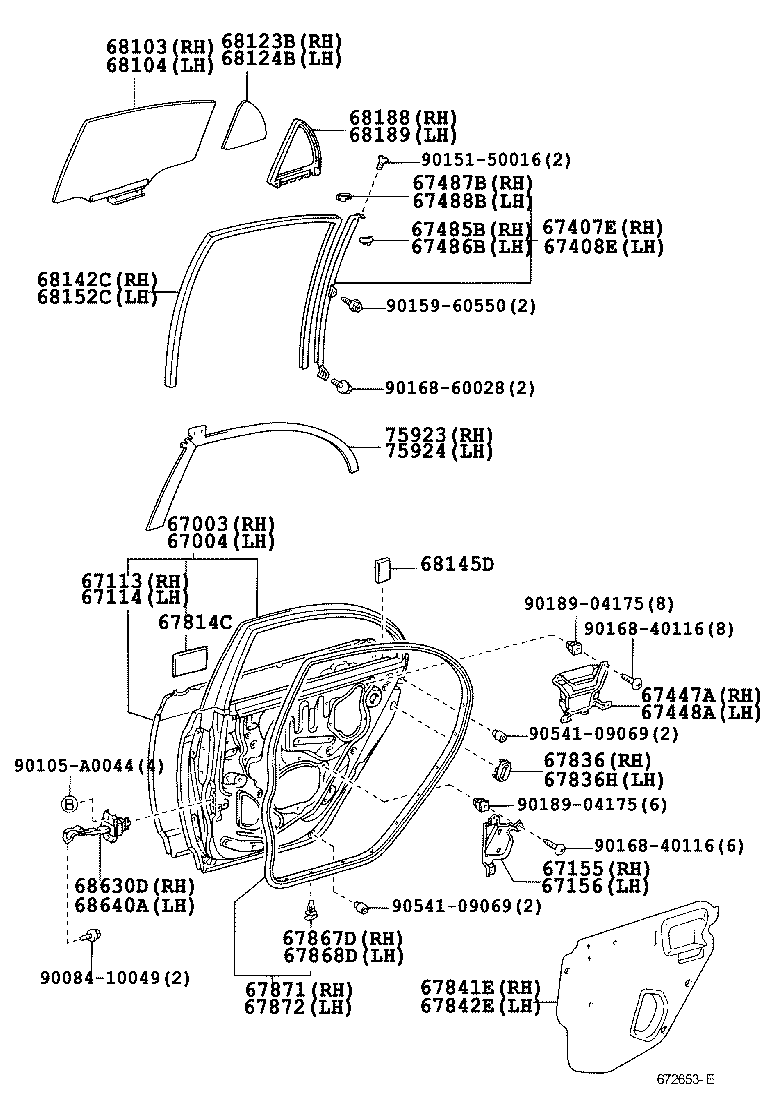

ILLUST NO. 2 OF 2(0201- )ZZE130,131..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-02180 |
ZZE130..NAP |
1 | ||
| 67003-02180 |
ZZE130..NAP |
1 | ||
| 67003-02190 |
ZZE130..NAP W(POWER DOOR LOCK) |
1 | ||
| 67003-02190 |
ZZE130,131..NAP W(POWER DOOR LOCK) |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-02190 |
ZZE130,131..NAP W(POWER DOOR LOCK) |
1 | ||
| 67004-02180 |
ZZE130..NAP |
1 | ||
| 67004-02180 |
ZZE130..NAP |
1 | ||
| 67004-02190 |
ZZE130..NAP W(POWER DOOR LOCK) |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-02080 |
ZZE130,131..NAP |
1 | ||
| 67113-02080 |
ZZE130..NAP |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-02080 |
ZZE130..NAP |
1 | ||
| 67114-02080 |
ZZE130,131..NAP |
1 | ||
| 67155 - REINFORCEMENT, REAR DOOR INSIDE PANEL, RH | ||||
| 67155-02020 |
ZZE130..NAP |
1 | ||
| 67155-02020 |
ZZE130..NAP |
1 | ||
| 67156 - REINFORCEMENT, REAR DOOR INSIDE PANEL, LH | ||||
| 67156-02020 |
ZZE130..NAP |
1 | ||
| 67156-02020 |
ZZE130..NAP |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-12260 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 67407-12260 |
ZZE130..NAP |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-12260 |
ZZE130..NAP |
1 | ||
| 67408-12260 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 67447A - PLATE, REAR DOOR INSIDE PANEL, RH | ||||
| 67077-12011 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 67077-12011 |
ZZE130,131..NAP |
1 | ||
| 67077-12010 |
ZZE130..NAP |
1 | ||
| 67448A - PLATE, REAR DOOR INSIDE PANEL, LH | ||||
| 67078-12011 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 67078-12010 |
ZZE130..NAP |
1 | ||
| 67078-12011 |
ZZE130,131..NAP |
1 | ||
| 67485B - SEAL, REAR DOOR DIVISION BAR, INSIDE, RH | ||||
| 67485-53010 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 67485-53010 |
ZZE130..NAP |
1 | ||
| 67486B - SEAL, REAR DOOR DIVISION BAR, INSIDE, LH | ||||
| 67486-53010 |
ZZE130..NAP |
1 | ||
| 67486-53010 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 67487B - SEAL, REAR DOOR DIVISION BAR, RH | ||||
| 67487-53010 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 67487-53010 |
ZZE130..NAP |
1 | ||
| 67488B - SEAL, REAR DOOR DIVISION BAR, LH | ||||
| 67488-53010 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 67488-53010 |
ZZE130..NAP |
1 | ||
| 67814C - PACKING, DOOR PROTECTOR | ||||
| 67817-47010 |
ZZE130..NAP |
2 | ||
| 67817-47010 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
2 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12040 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 67836-12040 |
ZZE130..NAP |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-12040 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 67836-12040 |
ZZE130..NAP |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-02120 |
ZZE130..NAP |
1 | ||
| 67841-02090 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-02070 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 67842-02120 |
ZZE130..NAP |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-02020 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
16 | ||
| 67868-02020 |
ZZE130..NAP |
16 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-02020 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
16 | ||
| 67868-02020 |
ZZE130..NAP |
16 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-02090 |
ZZE130..NAP |
1 | ||
| 67871-02090 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-02090 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 67872-02090 |
ZZE130..NAP |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-02090 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND *TT,T=3.1,GREEN |
1 | ||
| 68103-02190 |
ZZE130..NAP *TT,T=3.1,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-02180 |
ZZE130..NAP *TT,T=3.1,GREEN |
1 | ||
| 68104-02090 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND *TT,T=3.1,GREEN |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-02160 |
ZZE130..NAP *TT,T=3.1,GREEN |
1 | ||
| 68123-02080 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND *TT,T=3.1,GREEN |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-02080 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND *TT,T=3.1,GREEN |
1 | ||
| 68124-02160 |
ZZE130..NAP *TT,T=3.1,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-02080 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 68142-02080 |
ZZE130,131..NAP |
1 | ||
| 68142-02160 |
ZZE130..NAP |
1 | ||
| 68145D - CUSHION, REAR DOOR WINDOW | ||||
| 69759-12110 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
4 | ||
| 69759-02100 |
ZZE130,131..NAP |
4 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-02080 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 68152-02080 |
ZZE130,131..NAP |
1 | ||
| 68152-02160 |
ZZE130..NAP |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-02040 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 68188-02040 |
ZZE130..NAP |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-02040 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 68189-02040 |
ZZE130..NAP |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-02060 |
ZZE130..NAP |
1 | ||
| 68630-02061 |
ZZE130..NAP |
1 | ||
| 68630-02061 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-02061 |
ZZE130..NAP |
1 | ||
| 68640-02061 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 68640-02060 |
ZZE130..NAP |
1 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-02020 |
ZZE130..NAP..(LE,S) |
1 | ||
| 75923-02020 |
ZZE130..5F..S..CND;ZZE130..4FC..(LE,S);ZZE130..5F..(LE,S)..USA |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-02020 |
ZZE130..5F..S..CND;ZZE130..4FC..(LE,S);ZZE130..5F..(LE,S)..USA |
1 | ||
| 75924-02020 |
ZZE130..NAP..(LE,S) |
1 | ||
| Common parts | ||||
| 90084-10049 | ||||
| 90105-A0044 | ||||
| 90151-50016 | ||||
| 90159-60550 | ||||
| 90168-40116 | ||||
| 90168-60028 | ||||
| 90189-04175 | ||||
| 90541-09069 | ||||
