ZZE130L-DEPDKA (2002)
Toyota Corolla/Matrix (Nap)

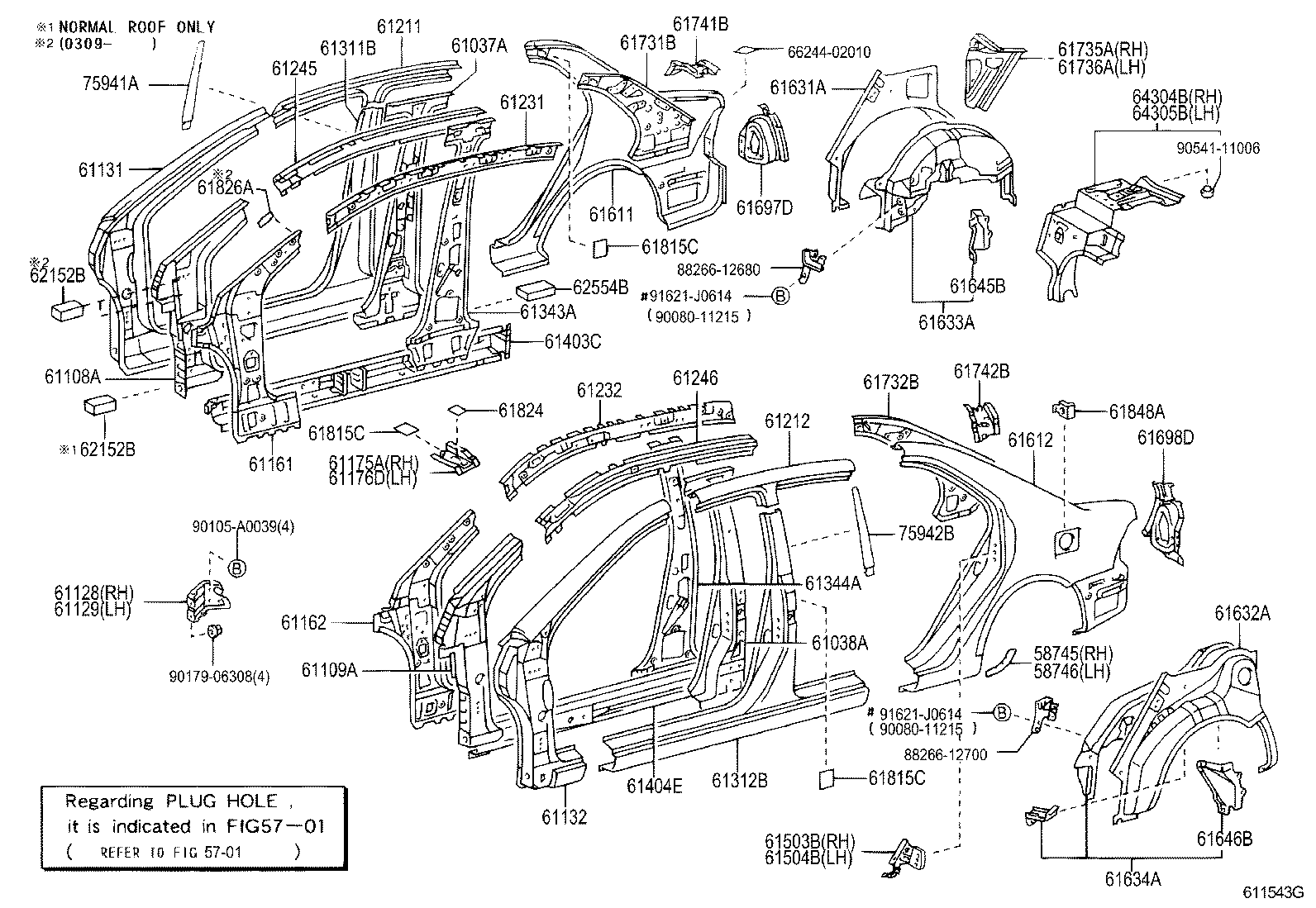

(0201-0405)ZZE130..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58745 - PROTECTOR, QUARTER PANEL, FRONT RH | ||||
| 58741-02060 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 58741-02060 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 58746 - PROTECTOR, QUARTER PANEL, FRONT LH | ||||
| 58742-02060 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 58742-02060 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-02906 |
ZZE130..NAP |
1 | ||
| 61037-02903 |
ZZE130..NAP |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-02903 |
ZZE130..NAP |
1 | ||
| 61038-02906 |
ZZE130..NAP |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-02070 |
ZZE130..NAP |
1 | ||
| 61108-02070 |
ZZE130..NAP |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-02070 |
ZZE130..NAP |
1 | ||
| 61109-02070 |
ZZE130..NAP |
1 | ||
| 61128 - REINFORCEMENT, COWL SIDE PANEL, RH | ||||
| 61103-02030 |
ZZE130..NAP |
1 | ||
| 61103-02060 |
ZZE130..NAP |
1 | ||
| 61129 - REINFORCEMENT, COWL SIDE PANEL, LH | ||||
| 61104-02030 |
ZZE130..NAP |
1 | ||
| 61104-02060 |
ZZE130..NAP |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-02090 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61131-02100 |
ZZE130..NAP..S |
1 | ||
| 61131-02090 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61131-02100 |
ZZE130..NAP..S |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-02120 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61132-02130 |
ZZE130..NAP..S |
1 | ||
| 61132-02120 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61132-02130 |
ZZE130..NAP..S |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61023-02130 |
ZZE130..NAP |
1 | ||
| 61023-02090 |
ZZE130..NAP |
1 | ||
| 61023-02091 |
ZZE130..NAP |
1 | ||
| 61023-02092 |
ZZE130,131..NAP |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61024-02090 |
ZZE130..NAP |
1 | ||
| 61024-02120 |
ZZE130..NAP |
1 | ||
| 61024-02091 |
ZZE130..NAP |
1 | ||
| 61024-02092 |
ZZE130,131..NAP |
1 | ||
| 61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH | ||||
| 61175-02040 |
ZZE130..NAP |
1 | ||
| 61175-02040 |
ZZE130..NAP |
1 | ||
| 61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH | ||||
| 61176-02040 |
ZZE130..NAP |
1 | ||
| 61176-02040 |
ZZE130..NAP |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-02070 |
ZZE130..NAP |
1 | ||
| 61211-02070 |
ZZE130..NAP |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-02070 |
ZZE130..NAP |
1 | ||
| 61212-02070 |
ZZE130..NAP |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-02040 |
ZZE130..NAP |
1 | ||
| 61231-02100 |
ZZE130..NAP |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-02040 |
ZZE130..NAP |
1 | ||
| 61232-02100 |
ZZE130..NAP |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-02040 |
ZZE130..NAP |
1 | ||
| 61245-02060 |
ZZE130..NAP |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-02040 |
ZZE130..NAP |
1 | ||
| 61246-02070 |
ZZE130..NAP |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-02060 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61311-02070 |
ZZE130..NAP..S |
1 | ||
| 61311-02060 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61311-02070 |
ZZE130..NAP..S |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-02060 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61312-02070 |
ZZE130..NAP..S |
1 | ||
| 61312-02060 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61312-02070 |
ZZE130..NAP..S |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-02051 |
ZZE130..NAP |
1 | ||
| 61343-02050 |
ZZE130..NAP |
1 | ||
| 61343-02051 |
ZZE130..NAP |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-02051 |
ZZE130..NAP |
1 | ||
| 61344-02051 |
ZZE130..NAP |
1 | ||
| 61344-02050 |
ZZE130..NAP |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-02040 |
ZZE130..NAP |
1 | ||
| 61403-02040 |
ZZE130..NAP |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-02040 |
ZZE130..NAP |
1 | ||
| 61404-02040 |
ZZE130..NAP |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-02030 |
ZZE130..NAP |
1 | ||
| 61503-02030 |
ZZE130..NAP |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-02030 |
ZZE130..NAP |
1 | ||
| 61504-02030 |
ZZE130..NAP |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-02140 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61601-02150 |
ZZE130..NAP..S |
1 | ||
| 61601-02150 |
ZZE130..NAP..S |
1 | ||
| 61601-02140 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-02120 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61602-02130 |
ZZE130..NAP..S |
1 | ||
| 61602-02130 |
ZZE130..NAP..S |
1 | ||
| 61602-02120 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-02070 |
ZZE130..NAP |
1 | ||
| 61631-02070 |
ZZE130,131..NAP |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-02070 |
ZZE130..NAP |
1 | ||
| 61632-02070 |
ZZE130,131..NAP |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-02920 |
ZZE130..NAP W(SPLIT TYPE REAR SEAT) |
1 | ||
| 61607-02919 |
ZZE130..NAP..CE W(FIXED TYPE REAR SEAT) |
1 | ||
| 61607-02933 |
ZZE130..NAP |
1 | ||
| 61607-02934 |
ZZE130..NAP W(ABS) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-02917 |
ZZE130..NAP..CE W(FIXED TYPE REAR SEAT) |
1 | ||
| 61608-02918 |
ZZE130..NAP W(SPLIT TYPE REAR SEAT) |
1 | ||
| 61608-02932 |
ZZE130..NAP |
1 | ||
| 61608-02933 |
ZZE130..NAP W(ABS) |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-02050 |
ZZE130..NAP |
1 | ||
| 61645-02050 |
ZZE130..NAP |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-02050 |
ZZE130..NAP |
1 | ||
| 61646-02050 |
ZZE130..NAP |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-02902 |
ZZE130..NAP |
1 | ||
| 61697-02902 |
ZZE130..NAP |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61698-02902 |
ZZE130..NAP |
1 | ||
| 61698-02902 |
ZZE130..NAP |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-02080 |
ZZE130..NAP |
1 | ||
| 61731-02150 |
ZZE130..NAP |
1 | ||
| 61731-02081 |
ZZE130..NAP |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-02080 |
ZZE130..NAP |
1 | ||
| 61732-02081 |
ZZE130..NAP |
1 | ||
| 61732-02150 |
ZZE130,131..NAP |
1 | ||
| 61732-02151 |
ZZE130..NAP |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-02040 |
ZZE130..NAP |
1 | ||
| 61735-02040 |
ZZE130..NAP |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-02040 |
ZZE130..NAP |
1 | ||
| 61736-02040 |
ZZE130..NAP |
1 | ||
| 61741B - REINFORCEMENT, BACK WINDOW OPENING, RH | ||||
| 61741-02041 |
ZZE130..NAP |
1 | ||
| 61741-02041 |
ZZE130..NAP |
1 | ||
| 61741-02040 |
ZZE130..NAP |
1 | ||
| 61742B - REINFORCEMENT, BACK WINDOW OPENING, LH | ||||
| 61742-02041 |
ZZE130..NAP |
1 | ||
| 61742-02040 |
ZZE130..NAP |
1 | ||
| 61742-02041 |
ZZE130,131..NAP |
1 | ||
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-02040 |
ZZE130..NAP |
4 | ||
| 61815-02040 |
ZZE130..NAP W/O(CURTAIN SHIELD AIR BAG & MOON ROOF) |
6 | ||
| 61815-02040 |
ZZE130..NAP W(MOON ROOF) |
4 | ||
| 61815-02040 |
ZZE130..NAP |
6 | ||
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-02040 |
ZZE130..NAP |
4 | ||
| 61815-02040 |
ZZE130..NAP W/O(CURTAIN SHIELD AIR BAG & MOON ROOF) |
6 | ||
| 61815-02040 |
ZZE130..NAP W(MOON ROOF) |
4 | ||
| 61815-02040 |
ZZE130..NAP |
6 | ||
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-02040 |
ZZE130..NAP |
4 | ||
| 61815-02040 |
ZZE130..NAP W/O(CURTAIN SHIELD AIR BAG & MOON ROOF) |
6 | ||
| 61815-02040 |
ZZE130..NAP W(MOON ROOF) |
4 | ||
| 61815-02040 |
ZZE130..NAP |
6 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-02050 |
ZZE130..NAP |
2 | ||
| 61824-02050 |
ZZE130..NAP |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-52020 |
ZZE130..NAP |
2 | ||
| 61826-12020 |
ZZE130..NAP |
2 | ||
| 61826-52020 |
ZZE130..NAP |
2 | ||
| 61848A - RETAINER, QUARTER PANEL, LH | ||||
| 61848-02030 |
ZZE130..NAP |
1 | ||
| 61848-02030 |
ZZE130..NAP |
1 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-02020 |
ZZE130..NAP |
6 | ||
| 62152-02020 |
ZZE130..NAP |
6 | ||
| 62152-02020 |
ZZE130..NAP W(MOON ROOF) |
4 | ||
| 62152-02020 |
ZZE130..NAP W(MOON ROOF) |
4 | ||
| 62152-02020 |
ZZE130..NAP |
6 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-02020 |
ZZE130..NAP |
6 | ||
| 62152-02020 |
ZZE130..NAP |
6 | ||
| 62152-02020 |
ZZE130..NAP W(MOON ROOF) |
4 | ||
| 62152-02020 |
ZZE130..NAP W(MOON ROOF) |
4 | ||
| 62152-02020 |
ZZE130..NAP |
6 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-02040 |
ZZE130..NAP |
2 | ||
| 62554-02040 |
ZZE130..NAP |
2 | ||
| 64304B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH | ||||
| 64304-02901 |
ZZE130..NAP |
1 | ||
| 64304-02901 |
ZZE130..NAP |
1 | ||
| 64305B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH | ||||
| 64305-02901 |
ZZE130..NAP |
1 | ||
| 64305-02901 |
ZZE130..NAP |
1 | ||
| 75941A - STRIPE, CENTER PILLAR, RH | ||||
| 75941-02020 |
ZZE130..NAP..(LE,S) |
1 | ||
| 75941-02020 |
ZZE130..NAP..(LE,S) |
1 | ||
| 75942B - STRIPE, CENTER PILLAR, LH | ||||
| 75942-02020 |
ZZE130..NAP..(LE,S) |
1 | ||
| 75942-02020 |
ZZE130..NAP..(LE,S) |
1 | ||
| Common parts | ||||
| 66244-02010 | ||||
| 88266-12680 | ||||
| 88266-12700 | ||||
| 90080-11215 | ||||
| 90105-A0039 | ||||
| 90179-06308 | ||||
| 90541-11006 | ||||
| 91621-J0614 | ||||
| Linked diagrams | ||||
| 5701 | ||||

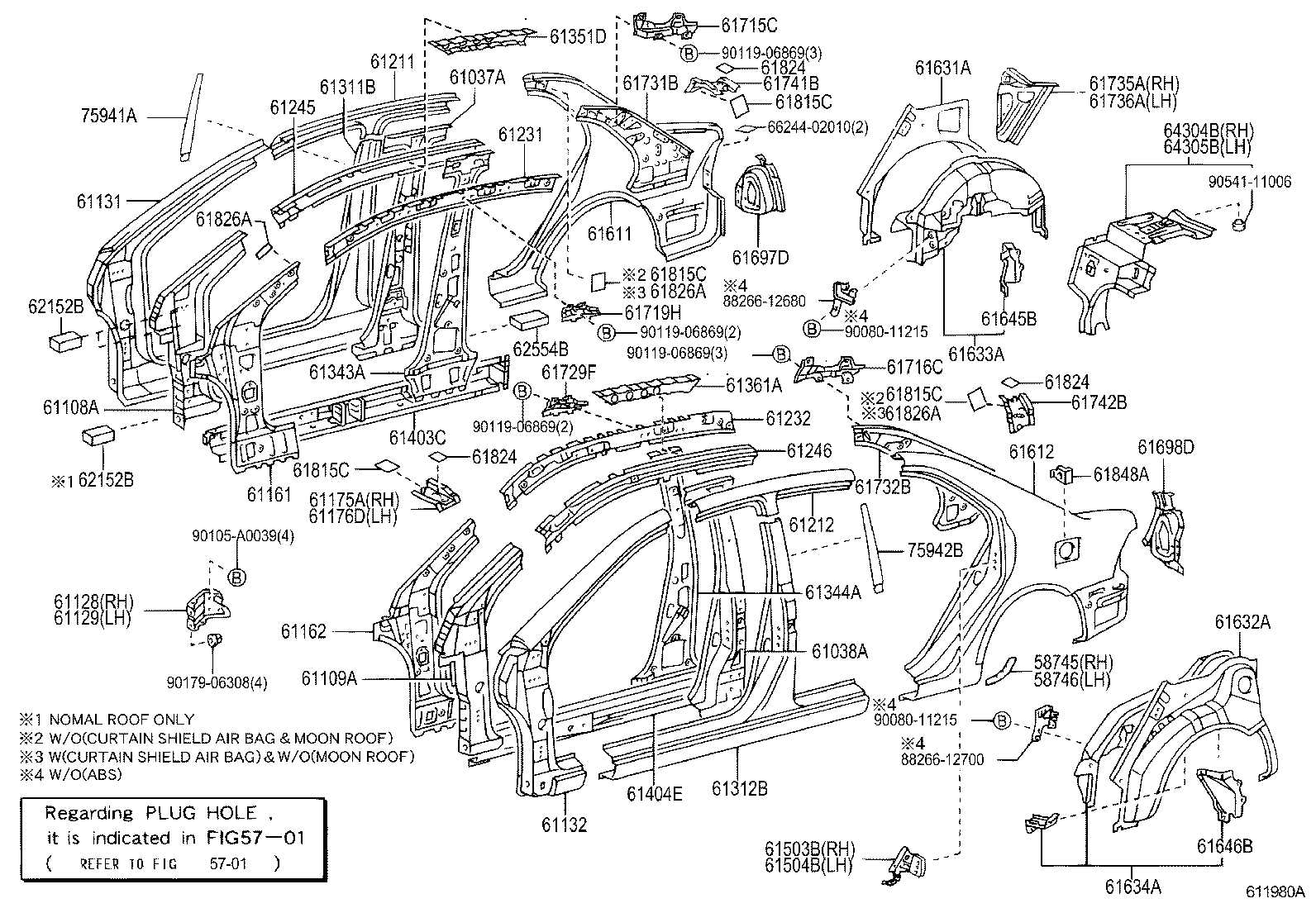

(0405- )ZZE130,131..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58745 - PROTECTOR, QUARTER PANEL, FRONT RH | ||||
| 58741-02060 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 58741-02060 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 58746 - PROTECTOR, QUARTER PANEL, FRONT LH | ||||
| 58742-02060 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 58742-02060 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-02906 |
ZZE130..NAP |
1 | ||
| 61037-02903 |
ZZE130..NAP |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-02903 |
ZZE130..NAP |
1 | ||
| 61038-02906 |
ZZE130..NAP |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-02070 |
ZZE130..NAP |
1 | ||
| 61108-02070 |
ZZE130..NAP |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-02070 |
ZZE130..NAP |
1 | ||
| 61109-02070 |
ZZE130..NAP |
1 | ||
| 61128 - REINFORCEMENT, COWL SIDE PANEL, RH | ||||
| 61103-02030 |
ZZE130..NAP |
1 | ||
| 61103-02060 |
ZZE130..NAP |
1 | ||
| 61129 - REINFORCEMENT, COWL SIDE PANEL, LH | ||||
| 61104-02030 |
ZZE130..NAP |
1 | ||
| 61104-02060 |
ZZE130..NAP |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-02090 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61131-02100 |
ZZE130..NAP..S |
1 | ||
| 61131-02090 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61131-02100 |
ZZE130..NAP..S |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-02120 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61132-02130 |
ZZE130..NAP..S |
1 | ||
| 61132-02120 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61132-02130 |
ZZE130..NAP..S |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61023-02130 |
ZZE130..NAP |
1 | ||
| 61023-02090 |
ZZE130..NAP |
1 | ||
| 61023-02091 |
ZZE130..NAP |
1 | ||
| 61023-02092 |
ZZE130,131..NAP |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61024-02090 |
ZZE130..NAP |
1 | ||
| 61024-02120 |
ZZE130..NAP |
1 | ||
| 61024-02091 |
ZZE130..NAP |
1 | ||
| 61024-02092 |
ZZE130,131..NAP |
1 | ||
| 61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH | ||||
| 61175-02040 |
ZZE130..NAP |
1 | ||
| 61175-02040 |
ZZE130..NAP |
1 | ||
| 61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH | ||||
| 61176-02040 |
ZZE130..NAP |
1 | ||
| 61176-02040 |
ZZE130..NAP |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-02070 |
ZZE130..NAP |
1 | ||
| 61211-02070 |
ZZE130..NAP |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-02070 |
ZZE130..NAP |
1 | ||
| 61212-02070 |
ZZE130..NAP |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-02040 |
ZZE130..NAP |
1 | ||
| 61231-02100 |
ZZE130..NAP |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-02040 |
ZZE130..NAP |
1 | ||
| 61232-02100 |
ZZE130..NAP |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-02040 |
ZZE130..NAP |
1 | ||
| 61245-02060 |
ZZE130..NAP |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-02040 |
ZZE130..NAP |
1 | ||
| 61246-02070 |
ZZE130..NAP |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-02060 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61311-02070 |
ZZE130..NAP..S |
1 | ||
| 61311-02060 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61311-02070 |
ZZE130..NAP..S |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-02060 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61312-02070 |
ZZE130..NAP..S |
1 | ||
| 61312-02060 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61312-02070 |
ZZE130..NAP..S |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-02051 |
ZZE130..NAP |
1 | ||
| 61343-02050 |
ZZE130..NAP |
1 | ||
| 61343-02051 |
ZZE130..NAP |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-02051 |
ZZE130..NAP |
1 | ||
| 61344-02051 |
ZZE130..NAP |
1 | ||
| 61344-02050 |
ZZE130..NAP |
1 | ||
| 61351D - RAIL, NO.1 CENTER OUTER, RH | ||||
| 61351-02010 |
ZZE130..NAP |
1 | ||
| 61361A - RAIL, NO.1 CENTER OUTER, LH | ||||
| 61361-02010 |
ZZE130..NAP |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-02040 |
ZZE130..NAP |
1 | ||
| 61403-02040 |
ZZE130..NAP |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-02040 |
ZZE130..NAP |
1 | ||
| 61404-02040 |
ZZE130..NAP |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-02030 |
ZZE130..NAP |
1 | ||
| 61503-02030 |
ZZE130..NAP |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-02030 |
ZZE130..NAP |
1 | ||
| 61504-02030 |
ZZE130..NAP |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-02140 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61601-02150 |
ZZE130..NAP..S |
1 | ||
| 61601-02150 |
ZZE130..NAP..S |
1 | ||
| 61601-02140 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-02120 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61602-02130 |
ZZE130..NAP..S |
1 | ||
| 61602-02130 |
ZZE130..NAP..S |
1 | ||
| 61602-02120 |
ZZE130..NAP..(CE,LE) |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-02070 |
ZZE130..NAP |
1 | ||
| 61631-02070 |
ZZE130,131..NAP |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-02070 |
ZZE130..NAP |
1 | ||
| 61632-02070 |
ZZE130,131..NAP |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-02920 |
ZZE130..NAP W(SPLIT TYPE REAR SEAT) |
1 | ||
| 61607-02919 |
ZZE130..NAP..CE W(FIXED TYPE REAR SEAT) |
1 | ||
| 61607-02933 |
ZZE130..NAP |
1 | ||
| 61607-02934 |
ZZE130..NAP W(ABS) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-02917 |
ZZE130..NAP..CE W(FIXED TYPE REAR SEAT) |
1 | ||
| 61608-02918 |
ZZE130..NAP W(SPLIT TYPE REAR SEAT) |
1 | ||
| 61608-02932 |
ZZE130..NAP |
1 | ||
| 61608-02933 |
ZZE130..NAP W(ABS) |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-02050 |
ZZE130..NAP |
1 | ||
| 61645-02050 |
ZZE130..NAP |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-02050 |
ZZE130..NAP |
1 | ||
| 61646-02050 |
ZZE130..NAP |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-02902 |
ZZE130..NAP |
1 | ||
| 61697-02902 |
ZZE130..NAP |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61698-02902 |
ZZE130..NAP |
1 | ||
| 61698-02902 |
ZZE130..NAP |
1 | ||
| 61715C - BRACKET, ROOF SIDE, RH | ||||
| 61715-02040 |
ZZE130..NAP |
1 | ||
| 61716C - BRACKET, ROOF SIDE, LH | ||||
| 61716-02040 |
ZZE130..NAP |
1 | ||
| 61719H - BRACKET SUB-ASSY, ROOF SIDE RAIL, RH | ||||
| 61719-02050 |
ZZE130..NAP |
1 | ||
| 61729F - BRACKET SUB-ASSY, ROOF SIDE RAIL, LH | ||||
| 61729-02050 |
ZZE130..NAP |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-02080 |
ZZE130..NAP |
1 | ||
| 61731-02150 |
ZZE130..NAP |
1 | ||
| 61731-02081 |
ZZE130..NAP |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-02080 |
ZZE130..NAP |
1 | ||
| 61732-02081 |
ZZE130..NAP |
1 | ||
| 61732-02150 |
ZZE130,131..NAP |
1 | ||
| 61732-02151 |
ZZE130..NAP |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-02040 |
ZZE130..NAP |
1 | ||
| 61735-02040 |
ZZE130..NAP |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-02040 |
ZZE130..NAP |
1 | ||
| 61736-02040 |
ZZE130..NAP |
1 | ||
| 61741B - REINFORCEMENT, BACK WINDOW OPENING, RH | ||||
| 61741-02041 |
ZZE130..NAP |
1 | ||
| 61741-02041 |
ZZE130..NAP |
1 | ||
| 61741-02040 |
ZZE130..NAP |
1 | ||
| 61742B - REINFORCEMENT, BACK WINDOW OPENING, LH | ||||
| 61742-02041 |
ZZE130..NAP |
1 | ||
| 61742-02040 |
ZZE130..NAP |
1 | ||
| 61742-02041 |
ZZE130,131..NAP |
1 | ||
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-02040 |
ZZE130..NAP |
4 | ||
| 61815-02040 |
ZZE130..NAP W/O(CURTAIN SHIELD AIR BAG & MOON ROOF) |
6 | ||
| 61815-02040 |
ZZE130..NAP W(MOON ROOF) |
4 | ||
| 61815-02040 |
ZZE130..NAP |
6 | ||
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-02040 |
ZZE130..NAP |
4 | ||
| 61815-02040 |
ZZE130..NAP W/O(CURTAIN SHIELD AIR BAG & MOON ROOF) |
6 | ||
| 61815-02040 |
ZZE130..NAP W(MOON ROOF) |
4 | ||
| 61815-02040 |
ZZE130..NAP |
6 | ||
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-02040 |
ZZE130..NAP |
4 | ||
| 61815-02040 |
ZZE130..NAP W/O(CURTAIN SHIELD AIR BAG & MOON ROOF) |
6 | ||
| 61815-02040 |
ZZE130..NAP W(MOON ROOF) |
4 | ||
| 61815-02040 |
ZZE130..NAP |
6 | ||
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-02040 |
ZZE130..NAP |
4 | ||
| 61815-02040 |
ZZE130..NAP W/O(CURTAIN SHIELD AIR BAG & MOON ROOF) |
6 | ||
| 61815-02040 |
ZZE130..NAP W(MOON ROOF) |
4 | ||
| 61815-02040 |
ZZE130..NAP |
6 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-02050 |
ZZE130..NAP |
2 | ||
| 61824-02050 |
ZZE130..NAP |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-02050 |
ZZE130..NAP |
2 | ||
| 61824-02050 |
ZZE130..NAP |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-02050 |
ZZE130..NAP |
2 | ||
| 61824-02050 |
ZZE130..NAP |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-52020 |
ZZE130..NAP |
2 | ||
| 61826-12020 |
ZZE130..NAP |
2 | ||
| 61826-52020 |
ZZE130..NAP |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-52020 |
ZZE130..NAP |
2 | ||
| 61826-12020 |
ZZE130..NAP |
2 | ||
| 61826-52020 |
ZZE130..NAP |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-52020 |
ZZE130..NAP |
2 | ||
| 61826-12020 |
ZZE130..NAP |
2 | ||
| 61826-52020 |
ZZE130..NAP |
2 | ||
| 61848A - RETAINER, QUARTER PANEL, LH | ||||
| 61848-02030 |
ZZE130..NAP |
1 | ||
| 61848-02030 |
ZZE130..NAP |
1 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-02020 |
ZZE130..NAP |
6 | ||
| 62152-02020 |
ZZE130..NAP |
6 | ||
| 62152-02020 |
ZZE130..NAP W(MOON ROOF) |
4 | ||
| 62152-02020 |
ZZE130..NAP W(MOON ROOF) |
4 | ||
| 62152-02020 |
ZZE130..NAP |
6 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-02020 |
ZZE130..NAP |
6 | ||
| 62152-02020 |
ZZE130..NAP |
6 | ||
| 62152-02020 |
ZZE130..NAP W(MOON ROOF) |
4 | ||
| 62152-02020 |
ZZE130..NAP W(MOON ROOF) |
4 | ||
| 62152-02020 |
ZZE130..NAP |
6 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-02040 |
ZZE130..NAP |
2 | ||
| 62554-02040 |
ZZE130..NAP |
2 | ||
| 64304B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH | ||||
| 64304-02901 |
ZZE130..NAP |
1 | ||
| 64304-02901 |
ZZE130..NAP |
1 | ||
| 64305B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH | ||||
| 64305-02901 |
ZZE130..NAP |
1 | ||
| 64305-02901 |
ZZE130..NAP |
1 | ||
| 75941A - STRIPE, CENTER PILLAR, RH | ||||
| 75941-02020 |
ZZE130..NAP..(LE,S) |
1 | ||
| 75941-02020 |
ZZE130..NAP..(LE,S) |
1 | ||
| 75942B - STRIPE, CENTER PILLAR, LH | ||||
| 75942-02020 |
ZZE130..NAP..(LE,S) |
1 | ||
| 75942-02020 |
ZZE130..NAP..(LE,S) |
1 | ||
| Common parts | ||||
| 66244-02010 | ||||
| 88266-12680 | ||||
| 88266-12700 | ||||
| 90080-11215 | ||||
| 90105-A0039 | ||||
| 90119-06869 | ||||
| 90179-06308 | ||||
| 90541-11006 | ||||
| Linked diagrams | ||||
| 5701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
