ZZE130L-DEPDKA (2002)
Toyota Corolla/Matrix (Nap)

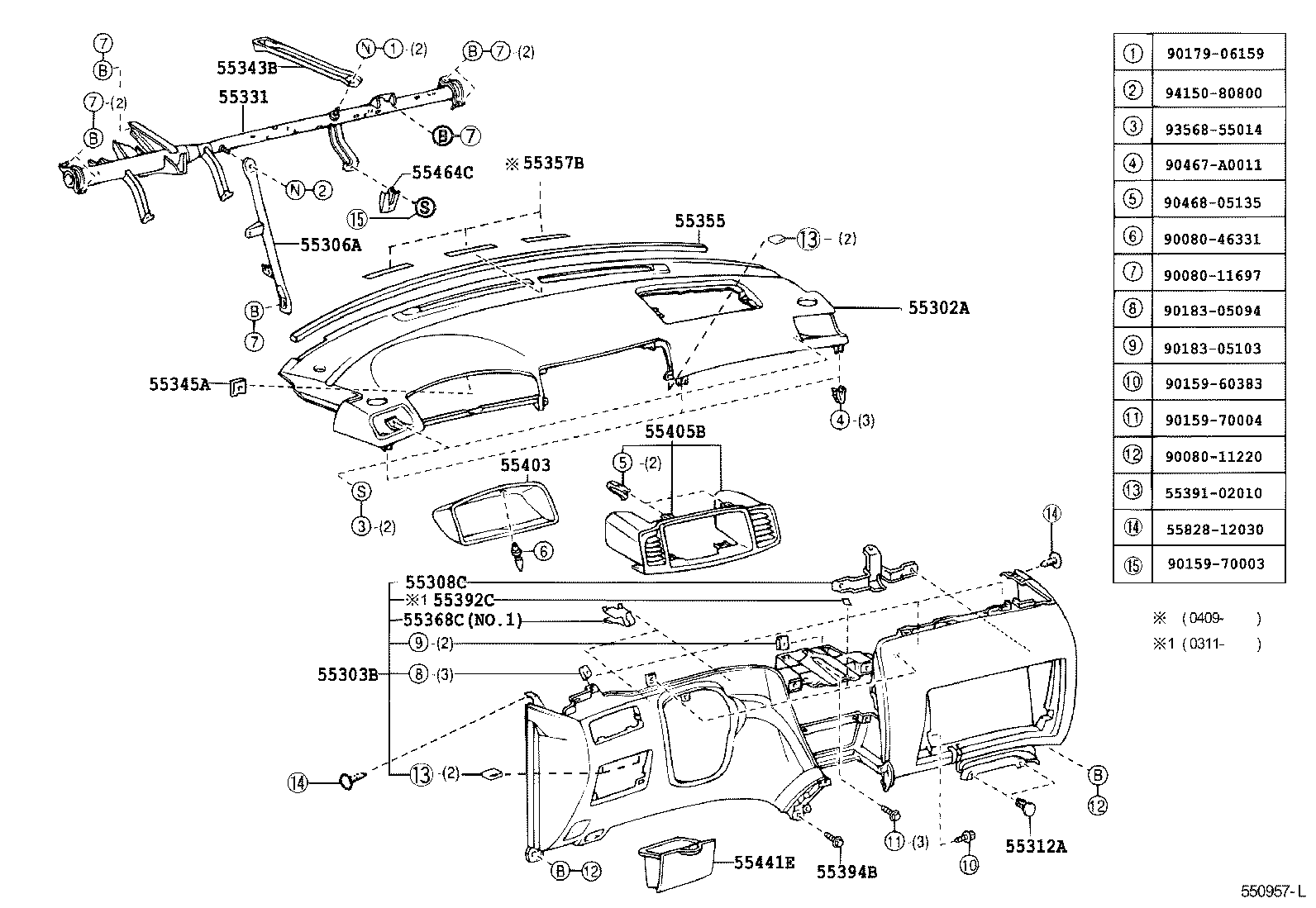

ILLUST NO. 1 OF 2(0201- )ZZE130,131..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-02110B1 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55302-02110B0 |
ZZE130..NAP..(CE,LE) DK. STONE,TRIM1# |
1 | ||
| 55302-02110E0 |
ZZE130..NAP..(CE,LE) DK.NEUTRAL BONE,TRIM4# |
1 | ||
| 55302-02110B1 |
ZZE130,131..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55302-02110E0 |
ZZE130..NAP..(CE,LE) DK.NEUTRAL BONE,TRIM4# |
1 | ||
| 55302-02110B0 |
ZZE130..NAP..(CE,LE) DK. STONE,TRIM1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02130B1 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55303-02130B0 |
ZZE130..NAP..(CE,LE) STONE,TRIM1# |
1 | ||
| 55303-02130B0 |
ZZE130..NAP..(CE,LE) STONE,TRIM1# |
1 | ||
| 55303-02131B0 |
ZZE130..NAP..(CE,LE) STONE,TRIM1# |
1 | ||
| 55303-02130E0 |
ZZE130..NAP..(CE,LE) MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55303-02130E0 |
ZZE130..NAP..(CE,LE) MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55303-02131B1 |
ZZE130,131..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55303-02130B1 |
ZZE130,131..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55303-02131E0 |
ZZE130..NAP..(CE,LE) MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02140 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 55306-02140 |
ZZE130..NAP |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-02120 |
ZZE130..NAP |
1 | ||
| 55308-02121 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 55308-02121 |
ZZE130..NAP |
1 | ||
| 55308-02121 |
ZZE130,131..NAP |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-06089C0 |
ZZE130..NAP..S BLACK,TRIM1# |
2 | ||
| 90467-06089C0 |
ZZE130..NAP..(CE,LE) BLACK,TRIM1#,4# |
2 | ||
| 90467-06089C0 |
ZZE130,131..NAP BLACK |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-02130 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 55330-02263 |
ZZE130..NAP |
1 | ||
| 55330-02265 |
ZZE130..NAP |
1 | ||
| 55330-02260 |
ZZE130,131..NAP |
1 | ||
| 55330-02264 |
ZZE130..NAP |
1 | ||
| 55330-02261 |
ZZE130,131..NAP |
1 | ||
| 55330-02262 |
ZZE130,131..NAP |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-02050 |
ZZE130..NAP |
1 | ||
| 55343-02050 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-12060 |
ZZE130..NAP |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02060 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 55355-02060 |
ZZE130..NAP |
1 | ||
| 55355-02060 |
ZZE130..NAP |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-02040 |
ZZE130..NAP |
3 | ||
| 55368C - BRACKET, METER MOUNTING | ||||
| 55362-12050 |
ZZE130..NAP NO.1 |
2 | ||
| 55368-02060 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND NO.2 |
1 | ||
| 55362-12050 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND NO.1 |
2 | ||
| 55368-02060 |
ZZE130..NAP NO.2 |
1 | ||
| 55368-02060 |
ZZE130..NAP NO.2 |
1 | ||
| 55362-12050 |
ZZE130..NAP NO.1 |
2 | ||
| 55362-12050 |
ZZE130,131..NAP NO.1 |
2 | ||
| 55392C - CUSHION, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 55392-02060 |
ZZE130..NAP |
1 | ||
| 55392-02060 |
ZZE130,131..NAP |
1 | ||
| 55392-02060 |
ZZE130..NAP |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-12020 |
ZZE130..NAP |
1 | ||
| 55394-12020 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-02080 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 55403-02080 |
ZZE130..NAP |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55406-02080B0 |
ZZE130..NAP..(CE,LE) DK. STONE,TRIM1# |
1 | ||
| 55406-02080E0 |
ZZE130..NAP..(CE,LE) DK.NEUTRAL BONE,TRIM4# |
1 | ||
| 55406-02090B0 |
ZZE130,131..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55406-02080B0 |
ZZE130..NAP..CE DK. STONE,TRIM1# |
1 | ||
| 55406-02080E0 |
ZZE130..NAP..CE DK.NEUTRAL BONE,TRIM4# |
1 | ||
| 55406-02090B0 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55441E - BOX, INSTRUMENT PANEL | ||||
| 55441-02070E0 |
ZZE130..NAP..(CE,LE) MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-02070B1 |
ZZE130,131..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55441-02070B1 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55441-02070B0 |
ZZE130..NAP..(CE,LE) STONE,TRIM1# |
1 | ||
| 55441-02070E0 |
ZZE130..NAP..(CE,LE) MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-02070B0 |
ZZE130..NAP..(CE,LE) STONE,TRIM1# |
1 | ||
| 55464C - INSERT, INSTRUMENT PANEL LOWER PAD, RH | ||||
| 55464-02030 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 55464-02030 |
ZZE130..NAP |
1 | ||
| 55464-02030 |
ZZE130..NAP |
1 | ||
| Common parts | ||||
| 55391-02010 | ||||
| 55828-12030 | ||||
| 90080-11220 | ||||
| 90080-11697 | ||||
| 90080-46331 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90159-70004 | ||||
| 90179-06159 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-A0011 | ||||
| 90468-05135 | ||||
| 93568-55014 | ||||
| 94150-80800 | ||||

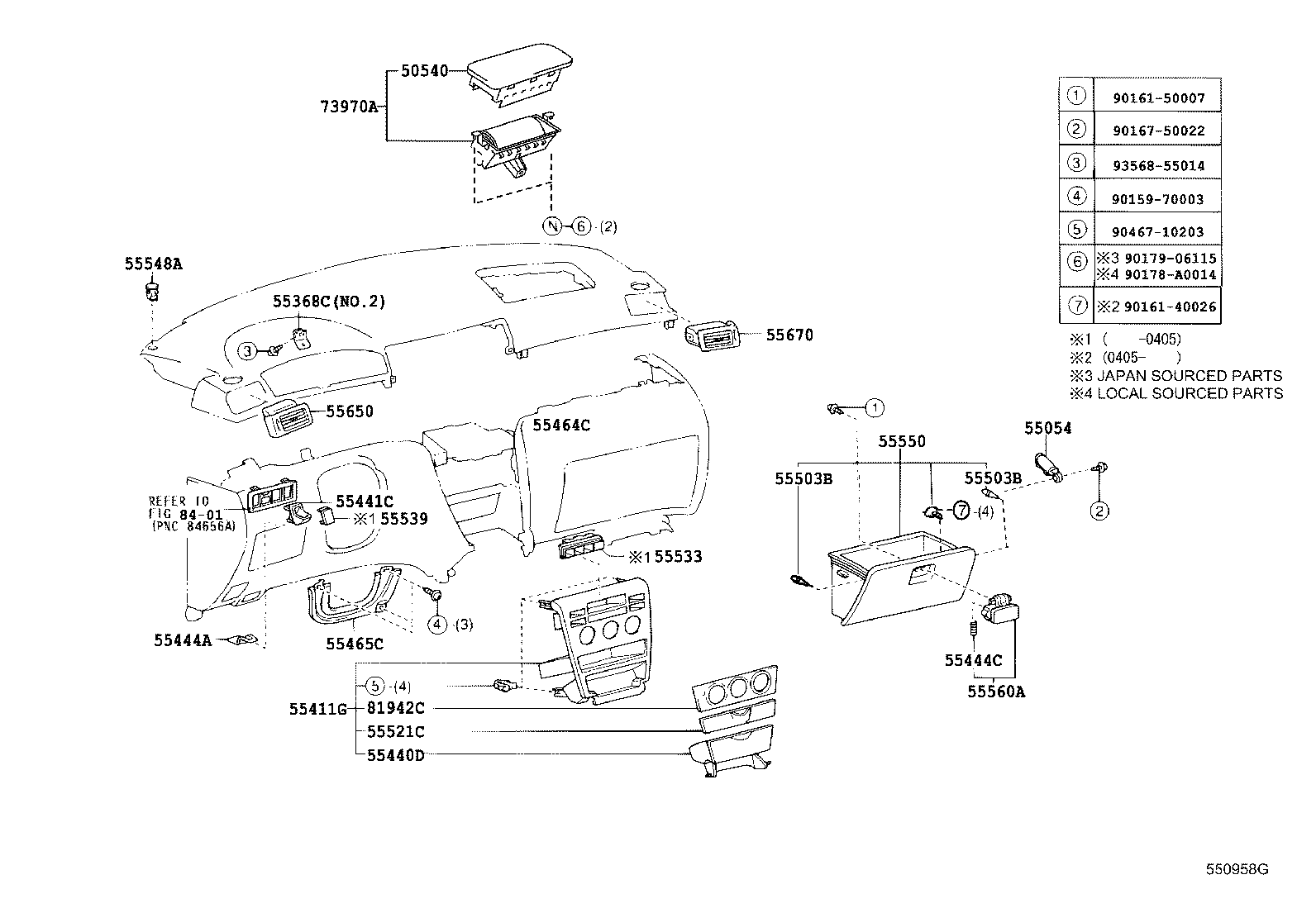

ILLUST NO. 2 OF 2(0201- )ZZE130,131..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 50540 - DO0R ASSY, AIR BAG PASSENGER | ||||
| 50540-02030B1 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 50540-02030B1 |
ZZE130,131..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 50540-02030E0 |
ZZE130..NAP..(CE,LE) DK.NEUTRAL,TRIM4# |
1 | ||
| 50540-02030B0 |
ZZE130..NAP..(CE,LE) DK.STONE,TRIM1# |
1 | ||
| 50540-02030E0 |
ZZE130..NAP..(CE,LE) DK.NEUTRAL,TRIM4# |
1 | ||
| 50540-02030B0 |
ZZE130..NAP..(CE,LE) DK.STONE,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-02020 |
ZZE130..NAP |
1 | ||
| 55054-02020 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 55054-02020 |
ZZE130..NAP |
1 | ||
| 55368C - BRACKET, METER MOUNTING | ||||
| 55362-12050 |
ZZE130..NAP NO.1 |
2 | ||
| 55368-02060 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND NO.2 |
1 | ||
| 55362-12050 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND NO.1 |
2 | ||
| 55368-02060 |
ZZE130..NAP NO.2 |
1 | ||
| 55368-02060 |
ZZE130..NAP NO.2 |
1 | ||
| 55362-12050 |
ZZE130..NAP NO.1 |
2 | ||
| 55362-12050 |
ZZE130,131..NAP NO.1 |
2 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55420-02160B1 |
ZZE130..NAP..S DARK GRAY,TRIM1# |
1 | ||
| 55420-02160B1 |
ZZE130..NAP..CE DARK GRAY,TRIM1#,4# |
1 | ||
| 55420-02160B1 |
ZZE130..NAP..CE DARK GRAY,TRIM1#,4# |
1 | ||
| 55420-02161B1 |
ZZE130..NAP..S DARK GRAY,TRIM1# |
1 | ||
| 55420-02160B1 |
ZZE130..NAP..S DARK GRAY,TRIM1# |
1 | ||
| 55420-02161B1 |
ZZE130..NAP..CE DARK GRAY,TRIM1#,4# |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-02010B1 |
ZZE130..NAP..CE DARK GRAY,TRIM1#,4# |
1 | ||
| 55440-02010B1 |
ZZE130..NAP..S DARK GRAY,TRIM1# |
1 | ||
| 55440-02010B1 |
ZZE130..NAP..CE DARK GRAY,TRIM1#,4# |
1 | ||
| 55440-02011B1 |
ZZE130..NAP..CE DARK GRAY,TRIM1#,4# |
1 | ||
| 55440-02011B1 |
ZZE130..NAP..S DARK GRAY,TRIM1# |
1 | ||
| 55440-02010B1 |
ZZE130..NAP..S DARK GRAY,TRIM1# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-20140B9 |
ZZE130..NAP..(CE,LE) STONE,TRIM1# |
1 | ||
| 55441-20140E2 |
ZZE130..NAP..(CE,LE) MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-02130E0 |
ZZE130..NAP..(CE,LE) MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-20140B7 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55441-02130B0 |
ZZE130..NAP..(CE,LE) STONE,TRIM1# |
1 | ||
| 55441-02130B1 |
ZZE130..NAP..4FC..S..USA DK.GRAY,TRIM1# |
1 | ||
| 55441-02130E0 |
ZZE130..NAP..5F..CE;ZZE130..NAP..4FC..(CE,LE) MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55441-02130B0 |
ZZE130..NAP..5F..CE;ZZE130..NAP..4FC..(CE,LE) STONE,TRIM1# |
1 | ||
| 55441-02130B1 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-12080 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 55444-12080 |
ZZE130..NAP |
1 | ||
| 55444C - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-02030 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND NO.2 |
1 | ||
| 55444-02030 |
ZZE130..NAP |
1 | ||
| 55464C - INSERT, INSTRUMENT PANEL LOWER PAD, RH | ||||
| 55464-02030 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 55464-02030 |
ZZE130..NAP |
1 | ||
| 55464-02030 |
ZZE130..NAP |
1 | ||
| 55465C - INSERT, INSTRUMENT PANEL LOWER PAD, LH | ||||
| 55465-02020 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 55465-02020 |
ZZE130..NAP |
1 | ||
| 55465-02020 |
ZZE130..NAP |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90080-54038 |
ZZE130..NAP |
2 | ||
| 90080-54038 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
2 | ||
| 90080-54038 |
ZZE130..NAP |
2 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90080-54038 |
ZZE130..NAP |
2 | ||
| 90080-54038 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
2 | ||
| 90080-54038 |
ZZE130..NAP |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55520-02090B1 |
ZZE130..NAP..S DARK GRAY,TRIM1# |
1 | ||
| 55520-02090B1 |
ZZE130..NAP..CE DARK GRAY,TRIM1#,4# |
1 | ||
| 55520-02090B1 |
ZZE130..NAP..S DARK GRAY,TRIM1# |
1 | ||
| 55520-02090B1 |
ZZE130..NAP..CE DARK GRAY,TRIM1#,4# |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-02060B1 |
ZZE130..NAP..CE DARK GRAY,TRIM1#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-04040B3 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55539-04040E1 |
ZZE130..NAP..(CE,LE) MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55539-04040B2 |
ZZE130..NAP..(CE,LE) STONE,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02090B1 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55550-02090B0 |
ZZE130..NAP..(CE,LE) STONE,TRIM1# |
1 | ||
| 55550-02090B0 |
ZZE130..NAP..(CE,LE) STONE,TRIM1# |
1 | ||
| 55550-02090E0 |
ZZE130..NAP..(CE,LE) MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55550-02090B1 |
ZZE130,131..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55550-02090E0 |
ZZE130..NAP..(CE,LE) MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-02031B1 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55560-02030B0 |
ZZE130..NAP..(CE,LE) STONE,TRIM1# |
1 | ||
| 55560-02031E0 |
ZZE130..NAP..(CE,LE) MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55560-02030E0 |
ZZE130..NAP..(CE,LE) MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55560-02030B1 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55560-02031B0 |
ZZE130..NAP..(CE,LE) STONE,TRIM1# |
1 | ||
| 55560-02031B1 |
ZZE130,131..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55560-02031B0 |
ZZE130..NAP..(CE,LE) STONE,TRIM1# |
1 | ||
| 55560-02031E0 |
ZZE130..NAP..(CE,LE) MD.NEUTRAL BONE,TRIM4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02050E0 |
ZZE130..NAP..(CE,LE) DK.NEUTRAL BONE,TRIM4# |
1 | ||
| 55650-02050E0 |
ZZE130..NAP..CE DK.NEUTRAL BONE,TRIM4# |
1 | ||
| 55650-02070B0 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55650-02050B0 |
ZZE130..NAP..CE DK. STONE,TRIM1# |
1 | ||
| 55650-02070B0 |
ZZE130,131..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55650-02050B0 |
ZZE130..NAP..(CE,LE) DK. STONE,TRIM1# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-02060B0 |
ZZE130..NAP..(CE,LE) DK. STONE,TRIM1# |
1 | ||
| 55670-02060E0 |
ZZE130..NAP..CE DK.NEUTRAL BONE,TRIM4# |
1 | ||
| 55670-02060E0 |
ZZE130..NAP..(CE,LE) DK.NEUTRAL BONE,TRIM4# |
1 | ||
| 55670-02060B0 |
ZZE130..NAP..CE DK. STONE,TRIM1# |
1 | ||
| 55670-02070B0 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 55670-02070B0 |
ZZE130,131..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-02050B0 |
ZZE130..NAP..(CE,LE) DK. STONE,TRIM1# |
1 | ||
| 73970-02040E0 |
ZZE130..NAP..(CE,LE) DK.NEUTRAL BONE,TRIM4# |
1 | ||
| 73970-02050E0 |
ZZE130..NAP..(CE,LE) DK.NEUTRAL BONE,TRIM4# |
1 | ||
| 73970-02040B0 |
ZZE130..NAP..(CE,LE) DK. STONE,TRIM1# |
1 | ||
| 73970-02051E0 |
ZZE130..NAP..(CE,LE) DK.NEUTRAL BONE,TRIM4# |
1 | ||
| 73970-02040B1 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 73970-02051B0 |
ZZE130..NAP..(CE,LE) DK. STONE,TRIM1# |
1 | ||
| 73970-02051B1 |
ZZE130,131..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 73970-02050B1 |
ZZE130,131..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 81942C - SHEET, HEATER CONTROL NAME | ||||
| 81942-02200 |
ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 81942-02200 |
ZZE130,131..NAP |
1 | ||
| 81942-02201 |
ZZE130,131..NAP |
1 | ||
| Common parts | ||||
| 90159-70003 | ||||
| 90161-40026 | ||||
| 90161-50007 | ||||
| 90167-50022 | ||||
| 90178-A0014 | ||||
| 90179-06115 | ||||
| 90467-10203 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
