Toyota Corolla/matrix (nap) ZZE130 FUEL INJECTION SYSTEM

ZZE130L-DEPDKA (2002)

Toyota Corolla/Matrix (Nap)

Production Jan 2002 - Jan 2008

Engine 1ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0201- )NAP

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Linked diagrams
7701

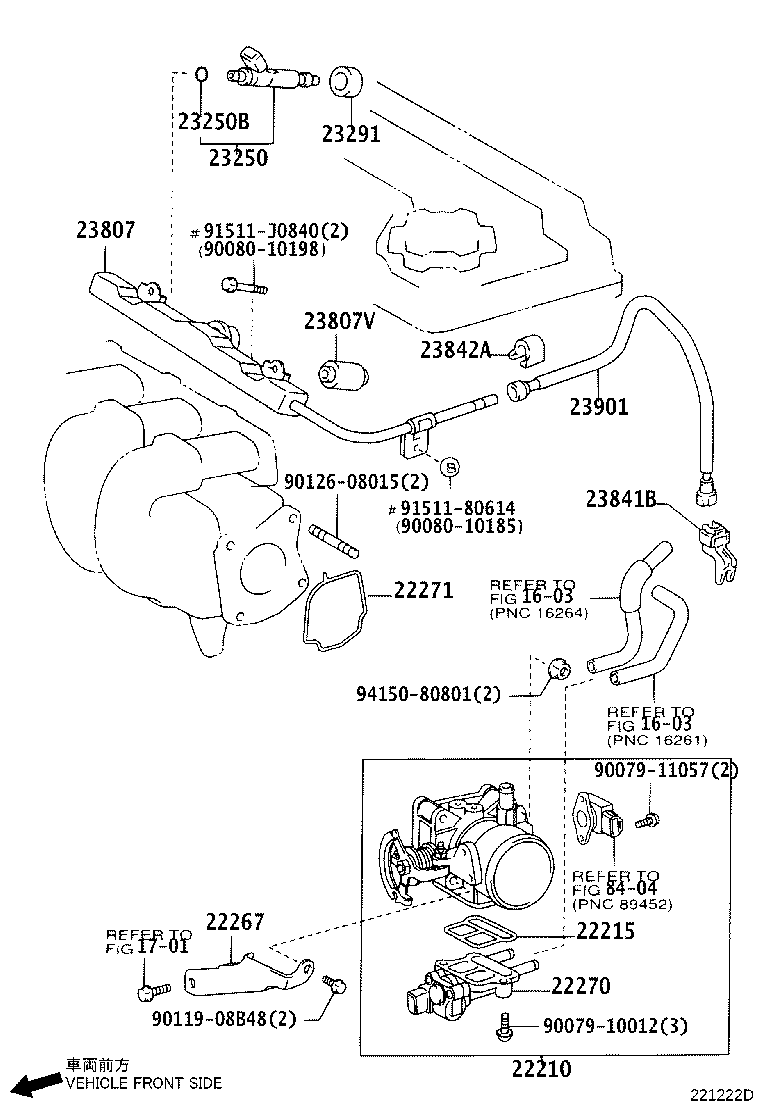

ILLUST NO. 1 OF 2(0201-0405)1ZZFE..ZZE130,132..NAP ; (0201- )1ZZFE..ZZE134..NAP

Click highlighted areas on diagram

Part #	Description	Period	Qty
22210 - BODY ASSY, THROTTLE
22210-22170	1ZZFE..ZZE130..NAP (J)	01/2002 - 05/2004	1
22210-0D110	1ZZFE..ZZE130..NAP (L)	01/2002 - 05/2004	1
22030-0D030	1ZZFE..ZZE130..NAP (L)	05/2004 - 03/2005	1
22030-22041	1ZZFE..ZZE130..NAP (J)	03/2005 - 12/2999	1
22030-22040	1ZZFE..ZZE130..NAP (J)	05/2004 - 03/2005	1
22030-0D031	1ZZFE..ZZE130..NAP (L)	03/2005 - 12/2999	1
22215 - GASKET, THROTTLE BODY COVER
22215-7A680	1ZZFE..ZZE130..NAP (J)	01/2002 - 05/2004	1
22215-0D110	1ZZFE..ZZE130..NAP (L)	01/2002 - 05/2004	1
22267 - BRACKET, THROTTLE BODY
22267-22030	1ZZFE..ZZE130..NAP	01/2002 - 05/2004	1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-0D040	1ZZFE..ZZE130..NAP (L)	01/2002 - 11/2002	1
22270-0D040	1ZZFE..ZZE130..NAP (L)	11/2002 - 05/2004	1
22270-22061	1ZZFE..ZZE130..NAP (J)	03/2003 - 05/2004	1
22270-22060	1ZZFE..ZZE130..NAP (J)	01/2002 - 11/2002	1
22270-22060	1ZZFE..ZZE130..NAP (J)	11/2002 - 03/2003	1
22271 - GASKET, THROTTLE BODY
22271-0D030	1ZZFE..ZZE130..NAP (L)	01/2002 - 05/2004	1
22271-0D051	1ZZFE..ZZE130..NAP (L)	05/2004 - 12/2999	1
22271-22040	1ZZFE..ZZE130..NAP (J)	01/2002 - 05/2004	1
22271-75031	1ZZFE..ZZE130..NAP..4FC	08/2005 - 12/2999	1
22271-75031	1ZZFE..ZZE130..NAP (J)	05/2004 - 12/2999	1
23250 - INJECTOR ASSY, FUEL
23209-0D040	1ZZFE..ZZE130..NAP (L)	01/2002 - 05/2004	4
23209-22040	1ZZFE..ZZE130..NAP (J)	01/2002 - 05/2004	4
23209-22090	1ZZFE..ZZE130..NAP..4FC	08/2005 - 12/2999	4
23209-22090	1ZZFE..ZZE130..NAP (J)	05/2004 - 12/2999	4
23209-0D050	1ZZFE..ZZE130..NAP (L)	05/2004 - 12/2999	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024	1ZZFE..ZZE130..NAP	01/2002 - 05/2004	4
90301-07037	1ZZFE..ZZE130..NAP	07/2006 - 12/2999	4
90301-07024	1ZZFE,2ZZGE..ZZE130,131..NAP	05/2004 - 07/2006	4
23291 - INSULATOR, INJECTOR VIBRATION
23291-22020	1ZZFE..ZZE130..NAP	01/2002 - 05/2004	4
23291-22020	1ZZFE..ZZE130..NAP	05/2004 - 12/2999	4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-22030	1ZZFE..ZZE130..NAP	01/2002 - 05/2004	1
23807-22030	1ZZFE..ZZE130..NAP	05/2004 - 12/2999	1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08055	1ZZFE..ZZE130..NAP	05/2004 - 12/2999	2
90561-08055	1ZZFE..ZZE130..NAP	01/2002 - 05/2004	2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-28010	1ZZFE..ZZE130..NAP	01/2002 - 05/2004	1
23841-28010	1ZZFE,2ZZGE..ZZE130,131..NAP	05/2004 - 04/2007	1
23841-21050	1ZZFE..ZZE130..NAP	05/2007 - 12/2999	1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-22020	1ZZFE..ZZE130..NAP	01/2002 - 05/2004	1
23842-28010	1ZZFE..ZZE130..NAP	05/2004 - 12/2999	1
23901 - TUBE SUB-ASSY, FUEL
23901-0D040	1ZZFE..ZZE130..NAP	05/2004 - 12/2999	1
23901-0D010	1ZZFE..ZZE130..NAP	01/2002 - 05/2004	1
Common parts
90079-10012
90079-11057
90080-10185
90080-10198
90119-08B48
90126-08015
91511-80614
91511-J0840
94150-80801
Linked diagrams
1603
1701
8404

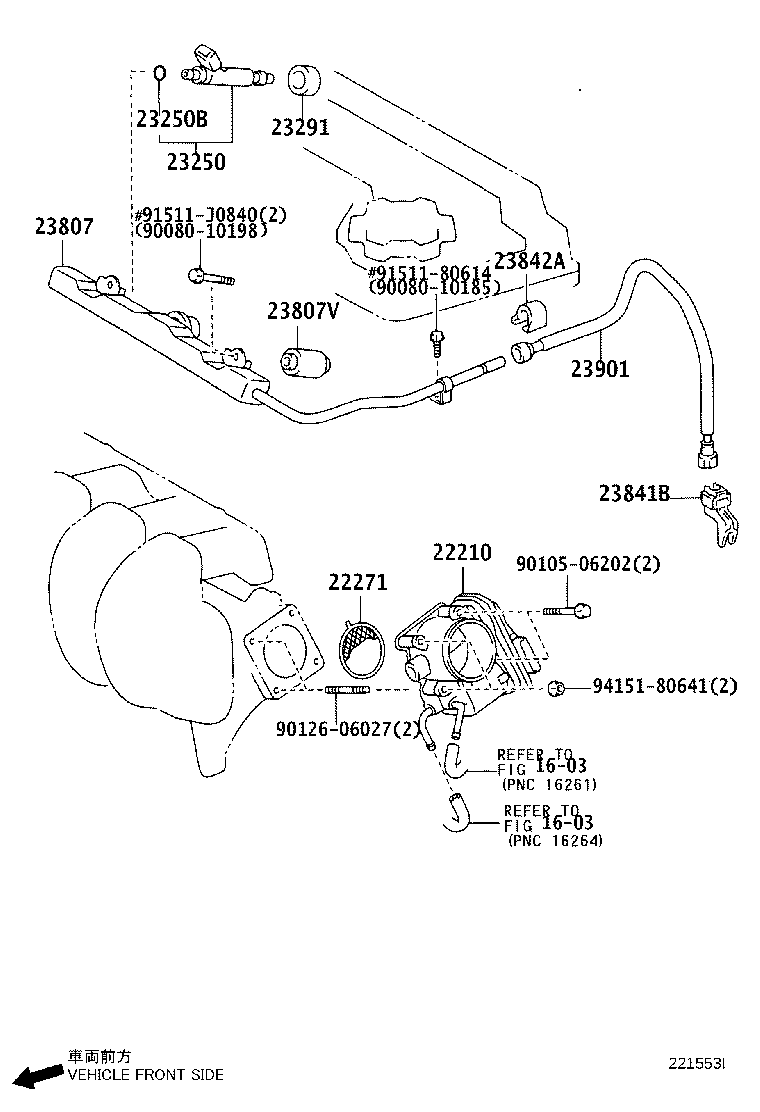

ILLUST NO. 1 OF 2(0405- )1ZZFE..ZZE130,132..NAP

Click highlighted areas on diagram

Part #	Description	Period	Qty
22210 - BODY ASSY, THROTTLE
22210-22170	1ZZFE..ZZE130..NAP (J)	01/2002 - 05/2004	1
22210-0D110	1ZZFE..ZZE130..NAP (L)	01/2002 - 05/2004	1
22030-0D030	1ZZFE..ZZE130..NAP (L)	05/2004 - 03/2005	1
22030-22041	1ZZFE..ZZE130..NAP (J)	03/2005 - 12/2999	1
22030-22040	1ZZFE..ZZE130..NAP (J)	05/2004 - 03/2005	1
22030-0D031	1ZZFE..ZZE130..NAP (L)	03/2005 - 12/2999	1
22271 - GASKET, THROTTLE BODY
22271-0D030	1ZZFE..ZZE130..NAP (L)	01/2002 - 05/2004	1
22271-0D051	1ZZFE..ZZE130..NAP (L)	05/2004 - 12/2999	1
22271-22040	1ZZFE..ZZE130..NAP (J)	01/2002 - 05/2004	1
22271-75031	1ZZFE..ZZE130..NAP..4FC	08/2005 - 12/2999	1
22271-75031	1ZZFE..ZZE130..NAP (J)	05/2004 - 12/2999	1
23250 - INJECTOR ASSY, FUEL
23209-0D040	1ZZFE..ZZE130..NAP (L)	01/2002 - 05/2004	4
23209-22040	1ZZFE..ZZE130..NAP (J)	01/2002 - 05/2004	4
23209-22090	1ZZFE..ZZE130..NAP..4FC	08/2005 - 12/2999	4
23209-22090	1ZZFE..ZZE130..NAP (J)	05/2004 - 12/2999	4
23209-0D050	1ZZFE..ZZE130..NAP (L)	05/2004 - 12/2999	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024	1ZZFE..ZZE130..NAP	01/2002 - 05/2004	4
90301-07037	1ZZFE..ZZE130..NAP	07/2006 - 12/2999	4
90301-07024	1ZZFE,2ZZGE..ZZE130,131..NAP	05/2004 - 07/2006	4
23291 - INSULATOR, INJECTOR VIBRATION
23291-22020	1ZZFE..ZZE130..NAP	01/2002 - 05/2004	4
23291-22020	1ZZFE..ZZE130..NAP	05/2004 - 12/2999	4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-22030	1ZZFE..ZZE130..NAP	01/2002 - 05/2004	1
23807-22030	1ZZFE..ZZE130..NAP	05/2004 - 12/2999	1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08055	1ZZFE..ZZE130..NAP	05/2004 - 12/2999	2
90561-08055	1ZZFE..ZZE130..NAP	01/2002 - 05/2004	2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-28010	1ZZFE..ZZE130..NAP	01/2002 - 05/2004	1
23841-28010	1ZZFE,2ZZGE..ZZE130,131..NAP	05/2004 - 04/2007	1
23841-21050	1ZZFE..ZZE130..NAP	05/2007 - 12/2999	1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-22020	1ZZFE..ZZE130..NAP	01/2002 - 05/2004	1
23842-28010	1ZZFE..ZZE130..NAP	05/2004 - 12/2999	1
23901 - TUBE SUB-ASSY, FUEL
23901-0D040	1ZZFE..ZZE130..NAP	05/2004 - 12/2999	1
23901-0D010	1ZZFE..ZZE130..NAP	01/2002 - 05/2004	1
Common parts
90080-10185
90080-10198
90105-06202
90126-06027
91511-80614
91511-J0840
94151-80641
Linked diagrams
1603

ZZE130L-DEPDKA (2002)

ILLUST NO. 2 OF 2(0201- )NAP

ILLUST NO. 1 OF 2(0201-0405)1ZZFE..ZZE130,132..NAP ; (0201- )1ZZFE..ZZE134..NAP

ILLUST NO. 1 OF 2(0405- )1ZZFE..ZZE130,132..NAP
