ZZE130L-DEMSKK (2002)

Toyota Corolla/Matrix (Nap)

Production Jan 2002 - Jan 2008
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(0201- )NAP

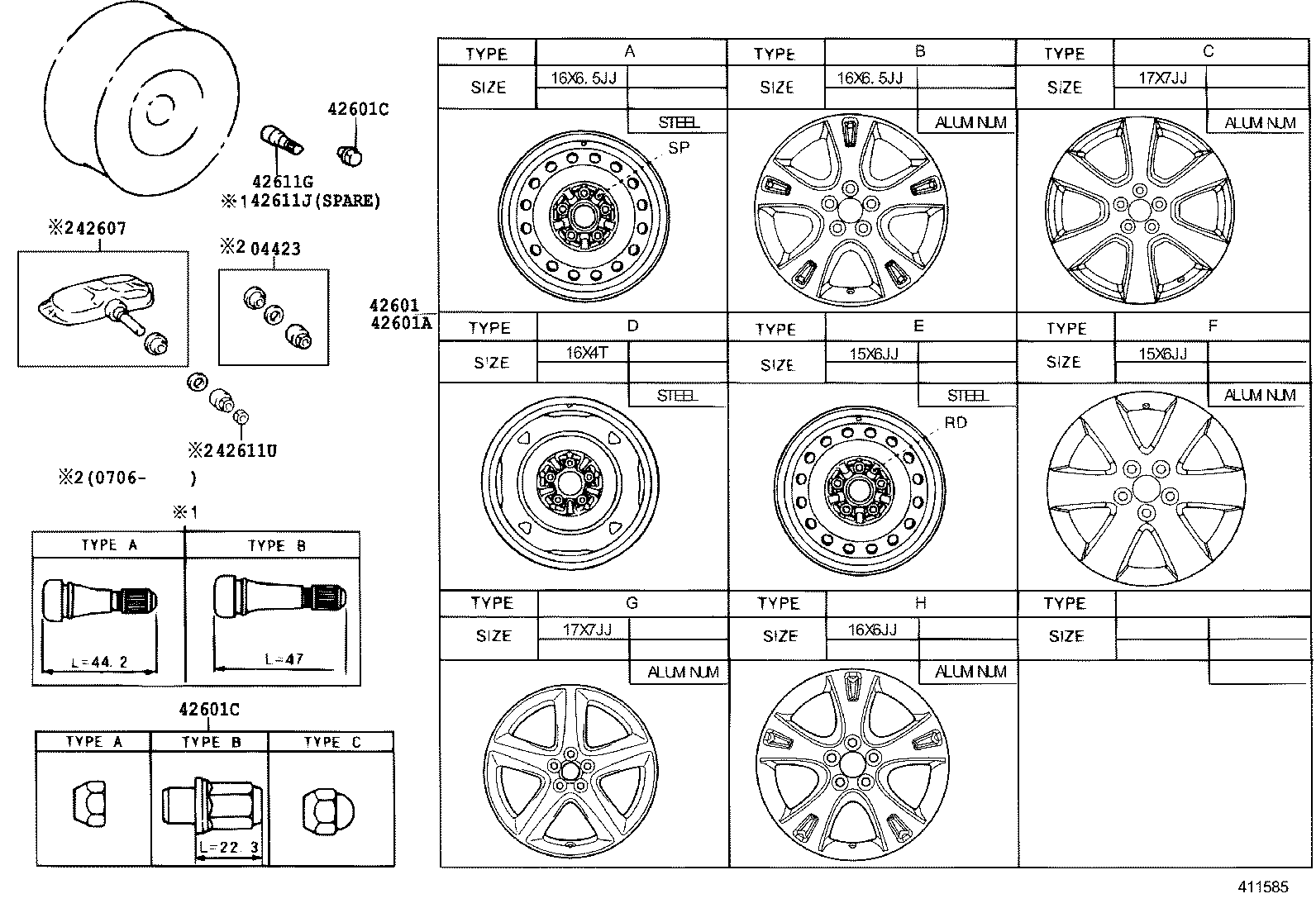

Click highlighted areas on diagram

diagram 04423 42601 42601A 42601C 42601C 42607 42611G 42611J 42611U
Part # Description Qty Price
04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423-0E010

ZZE130..NAP

 4
42601 - WHEEL, DISC
42611-02470

ZZE130..NAP

15X6JJ, #,TYPE E:REFER TO ILLUSTRATION

 4
42611-AB010

ZZE130..NAP..(LE,S)

15X6JJ, #,TYPE F:REFER TO ILLUSTRATION

 4
42611-AB010

ZZE130..NAP..(LE,S)

15X6JJ, #,TYPE F:REFER ILLUST.

 4
42611-02470

ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND

15X6JJ, #,TYPE E:REFER ILLUST.

 4
42611-AB040

ZZE130..NAP..S

16X6J, #,TYPE H:REFER ILLUST.

 4
42611-AB041

ZZE130..NAP..S

16X6J, #,TYPE H:REFER ILLUST.

 4
42611-AB011

ZZE130..NAP..(LE,S)

15X6JJ, #,TYPE F:REFER ILLUST.

 4
42611-02471

ZZE130..NAP

15X6JJ, #,TYPE E:REFER ILLUST.

 4
42611-AB040

ZZE130..NAP..S

16X6J, #,TYPE H:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-02470

ZZE130..NAP..CND

15X6JJ, #,TYPE E:REFER TO ILLUSTRATION

 1
42611-AB010

ZZE130..NAP..(LE,S)..CND

15X6JJ, #,TYPE F:REFER TO ILLUSTRATION

 1
42611-02480

ZZE130..NAP

16X4T,TYPE D:REFER TO ILLUSTRATION

 1
42611-02480

ZZE130,131..NAP

16X4T,TYPE D:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90084-94001

ZZE130,131..NAP..(LE,S)

TYPE B:REFER ILLUST.

 20
90942-01021

ZZE130..NAP

TYPE C:REFER ILLUST.

 20
90942-01021

ZZE130..NAP

TYPE C:REFER TO ILLUSTRATION

 20
90084-94001

ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND

TYPE B:REFER TO ILLUSTRATION

 20
42601C - NUT, HUB (FOR AXLE)
90084-94001

ZZE130,131..NAP..(LE,S)

TYPE B:REFER ILLUST.

 20
90942-01021

ZZE130..NAP

TYPE C:REFER ILLUST.

 20
90942-01021

ZZE130..NAP

TYPE C:REFER TO ILLUSTRATION

 20
90084-94001

ZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND

TYPE B:REFER TO ILLUSTRATION

 20
42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607-06011

ZZE130..NAP

 4
42611G - VALVE (FOR TUBELESS TIRE)
90080-45001

ZZE130..NAP

TYPE A:REFER TO ILLUSTRATION

 4
90080-45006

ZZE130..NAP

TYPE B:REFER TO ILLUSTRATION

 4
90080-45006

ZZE130,131..NAP

TYPE B:REFER ILLUST.

 4
90080-45001

ZZE130,131..NAP

TYPE A:REFER ILLUST.

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90080-45006

ZZE130,131..NAP

TYPE B:REFER ILLUST.

 1
90080-45001

ZZE130..NAP

TYPE A:REFER TO ILLUSTRATION

 1
90080-45001

ZZE130,131..NAP

TYPE A:REFER ILLUST.

 1
90080-45006

ZZE130..NAP

TYPE B:REFER TO ILLUSTRATION

 1
42611U - CAP, TIRE VALVE
90942-A5002

ZZE130..NAP

 4

ILLUST NO. 2 OF 4(0201- )NAP

Click highlighted areas on diagram

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-AB020

ZZE130..NAP..(LE,S)

 4
42603-AB020

ZZE130,131..NAP..(LE,S)

TYPE A:REFER ILLUST.

 4
42621 - CAP, WHEEL
42621-AB070

ZZE130..S

TYPE E:REFER ILLUST.

 4
42621-AB070

ZZE130..NAP..S

TYPE E:REFER TO ILLUSTRATION

 4

ILLUST NO. 3 OF 4(0201-0405)NAP

Click highlighted areas on diagram

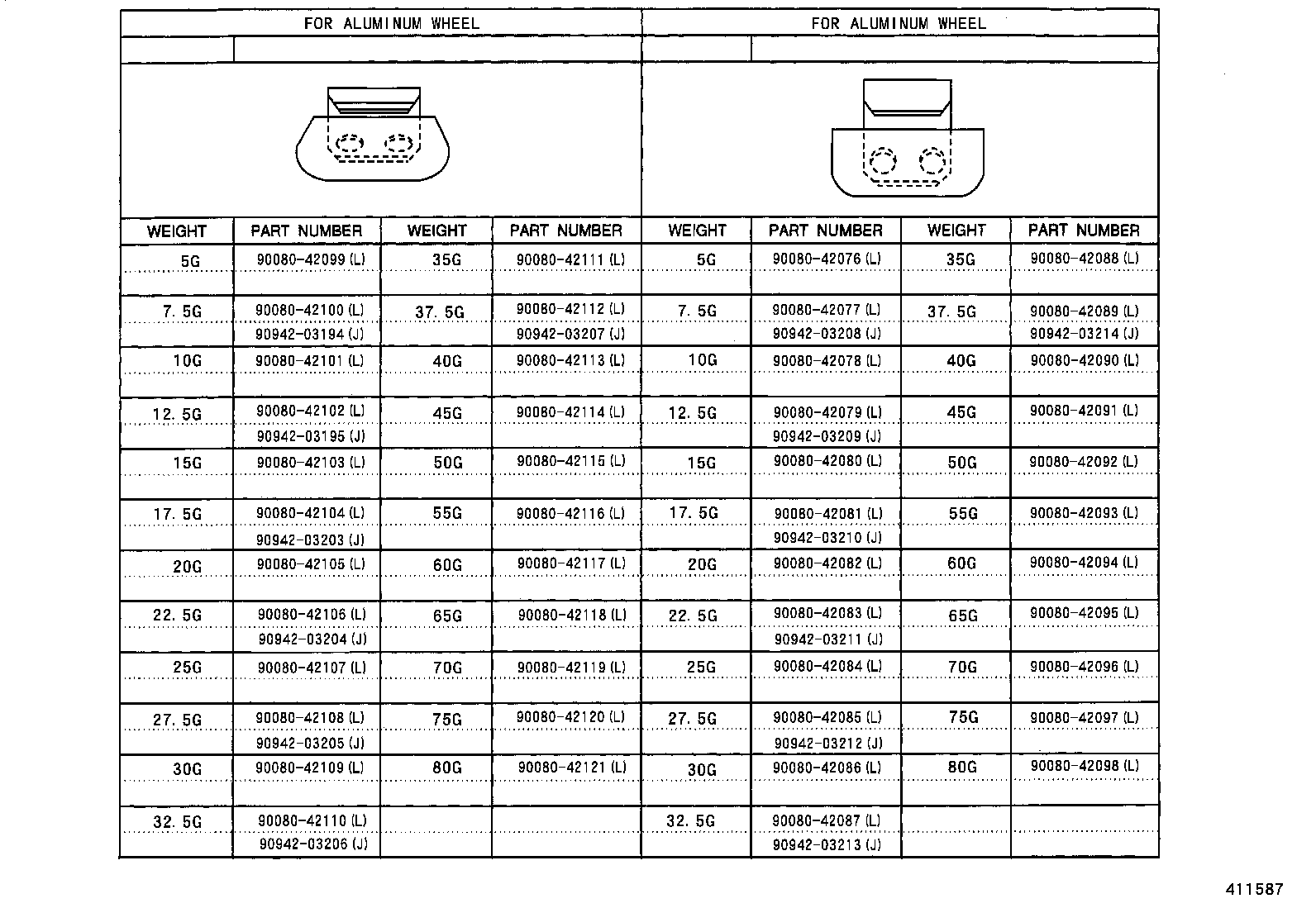

diagram 9008042076 9008042077 9008042078 9008042079 9008042080 9008042081 9008042082 9008042083 9008042084 9008042085 9008042086 9008042087 9008042088 9008042089 9008042090 9008042091 9008042092 9008042093 9008042094 9008042095 9008042096 9008042097 9008042098 9008042099 9008042100 9008042101 9008042102 9008042103 9008042104 9008042105 9008042106 9008042107 9008042108 9008042109 9008042110 9008042111 9008042112 9008042113 9008042114 9008042115 9008042116 9008042117 9008042118 9008042119 9008042120 9008042121 9094203194 9094203195 9094203203 9094203204 9094203205 9094203206 9094203207 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214
Part # Description Qty Price
Common parts
90080-42076
90080-42077
90080-42078
90080-42079
90080-42080
90080-42081
90080-42082
90080-42083
90080-42084
90080-42085
90080-42086
90080-42087
90080-42088
90080-42089
90080-42090
90080-42091
90080-42092
90080-42093
90080-42094
90080-42095
90080-42096
90080-42097
90080-42098
90080-42099
90080-42100
90080-42101
90080-42102
90080-42103
90080-42104
90080-42105
90080-42106
90080-42107
90080-42108
90080-42109
90080-42110
90080-42111
90080-42112
90080-42113
90080-42114
90080-42115
90080-42116
90080-42117
90080-42118
90080-42119
90080-42120
90080-42121
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214

ILLUST NO. 4 OF 4(0201-0405)NAP

Click highlighted areas on diagram

diagram 9094203264 9094203265 9094203267 9094203273 9094203278 9094203279 9094203280 9094203281
Part # Description Qty Price
Common parts
90942-03264
90942-03265
90942-03267
90942-03273
90942-03278
90942-03279
90942-03280
90942-03281
