ZZE130L-DEMSKA (2002)

Toyota Corolla/Matrix (Nap)

Production Jan 2002 - Jan 2008
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0201- )NAP..MTM

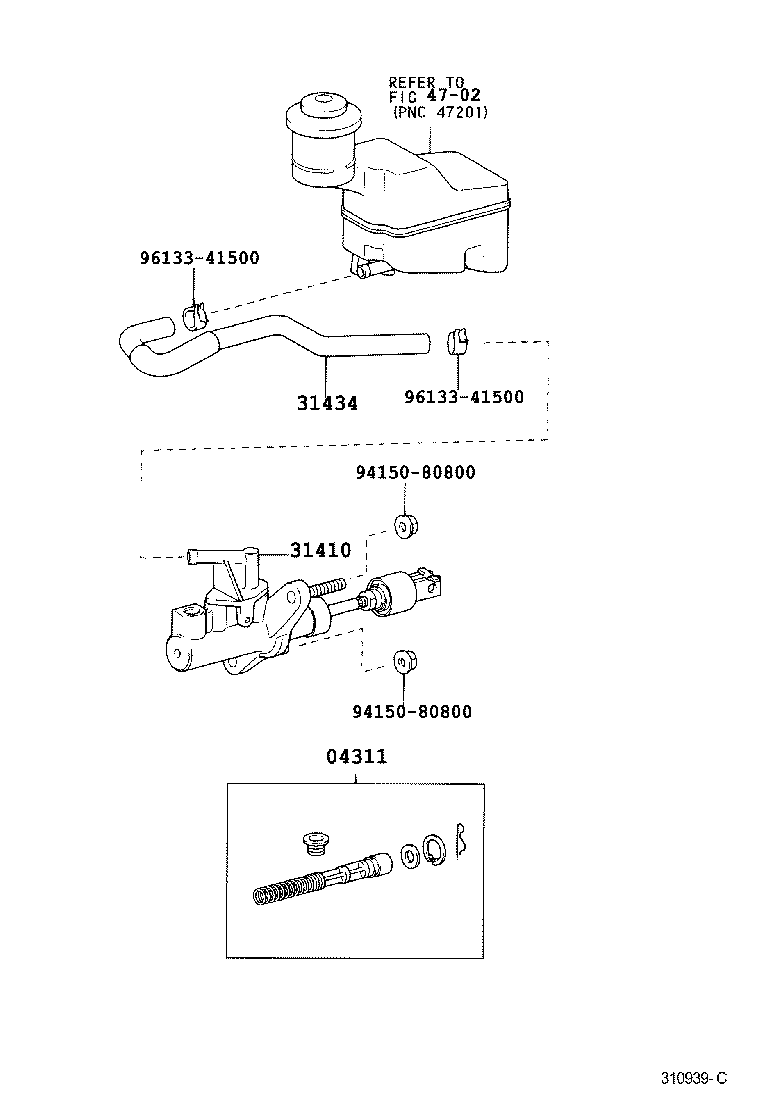

Click highlighted areas on diagram

diagram 04311 31410 31434 4702 9415080800 9415080800 9613341500 9613341500
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-12110

ZZE130,131..NAP..MTM

 1
04311-12110

ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-20070

ZZE130..NAP..5F

 1
31420-20070

ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-12020

ZZE130,131..NAP..MTM

 1
31434-12090

ZZE130..NAP..5F

 1
31434-12020

ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND

 1
Common parts
94150-80800
96133-41500
Linked diagrams
4702
