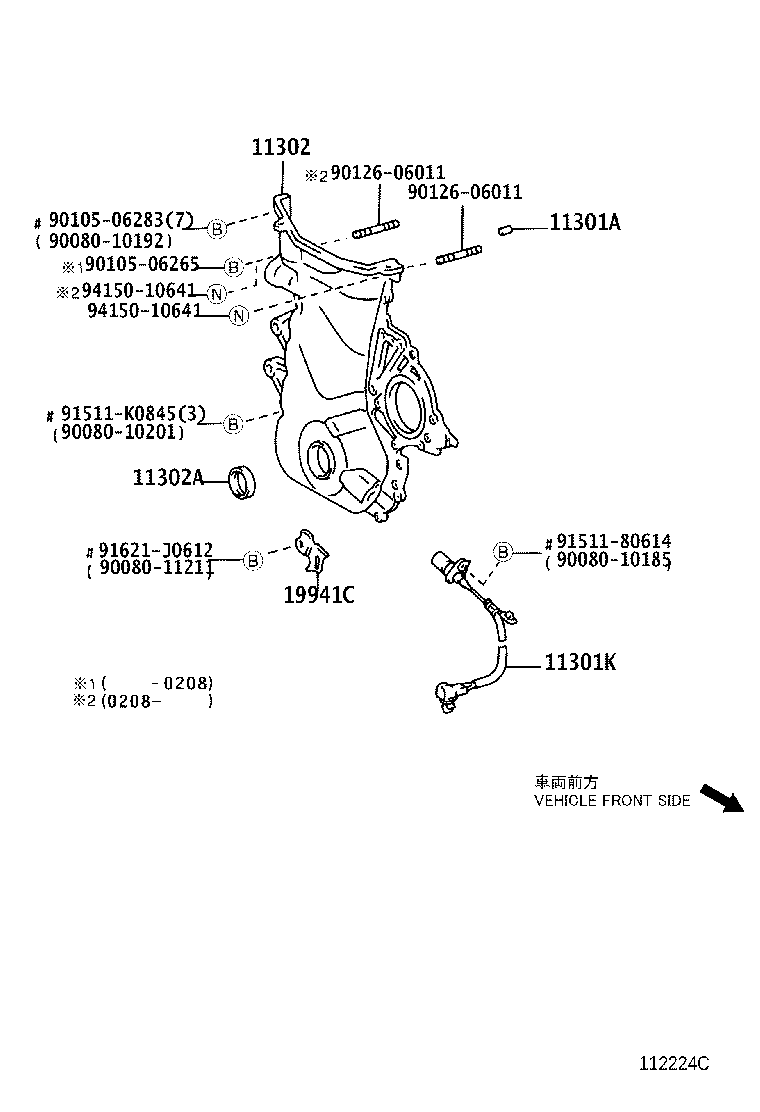

Toyota Corolla/matrix (nap) ZZE130 TIMING GEAR COVER & REAR END PLATE

Part #	Description	Period	Qty
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08074	1ZZFE..ZZE130..NAP L=15,OD=8	05/2004 - 05/2006	1
90250-08074	1ZZFE..ZZE130..NAP L=15,OD=8	01/2002 - 05/2004	1
90250-08074	1ZZFE..ZZE130..NAP L=15,OD=8,(J)	05/2006 - 12/2999	1
90250-A0015	1ZZFE..ZZE130..NAP L=15,OD=8,(L)	05/2006 - 12/2999	1
11301K - SENSOR, CRANK POSITION
90919-05030	1ZZFE..ZZE130..NAP (J)	01/2002 - 05/2004	1
90080-19013	1ZZFE..ZZE130..NAP (L)	01/2002 - 05/2004	1
90919-05030	1ZZFE..ZZE130..NAP (J)	05/2004 - 12/2999	1
90080-19013	1ZZFE..ZZE130..NAP (L)	05/2004 - 12/2999	1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-0D010	1ZZFE..ZZE130..NAP (L)	01/2002 - 05/2004	1
11321-0D010	1ZZFE..ZZE130..NAP (L)	05/2004 - 12/2999	1
11321-22021	1ZZFE..ZZE130..NAP (J)	01/2002 - 05/2004	1
11321-22021	1ZZFE..ZZE130..NAP (J)	05/2004 - 12/2999	1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90080-31049	1ZZFE..ZZE130..NAP (L)	01/2002 - 05/2004	1
90080-31049	1ZZFE..ZZE130..NAP (L)	05/2004 - 12/2999	1
90311-38059	1ZZFE..ZZE130..NAP (J)	01/2002 - 05/2004	1
90311-38059	1ZZFE..ZZE130..NAP (J)	05/2004 - 12/2999	1
19941C - CLAMP, CORD(FOR CRANK POSITION SENSOR)
19941-22010	1ZZFE..ZZE130..NAP	01/2002 - 05/2004	1
19941-22010	1ZZFE,2ZZGE..ZZE130,131..NAP	05/2004 - 12/2999	1
Common parts
90080-10185
90080-10192
90080-10201
90080-11211
90105-06265
90105-06283
90126-06011
91511-80614
91511-K0845
91621-J0612
94150-10641

ZZE130L-DEMSKA (2002)
