ZZE130L-DEMNKK (2002)
Toyota Corolla/Matrix (Nap)

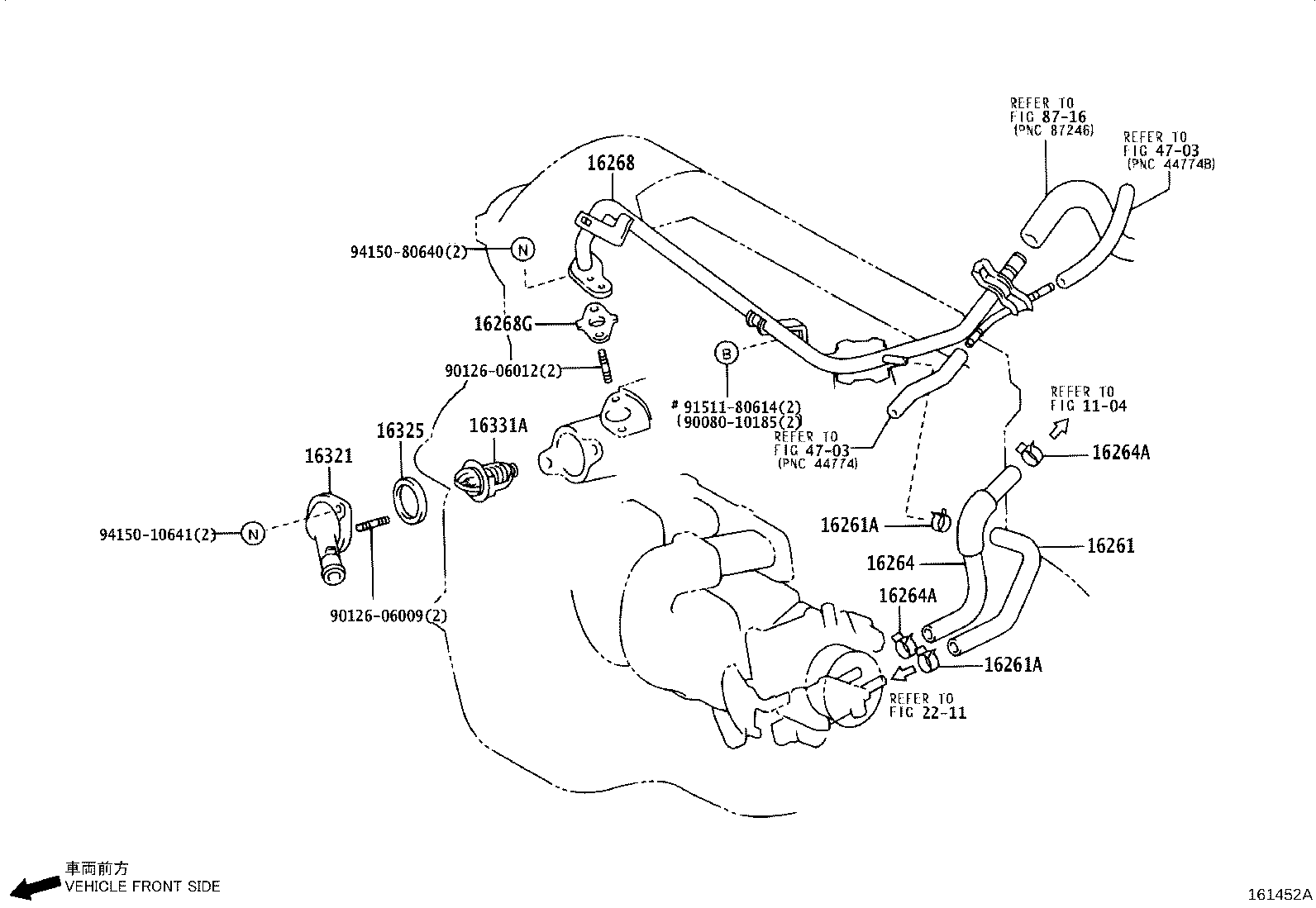

ILLUST NO. 2 OF 2(0201-0405)1ZZFE..ZZE130,132..NAP ; (0201- )1ZZFE..ZZE134..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0D010 |
1ZZFE..ZZE130..NAP (L) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZZFE..ZZE130..NAP |
2 | ||
| 96135-51300 |
1ZZFE..ZZE130..NAP |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZZFE..ZZE130..NAP |
2 | ||
| 96135-51300 |
1ZZFE..ZZE130..NAP |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0D050 |
1ZZFE..ZZE130..NAP (L) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
1ZZFE..ZZE130..NAP |
2 | ||
| 96137-41501 |
1ZZFE..ZZE130..NAP |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
1ZZFE..ZZE130..NAP |
2 | ||
| 96137-41501 |
1ZZFE..ZZE130..NAP |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-0D011 |
1ZZFE..ZZE130..NAP (L) |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-0D010 |
1ZZFE..ZZE130..NAP (L) |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-22070 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03129 |
1ZZFE..ZZE130..NAP *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90080-10185 | ||||
| 90126-06009 | ||||
| 90126-06012 | ||||
| 91511-80614 | ||||
| 94150-10641 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 2211 | ||||
| 4703 | ||||
| 8716 | ||||

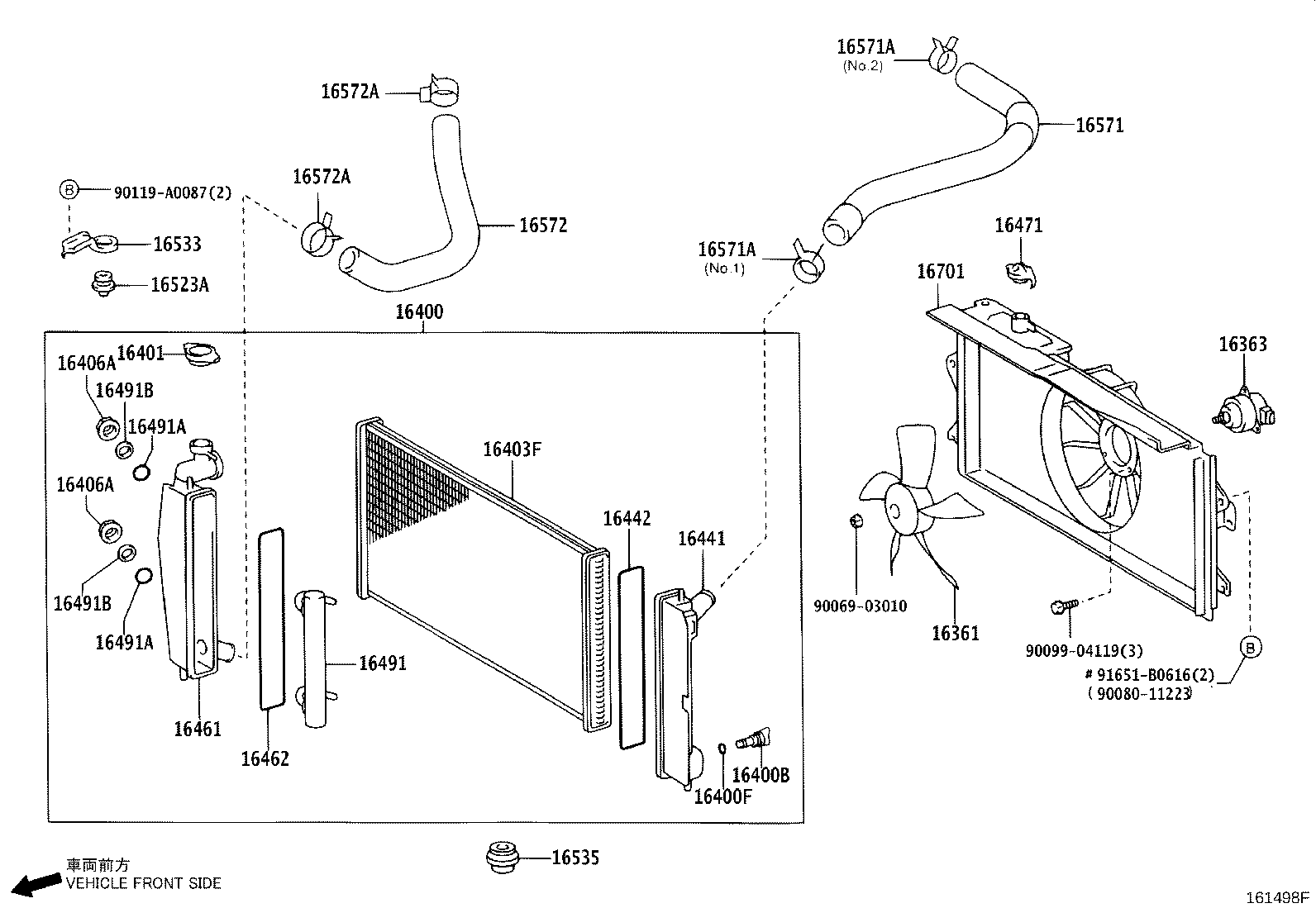

ILLUST NO. 1 OF 2(0201-0307)NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0D090 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0D040 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0D230 |
1ZZFE..ZZE130..NAP..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-0D230 |
1ZZFE..ZZE130..NAP..5F |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-0D250 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-0D250 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-0D230 |
1ZZFE..ZZE130..NAP..5F |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-0D250 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0D030 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16471-0D010 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0D030 |
1ZZFE..ZZE130..NAP..5F..LE..CND |
2 | ||
| 16523-0D030 |
1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND |
2 | ||
| 16523-0D030 |
1ZZFE..ZZE130..NAP |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-0D030 |
1ZZFE..ZZE130..NAP..5F..LE..CND |
2 | ||
| 16533-0D030 |
1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND |
2 | ||
| 16533-0D030 |
1ZZFE..ZZE130..NAP |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0D040 |
1ZZFE..ZZE130..NAP |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0D120 |
1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND |
1 | ||
| 16571-0D120 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16571-0D120 |
1ZZFE..ZZE130..NAP..5F..LE..CND |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33006 |
1ZZFE..ZZE130..NAP NO.2 |
1 | ||
| 90466-37002 |
1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND NO.1 |
1 | ||
| 90466-33001 |
1ZZFE..ZZE130..NAP NO.2 |
1 | ||
| 90466-37002 |
1ZZFE..ZZE130..NAP..5F..LE..CND NO.1 |
1 | ||
| 90466-37002 |
1ZZFE..ZZE130..NAP NO.1 |
1 | ||
| 90467-33006 |
1ZZFE..ZZE130..NAP..5F..LE..CND NO.2 |
1 | ||
| 90467-33006 |
1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33006 |
1ZZFE..ZZE130..NAP NO.2 |
1 | ||
| 90466-37002 |
1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND NO.1 |
1 | ||
| 90466-33001 |
1ZZFE..ZZE130..NAP NO.2 |
1 | ||
| 90466-37002 |
1ZZFE..ZZE130..NAP..5F..LE..CND NO.1 |
1 | ||
| 90466-37002 |
1ZZFE..ZZE130..NAP NO.1 |
1 | ||
| 90467-33006 |
1ZZFE..ZZE130..NAP..5F..LE..CND NO.2 |
1 | ||
| 90467-33006 |
1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-0D120 |
1ZZFE..ZZE130..NAP..4FC;1ZZFE..ZZE130..NAP..5F..USA;1ZZFE..ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 16572-0D120 |
1ZZFE..ZZE130..NAP..5F..LE..CND |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
1ZZFE..ZZE130..NAP |
2 | ||
| 90466-35001 |
1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND |
2 | ||
| 90466-35001 |
1ZZFE..ZZE130..NAP..5F..LE..CND |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
1ZZFE..ZZE130..NAP |
2 | ||
| 90466-35001 |
1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND |
2 | ||
| 90466-35001 |
1ZZFE..ZZE130..NAP..5F..LE..CND |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-0D072 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16711-0D071 |
1ZZFE..ZZE130..NAP |
1 | ||
| Common parts | ||||
| 90069-03010 | ||||
| 90080-11223 | ||||
| 90099-04119 | ||||
| 90119-A0087 | ||||
| 91651-B0616 | ||||

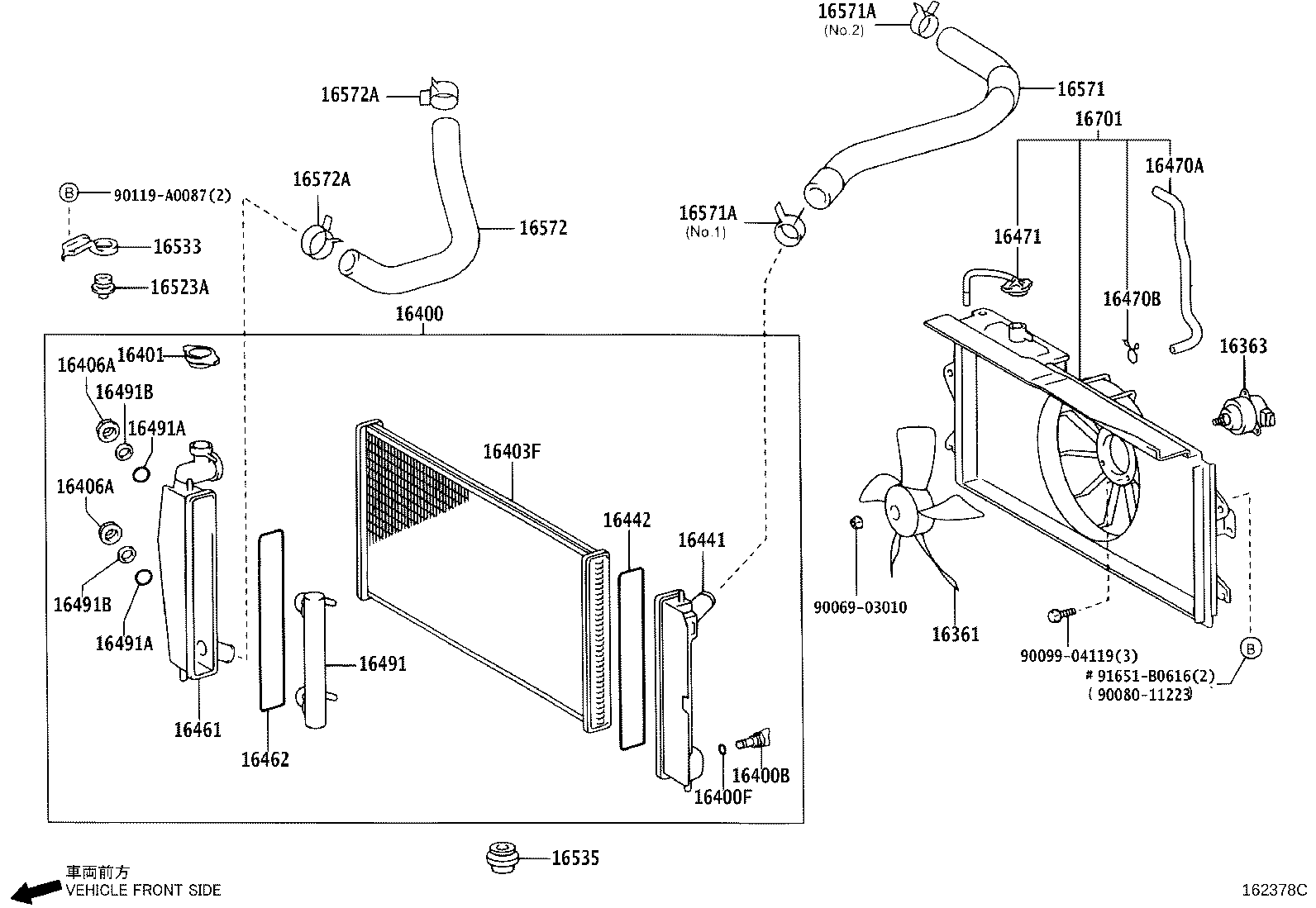

ILLUST NO. 1 OF 2(0307- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0D090 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0D040 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0D230 |
1ZZFE..ZZE130..NAP..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-0D230 |
1ZZFE..ZZE130..NAP..5F |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-0D250 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-0D250 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-0D230 |
1ZZFE..ZZE130..NAP..5F |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-0D250 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-21040 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90068-35004 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0D030 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16471-0D010 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0D030 |
1ZZFE..ZZE130..NAP..5F..LE..CND |
2 | ||
| 16523-0D030 |
1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND |
2 | ||
| 16523-0D030 |
1ZZFE..ZZE130..NAP |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-0D030 |
1ZZFE..ZZE130..NAP..5F..LE..CND |
2 | ||
| 16533-0D030 |
1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND |
2 | ||
| 16533-0D030 |
1ZZFE..ZZE130..NAP |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0D040 |
1ZZFE..ZZE130..NAP |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0D120 |
1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND |
1 | ||
| 16571-0D120 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16571-0D120 |
1ZZFE..ZZE130..NAP..5F..LE..CND |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33006 |
1ZZFE..ZZE130..NAP NO.2 |
1 | ||
| 90466-37002 |
1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND NO.1 |
1 | ||
| 90466-33001 |
1ZZFE..ZZE130..NAP NO.2 |
1 | ||
| 90466-37002 |
1ZZFE..ZZE130..NAP..5F..LE..CND NO.1 |
1 | ||
| 90466-37002 |
1ZZFE..ZZE130..NAP NO.1 |
1 | ||
| 90467-33006 |
1ZZFE..ZZE130..NAP..5F..LE..CND NO.2 |
1 | ||
| 90467-33006 |
1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33006 |
1ZZFE..ZZE130..NAP NO.2 |
1 | ||
| 90466-37002 |
1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND NO.1 |
1 | ||
| 90466-33001 |
1ZZFE..ZZE130..NAP NO.2 |
1 | ||
| 90466-37002 |
1ZZFE..ZZE130..NAP..5F..LE..CND NO.1 |
1 | ||
| 90466-37002 |
1ZZFE..ZZE130..NAP NO.1 |
1 | ||
| 90467-33006 |
1ZZFE..ZZE130..NAP..5F..LE..CND NO.2 |
1 | ||
| 90467-33006 |
1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-0D120 |
1ZZFE..ZZE130..NAP..4FC;1ZZFE..ZZE130..NAP..5F..USA;1ZZFE..ZZE130..NAP..5F..(CE,S)..CND |
1 | ||
| 16572-0D120 |
1ZZFE..ZZE130..NAP..5F..LE..CND |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
1ZZFE..ZZE130..NAP |
2 | ||
| 90466-35001 |
1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND |
2 | ||
| 90466-35001 |
1ZZFE..ZZE130..NAP..5F..LE..CND |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
1ZZFE..ZZE130..NAP |
2 | ||
| 90466-35001 |
1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND |
2 | ||
| 90466-35001 |
1ZZFE..ZZE130..NAP..5F..LE..CND |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-0D072 |
1ZZFE..ZZE130..NAP |
1 | ||
| 16711-0D071 |
1ZZFE..ZZE130..NAP |
1 | ||
| Common parts | ||||
| 90069-03010 | ||||
| 90080-11223 | ||||
| 90099-04119 | ||||
| 90119-A0087 | ||||
| 91651-B0616 | ||||
