ZZE130L-DEMDKK (2002)
Toyota Corolla/Matrix (Nap)
Production
Jan 2002
-
Jan 2008
Engine
1ZZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

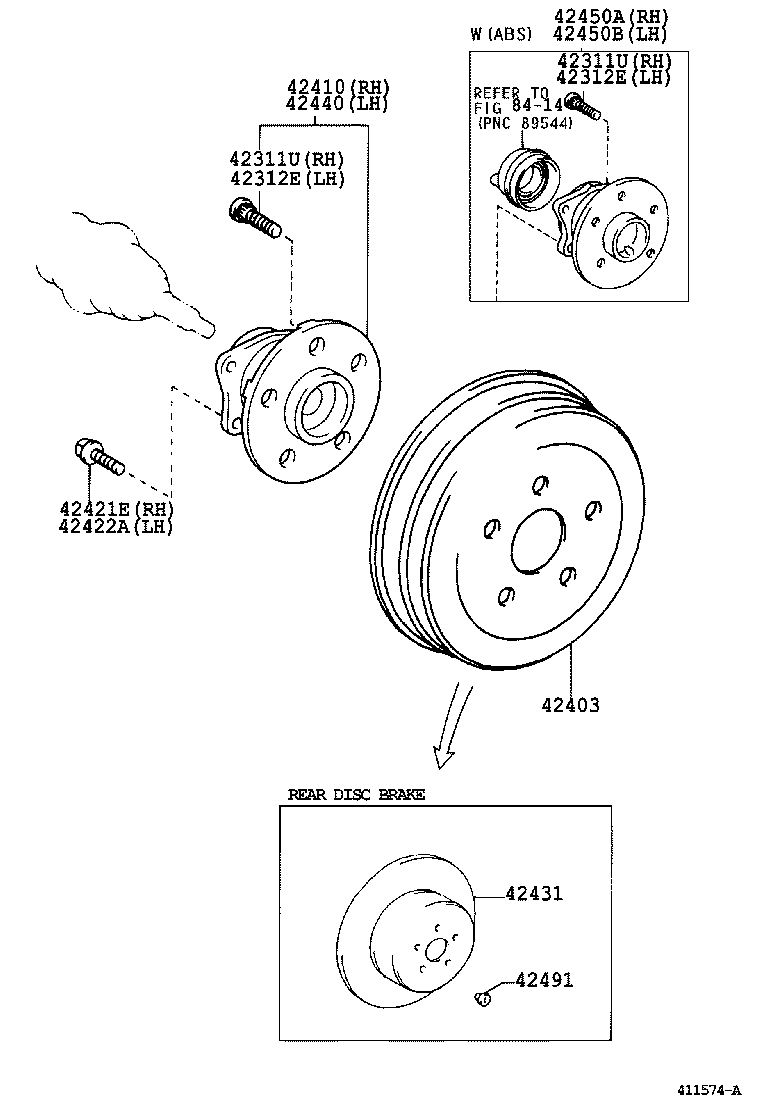

ILLUST NO. 2 OF 2(0201- )ZZE130,131,132,133..NAP
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02049 |
ZZE130..NAP |
5 | ||
| 90942-02049 |
ZZE130..NAP |
5 | ||
| 90942-02049 |
ZZE130,131..NAP |
5 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02049 |
ZZE130..NAP |
5 | ||
| 90942-02049 |
ZZE130..NAP |
5 | ||
| 90942-02049 |
ZZE130,131..NAP |
5 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02049 |
ZZE130..NAP |
5 | ||
| 90942-02049 |
ZZE130..NAP |
5 | ||
| 90942-02049 |
ZZE130,131..NAP |
5 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02049 |
ZZE130..NAP |
5 | ||
| 90942-02049 |
ZZE130..NAP |
5 | ||
| 90942-02049 |
ZZE130,131..NAP |
5 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-02100 |
ZZE130..NAP |
2 | ||
| 42431-02100 |
ZZE130..NAP |
2 | ||
| 42410 - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-02080 |
ZZE130..NAP |
1 | ||
| 42410-01020 |
ZZE130..NAP |
1 | ||
| 42410-02080 |
ZZE130..NAP |
1 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90080-10382 |
ZZE130..NAP |
4 | ||
| 90080-10382 |
ZZE130..NAP |
4 | ||
| 90080-10382 |
ZZE130..NAP |
4 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90080-10382 |
ZZE130..NAP |
4 | ||
| 90080-10382 |
ZZE130..NAP |
4 | ||
| 90080-10382 |
ZZE130..NAP |
4 | ||
| 42440 - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-02080 |
ZZE130..NAP |
1 | ||
| 42410-01020 |
ZZE130..NAP |
1 | ||
| 42410-02080 |
ZZE130..NAP |
1 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42450-02070 |
ZZE130..NAP |
1 | ||
| 42450-02070 |
ZZE130,131..NAP |
1 | ||
| 42450-01010 |
ZZE130..NAP |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42450-02070 |
ZZE130..NAP |
1 | ||
| 42450-01010 |
ZZE130..NAP |
1 | ||
| 42450-02070 |
ZZE130,131..NAP |
1 | ||
| Linked diagrams | ||||
| 8414 | ||||
