ZZT231L-BLFVFA (1999)

Toyota Celica

Production Aug 1999 - Jul 2005
Engine 2ZZGE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 6(9908-0507)

Click highlighted areas on diagram

ENGINE ROOM

diagram 17616A 28300 28371C 8202 82600A 82600F 82616 82642B 82642C 82662A 82672A 82674 82695 82720 82741 82742 82761 8404 8404 8414 8414 85910C 85916P 85927 85927A 85927B 85934 86530 89438 9017906169 9017906306 91631G0618 91631G0618 9166160616
Part # Description Qty Price
17616A - RELAY, AIR PUMP
17616-22030

2ZZGE..ZZT231

 1
28300 - RELAY ASSY, STARTER
28300-10020

1ZZFE,2ZZGE..ZZT23#

 1
28300-10020

1ZZFE,2ZZGE..ZZT23#

 1
28371C - RELAY, IGNITION, NO.2
90987-02012

1ZZFE,2ZZGE..ZZT23#

 1
90987-02027

1ZZFE,2ZZGE..ZZT23#

 1
82600A - FUSE, HIGH CURRENT
90982-08293

ZZT23#

120A,WHITE

 1
90982-08293

ZZT23#

120A,WHITE

 1
82600F - FUSE, FUSE BLOCK
90982-09010

ZZT23#

15A,MINI FUSE,BLUE

 1
90982-09008

ZZT23#

7.5A,MINI FUSE,BRN

 1
90982-09011

ZZT23#

20A,MINI FUSE,YELLOW

 1
90982-09008

ZZT23#

7.5A,MINI FUSE,BRN

 1
90982-09016

ZZT23#

7.5A,MULTI FUSE,BRN

 1
90982-09009

ZZT23#

10A,MINI FUSE,RED

 1
90982-09013

ZZT23#

30A,MINI FUSE,GRN

 1
90982-09012

ZZT23#

25A,MINI FUSE

 1
90982-09014

ZZT23#

5A,MULTI FUSE,TAN

 1
90982-09012

ZZT23#

25A,MINI FUSE

 1
90982-09014

ZZT23#

5A,MULTI FUSE,TAN

 1
90982-09010

ZZT23#

15A,MINI FUSE,BLUE

 1
90982-09013

ZZT23#

30A,MINI FUSE,GRN

 1
90982-09011

ZZT23#

20A,MINI FUSE,YELLOW

 1
90982-09016

ZZT23#

7.5A,MULTI FUSE,BRN

 1
90982-09009

ZZT23#

10A,MINI FUSE,RED

 1
82616 - PULLER, FUSE
82616-32010

ZZT23#

 1
82616-32010

ZZT23#

 1
82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1
90987-02027

ZZT23#

 2
90987-02012

ZZT23#

 2
82642C - RELAY, DAY TIME RUNNING LIGHT, NO.2
90987-04004

ZZT23#

 1
90987-04004

ZZT23#

 1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-20200

ZZT23#

 1
82662-20200

ZZT23#

 1
82672A - COVER, JUNCTION BLOCK
82672-2B200

ZZT23#

 1
82672-2B201

ZZT23#

 1
82674 - COVER, JUNCTION BLOCK LOWER
82674-20050

ZZT23#

 1
82674-20050

ZZT23#

 1
82695 - RESISTOR, DAYTIME RUNNING LIGHT
82695-20010

ZZT23#

 1
82695-20020

ZZT23#

W/O(REGISTER)

 1
82695-20020

ZZT23#

W/O(REGISTER)

 1
82695-20010

ZZT23#

 1
82720 - BLOCK ASSY, ENGINE ROOM JUNCTION
82720-20100

ZZT23#

 1
82720-20101

ZZT23#

 1
82741 - BLOCK, ENGINE ROOM RELAY
82741-20050

ZZT231

 1
82741-20040

ZZT23#

 1
82742 - BLOCK, ENGINE ROOM RELAY, NO.2
82742-20040

ZZT23#

 1
82742-20040

ZZT23#

 1
82761 - BRACKET, RELAY BLOCK, NO.1
82761-20010

ZZT23#

 1
82761-20010

ZZT23#

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04010

ZZT23#

 1
90987-04006

ZZT23#

 1
85916P - RELAY, HEADLAMP
90987-02025

ZZT23#

 1
90987-02016

ZZT23#

 1
85927 - RELAY, COOLING FAN
90987-02027

ZZT23#

 1
90987-02012

ZZT23#

 1
85927A - RELAY, COOLING FAN, NO.2
90987-04004

ZZT23#

 1
90987-04004

ZZT23#

 1
85927B - RELAY, COOLING FAN, NO.3
90987-02012

ZZT23#

 1
90987-02027

ZZT23#

PART NUMBER LABEL=90987-02027

 1
85934 - RELAY, MAGNET-CLUTCH
90987-02012

ZZT23#

 1
90987-02028

ZZT23#

PART NUMBER LABEL=90987-02028

 1
90987-02022

ZZT23#

 1
86530 - RELAY ASSY, HORN
90987-02012

ZZT23#

 1
90987-02027

ZZT23#

 1
89438 - SWITCH, POWER STEERING OIL PRESSURE
89438-33010

ZZT23#

 1
89438-33010

ZZT23#

 1
Common parts
90179-06169
90179-06306
91631-G0618
91661-60616
Linked diagrams
8202
8404
8414

ILLUST NO. 3 OF 6(9908-0507)

Click highlighted areas on diagram

COWL

diagram 28371 81980 8202 82600F 82683 82730 82823K 84340 84345 84520 84550 84718 85912 85916D 85916N 89221 9017906292 91631B0616 9331514012 9412041000
Part # Description Qty Price
28371 - RELAY, IGNITION, NO.1
90987-02016

1ZZFE,2ZZGE..ZZT23#

 1
90987-02025

1ZZFE,2ZZGE..ZZT23#

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-32010

ZZT23#

 1
81980-32010

ZZT23#

 1
82600F - FUSE, FUSE BLOCK
90982-09010

ZZT23#

15A,MINI FUSE,BLUE

 1
90982-09008

ZZT23#

7.5A,MINI FUSE,BRN

 1
90982-09011

ZZT23#

20A,MINI FUSE,YELLOW

 1
90982-09008

ZZT23#

7.5A,MINI FUSE,BRN

 1
90982-09016

ZZT23#

7.5A,MULTI FUSE,BRN

 1
90982-09009

ZZT23#

10A,MINI FUSE,RED

 1
90982-09013

ZZT23#

30A,MINI FUSE,GRN

 1
90982-09012

ZZT23#

25A,MINI FUSE

 1
90982-09014

ZZT23#

5A,MULTI FUSE,TAN

 1
90982-09012

ZZT23#

25A,MINI FUSE

 1
90982-09014

ZZT23#

5A,MULTI FUSE,TAN

 1
90982-09010

ZZT23#

15A,MINI FUSE,BLUE

 1
90982-09013

ZZT23#

30A,MINI FUSE,GRN

 1
90982-09011

ZZT23#

20A,MINI FUSE,YELLOW

 1
90982-09016

ZZT23#

7.5A,MULTI FUSE,BRN

 1
90982-09009

ZZT23#

10A,MINI FUSE,RED

 1
82683 - PLATE, FUSE BLOCK CAUTION
82683-20160

ZZT23#

 1
82683-20160

ZZT23#

 1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-20080

ZZT23#

 1
82730-20080

ZZT23#

 1
82823K - CAP, TERMINAL
82823-20050

ZZT23#

 1
82823-20050

ZZT23#

 1
84340 - SWITCH ASSY, STOP LAMP
84340-19015

ZZT23#

 1
84340-19025

ZZT23#

W(CRUISE CONTROL)

 1
84340-32050

ZZT23#

 1
84340-20060

ZZT23#

W(CRUISE CONTROL)

 1
84340-69025

ZZT231

 1
84340-19025

ZZT23#

W(CRUISE CONTROL)

 1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-51010

ZZT23#

 1
84345-51010

ZZT23#

 1
84520 - SWITCH ASSY, CLUTCH START
84520-24010

ZZT23#..MTM

 1
84520-24010

ZZT23#..MTM

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-33010

ZZT23#

 1
84550-33010

ZZT23#

 1
85912 - RELAY, DEFOGGER
90987-02027

ZZT23#

 1
90987-02020

ZZT23#

 1
85916D - RELAY, FOG LAMP
90987-02027

ZZT23#

 1
90987-02020

ZZT23#

 1
85916N - RELAY, TAIL LAMP
90987-02027

ZZT23#

 1
90987-02020

ZZT23#

 1
89221 - COMPUTER, MULTIPLEX NETWORK BODY
89221-20020

ZZT231

 1
89221-20020

ZZT231

 1
Common parts
90179-06292
91631-B0616
93315-14012
94120-41000
Linked diagrams
8202

ILLUST NO. 4 OF 6(9908-0507)

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 84118 84119 84152 84152B 84330 84330B 84820 84821 85500 85500B 85500F 85520 9356855014 9356855016 9356855016
Part # Description Qty Price
84118 - KNOB, LIGHT CONTROL RHEOSTAT
84118-20030

ZZT23#

 1
84118-20030

ZZT23#

 1
84119 - RHEOSTAT, LIGHT CONTROL
84119-20260

ZZT23#

 1
84119-20260

ZZT23#

 1
84152 - SWITCH, HEADLAMP LEVELING
84152-20050

ZZT23#

 1
84152B - BULB (FOR HEADLAMP LEVELING SWITCH)
90010-08106

ZZT23#

14V 40MA

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-20380

ZZT23#

 1
84332-20380

ZZT23#

 1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10860

ZZT23#

14V 0.91W

 1
84999-10860

ZZT23#

14V 0.91W

 1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84802-20350

ZZT23#

 1
84802-20401

ZZT23#

 1
84802-20400

ZZT23#

 1
84821 - SWITCH, POWER WINDOW LOCK
84821-20020

ZZT23#

 1
84821-20020

ZZT23#

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-20340

ZZT23#

 1
85500-20310

ZZT23#

 1
85500B - BULB, CIGARETTE LIGHTER
90010-01163

ZZT23#

12V 1.2W,W(CAP)

 1
90981-11018

ZZT23#

12V 1.2W W/O SOCKET

 1
85500F - CAP, CIGARETTE LIGHTER BULB
84998-10510

ZZT23#

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010

ZZT23#

 1
85520-28010

ZZT23#

 1
Common parts
93568-55014
93568-55016

ILLUST NO. 5 OF 6(9908-0507)

Click highlighted areas on diagram

IGNITION & COMBINATION SW.

diagram 84052 84140 84306 84450 84650 9016840129
Part # Description Qty Price
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-32030

ZZT23#

 1
84052-32030

ZZT23#

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-20670

ZZT23#

 1
84140-20680

ZZT23#

W(FRONT FOG LAMP)

 1
84140-20680

ZZT23#

W(FRONT FOG LAMP)

 1
84140-20670

ZZT23#

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-32030

ZZT230;ZZT231..6F

W(CRUISE CONTROL)

 1
84306-52010

ZZT230;ZZT231..6F

 1
84306-44010

ZZT23#

W(CRUISE CONTROL)

 1
84306-52010

ZZT230;ZZT231..6F

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-52010

ZZT23#

 1
84450-52010

ZZT23#

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-2G470

ZZT231

 1
84652-20A00

ZZT23#

W(REAR WIPER)

 1
84652-2G470

ZZT231

 1
Common parts
90168-40129

ILLUST NO. 6 OF 6(9908-0507)

Click highlighted areas on diagram

DOOR,ROOF & FLOOR

diagram 83320 84233 84233 84862 84870A 85914A 8604 89465 89465A 9010906296 9010906296
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-20610

ZZT23#

 1
83320-20570

ZZT23#

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070

ZZT23#

 2
84231-46020

ZZT23#

 2
84231-60070

ZZT23#

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070

ZZT23#

 2
84231-46020

ZZT23#

 2
84231-60070

ZZT23#

 2
84862 - SWITCH, SLIDE ROOF MOTOR
84862-13010B0

ZZT231

LIGHT GRAY,TRIM2#

 1
84862-13010B3

ZZT231

LT.GRAY,TRIM2#

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-20220B1

ZZT231

DK.GRAY,TRIM2#

 1
84870-20220B0

ZZT231

AMETHYST,TRIM2#

 1
85914A - RELAY, MOTOR ANTENNA CONTROL
85914-33020

ZZT23#

 1
89465 - SENSOR, OXYGEN
89465-20700

ZZT231

 1
89465-20830

ZZT231

 1
89465A - SENSOR, OXYGEN NO.2
89465-20851

ZZT231

 1
89465-20710

ZZT231

 1
89465-20710

ZZT231

 1
Common parts
90109-06296
Linked diagrams
8604

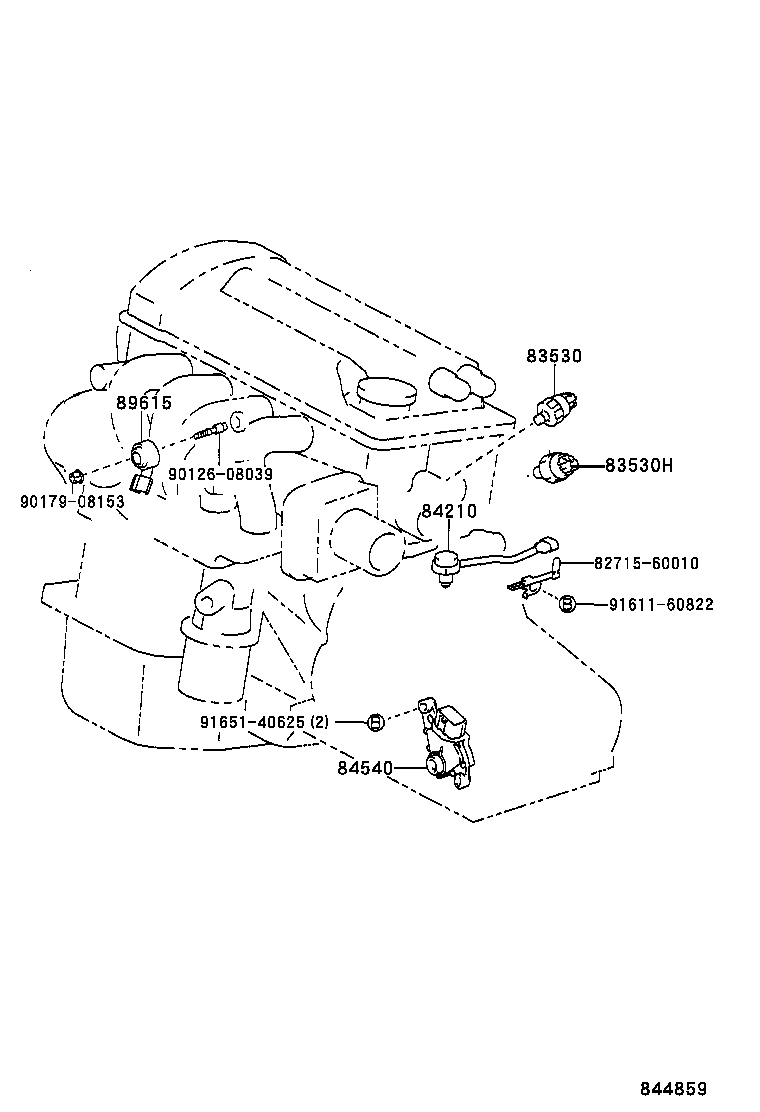

ILLUST NO. 1 OF 6(9908-0507)ZZT231

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 8271560010 83530 83530H 84210 84540 89615 9012608039 9017908153 9161160822 9165140625
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60020

ZZT23#

YAZAKI

 1
83530-28020

ZZT23#

DENSO

 1
83530-28020

ZZT23#

DENSO

 1
83530-60020

ZZT23#

YAZAKI

 1
83530H - SWITCH ASSY, OIL PRESSURE
83530-20030

ZZT231

 1
83530-20030

ZZT231

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-14040

ZZT23#..MTM

 1
84210-14040

ZZT23#..MTM

 1
89615 - SENSOR, KNOCK CONTROL
89615-20090

ZZT231

 1
89615-12090

ZZT231

 1
89615-20090

ZZT231

 1
Common parts
82715-60010
90126-08039
90179-08153
91611-60822
91651-40625
