ZZT231L-BLFVFA (1999)
Toyota Celica

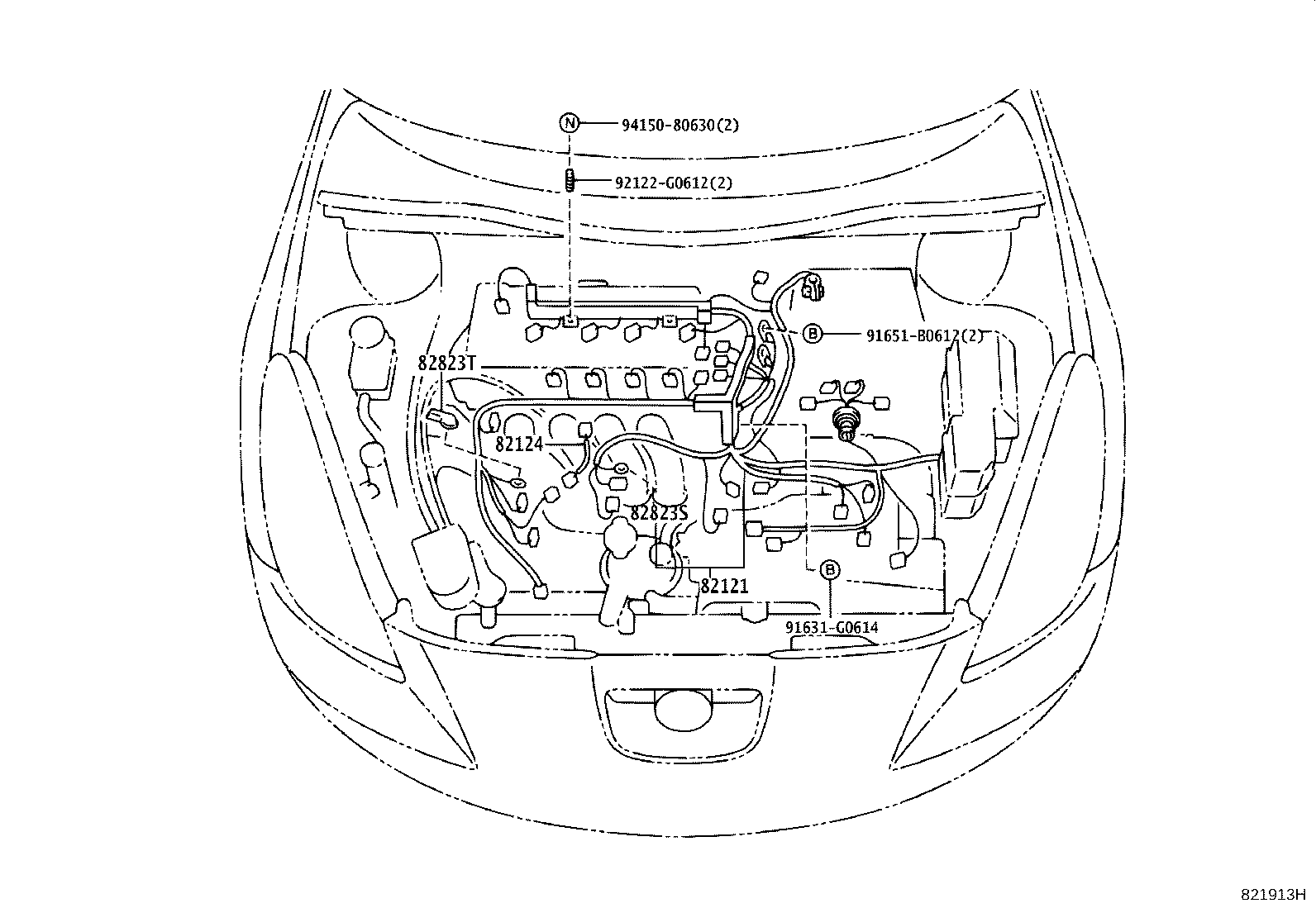

ILLUST NO. 2 OF 8(9908- )ZZT231
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-2M450 |
ZZT231..6F |
1 | ||
| 82121-2M452 |
ZZT231..6F |
1 | ||
| 82121-2M451 |
ZZT231..6F |
1 | ||
| 82121-2M453 |
ZZT231..6F |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-20200 |
ZZT231 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20080 |
ZZT23# |
1 | ||
| 82823-20080 |
ZZT23# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ZZT23# |
1 | ||
| 82823-22050 |
ZZT23# |
1 | ||
| Common parts | ||||
| 91631-G0614 | ||||
| 91651-B0612 | ||||
| 92122-G0612 | ||||
| 94150-80630 | ||||
ILLUST NO. 6 OF 8(9908- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07225 |
ZZT23# |
1 | ||
| 90980-07225 |
ZZT23# |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07345 |
ZZT23# |
1 | ||
| 90980-07345 |
ZZT23# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-10550 | ||||
ILLUST NO. 3 OF 8(9908- )
COWL & INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-20060 |
ZZT23# |
1 | ||
| 82132-20060 |
ZZT23# |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-20140 |
ZZT23# W(AM/FM CASSETTE CD & 8SPEAKER) |
1 | ||
| 82145-20130 |
ZZT231 |
1 | ||
| 82145-20470 |
ZZT231 W(AM/FM CASSETTE CD & 8SPEAKER) |
1 | ||
| 82145-20460 |
ZZT231 |
1 | ||
| 82145-20471 |
ZZT231 W(AM/FM CASSETTE CD & 8SPEAKER) |
1 | ||
| 82145-20461 |
ZZT231 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-20100 |
ZZT23#..MTM |
1 | ||
| 82142-20100 |
ZZT23#..MTM |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-20350 |
ZZT23# |
1 | ||
| 82666-20350 |
ZZT23# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-20370 |
ZZT23# |
1 | ||
| 82666-20370 |
ZZT23# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-20380 |
ZZT23# |
1 | ||
| 82666-20380 |
ZZT23# |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-20330 |
ZZT23# |
1 | ||
| 82821-20330 |
ZZT23# |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
ZZT23# NO.1 |
1 | ||
| 82824-20110 |
ZZT23# SUMITOMO,NO.1 |
1 | ||
| 82824-44020 |
ZZT23# NO.2 |
1 | ||
| 82824-48010 |
ZZT23# NO.3 |
2 | ||
| 82824-48010 |
ZZT23# NO.3 |
2 | ||
| 82824-44020 |
ZZT23# NO.2 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
ZZT23# NO.1 |
1 | ||
| 82824-20110 |
ZZT23# SUMITOMO,NO.1 |
1 | ||
| 82824-44020 |
ZZT23# NO.2 |
1 | ||
| 82824-48010 |
ZZT23# NO.3 |
2 | ||
| 82824-48010 |
ZZT23# NO.3 |
2 | ||
| 82824-44020 |
ZZT23# NO.2 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
ZZT23# NO.1 |
1 | ||
| 82824-20110 |
ZZT23# SUMITOMO,NO.1 |
1 | ||
| 82824-44020 |
ZZT23# NO.2 |
1 | ||
| 82824-48010 |
ZZT23# NO.3 |
2 | ||
| 82824-48010 |
ZZT23# NO.3 |
2 | ||
| 82824-44020 |
ZZT23# NO.2 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
ZZT23# NO.1 |
1 | ||
| 82824-20110 |
ZZT23# SUMITOMO,NO.1 |
1 | ||
| 82824-44020 |
ZZT23# NO.2 |
1 | ||
| 82824-48010 |
ZZT23# NO.3 |
2 | ||
| 82824-48010 |
ZZT23# NO.3 |
2 | ||
| 82824-44020 |
ZZT23# NO.2 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ZZT23# NO.1 |
1 | ||
| 82824-30220 |
ZZT23# NO.2 |
2 | ||
| 82824-30220 |
ZZT231 NO.2 |
2 | ||
| 82824-30220 |
ZZT23# NO.1 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ZZT23# NO.1 |
1 | ||
| 82824-30220 |
ZZT23# NO.2 |
2 | ||
| 82824-30220 |
ZZT231 NO.2 |
2 | ||
| 82824-30220 |
ZZT23# NO.1 |
1 | ||
| 82824P - CONNECTOR, WIRING HARNESS | ||||
| 82824-50110 |
ZZT23# |
1 | ||
| 82824-50110 |
ZZT23# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-70004 | ||||
| 90179-06326 | ||||
| 93568-55016 | ||||
ILLUST NO. 4 OF 8(9908- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-2G460 |
ZZT23# W(POWER WINDOW) |
1 | ||
| 82151-2G480 |
ZZT23# W(AM/FM CASSETTE CD & 8SPEAKER) |
1 | ||
| 82151-2G470 |
ZZT23# W(POWER WINDOW & *80) |
1 | ||
| 82151-2G470 |
ZZT23# W(POWER WINDOW & *80) |
1 | ||
| 82151-2G491 |
ZZT231 W(AM/FM CASSETTE CD & 8SPEAKER & *80) |
1 | ||
| 82151-2G460 |
ZZT23# W(POWER WINDOW) |
1 | ||
| 82151-2G490 |
ZZT23# W(AM/FM CASSETTE CD & 8SPEAKER & *80) |
1 | ||
| 82151-2G481 |
ZZT231 W(AM/FM CASSETTE CD & 8SPEAKER) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-2G280 |
ZZT23# W(POWER WINDOW & *80) |
1 | ||
| 82152-2G300 |
ZZT23# W(AM/FM CASSETTE CD & 8SPEAKER & *80) |
1 | ||
| 82152-2G270 |
ZZT23# W(POWER WINDOW) |
1 | ||
| 82152-2G291 |
ZZT231 W(AM/FM CASSETTE CD & 8SPEAKER) |
1 | ||
| 82152-2G301 |
ZZT231 W(AM/FM CASSETTE CD & 8SPEAKER & *80) |
1 | ||
| 82152-2G290 |
ZZT23# W(AM/FM CASSETTE CD & 8SPEAKER) |
1 | ||
| 82152-2G280 |
ZZT23# W(POWER WINDOW & *80) |
1 | ||
| 82152-2G270 |
ZZT23# W(POWER WINDOW) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-2B170 |
ZZT23# W(MOON ROOF) |
1 | ||
| 82171-2B160 |
ZZT23# |
1 | ||
| 82171-2B160 |
ZZT23# |
1 | ||
| 82171-2B170 |
ZZT23# W(MOON ROOF) |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82818-32030 |
ZZT23# |
1 | ||
| 82818-32030 |
ZZT23# |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82818-32030 |
ZZT23# |
1 | ||
| 82818-32030 |
ZZT23# |
1 | ||
| 82825C - CONNECTOR, WIRING HARNESS | ||||
| 82824-22080 |
ZZT23# |
1 | ||
| 82824-22080 |
ZZT23# |
1 | ||
ILLUST NO. 5 OF 8(9908- )
FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-2M040 |
ZZT23# W(POWER WINDOW & *80) |
1 | ||
| 82161-2M031 |
ZZT23# W(POWER WINDOW) |
1 | ||
| 82161-2M030 |
ZZT23# W(POWER WINDOW) |
1 | ||
| 82161-2M041 |
ZZT23# W(POWER WINDOW & *80) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-20260 |
ZZT23# W(REAR WIPER) |
1 | ||
| 82184-20260 |
ZZT23# W(REAR WIPER) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-20580 |
ZZT23# W(REAR WIPER) |
1 | ||
| 82185-20580 |
ZZT23# W(REAR WIPER) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-13130 |
ZZT23# |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-48010 |
ZZT23# NO.2 |
1 | ||
| 82824-44030 |
ZZT23# NO.1 |
1 | ||
| 82824-48010 |
ZZT23# NO.2 |
1 | ||
| 82824-44030 |
ZZT23# NO.1 |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-48010 |
ZZT23# NO.2 |
1 | ||
| 82824-44030 |
ZZT23# NO.1 |
1 | ||
| 82824-48010 |
ZZT23# NO.2 |
1 | ||
| 82824-44030 |
ZZT23# NO.1 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90159-70003 | ||||
ILLUST NO. 7 OF 8(9908- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-12420 | ||||
| 82715-20A00 | ||||
| 82715-2B210 | ||||
| 82715-2B220 | ||||
| 82715-2B230 | ||||
| 82715-2B280 | ||||
| 82715-2B300 | ||||
| 82715-32390 | ||||
| 82715-34040 | ||||
| 82729-20010 | ||||
| 82729-20050 | ||||
| 82729-20200 | ||||
| 82729-20210 | ||||
| 91611-B0816 | ||||
| 91621-60614 | ||||
| 91643-80614 | ||||
| 91651-B0612 | ||||
ILLUST NO. 8 OF 8(9908- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10481 | ||||
| 90980-10619 | ||||
| 90980-10859 | ||||
| 90980-11003 | ||||
| 90980-11011 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11659 | ||||
ILLUST NO. 1 OF 8(9908- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2L470 |
ZZT230;ZZT231..6F W(CRUISE CONTROL & FRONT FOG LAMP & DRIVING LAMP) |
1 | ||
| 82111-2L490 |
ZZT230;ZZT231..6F W(ABS & CRUISE CONTROL) |
1 | ||
| 82111-2L490 |
ZZT230;ZZT231..6F W(ABS & FRONT FOG LAMP & DRIVING LAMP) |
1 | ||
| 82111-2L471 |
ZZT230;ZZT231..6F W(CRUISE CONTROL & FRONT FOG LAMP & DRIVING LAMP) |
1 | ||
| 82111-2L491 |
ZZT23# W(ABS) |
1 | ||
| 82111-2L470 |
ZZT230;ZZT231..6F W(FRONT FOG LAMP & DRIVING LAMP) |
1 | ||
| 82111-2L491 |
ZZT230;ZZT231..6F W(ABS & CRUISE CONTROL) |
1 | ||
| 82111-2L590 |
ZZT230;ZZT231..6F |
1 | ||
| 82111-2L471 |
ZZT23#..MTM W(CRUISE CONTROL) |
1 | ||
| 82111-2L470 |
ZZT23#..MTM W(CRUISE CONTROL) |
1 | ||
| 82111-2L472 |
ZZT23#..MTM W(CRUISE CONTROL) |
1 | ||
| 82111-2L491 |
ZZT230;ZZT231..6F W(ABS & FRONT FOG LAMP & DRIVING LAMP) |
1 | ||
| 82111-2L490 |
ZZT23# W(ABS) |
1 | ||
| 82111-2L471 |
ZZT230;ZZT231..6F W(FRONT FOG LAMP & DRIVING LAMP) |
1 | ||
| 82111-2L472 |
ZZT230;ZZT231..6F W(CRUISE CONTROL & FRONT FOG LAMP & DRIVING LAMP) |
1 | ||
| 82111-2L592 |
ZZT230;ZZT231..6F |
1 | ||
| 82115-20270 |
ZZT231 W(DISCHARGE HEADLAMP) |
1 | ||
| 82111-2L492 |
ZZT230;ZZT231..6F W(ABS & FRONT FOG LAMP & DRIVING LAMP) |
1 | ||
| 82111-2L472 |
ZZT230;ZZT231..6F W(FRONT FOG LAMP & DRIVING LAMP) |
1 | ||
| 82111-2L491 |
ZZT230;ZZT231..6F W(ABS & CRUISE CONTROL & FRONT FOG LAMP & DRIVING LAMP) |
1 | ||
| 82111-2L492 |
ZZT230;ZZT231..6F W(ABS & CRUISE CONTROL) |
1 | ||
| 82111-2L490 |
ZZT230;ZZT231..6F W(ABS & CRUISE CONTROL & FRONT FOG LAMP & DRIVING LAMP) |
1 | ||
| 82111-2L591 |
ZZT230;ZZT231..6F |
1 | ||
| 82115-20280 |
ZZT231 W(ABS) |
1 | ||
| 82111-2L492 |
ZZT23# W(ABS) |
1 | ||
| 82115-20260 |
ZZT231 |
1 | ||
| 82111-2L492 |
ZZT230;ZZT231..6F W(ABS & CRUISE CONTROL & FRONT FOG LAMP & DRIVING LAMP) |
1 | ||
| 82115-20281 |
ZZT231 W(ABS) |
1 | ||
| 82115-20261 |
ZZT231 |
1 | ||
| 82115-20271 |
ZZT231 W(DISCHARGE HEADLAMP) |
1 | ||
| 82115-20291 |
ZZT231 W(ABS & DISCHARGE HEADLAMP) |
1 | ||
| 82115-20290 |
ZZT231 W(ABS & DISCHARGE HEADLAMP) |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-20450 |
ZZT231 |
1 | ||
| 82112-20530 |
ZZT231 |
1 | ||
| 82112-20550 |
ZZT231 W(DISCHARGE HEADLAMP) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08285 |
ZZT23# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08284 |
ZZT23# 40A,TERM.:FEMALE,GRN |
2 | ||
| 90982-08283 |
ZZT23# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08283 |
ZZT23# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
ZZT23# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08284 |
ZZT23# 40A,TERM.:FEMALE,GRN |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
