ZZT231L-BLFVFA (1999)

Toyota Celica

Production Aug 1999 - Jul 2005
Engine 2ZZGE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0208)ZZT231

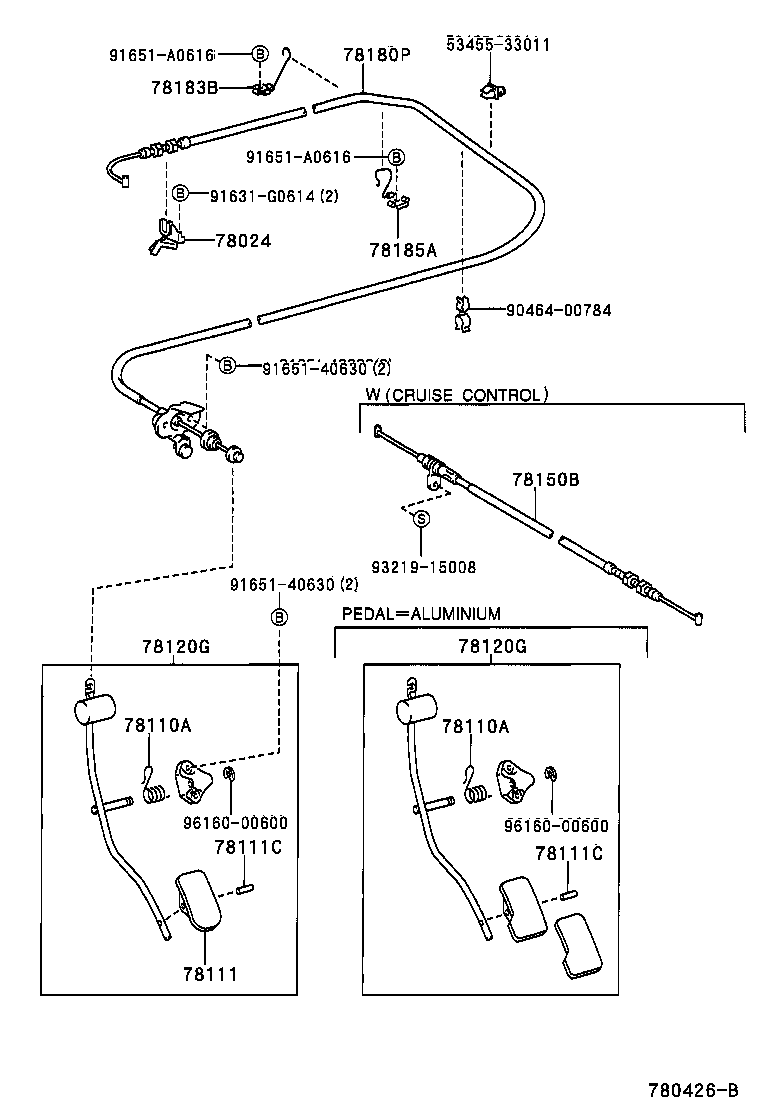

Click highlighted areas on diagram

diagram 5345533011 78024 78110A 78110A 78111 78111C 78111C 78120G 78120G 78150B 78180P 78183B 78185A 9046400784 91631G0614 9165140630 9165140630 91651A0616 91651A0616 9321915008 9616000600 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-88600

ZZT231

 1
78024-88602

ZZT231

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26075

ZZT23#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26075

ZZT23#

 1
78111 - PEDAL, ACCELERATOR
78111-33020

ZZT23#

 1
78111-35030

ZZT231

 1
78101-20150

ZZT231

PEDAL = ALUMINIUM

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019

ZZT23#

 1
90254-04019

ZZT23#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019

ZZT23#

 1
90254-04019

ZZT23#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20790

ZZT23#

PEDAL = ALUMINIUM

 1
78120-20770

ZZT23#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20790

ZZT23#

PEDAL = ALUMINIUM

 1
78120-20770

ZZT23#

 1
78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE
78150-20190

ZZT231

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2D730

ZZT23#

W(CRUISE CONTROL)

 1
78180-2D780

ZZT231

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-20370

ZZT231

 1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78185-20100

ZZT231

 1
Common parts
53455-33011
90464-00784
91631-G0614
91651-40630
91651-A0616
93219-15008
96160-00600

(0208-0507)ZZT231

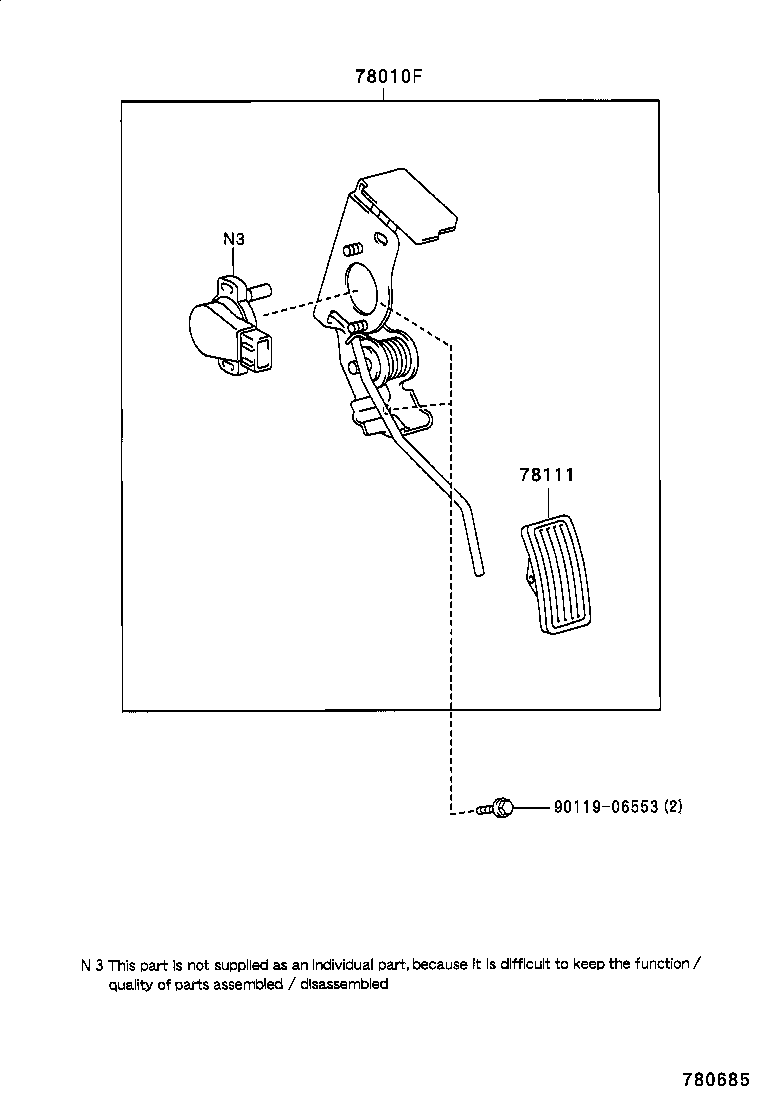

Click highlighted areas on diagram

diagram 78010F 78111 9011906553
Part # Description Qty Price
78010F - PEDAL ASSY, ACCELERATOR
78010-20150

ZZT231

PEDAL = ALUMINIUM

 1
78010-20140

ZZT231

 1
78111 - PEDAL, ACCELERATOR
78111-33020

ZZT23#

 1
78111-35030

ZZT231

 1
78101-20150

ZZT231

PEDAL = ALUMINIUM

 1
Common parts
90119-06553
