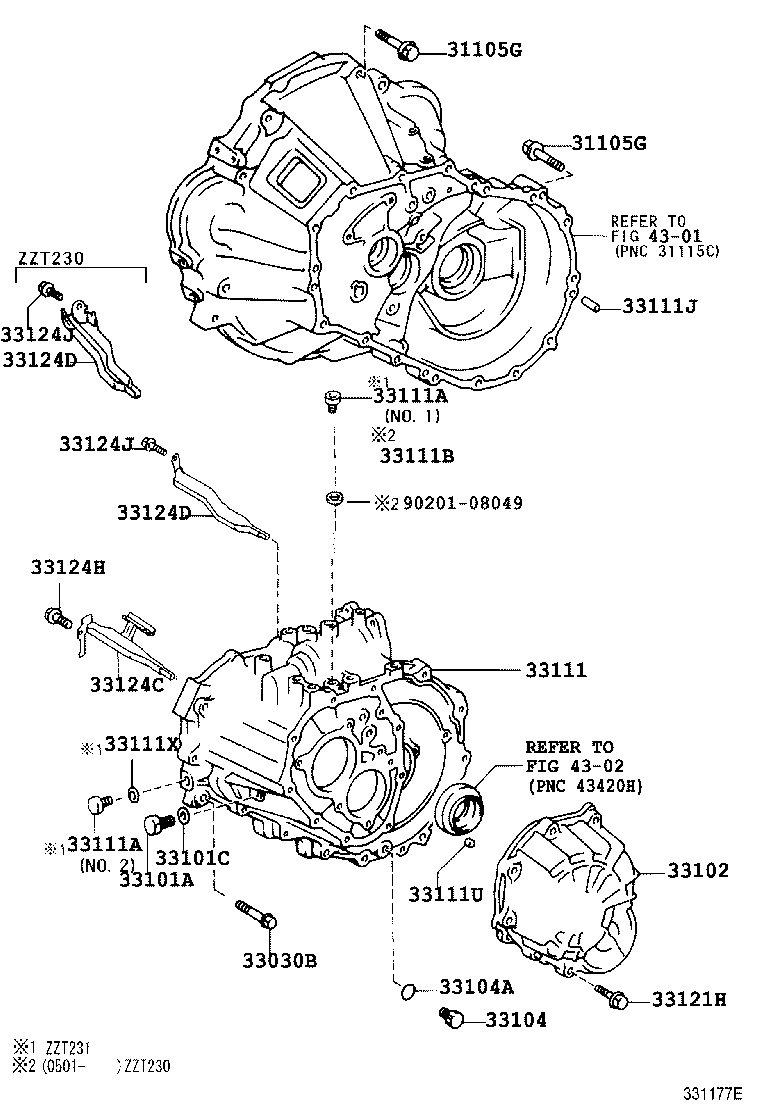

ZZT231L-BLFVFA (1999)
Toyota Celica
(9908-0507)MTM
C56,C60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 91619-61255 |
ZZT23#..MTM *12-1.25PX55-30 |
2 | ||
| 91619-61255 |
ZZT23#..MTM *12-1.25PX55-30 |
2 | ||
| 91642-81055 |
ZZT23#..MTM *10-1.25PX55-30 |
2 | ||
| 91642-81055 |
ZZT23#..MTM *10-1.25PX55-30 |
2 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 91619-61255 |
ZZT23#..MTM *12-1.25PX55-30 |
2 | ||
| 91619-61255 |
ZZT23#..MTM *12-1.25PX55-30 |
2 | ||
| 91642-81055 |
ZZT23#..MTM *10-1.25PX55-30 |
2 | ||
| 91642-81055 |
ZZT23#..MTM *10-1.25PX55-30 |
2 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08064 |
ZZT23#..MTM *8-1.25PX51-28 |
13 | ||
| 90105-08086 |
ZZT231..6F *8-1.25PX45-27.5 |
3 | ||
| 90105-08353 |
ZZT23#..MTM *8-1.25PX50-30 |
13 | ||
| 90105-08086 |
ZZT23#..MTM *8-1.25PX45-27.5 |
3 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18038 |
ZZT231..6F |
1 | ||
| 90341-18038 |
ZZT231..6F |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
ZZT23#..MTM |
1 | ||
| 90430-18008 |
ZZT23#..MTM |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-20050 |
ZZT231..6F |
1 | ||
| 33102-12050 |
ZZT231..6F |
1 | ||
| 33102-20050 |
ZZT231..6F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18033 |
ZZT23#..MTM |
1 | ||
| 90341-18006 |
ZZT23#..MTM |
1 | ||
| 90341-18006 |
ZZT23#..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
ZZT23#..MTM |
1 | ||
| 90430-18008 |
ZZT23#..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-20160 |
ZZT231..6F |
1 | ||
| 33111-20160 |
ZZT231..6F |
1 | ||
| 33111-20162 |
ZZT231..6F |
1 | ||
| 33111-20161 |
ZZT231..6F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-10065 |
ZZT231..6F NO.1 |
1 | ||
| 90341-18023 |
ZZT231..6F NO.2 |
1 | ||
| 90341-10065 |
ZZT231..6F NO.1 |
1 | ||
| 90341-18023 |
ZZT231..6F NO.2 |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-10065 |
ZZT231..6F NO.1 |
1 | ||
| 90341-18023 |
ZZT231..6F NO.2 |
1 | ||
| 90341-10065 |
ZZT231..6F NO.1 |
1 | ||
| 90341-18023 |
ZZT231..6F NO.2 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
ZZT23#..MTM L=23,OD=8 |
4 | ||
| 90250-08054 |
ZZT23#..MTM L=23,OD=8 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
ZZT23#..MTM L=11,OD=11 |
2 | ||
| 90253-11001 |
ZZT23#..MTM L=11,OD=11 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
ZZT231..6F |
1 | ||
| 90430-18008 |
ZZT231..6F |
1 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 91611-60835 |
ZZT23#..MTM |
9 | ||
| 90119-08429 |
ZZT231..6F |
9 | ||
| 91611-60835 |
ZZT231..6F |
9 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-20050 |
ZZT23#..MTM |
1 | ||
| 33124-20050 |
ZZT23#..MTM |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-20060 |
ZZT231..6F |
1 | ||
| 33124-20060 |
ZZT231..6F |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-20060 |
ZZT231..6F |
1 | ||
| 33124-20060 |
ZZT231..6F |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 91611-G0820 |
ZZT23#..MTM |
1 | ||
| 91611-60820 |
ZZT23#..MTM |
1 | ||
| 33124J - BOLT, W/WASHER | ||||
| 91611-G0820 |
ZZT23#..MTM |
1 | ||
| 91611-60820 |
ZZT23#..MTM |
1 | ||
| 33124J - BOLT, W/WASHER | ||||
| 91611-G0820 |
ZZT23#..MTM |
1 | ||
| 91611-60820 |
ZZT23#..MTM |
1 | ||
| Common parts | ||||
| 90201-08049 | ||||
| Linked diagrams | ||||
| 4301 | ||||
| 4302 | ||||
