ZZT231L-BLFVFA (1999)
Toyota Celica
ILLUST NO. 2 OF 2(9908-0507)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-23010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23217-23010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-15030 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23221-15030 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23221-15040 |
2ZZGE..ZZT231 VENEZUELA SPEC |
1 | ||
| 23225 - SPACER, FUEL PUMP | ||||
| 23225-21010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23225-21010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23229-16010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23239B - SEAL, FUEL PUMP FILTER | ||||
| 23239-21010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23239-21010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23249-74610 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-22010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23280-22010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 90301-07020 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23300Z - FILTER, FUEL(FOR FUEL TANK) | ||||
| 23300-23040 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23300-23030 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| Linked diagrams | ||||
| 7701 | ||||

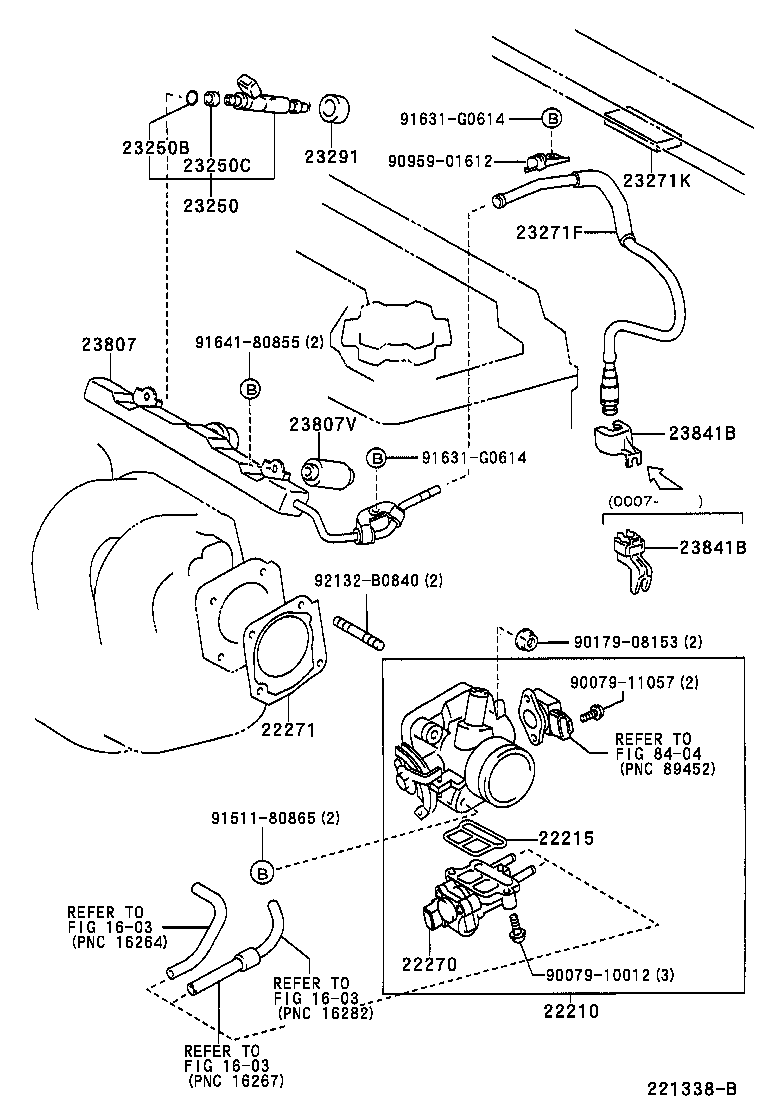

ILLUST NO. 1 OF 2(9908-0208)2ZZGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22030-22030 |
2ZZGE..ZZT231 |
1 | ||
| 22210-22040 |
2ZZGE..ZZT231 |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-7A680 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-22030 |
2ZZGE..ZZT231 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-88602 |
2ZZGE..ZZT231 |
1 | ||
| 22271-88600 |
2ZZGE..ZZT231 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-2206001 |
2ZZGE..ZZT231 NO.= 23250-22060,MARK WHITE |
4 | ||
| 23209-2206001 |
2ZZGE..ZZT231 NO.= 23250-22060,MARK WHITE |
4 | ||
| 23209-2206002 |
2ZZGE..ZZT231 MARK BLUE |
4 | ||
| 23209-22070 |
2ZZGE..ZZT231 NO.= 23250-22070 |
4 | ||
| 23209-22130 |
2ZZGE..ZZT231 NO.= 23250-22130 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07024 |
1ZZFE,2ZZGE..ZZT23# |
4 | ||
| 90301-07024 |
1ZZFE,2ZZGE..ZZT23# |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
2ZZGE..ZZT231 |
4 | ||
| 90480-13005 |
2ZZGE..ZZT231 |
4 | ||
| 23271F - HOSE, FUEL | ||||
| 23271-88600 |
2ZZGE..ZZT231 |
1 | ||
| 23271-88602 |
2ZZGE..ZZT231 |
1 | ||
| 23271-88602 |
2ZZGE..ZZT231 |
1 | ||
| 23271K - INSULATOR(FOR FUEL HOSE) | ||||
| 27747-22010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 27747-22010 |
2ZZGE..ZZT231 |
1 | ||
| 27747-22010 |
2ZZGE..ZZT231 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
2ZZGE..ZZT231 |
4 | ||
| 23291-41010 |
2ZZGE..ZZT231 |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-88600 |
2ZZGE..ZZT231 |
1 | ||
| 23807-88600 |
2ZZGE..ZZT231 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08059 |
2ZZGE..ZZT231 |
2 | ||
| 90561-08059 |
2ZZGE..ZZT231 |
2 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-28010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23841-21020 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23841-28010 |
2ZZGE..ZZT231 |
1 | ||
| 23841-28010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-28010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23841-21020 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23841-28010 |
2ZZGE..ZZT231 |
1 | ||
| 23841-28010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| Common parts | ||||
| 90079-10012 | ||||
| 90079-11057 | ||||
| 90179-08153 | ||||
| 90959-01612 | ||||
| 91511-80865 | ||||
| 91631-G0614 | ||||
| 91641-80855 | ||||
| 92132-B0840 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8404 | ||||

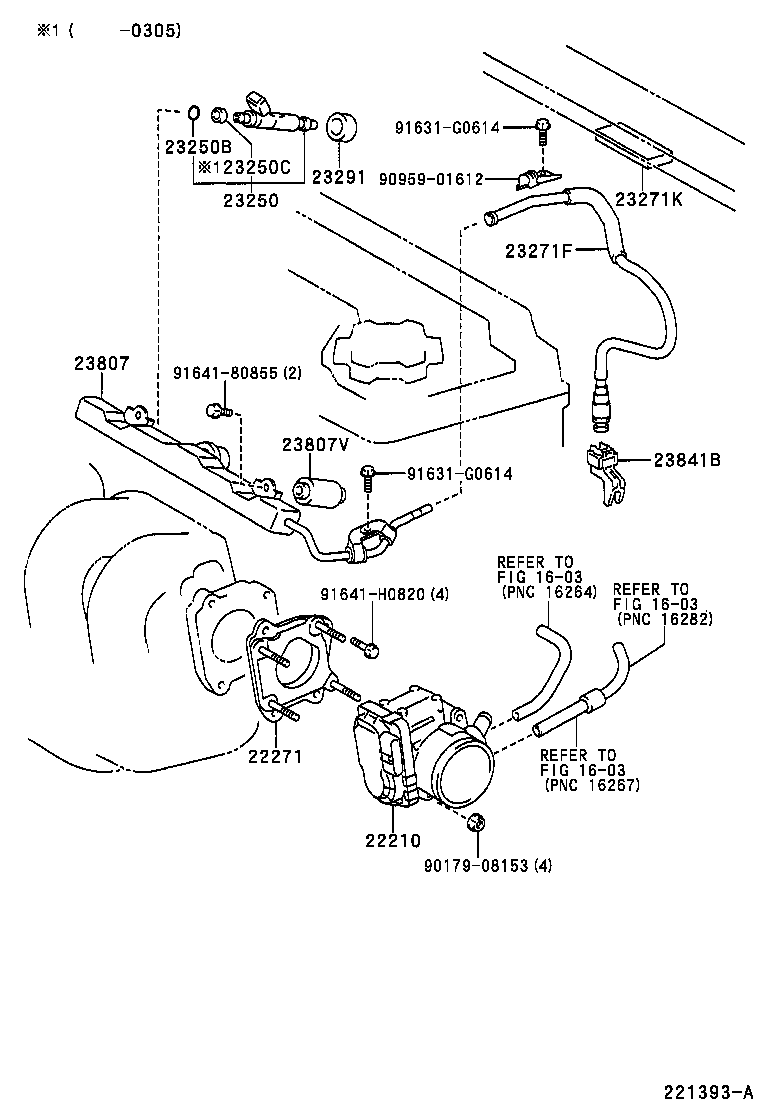

ILLUST NO. 1 OF 2(0208-0507)2ZZGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22030-22030 |
2ZZGE..ZZT231 |
1 | ||
| 22210-22040 |
2ZZGE..ZZT231 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-88602 |
2ZZGE..ZZT231 |
1 | ||
| 22271-88600 |
2ZZGE..ZZT231 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-2206001 |
2ZZGE..ZZT231 NO.= 23250-22060,MARK WHITE |
4 | ||
| 23209-2206001 |
2ZZGE..ZZT231 NO.= 23250-22060,MARK WHITE |
4 | ||
| 23209-2206002 |
2ZZGE..ZZT231 MARK BLUE |
4 | ||
| 23209-22070 |
2ZZGE..ZZT231 NO.= 23250-22070 |
4 | ||
| 23209-22130 |
2ZZGE..ZZT231 NO.= 23250-22130 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07024 |
1ZZFE,2ZZGE..ZZT23# |
4 | ||
| 90301-07024 |
1ZZFE,2ZZGE..ZZT23# |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
2ZZGE..ZZT231 |
4 | ||
| 90480-13005 |
2ZZGE..ZZT231 |
4 | ||
| 23271F - HOSE, FUEL | ||||
| 23271-88600 |
2ZZGE..ZZT231 |
1 | ||
| 23271-88602 |
2ZZGE..ZZT231 |
1 | ||
| 23271-88602 |
2ZZGE..ZZT231 |
1 | ||
| 23271K - INSULATOR(FOR FUEL HOSE) | ||||
| 27747-22010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 27747-22010 |
2ZZGE..ZZT231 |
1 | ||
| 27747-22010 |
2ZZGE..ZZT231 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
2ZZGE..ZZT231 |
4 | ||
| 23291-41010 |
2ZZGE..ZZT231 |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-88600 |
2ZZGE..ZZT231 |
1 | ||
| 23807-88600 |
2ZZGE..ZZT231 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08059 |
2ZZGE..ZZT231 |
2 | ||
| 90561-08059 |
2ZZGE..ZZT231 |
2 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-28010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23841-21020 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23841-28010 |
2ZZGE..ZZT231 |
1 | ||
| 23841-28010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| Common parts | ||||
| 90179-08153 | ||||
| 90959-01612 | ||||
| 91631-G0614 | ||||
| 91641-80855 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 1603 | ||||
