ZZT231L-BLFVFA (1999)

Toyota Celica

Production Aug 1999 - Jul 2005
Engine 2ZZGE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0308-0507)2ZZGE

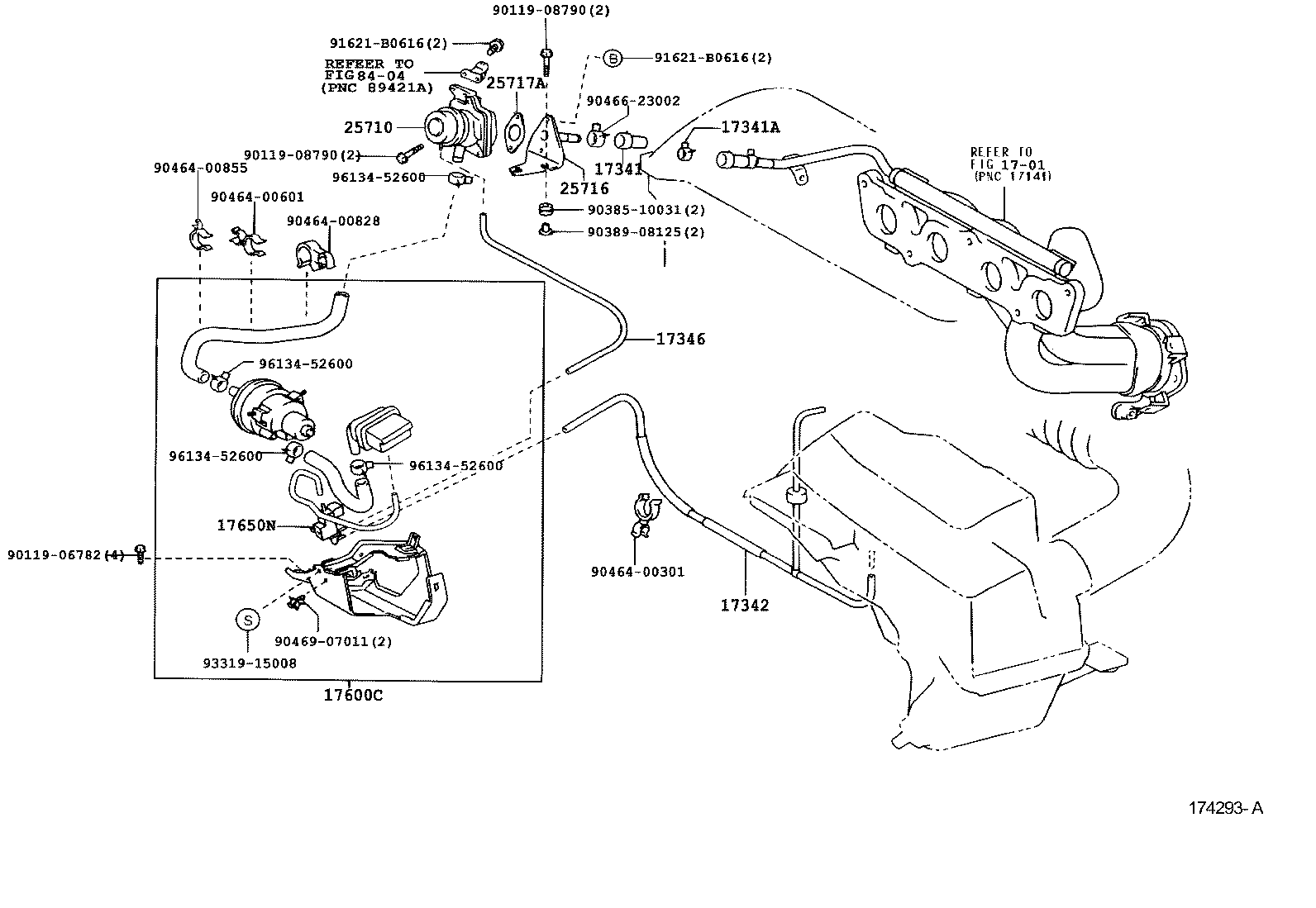

Click highlighted areas on diagram

diagram 1701 17341 17341A 17342 17346 17600C 17650N 25710 25716 25717A 8404 9011906782 9011908790 9011908790 9038510031 9038908125 9046400301 9046400601 9046400828 9046400855 9046623002 9046907011 91621B0616 91621B0616 9331915008 9613452600 9613452600 9613452600 9613452600
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-88600

2ZZGE..ZZT231

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-21010

2ZZGE..ZZT231

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17308-22031

2ZZGE..ZZT231

 1
17308-22030

2ZZGE..ZZT231

 1
17346 - HOSE, NO.6(FOR AIR INJECTION SYSTEM)
17346-22020

2ZZGE..ZZT231

 1
17600C - PUMP ASSY, AIR
17600-22010

2ZZGE..ZZT231

 1
17600-22011

2ZZGE..ZZT231

 1
17650N - VALVE, VACUUM SWITCHING
90910-12059

2ZZGE..ZZT231

 1
25710 - VALVE ASSY, AIR SWITCHING
25710-22020

2ZZGE..ZZT231

 1
25716 - BRACKET, AIR SWITCHING VALVE
25716-22010

2ZZGE..ZZT231

 1
25717A - GASKET, AIR SWITCHING VALVE
25717-22010

2ZZGE..ZZT231

 1
Common parts
90119-06782
90119-08790
90385-10031
90389-08125
90464-00301
90464-00601
90464-00828
90464-00855
90466-23002
90469-07011
91621-B0616
93319-15008
96134-52600
Linked diagrams
1701
8404
