ZZT231L-BLFVFA (1999)
Toyota Celica

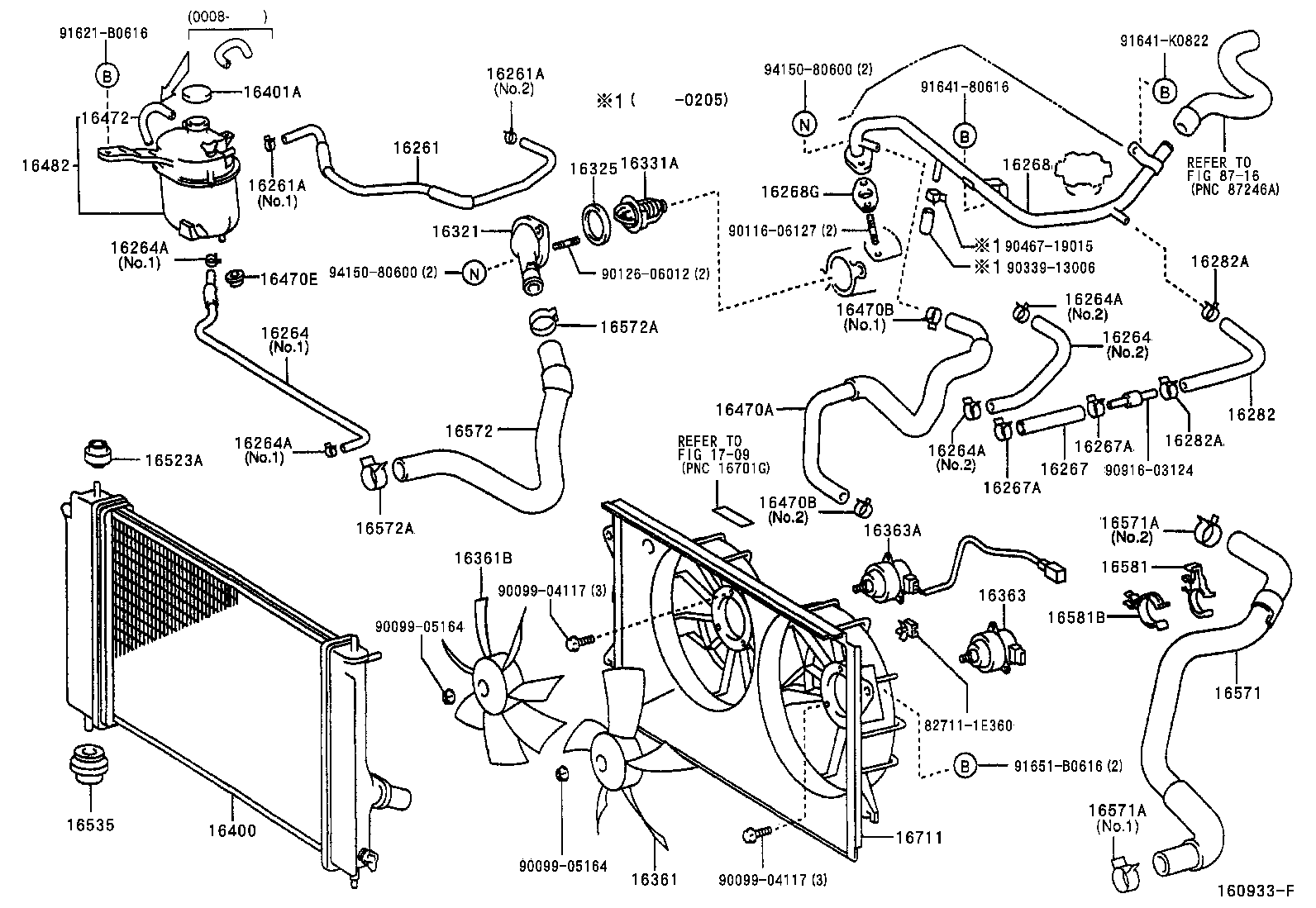

ILLUST NO. 1 OF 2(9908-0208)2ZZGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-22060 |
2ZZGE..ZZT231 |
1 | ||
| 16261-22120 |
2ZZGE..ZZT231 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 90467-13073 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 90467-13128 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 90467-13073 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 90467-13128 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-88600 |
2ZZGE..ZZT231 NO.2 |
1 | ||
| 16264-88601 |
2ZZGE..ZZT231 NO.2 |
1 | ||
| 16264-88602 |
2ZZGE..ZZT231 NO.2 |
1 | ||
| 16264-22040 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 16264-22040 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-88600 |
2ZZGE..ZZT231 NO.2 |
1 | ||
| 16264-88601 |
2ZZGE..ZZT231 NO.2 |
1 | ||
| 16264-88602 |
2ZZGE..ZZT231 NO.2 |
1 | ||
| 16264-22040 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 16264-22040 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13073 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-13128 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
2 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13073 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-13128 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
2 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13073 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-13128 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
2 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13073 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-13128 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
2 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-88603 |
2ZZGE..ZZT231 |
1 | ||
| 16295-88570 |
2ZZGE..ZZT231 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13128 |
2ZZGE..ZZT231 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13128 |
2ZZGE..ZZT231 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-22150 |
2ZZGE..ZZT231 |
1 | ||
| 16268-88603 |
2ZZGE..ZZT231 |
1 | ||
| 16268-88603 |
2ZZGE..ZZT231 |
1 | ||
| 16268-88600 |
2ZZGE..ZZT231 |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-88600 |
2ZZGE..ZZT231 |
1 | ||
| 16258-88600 |
2ZZGE..ZZT231 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-88600 |
2ZZGE..ZZT231 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-13128 |
2ZZGE..ZZT231 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-13128 |
2ZZGE..ZZT231 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-88600 |
2ZZGE..ZZT231 |
1 | ||
| 16321-88600 |
2ZZGE..ZZT231 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2ZZGE..ZZT231 |
1 | ||
| 16325-62010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03129 |
2ZZGE..ZZT231 *WAX 82-95 |
1 | ||
| 90916-03084 |
2ZZGE..ZZT231 *WAX 82-95 |
1 | ||
| 90916-03084 |
2ZZGE..ZZT231 *WAX 82-95 |
1 | ||
| 90916-03084 |
1ZZFE,2ZZGE..ZZT23# *WAX 82-95 |
1 | ||
| 16361 - FAN | ||||
| 16361-22050 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16361-22050 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-22060 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16361-22060 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-22050 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16363-22050 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-22060 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16363-22060 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-22060 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 16400-22060 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16401-53010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16401-53010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-88600 |
2ZZGE..ZZT231 |
1 | ||
| 16472-88600 |
2ZZGE..ZZT231 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-15004 |
2ZZGE..ZZT231 NO.1 |
1 | ||
| 96134-51700 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 90467-15004 |
2ZZGE..ZZT231 NO.1 |
1 | ||
| 90467-17011 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-15004 |
2ZZGE..ZZT231 NO.1 |
1 | ||
| 96134-51700 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 90467-15004 |
2ZZGE..ZZT231 NO.1 |
1 | ||
| 90467-17011 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-18010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 90480-18010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-42060 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16472-22020 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-22020 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-22010 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 16523-22010 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74210 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 16535-74210 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-22050 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16571-22080 |
2ZZGE..ZZT231..6F |
1 | ||
| 16571-22080 |
2ZZGE..ZZT231..6F |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-37002 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 90467-33005 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 90466-37002 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 90467-33005 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-37002 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 90467-33005 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 90466-37002 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 90467-33005 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-22020 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16572-22020 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37005 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 90467-37005 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 90467-37002 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37005 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 90467-37005 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 90467-37002 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-22030 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16581-22090 |
2ZZGE..ZZT231 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22040 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16581-22040 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-22060 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16711-22060 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90116-06127 | ||||
| 90126-06012 | ||||
| 90339-13006 | ||||
| 90467-19015 | ||||
| 90916-03124 | ||||
| 91621-B0616 | ||||
| 91641-80616 | ||||
| 91641-K0822 | ||||
| 91651-B0616 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(9908-0208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-22060 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 16400-22060 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23322-54010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16492-21050 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
ILLUST NO. 2 OF 2(0208-0507)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-22060 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 16400-22060 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 23322-54010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16492-21050 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||

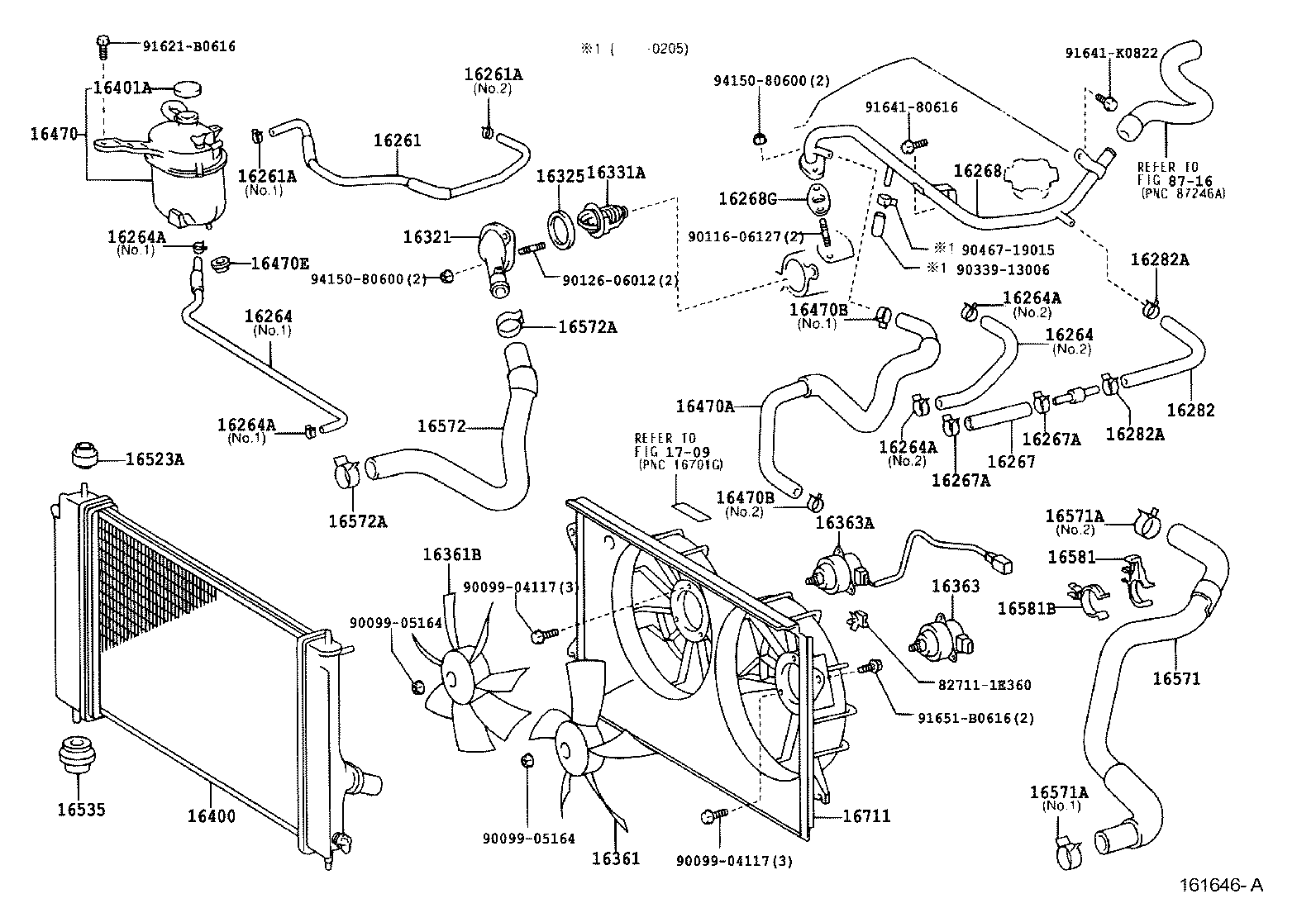

ILLUST NO. 1 OF 2(0208-0507)2ZZGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-22060 |
2ZZGE..ZZT231 |
1 | ||
| 16261-22120 |
2ZZGE..ZZT231 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 90467-13073 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 90467-13128 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 90467-13073 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 90467-13128 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-88600 |
2ZZGE..ZZT231 NO.2 |
1 | ||
| 16264-88601 |
2ZZGE..ZZT231 NO.2 |
1 | ||
| 16264-88602 |
2ZZGE..ZZT231 NO.2 |
1 | ||
| 16264-22040 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 16264-22040 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-88600 |
2ZZGE..ZZT231 NO.2 |
1 | ||
| 16264-88601 |
2ZZGE..ZZT231 NO.2 |
1 | ||
| 16264-88602 |
2ZZGE..ZZT231 NO.2 |
1 | ||
| 16264-22040 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 16264-22040 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13073 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-13128 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
2 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13073 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-13128 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
2 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13073 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-13128 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
2 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13073 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-13128 |
2ZZGE..ZZT231 NO.2 |
2 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
2 | ||
| 90467-15022 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-88603 |
2ZZGE..ZZT231 |
1 | ||
| 16295-88570 |
2ZZGE..ZZT231 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13128 |
2ZZGE..ZZT231 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13128 |
2ZZGE..ZZT231 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-22150 |
2ZZGE..ZZT231 |
1 | ||
| 16268-88603 |
2ZZGE..ZZT231 |
1 | ||
| 16268-88603 |
2ZZGE..ZZT231 |
1 | ||
| 16268-88600 |
2ZZGE..ZZT231 |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-88600 |
2ZZGE..ZZT231 |
1 | ||
| 16258-88600 |
2ZZGE..ZZT231 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-88600 |
2ZZGE..ZZT231 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-13128 |
2ZZGE..ZZT231 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-13128 |
2ZZGE..ZZT231 |
2 | ||
| 90467-13073 |
2ZZGE..ZZT231 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-88600 |
2ZZGE..ZZT231 |
1 | ||
| 16321-88600 |
2ZZGE..ZZT231 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2ZZGE..ZZT231 |
1 | ||
| 16325-62010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03129 |
2ZZGE..ZZT231 *WAX 82-95 |
1 | ||
| 90916-03084 |
2ZZGE..ZZT231 *WAX 82-95 |
1 | ||
| 90916-03084 |
2ZZGE..ZZT231 *WAX 82-95 |
1 | ||
| 90916-03084 |
1ZZFE,2ZZGE..ZZT23# *WAX 82-95 |
1 | ||
| 16361 - FAN | ||||
| 16361-22050 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16361-22050 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-22060 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16361-22060 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-22050 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16363-22050 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-22060 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16363-22060 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-22060 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 16400-22060 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16401-53010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16401-53010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-22020 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-88600 |
2ZZGE..ZZT231 |
1 | ||
| 16472-88600 |
2ZZGE..ZZT231 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-15004 |
2ZZGE..ZZT231 NO.1 |
1 | ||
| 96134-51700 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 90467-15004 |
2ZZGE..ZZT231 NO.1 |
1 | ||
| 90467-17011 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-15004 |
2ZZGE..ZZT231 NO.1 |
1 | ||
| 96134-51700 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 90467-15004 |
2ZZGE..ZZT231 NO.1 |
1 | ||
| 90467-17011 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-18010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 90480-18010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-22010 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 16523-22010 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74210 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 16535-74210 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-22050 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16571-22080 |
2ZZGE..ZZT231..6F |
1 | ||
| 16571-22080 |
2ZZGE..ZZT231..6F |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-37002 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 90467-33005 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 90466-37002 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 90467-33005 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-37002 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 90467-33005 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 90466-37002 |
1ZZFE,2ZZGE..ZZT23# NO.1 |
1 | ||
| 90467-33005 |
1ZZFE,2ZZGE..ZZT23# NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-22020 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16572-22020 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37005 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 90467-37005 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 90467-37002 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37005 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 90467-37005 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 90467-37002 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-22030 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16581-22090 |
2ZZGE..ZZT231 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22040 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16581-22040 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-22060 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 16711-22060 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90116-06127 | ||||
| 90126-06012 | ||||
| 90339-13006 | ||||
| 90467-19015 | ||||
| 91621-B0616 | ||||
| 91641-80616 | ||||
| 91641-K0822 | ||||
| 91651-B0616 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
