ZZT231L-BLFVFA (1999)

Toyota Celica

Production Aug 1999 - Jul 2005

Engine 2ZZGE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9908-0507)2ZZGE

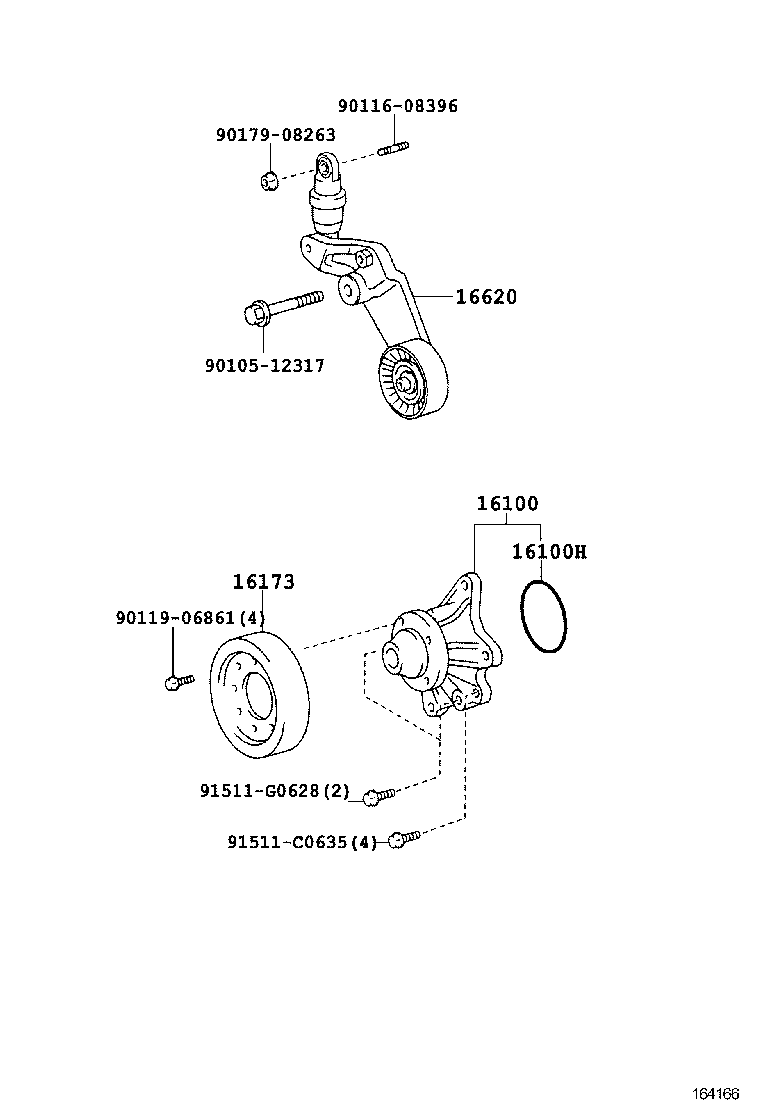

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
16100 - PUMP ASSY, ENGINE WATER
16100-29145	2ZZGE..ZZT231	08/1999 - 08/2002	1
16100-29145	2ZZGE..ZZT231	08/2002 - 07/2005	1
16100H - RING, O(FOR WATER PUMP)
90301-69007	2ZZGE..ZZT231	08/1999 - 08/2002	1
90301-69007	2ZZGE..ZZT231	08/2002 - 07/2005	1
16173 - PULLEY, WATER PUMP
16173-88600	2ZZGE..ZZT231	08/1999 - 08/2002	1
16173-88600	2ZZGE..ZZT231	08/2002 - 07/2005	1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-22031	2ZZGE..ZZT231	06/2001 - 08/2002	1
16620-22031	2ZZGE..ZZT231	08/2002 - 12/2004	1
16620-22030	2ZZGE..ZZT231	08/1999 - 06/2001	1
16620-22032	2ZZGE..ZZT231	12/2004 - 07/2005	1
Common parts
90105-12317
90116-08396
90119-06861
90179-08263
91511-C0635
91511-G0628
