ZZT231L-BLFVFA (1999)
Toyota Celica
Production
Aug 1999
-
Jul 2005
Engine
2ZZGE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

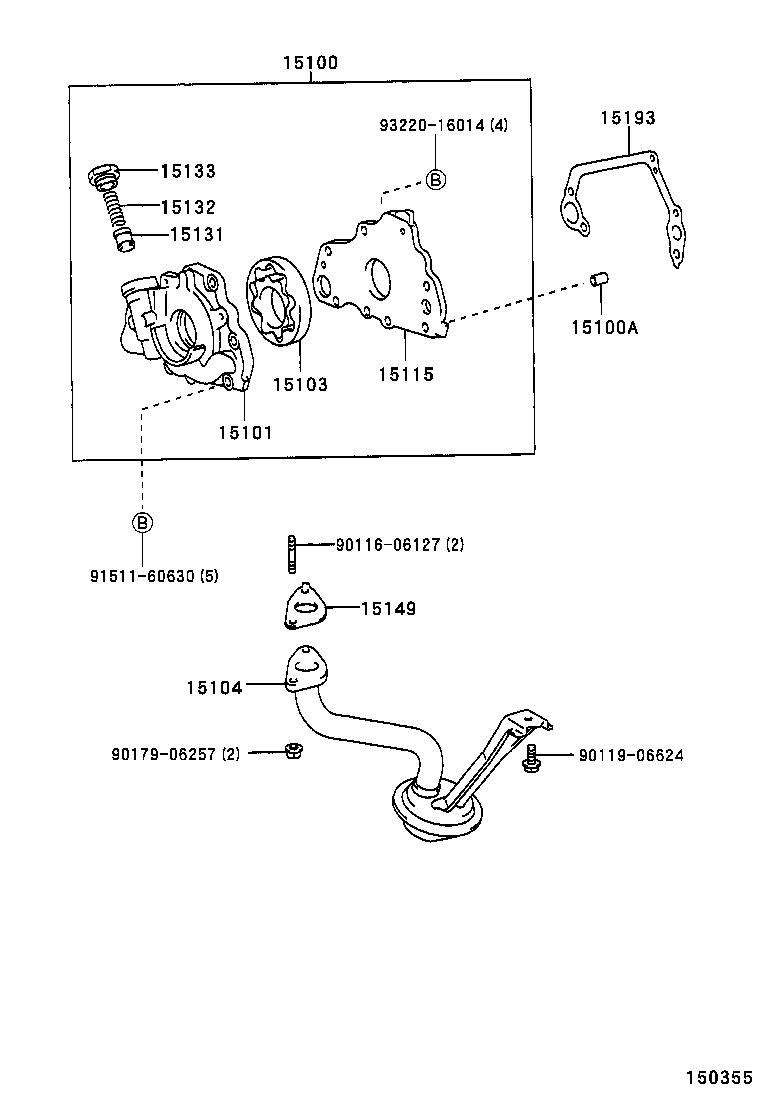

(9908-0208)2ZZGE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-88600 |
2ZZGE..ZZT231 |
1 | ||
| 15100-88600 |
2ZZGE..ZZT231 |
1 | ||
| 15100A - PIN, RING(FOR OIL PUMP SET) | ||||
| 90253-09003 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 90253-09003 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 15101 - BODY SUB-ASSY, OIL PUMP | ||||
| 15111-88600 |
2ZZGE..ZZT231 |
1 | ||
| 15103 - GEAR SET, OIL PUMP | ||||
| 15103-88600 |
2ZZGE..ZZT231 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-88601 |
2ZZGE..ZZT231 |
1 | ||
| 15104-88601 |
2ZZGE..ZZT231 |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15115-88600 |
2ZZGE..ZZT231 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-46040 |
2ZZGE..ZZT231 |
1 | ||
| 15131-46040 |
2ZZGE..ZZT231 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-46020 |
2ZZGE..ZZT231 |
1 | ||
| 15132-46020 |
2ZZGE..ZZT231 |
1 | ||
| 15133 - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15133-17010 |
2ZZGE..ZZT231 |
1 | ||
| 15133-17010 |
2ZZGE..ZZT231 |
1 | ||
| 15149 - GASKET, OIL STRAINER FLANGE | ||||
| 15149-88600 |
2ZZGE..ZZT231 |
1 | ||
| 15149-88600 |
2ZZGE..ZZT231 |
1 | ||
| 15193 - GASKET, OIL PUMP | ||||
| 15193-88600 |
2ZZGE..ZZT231 |
1 | ||
| 15193-88600 |
2ZZGE..ZZT231 |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90119-06624 | ||||
| 90179-06257 | ||||
| 91511-60630 | ||||
| 93220-16014 | ||||

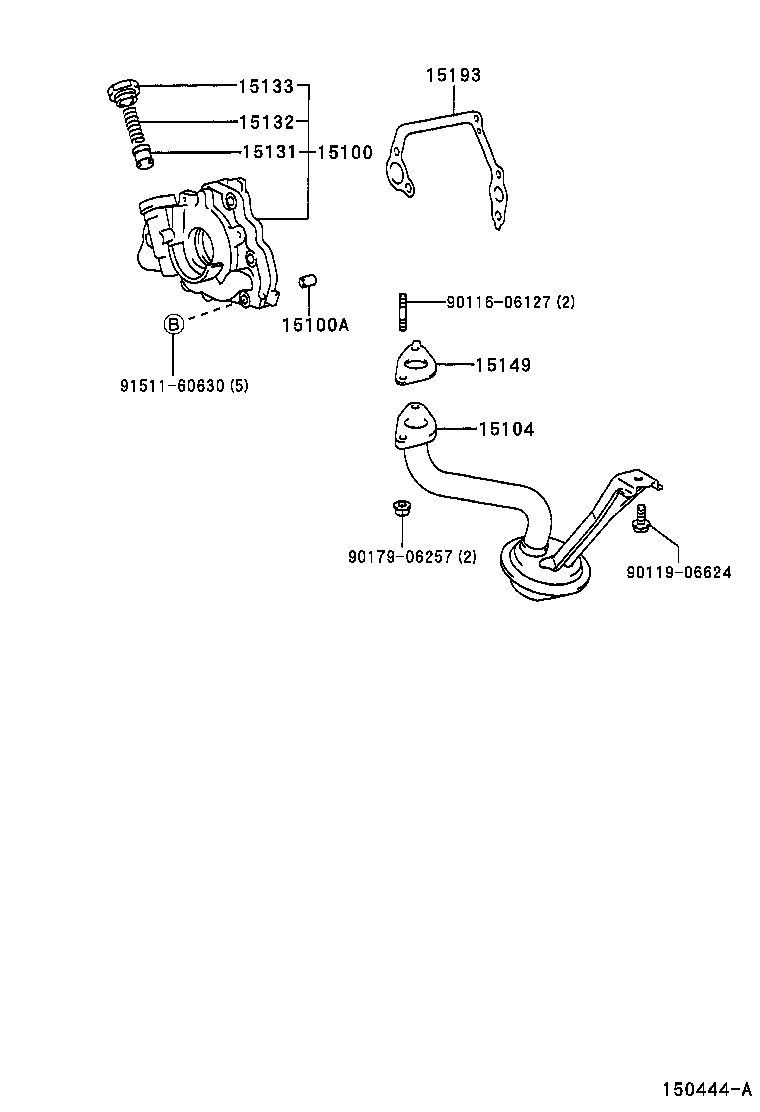

(0208- )2ZZGE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-88600 |
2ZZGE..ZZT231 |
1 | ||
| 15100-88600 |
2ZZGE..ZZT231 |
1 | ||
| 15100A - PIN, RING(FOR OIL PUMP SET) | ||||
| 90253-09003 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 90253-09003 |
1ZZFE,2ZZGE..ZZT23# |
2 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-88601 |
2ZZGE..ZZT231 |
1 | ||
| 15104-88601 |
2ZZGE..ZZT231 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-46040 |
2ZZGE..ZZT231 |
1 | ||
| 15131-46040 |
2ZZGE..ZZT231 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-46020 |
2ZZGE..ZZT231 |
1 | ||
| 15132-46020 |
2ZZGE..ZZT231 |
1 | ||
| 15133 - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15133-17010 |
2ZZGE..ZZT231 |
1 | ||
| 15133-17010 |
2ZZGE..ZZT231 |
1 | ||
| 15149 - GASKET, OIL STRAINER FLANGE | ||||
| 15149-88600 |
2ZZGE..ZZT231 |
1 | ||
| 15149-88600 |
2ZZGE..ZZT231 |
1 | ||
| 15193 - GASKET, OIL PUMP | ||||
| 15193-88600 |
2ZZGE..ZZT231 |
1 | ||
| 15193-88600 |
2ZZGE..ZZT231 |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90119-06624 | ||||
| 90179-06257 | ||||
| 91511-60630 | ||||
