ZZT231L-BLFVFA (1999)
Toyota Celica
(9908-0507)2ZZGE

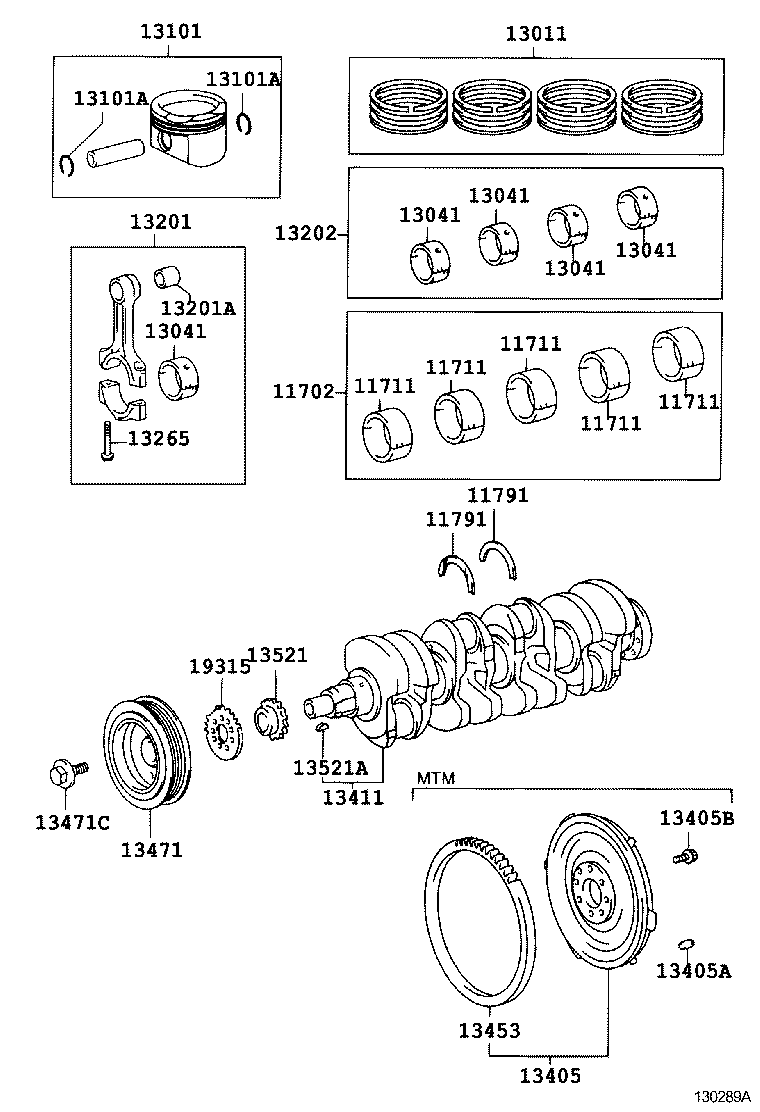

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-88600 |
2ZZGE..ZZT231 U/S 0.25 |
1 | ||
| 11704-88600 |
2ZZGE..ZZT231 U/S 0.25 |
1 | ||
| 11704-22021 |
2ZZGE..ZZT231 U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-8860002 |
2ZZGE..ZZT231 MARK 2,MARK 2 |
5 | ||
| 11701-8860001 |
2ZZGE..ZZT231 MARK 1,MARK 1 |
5 | ||
| 11701-8860004 |
2ZZGE..ZZT231 MARK 4,MARK 4 |
5 | ||
| 11701-8860002 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 2 |
5 | ||
| 11701-8860003 |
2ZZGE..ZZT231 MARK 3,MARK 3 |
5 | ||
| 11701-8860004 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 4 |
5 | ||
| 11701-8860001 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 1 |
5 | ||
| 11701-2202001 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK1 |
5 | ||
| 11701-8860005 |
2ZZGE..ZZT231 MARK 5,MARK 5 |
5 | ||
| 11701-8860003 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 3 |
5 | ||
| 11701-8860005 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 5 |
5 | ||
| 11701-2202005 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK5 |
5 | ||
| 11701-2202004 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK4 |
5 | ||
| 11701-2202002 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK2 |
5 | ||
| 11701-2202003 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-8860002 |
2ZZGE..ZZT231 MARK 2,MARK 2 |
5 | ||
| 11701-8860001 |
2ZZGE..ZZT231 MARK 1,MARK 1 |
5 | ||
| 11701-8860004 |
2ZZGE..ZZT231 MARK 4,MARK 4 |
5 | ||
| 11701-8860002 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 2 |
5 | ||
| 11701-8860003 |
2ZZGE..ZZT231 MARK 3,MARK 3 |
5 | ||
| 11701-8860004 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 4 |
5 | ||
| 11701-8860001 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 1 |
5 | ||
| 11701-2202001 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK1 |
5 | ||
| 11701-8860005 |
2ZZGE..ZZT231 MARK 5,MARK 5 |
5 | ||
| 11701-8860003 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 3 |
5 | ||
| 11701-8860005 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 5 |
5 | ||
| 11701-2202005 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK5 |
5 | ||
| 11701-2202004 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK4 |
5 | ||
| 11701-2202002 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK2 |
5 | ||
| 11701-2202003 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-8860002 |
2ZZGE..ZZT231 MARK 2,MARK 2 |
5 | ||
| 11701-8860001 |
2ZZGE..ZZT231 MARK 1,MARK 1 |
5 | ||
| 11701-8860004 |
2ZZGE..ZZT231 MARK 4,MARK 4 |
5 | ||
| 11701-8860002 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 2 |
5 | ||
| 11701-8860003 |
2ZZGE..ZZT231 MARK 3,MARK 3 |
5 | ||
| 11701-8860004 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 4 |
5 | ||
| 11701-8860001 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 1 |
5 | ||
| 11701-2202001 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK1 |
5 | ||
| 11701-8860005 |
2ZZGE..ZZT231 MARK 5,MARK 5 |
5 | ||
| 11701-8860003 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 3 |
5 | ||
| 11701-8860005 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 5 |
5 | ||
| 11701-2202005 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK5 |
5 | ||
| 11701-2202004 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK4 |
5 | ||
| 11701-2202002 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK2 |
5 | ||
| 11701-2202003 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-8860002 |
2ZZGE..ZZT231 MARK 2,MARK 2 |
5 | ||
| 11701-8860001 |
2ZZGE..ZZT231 MARK 1,MARK 1 |
5 | ||
| 11701-8860004 |
2ZZGE..ZZT231 MARK 4,MARK 4 |
5 | ||
| 11701-8860002 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 2 |
5 | ||
| 11701-8860003 |
2ZZGE..ZZT231 MARK 3,MARK 3 |
5 | ||
| 11701-8860004 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 4 |
5 | ||
| 11701-8860001 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 1 |
5 | ||
| 11701-2202001 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK1 |
5 | ||
| 11701-8860005 |
2ZZGE..ZZT231 MARK 5,MARK 5 |
5 | ||
| 11701-8860003 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 3 |
5 | ||
| 11701-8860005 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 5 |
5 | ||
| 11701-2202005 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK5 |
5 | ||
| 11701-2202004 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK4 |
5 | ||
| 11701-2202002 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK2 |
5 | ||
| 11701-2202003 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-8860002 |
2ZZGE..ZZT231 MARK 2,MARK 2 |
5 | ||
| 11701-8860001 |
2ZZGE..ZZT231 MARK 1,MARK 1 |
5 | ||
| 11701-8860004 |
2ZZGE..ZZT231 MARK 4,MARK 4 |
5 | ||
| 11701-8860002 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 2 |
5 | ||
| 11701-8860003 |
2ZZGE..ZZT231 MARK 3,MARK 3 |
5 | ||
| 11701-8860004 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 4 |
5 | ||
| 11701-8860001 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 1 |
5 | ||
| 11701-2202001 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK1 |
5 | ||
| 11701-8860005 |
2ZZGE..ZZT231 MARK 5,MARK 5 |
5 | ||
| 11701-8860003 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 3 |
5 | ||
| 11701-8860005 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 5 |
5 | ||
| 11701-2202005 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK5 |
5 | ||
| 11701-2202004 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK4 |
5 | ||
| 11701-2202002 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK2 |
5 | ||
| 11701-2202003 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK3 |
5 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-22020 |
1ZZFE,2ZZGE..ZZT23# STD |
2 | ||
| 11791-22020 |
1ZZFE,2ZZGE..ZZT23# STD |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-22020 |
1ZZFE,2ZZGE..ZZT23# STD |
2 | ||
| 11791-22020 |
1ZZFE,2ZZGE..ZZT23# STD |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-88601 |
2ZZGE..ZZT231 STD |
1 | ||
| 13011-88600 |
2ZZGE..ZZT231 STD |
1 | ||
| 13011-88601 |
2ZZGE..ZZT231 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-8860001 |
2ZZGE..ZZT231 MARK 1,MARK 1 |
4 | ||
| 13041-8860002 |
2ZZGE..ZZT231 MARK 2,MARK 2 |
4 | ||
| 13041-8860003 |
2ZZGE..ZZT231 MARK 3,MARK 3 |
4 | ||
| 13041-8860002 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 2 |
4 | ||
| 13041-8860001 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 1 |
4 | ||
| 13041-8860003 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 3 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-8860001 |
2ZZGE..ZZT231 MARK 1,MARK 1 |
4 | ||
| 13041-8860002 |
2ZZGE..ZZT231 MARK 2,MARK 2 |
4 | ||
| 13041-8860003 |
2ZZGE..ZZT231 MARK 3,MARK 3 |
4 | ||
| 13041-8860002 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 2 |
4 | ||
| 13041-8860001 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 1 |
4 | ||
| 13041-8860003 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 3 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-8860001 |
2ZZGE..ZZT231 MARK 1,MARK 1 |
4 | ||
| 13041-8860002 |
2ZZGE..ZZT231 MARK 2,MARK 2 |
4 | ||
| 13041-8860003 |
2ZZGE..ZZT231 MARK 3,MARK 3 |
4 | ||
| 13041-8860002 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 2 |
4 | ||
| 13041-8860001 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 1 |
4 | ||
| 13041-8860003 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 3 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-8860001 |
2ZZGE..ZZT231 MARK 1,MARK 1 |
4 | ||
| 13041-8860002 |
2ZZGE..ZZT231 MARK 2,MARK 2 |
4 | ||
| 13041-8860003 |
2ZZGE..ZZT231 MARK 3,MARK 3 |
4 | ||
| 13041-8860002 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 2 |
4 | ||
| 13041-8860001 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 1 |
4 | ||
| 13041-8860003 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 3 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-8860001 |
2ZZGE..ZZT231 MARK 1,MARK 1 |
4 | ||
| 13041-8860002 |
2ZZGE..ZZT231 MARK 2,MARK 2 |
4 | ||
| 13041-8860003 |
2ZZGE..ZZT231 MARK 3,MARK 3 |
4 | ||
| 13041-8860002 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 2 |
4 | ||
| 13041-8860001 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 1 |
4 | ||
| 13041-8860003 |
2ZZGE..ZZT231 REFER TO REPAIR MANUAL,MARK 3 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-88601 |
2ZZGE..ZZT231 STD |
4 | ||
| 13101-88600 |
2ZZGE..ZZT231 STD |
4 | ||
| 13101-88601 |
2ZZGE..ZZT231 STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-20064 |
1ZZFE,2ZZGE..ZZT23# |
8 | ||
| 90520-20064 |
1ZZFE,2ZZGE..ZZT23# |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-20064 |
1ZZFE,2ZZGE..ZZT23# |
8 | ||
| 90520-20064 |
1ZZFE,2ZZGE..ZZT23# |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-29075 |
2ZZGE..ZZT231 |
4 | ||
| 13201-29075 |
2ZZGE..ZZT231 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73142 |
2ZZGE..ZZT231 |
4 | ||
| 90999-73142 |
2ZZGE..ZZT231 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-88600 |
2ZZGE..ZZT231 U/S 0.25 |
1 | ||
| 13204-88600 |
2ZZGE..ZZT231 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-22030 |
2ZZGE..ZZT231 |
8 | ||
| 13265-22030 |
2ZZGE..ZZT231 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-88600 |
2ZZGE..ZZT231..6F |
1 | ||
| 13405-88600 |
2ZZGE..ZZT231..6F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
2ZZGE..ZZT231..6F L=23,OD=8 |
3 | ||
| 90250-08054 |
2ZZGE..ZZT231..6F L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90910-02103 |
1ZZFE,2ZZGE..ZZT23#..MTM |
8 | ||
| 90910-02103 |
1ZZFE,2ZZGE..ZZT23#..MTM |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-22051 |
2ZZGE..ZZT231 |
1 | ||
| 13401-22051 |
2ZZGE..ZZT231 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-10010 |
2ZZGE..ZZT231..6F |
1 | ||
| 13453-10010 |
2ZZGE..ZZT231..6F |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-88600 |
2ZZGE..ZZT231 |
1 | ||
| 13470-88600 |
2ZZGE..ZZT231 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-12351 |
2ZZGE..ZZT231 |
1 | ||
| 90119-12351 |
2ZZGE..ZZT231 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-22020 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 13521-22020 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-30416 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 95161-30416 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-22020 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 19315-22020 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
