ZZT231L-BLFVFA (1999)
Toyota Celica
Production
Aug 1999
-
Jul 2005
Engine
2ZZGE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9908-0507)2ZZGE..6F

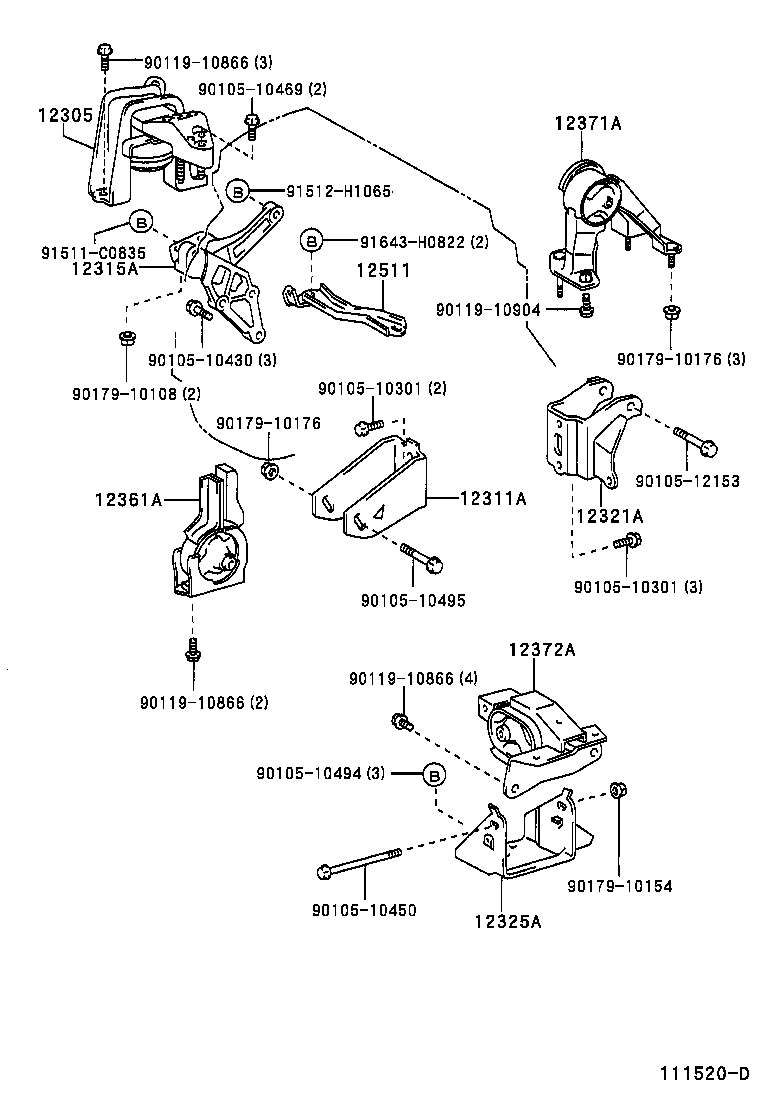

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-22051 |
2ZZGE..ZZT231..6F |
1 | ||
| 12305-22051 |
2ZZGE..ZZT231..6F |
1 | ||
| 12305-22050 |
2ZZGE..ZZT231..6F |
1 | ||
| 12305-22300 |
2ZZGE..ZZT231..6F |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-22020 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 12311-22020 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-22030 |
2ZZGE..ZZT231 |
1 | ||
| 12315-22030 |
2ZZGE..ZZT231 |
1 | ||
| 12315-22070 |
2ZZGE..ZZT231 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-22030 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 12321-22030 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-22010 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 12325-22010 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-22030 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 12361-22030 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-22060 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 12371-22060 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-22020 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 12372-22020 |
1ZZFE,2ZZGE..ZZT23#..MTM |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-88600 |
2ZZGE..ZZT231 |
1 | ||
| 12511-88601 |
2ZZGE..ZZT231 |
1 | ||
| 12511-88601 |
2ZZGE..ZZT231 |
1 | ||
| 12511-88601 |
2ZZGE..ZZT231 |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10430 | ||||
| 90105-10450 | ||||
| 90105-10469 | ||||
| 90105-10494 | ||||
| 90105-10495 | ||||
| 90105-12153 | ||||
| 90119-10866 | ||||
| 90119-10904 | ||||
| 90179-10108 | ||||
| 90179-10154 | ||||
| 90179-10176 | ||||
| 91511-C0835 | ||||
| 91512-H1065 | ||||
| 91643-H0822 | ||||
