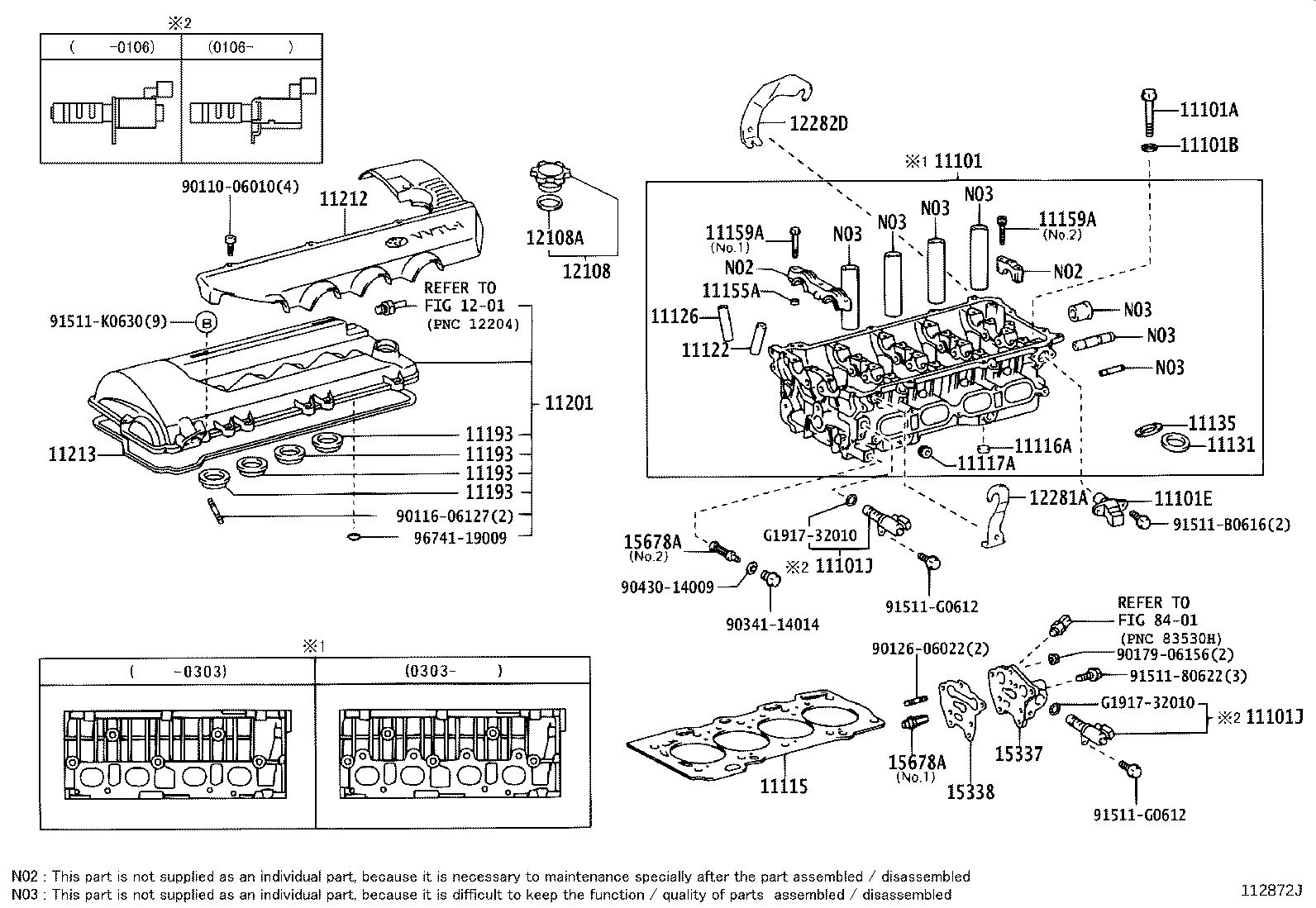

ZZT231L-BLFVFA (1999)
Toyota Celica
(9908-0507)2ZZGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-29446 |
2ZZGE..ZZT231 |
1 | ||
| 11101-29475 |
2ZZGE..ZZT231 |
1 | ||
| 11101-29465 |
2ZZGE..ZZT231 |
1 | ||
| 11101-29465 |
2ZZGE..ZZT231 |
1 | ||
| 11101-29445 |
2ZZGE..ZZT231 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02140 |
2ZZGE..ZZT231 |
10 | ||
| 90910-02140 |
2ZZGE..ZZT231 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
1ZZFE,2ZZGE..ZZT23# |
10 | ||
| 90201-10344 |
1ZZFE,2ZZGE..ZZT23# |
10 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05007 |
2ZZGE..ZZT231 |
1 | ||
| 90919-05007 |
2ZZGE..ZZT231 |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-22040 |
2ZZGE..ZZT231 |
2 | ||
| 15330-22020 |
2ZZGE..ZZT231 |
2 | ||
| 15330-22040 |
2ZZGE..ZZT231 |
2 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-22040 |
2ZZGE..ZZT231 |
2 | ||
| 15330-22020 |
2ZZGE..ZZT231 |
2 | ||
| 15330-22040 |
2ZZGE..ZZT231 |
2 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-22060 |
2ZZGE..ZZT231 |
1 | ||
| 11115-22060 |
2ZZGE..ZZT231 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-41800 |
2ZZGE..ZZT231 |
1 | ||
| 96411-41800 |
2ZZGE..ZZT231 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-27003 |
2ZZGE..ZZT231 |
6 | ||
| 90341-27003 |
2ZZGE..ZZT231 |
6 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-88600 |
2ZZGE..ZZT231 O/S 0.05 |
8 | ||
| 11122-88600 |
2ZZGE..ZZT231 STD |
8 | ||
| 11122-88600 |
2ZZGE..ZZT231 STD |
8 | ||
| 11123-88600 |
2ZZGE..ZZT231 O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-88600 |
2ZZGE..ZZT231 O/S 0.05 |
8 | ||
| 11122-88600 |
2ZZGE..ZZT231 STD |
8 | ||
| 11122-88600 |
2ZZGE..ZZT231 STD |
8 | ||
| 11123-88600 |
2ZZGE..ZZT231 O/S 0.05 |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-88600 |
2ZZGE..ZZT231 STD |
8 | ||
| 11131-88601 |
2ZZGE..ZZT231 STD |
8 | ||
| 11132-88601 |
2ZZGE..ZZT231 O/S 0.03 |
8 | ||
| 11131-88601 |
2ZZGE..ZZT231 STD |
8 | ||
| 11132-88600 |
2ZZGE..ZZT231 O/S 0.03 |
8 | ||
| 11132-88601 |
2ZZGE..ZZT231 O/S 0.03 |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-88601 |
2ZZGE..ZZT231 STD |
8 | ||
| 11136-88601 |
2ZZGE..ZZT231 O/S 0.03 |
8 | ||
| 11135-88600 |
2ZZGE..ZZT231 STD |
8 | ||
| 11136-88601 |
2ZZGE..ZZT231 O/S 0.03 |
8 | ||
| 11135-88601 |
2ZZGE..ZZT231 STD |
8 | ||
| 11136-88600 |
2ZZGE..ZZT231 O/S 0.03 |
8 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90250-05021 |
2ZZGE..ZZT231 |
18 | ||
| 90250-05021 |
2ZZGE..ZZT231 |
18 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07001 |
2ZZGE..ZZT231 NO.1 |
4 | ||
| 90119-07002 |
2ZZGE..ZZT231 NO.2 |
16 | ||
| 90119-07002 |
2ZZGE..ZZT231 NO.2 |
16 | ||
| 90119-07001 |
2ZZGE..ZZT231 NO.1 |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07001 |
2ZZGE..ZZT231 NO.1 |
4 | ||
| 90119-07002 |
2ZZGE..ZZT231 NO.2 |
16 | ||
| 90119-07002 |
2ZZGE..ZZT231 NO.2 |
16 | ||
| 90119-07001 |
2ZZGE..ZZT231 NO.1 |
4 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-15010 |
2ZZGE..ZZT231 |
4 | ||
| 11193-15010 |
2ZZGE..ZZT231 |
4 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-15010 |
2ZZGE..ZZT231 |
4 | ||
| 11193-15010 |
2ZZGE..ZZT231 |
4 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-15010 |
2ZZGE..ZZT231 |
4 | ||
| 11193-15010 |
2ZZGE..ZZT231 |
4 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-15010 |
2ZZGE..ZZT231 |
4 | ||
| 11193-15010 |
2ZZGE..ZZT231 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-88600 |
2ZZGE..ZZT231 |
1 | ||
| 11201-88600 |
2ZZGE..ZZT231 |
1 | ||
| 11212 - COVER, CYLINDER HEAD, NO.2 | ||||
| 11212-22050 |
2ZZGE..ZZT231 |
1 | ||
| 11212-22051 |
2ZZGE..ZZT231 |
1 | ||
| 11212-22051 |
2ZZGE..ZZT231 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-88600 |
2ZZGE..ZZT231 |
1 | ||
| 11213-88600 |
2ZZGE..ZZT231 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-22010 |
2ZZGE..ZZT231 |
1 | ||
| 12180-22010 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 12180-22011 |
2ZZGE..ZZT231 |
1 | ||
| 12180-22011 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 12180-22011 |
2ZZGE..ZZT231 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 90430-37140 |
1ZZFE,2ZZGE..ZZT23# |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-88600 |
2ZZGE..ZZT231 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-88600 |
2ZZGE..ZZT231 |
1 | ||
| 15337 - HOUSING, CAM TIMING CONTROL VALVE | ||||
| 15337-88600 |
2ZZGE..ZZT231 |
1 | ||
| 15337-88600 |
2ZZGE..ZZT231 |
1 | ||
| 15338 - GASKET, CAM TIMING OIL CONTROL VALVE HOUSING | ||||
| 15338-22010 |
2ZZGE..ZZT231 |
1 | ||
| 15338-88600 |
2ZZGE..ZZT231 |
1 | ||
| 15338-88600 |
2ZZGE..ZZT231 |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-21010 |
2ZZGE..ZZT231 NO.2 |
1 | ||
| 15678-46010 |
2ZZGE..ZZT231 NO.1 |
1 | ||
| 15678-46010 |
2ZZGE..ZZT231 NO.1 |
1 | ||
| 15678-21010 |
2ZZGE..ZZT231 NO.2 |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-21010 |
2ZZGE..ZZT231 NO.2 |
1 | ||
| 15678-46010 |
2ZZGE..ZZT231 NO.1 |
1 | ||
| 15678-46010 |
2ZZGE..ZZT231 NO.1 |
1 | ||
| 15678-21010 |
2ZZGE..ZZT231 NO.2 |
1 | ||
| Common parts | ||||
| 90110-06010 | ||||
| 90116-06127 | ||||
| 90126-06022 | ||||
| 90179-06156 | ||||
| 90341-14014 | ||||
| 90430-14009 | ||||
| 91511-80622 | ||||
| 91511-B0616 | ||||
| 91511-G0612 | ||||
| 91511-K0630 | ||||
| 96741-19009 | ||||
| G1917-32010 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 8401 | ||||
