ST185L-BLMVZK (1989)
Toyota Celica

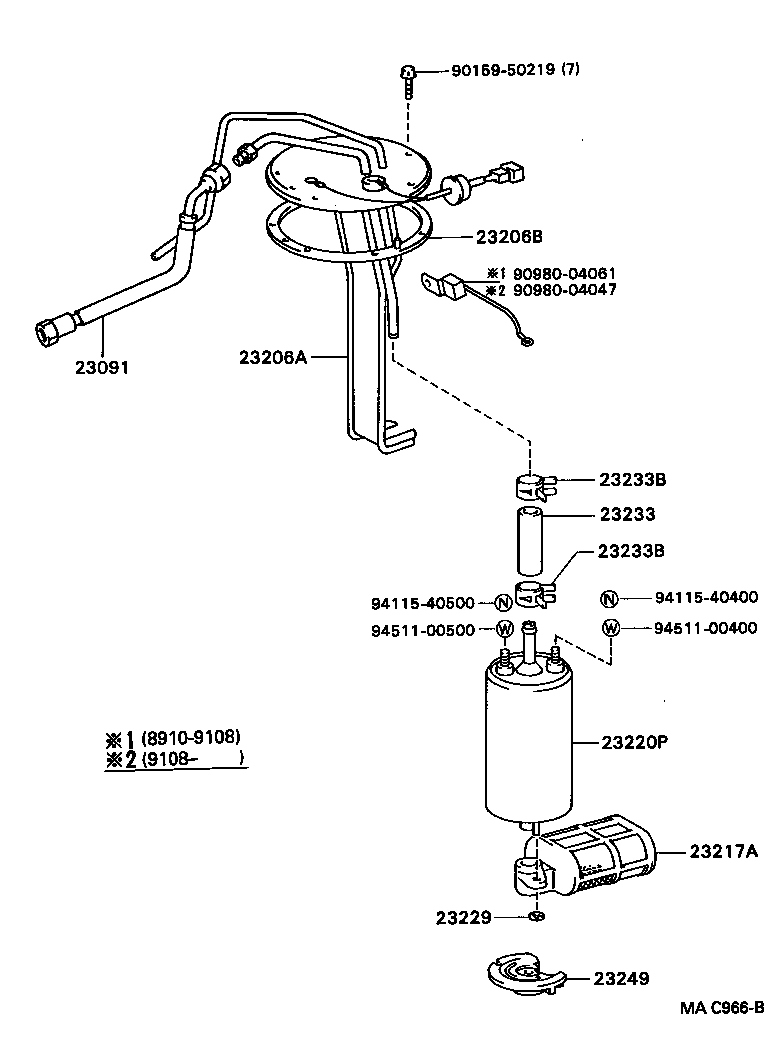

ILLUST NO. 2 OF 2(8910- )3SGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-74110 |
3SGTE..ST185 |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-74540 |
3SGTE..ST185 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-14010 |
3SGTE..ST185 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-16030 |
3SGTE..ST185 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-74010 |
3SGTE..ST185 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
3SGTE,5SFE..ST18# |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-63010 |
3SGTE,5SFE..ST18# |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
3SGTE..ST185 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
3SGTE..ST185 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74150 |
3SGTE,5SFE..ST18# |
1 | ||
| Common parts | ||||
| 90159-50219 | ||||
| 90980-04047 | ||||
| 90980-04061 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||

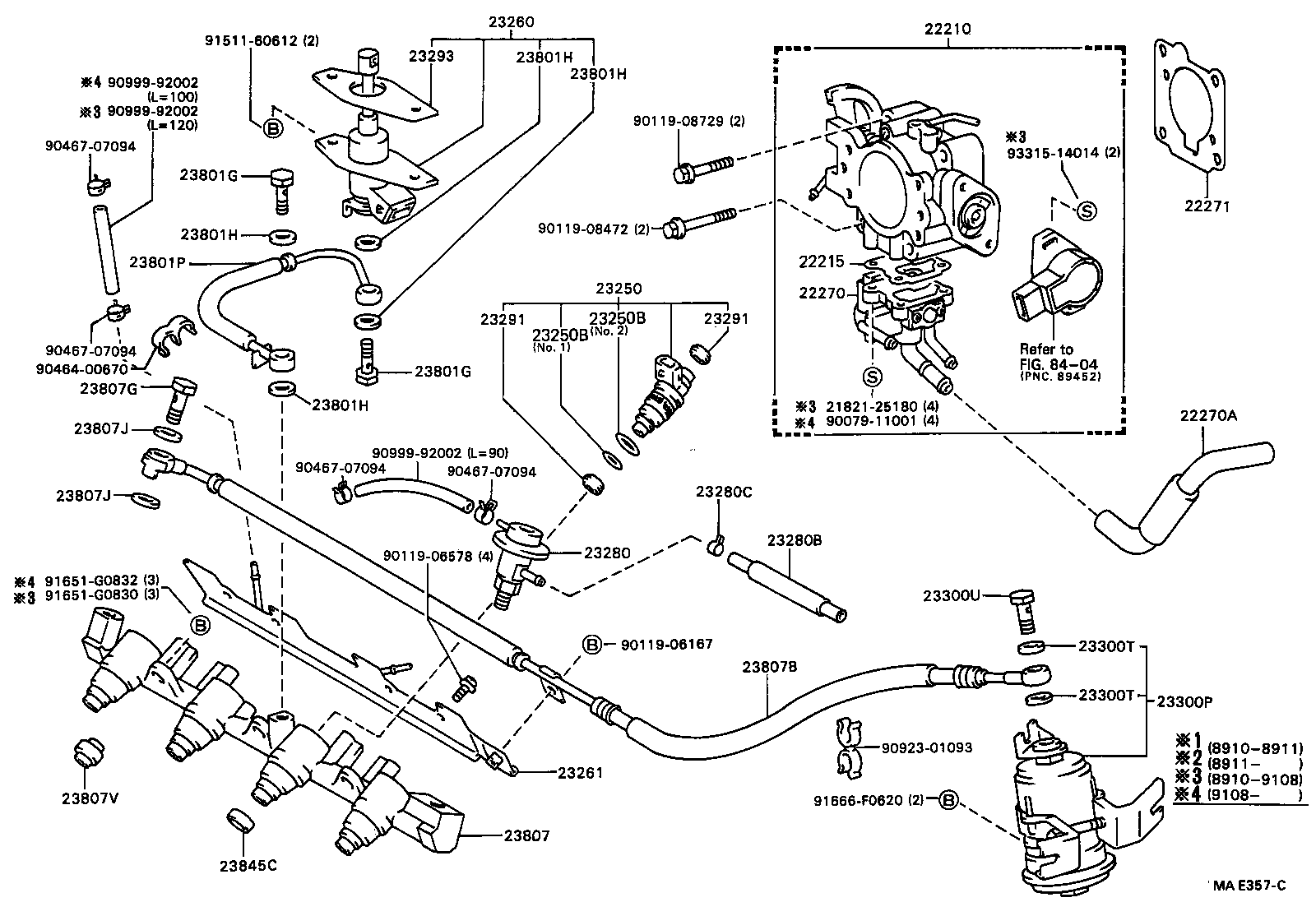

ILLUST NO. 1 OF 2(8910- )3SGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-74670 |
3SGTE..ST185 |
1 | ||
| 22210-74490 |
3SGTE..ST185 |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74380 |
3SGTE..ST185 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-74080 |
3SGTE..ST185 |
1 | ||
| 22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE) | ||||
| 17341-88381 |
3SGTE..ST185 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-88381 |
3SGTE..ST185 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-79015 |
3SGTE..ST185 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-17007 |
3SGTE..ST185 NO.2 |
4 | ||
| 90301-14006 |
3SGTE..ST185 NO.1 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-17007 |
3SGTE..ST185 NO.2 |
4 | ||
| 90301-14006 |
3SGTE..ST185 NO.1 |
4 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-79175 |
3SGTE..ST185 |
1 | ||
| 23261 - COVER, INJECTOR | ||||
| 23261-88380 |
3SGTE..ST185 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-74070 |
3SGTE..ST185 |
1 | ||
| 23280B - HOSE, FUEL PRESSURE REGULATOR RETURN | ||||
| 90447-12119 |
3SGTE..ST185 L=380 |
1 | ||
| 23280C - CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE) | ||||
| 90467-11065 |
3SGTE..ST185 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-75010 |
3SGTE..ST185 |
8 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-75010 |
3SGTE..ST185 |
8 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-88381 |
3SGTE..ST185 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79235 |
3SGTE,5SFE..ST18# |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
3SGTE,5SFE..ST18# |
2 | ||
| 90430-12005 |
3SGTE,5SFE..ST18# |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
3SGTE,5SFE..ST18# |
2 | ||
| 90430-12005 |
3SGTE,5SFE..ST18# |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
3SGTE,5SFE..ST18# |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08003 |
3SGTE..ST185 |
2 | ||
| 90401-08003 |
3SGTE..ST185 |
2 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08003 |
3SGTE..ST185 |
2 | ||
| 90401-08003 |
3SGTE..ST185 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08005 |
3SGTE..ST185 |
4 | ||
| 90430-08005 |
3SGTE..ST185 |
4 | ||
| 90430-08012 |
3SGTE..ST185 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08005 |
3SGTE..ST185 |
4 | ||
| 90430-08005 |
3SGTE..ST185 |
4 | ||
| 90430-08012 |
3SGTE..ST185 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08005 |
3SGTE..ST185 |
4 | ||
| 90430-08005 |
3SGTE..ST185 |
4 | ||
| 90430-08012 |
3SGTE..ST185 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08005 |
3SGTE..ST185 |
4 | ||
| 90430-08005 |
3SGTE..ST185 |
4 | ||
| 90430-08012 |
3SGTE..ST185 |
4 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-88381 |
3SGTE..ST185 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-88382 |
3SGTE..ST185 |
1 | ||
| 23807B - HOSE, FUEL DELIVERY PIPE | ||||
| 90923-01365 |
3SGTE..ST185 |
1 | ||
| 23807G - BOLT, UNION PIPE FUEL DELIVARY INLET | ||||
| 90401-12097 |
3SGTE..ST185 |
1 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-12005 |
3SGTE..ST185 |
2 | ||
| 90430-12026 |
3SGTE..ST185 |
2 | ||
| 90430-12026 |
3SGTE..ST185 |
2 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-12005 |
3SGTE..ST185 |
2 | ||
| 90430-12026 |
3SGTE..ST185 |
2 | ||
| 90430-12026 |
3SGTE..ST185 |
2 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08032 |
3SGTE..ST185 |
3 | ||
| 23845C - INSULATOR, FUEL PIPE | ||||
| 23845-88380 |
3SGTE..ST185 |
4 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 90079-11001 | ||||
| 90119-06167 | ||||
| 90119-06578 | ||||
| 90119-08472 | ||||
| 90119-08729 | ||||
| 90464-00670 | ||||
| 90467-07094 | ||||
| 90923-01093 | ||||
| 90999-92002 | ||||
| 91511-60612 | ||||
| 91651-G0830 | ||||
| 91651-G0832 | ||||
| 91666-F0620 | ||||
| 93315-14014 | ||||
| Linked diagrams | ||||
| 8404 | ||||
