ST185L-BLMVZA (1989)
Toyota Celica
Production
Oct 1989
-
Sep 1993
Engine
3SGTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8910- )ST185

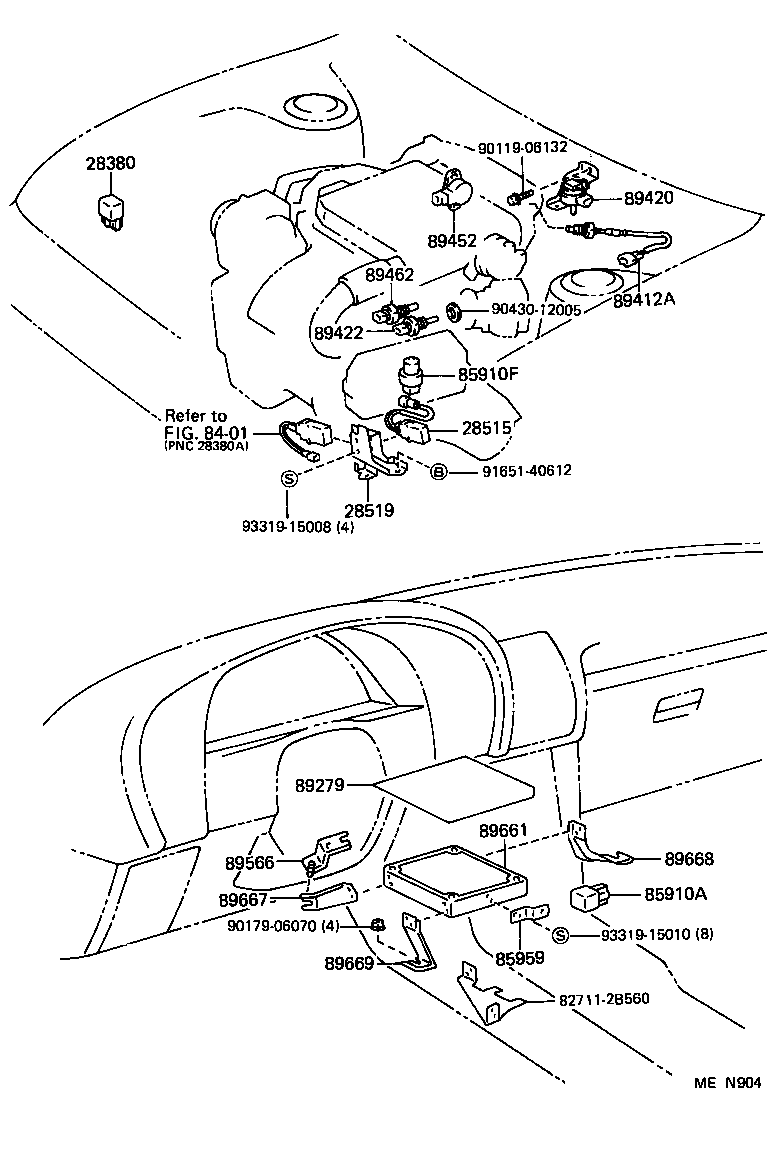

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380 - RELAY ASSY, FUEL PUMP | ||||
| 28380-30010 |
3SGTE..ST185 |
1 | ||
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-74070 |
3SGTE..ST185 |
1 | ||
| 28515-74090 |
3SGTE..ST185 |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-74050 |
3SGTE..ST185 |
1 | ||
| 28519-74070 |
3SGTE..ST185 |
1 | ||
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
ST185 |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02004 |
AT180,ST18# |
1 | ||
| 85959 - HOLDER, RELAY | ||||
| 85959-20150 |
AT180,ST18# |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-12020 |
AT180,ST18# |
1 | ||
| 89412A - SENSOR, E.G.R GAS TEMPERATURE | ||||
| 89412-12010 |
ST184..CVT;AT180,ST185..USA CALIFORNIA SPEC |
1 | ||
| 89412-12010 |
AT180,ST18#..USA CALIFORNIA SPEC |
1 | ||
| 89412-12010 |
AT180,ST185..USA CALIFORNIA SPEC |
1 | ||
| 89420 - SENSOR ASSY, VACUUM | ||||
| 89420-20140 |
ST185 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-20010 |
AT180,ST18# |
1 | ||
| 89422-35010 |
ST18#..CP,LB |
1 | ||
| 89422-35010 |
ST18# |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-12040 |
ST185 |
1 | ||
| 89452-12040 |
ST185;ST184..ATM..GTS |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-20040 |
ST185 |
1 | ||
| 89566 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89566-20010 |
AT180,ST18# |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-20760 |
ST185 |
1 | ||
| 89661-20761 |
ST185 |
1 | ||
| 89661-2B290 |
ST185 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-20210 |
AT180,ST18# |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-20180 |
AT180,ST18# |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-20130 |
AT180,ST18# |
1 | ||
| Common parts | ||||
| 82711-2B560 | ||||
| 90119-06132 | ||||
| 90179-06070 | ||||
| 90430-12005 | ||||
| 91651-40612 | ||||
| 93319-15008 | ||||
| 93319-15010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
