ST185L-BLMVZA (1989)

Toyota Celica

Production Oct 1989 - Sep 1993
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

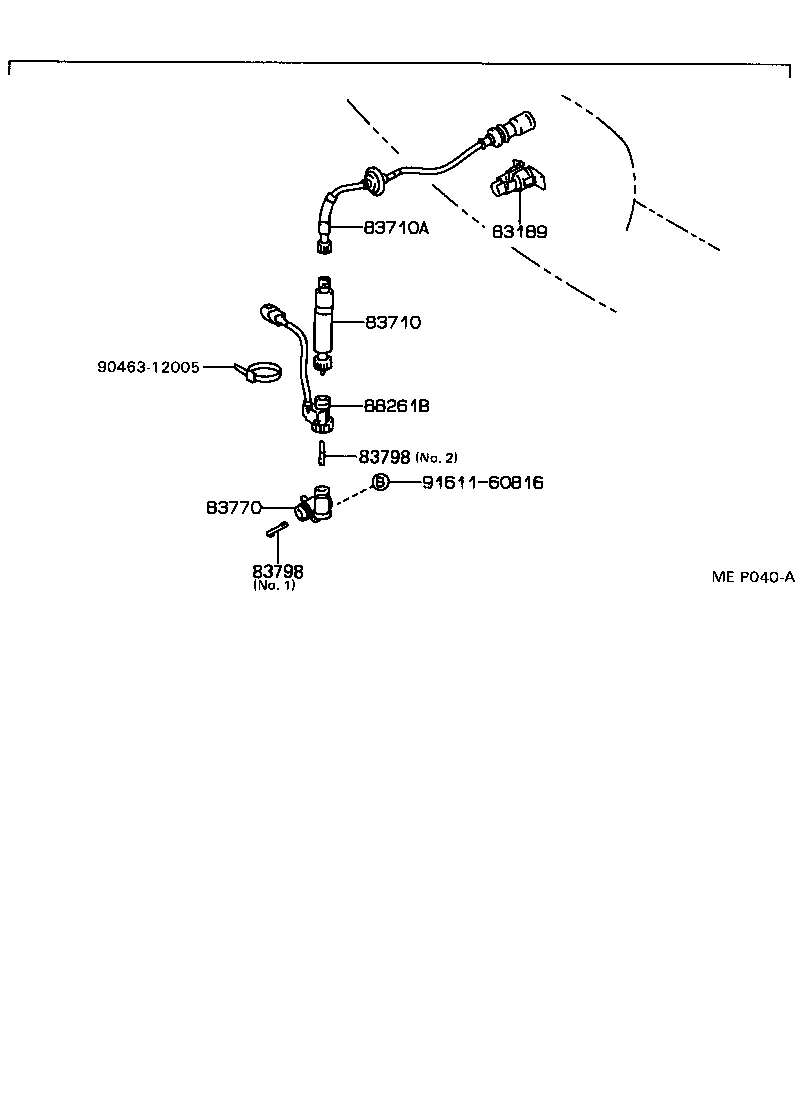

ILLUST NO. 2 OF 3(8910- )ST185

Click highlighted areas on diagram

diagram 83189 83710 83710A 83770 83798 83798 88261B 9046312005 9161160816
Part # Description Qty Price
83189 - BRACKET, METER
83189-20020

AT180,ST18#

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-20880

ST185

 1
83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2
83710-20860

AT180,ST18#

 1
83770 - ADAPTER ASSY, SPEEDOMETER CABLE
83770-17010

ST185

 1
83798 - KEY, SPEEDOMETER CABLE ADAPTER
83798-20020

ST185

NO.2

 1
83798-17010

ST185

NO.1

 1
83798-17010

ST185

NO.1

 1
83798-20020

ST185

NO.2

 1
83798 - KEY, SPEEDOMETER CABLE ADAPTER
83798-20020

ST185

NO.2

 1
83798-17010

ST185

NO.1

 1
83798-17010

ST185

NO.1

 1
83798-20020

ST185

NO.2

 1
88261B - SENSOR, SPEED CRUISE CONTROL
88261-20070

ST18#..MTM

 1
88261-20080

AT180,ST18#..MTM

 1
Common parts
90463-12005
91611-60816
