ST185L-BLMVZA (1989)

Toyota Celica

Production Oct 1989 - Sep 1993
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )3SGTE

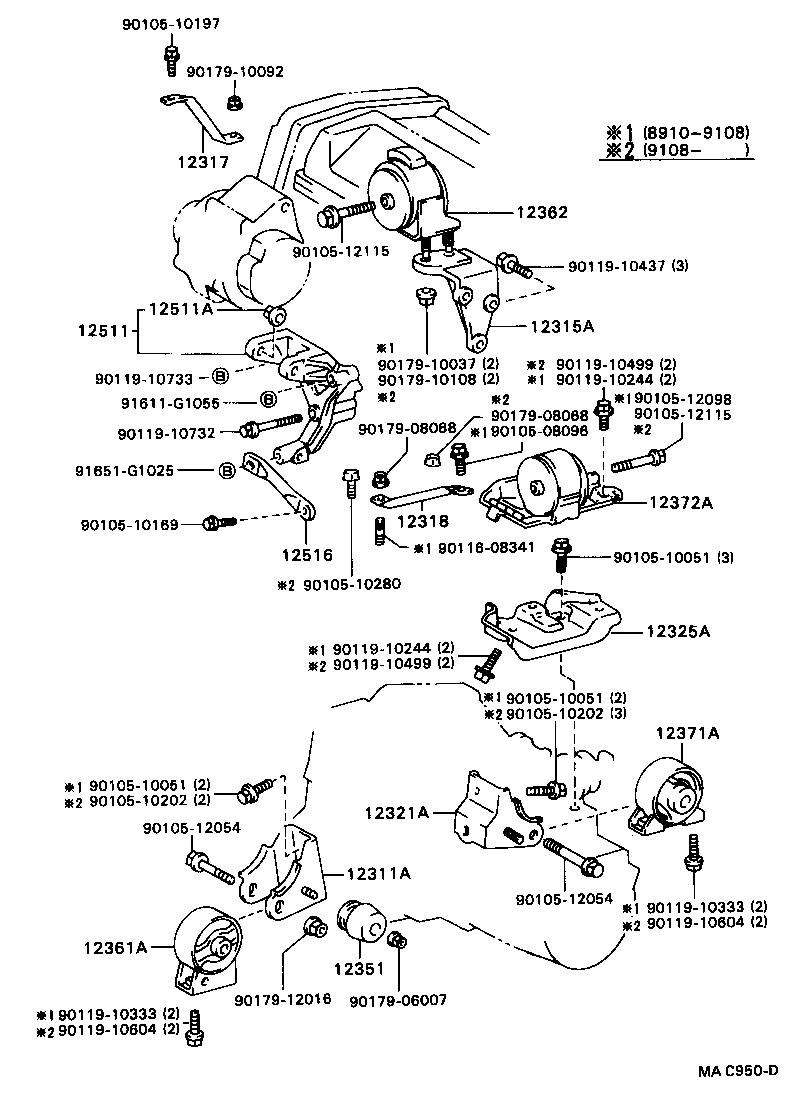

Click highlighted areas on diagram

diagram 12311A 12315A 12317 12318 12321A 12325A 12351 12361A 12362 12371A 12372A 12511 12511A 12516 9010508096 9010510051 9010510051 9010510051 9010510169 9010510197 9010510202 9010510202 9010510280 9010512054 9010512054 9010512098 9010512115 9010512115 9011608341 9011910244 9011910244 9011910333 9011910333 9011910437 9011910499 9011910499 9011910604 9011910604 9011910732 9011910733 9017906007 9017908068 9017908068 9017910037 9017910092 9017910108 9017912016 91611G1055 91651G1025
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-74080

3SGTE,5SFE..ST18#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-74030

3SGTE,5SFE..ST18#

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-74070

3SGTE..ST185

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-74140

3SGTE..ST185

 1
12318-74141

3SGTE..ST185

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-74060

3SGTE..ST185

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-74110

3SGTE..ST185

 1
12351 - DAMPER, ENGINE MOUNTING
12351-74060

3SGTE,5SFE..ST18#

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-74150

3SGTE..ST185

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-74140

3SGTE..ST185

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-74210

3SGTE..ST185

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-74230

3SGTE..ST185

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-88364

3SGTE..ST185

 1
12511-88363

3SGTE..ST185

 1
12511-88365

3SGTE..ST185

 1
12511A - BUSH, ALTERNATOR BRACKET
27351-70010

3SGTE..ST185

 1
12516 - BRACKET, ALTERNATOR, NO.2
12512-88381

3SGTE..ST185

 1
Common parts
90105-08096
90105-10051
90105-10169
90105-10197
90105-10202
90105-10280
90105-12054
90105-12098
90105-12115
90116-08341
90119-10244
90119-10333
90119-10437
90119-10499
90119-10604
90119-10732
90119-10733
90179-06007
90179-08068
90179-10037
90179-10092
90179-10108
90179-12016
91611-G1055
91651-G1025
