Toyota Celica ST184 SPEAKER - JDM Part Detective

ST184L-BLPVKK (1989)

Toyota Celica

Production Sep 1989 - Sep 1993

Engine 5SFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

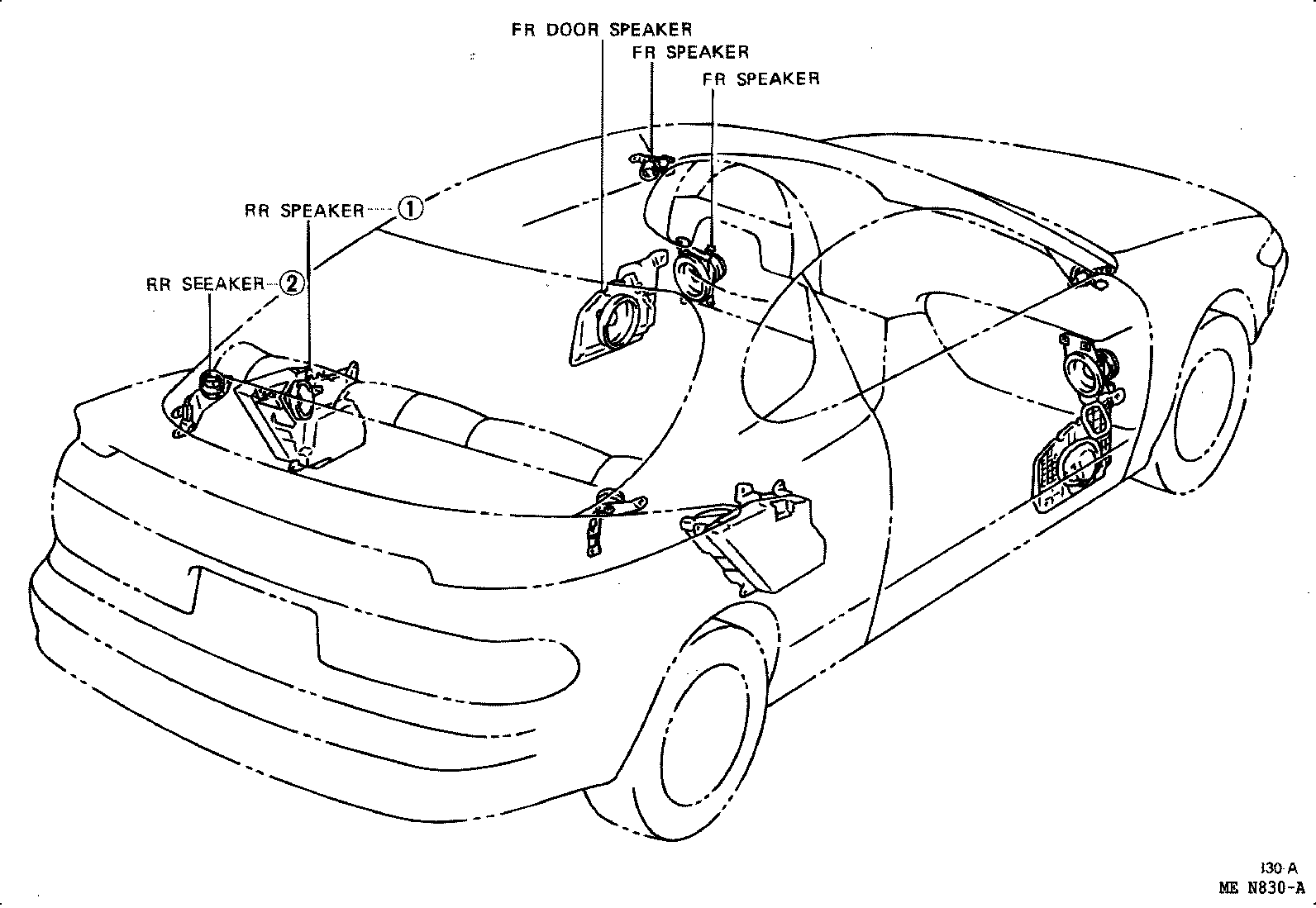

ILLUST NO. 1 OF 4(8909- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

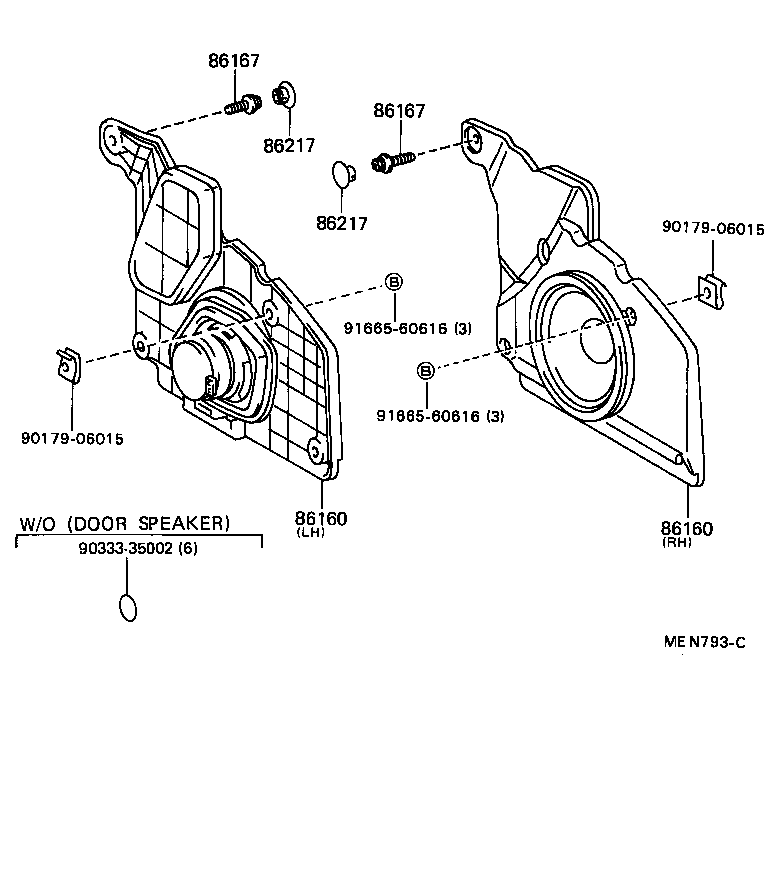

ILLUST NO. 3 OF 4(8909- )

Click highlighted areas on diagram

FR DOOR SPEAKER

Part #	Description	Period	Qty
86160 - SPEAKER ASSY, FRONT NO.1
86160-20480	ST18#..CND INSTRUMENT PANEL,LH	09/1989 - 08/1991	1
86160-20491	ST18#..CP,LB INSTRUMENT PANEL,RH	08/1991 - 09/1991	1
86160-20491	ST18# INSTRUMENT PANEL,RH	09/1991 - 11/1992	1
86160-20490	ST18# INSTRUMENT PANEL,RH	09/1989 - 08/1991	1
86160-20620	ST18# DOOR,LH	09/1989 - 11/1992	1
86160-20610	ST18# DOOR,RH	09/1989 - 11/1992	1
86160-20491	ST18#..WIB;ST184..CVT INSTRUMENT PANEL,RH	11/1992 - 09/1993	1
86160-20481	ST18#..WIB..CND INSTRUMENT PANEL,LH	11/1992 - 09/1993	1
86160-20610	ST18#..WIB;ST184..CVT DOOR,RH	11/1992 - 09/1993	1
86160-20620	ST18#..WIB;ST184..CVT DOOR,LH	11/1992 - 09/1993	1
86160-20481	ST18#..CND INSTRUMENT PANEL,LH	08/1991 - 11/1992	1
86160 - SPEAKER ASSY, FRONT NO.1
86160-20480	ST18#..CND INSTRUMENT PANEL,LH	09/1989 - 08/1991	1
86160-20491	ST18#..CP,LB INSTRUMENT PANEL,RH	08/1991 - 09/1991	1
86160-20491	ST18# INSTRUMENT PANEL,RH	09/1991 - 11/1992	1
86160-20490	ST18# INSTRUMENT PANEL,RH	09/1989 - 08/1991	1
86160-20620	ST18# DOOR,LH	09/1989 - 11/1992	1
86160-20610	ST18# DOOR,RH	09/1989 - 11/1992	1
86160-20491	ST18#..WIB;ST184..CVT INSTRUMENT PANEL,RH	11/1992 - 09/1993	1
86160-20481	ST18#..WIB..CND INSTRUMENT PANEL,LH	11/1992 - 09/1993	1
86160-20610	ST18#..WIB;ST184..CVT DOOR,RH	11/1992 - 09/1993	1
86160-20620	ST18#..WIB;ST184..CVT DOOR,LH	11/1992 - 09/1993	1
86160-20481	ST18#..CND INSTRUMENT PANEL,LH	08/1991 - 11/1992	1
86167 - SCREW, SPEAKER
86167-20010	ST18#..WIB;ST184..CVT	11/1992 - 09/1993	2
86167-20010	ST18#	09/1989 - 11/1992	2
86167 - SCREW, SPEAKER
86167-20010	ST18#..WIB;ST184..CVT	11/1992 - 09/1993	2
86167-20010	ST18#	09/1989 - 11/1992	2
86217 - ORNAMENT, SPEAKER BOX
86217-2005003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 11/1992	2
86217-2005004	ST18#..CP,LB DARK BLUE,TRIM8#	09/1989 - 08/1991	2
86217-2005004	ST184..GTS DARK BLUE,TRIM8#	11/1992 - 09/1993	2
86217-2005002	ST18#..CP,LB RED,TRIM3#	09/1989 - 08/1990	2
86217-2005004	ST184..CP,LB DARK BLUE,TRIM8#	08/1991 - 11/1992	2
86217-2005003	ST18#..WIB;ST184..CVT SHADOW GRAY,TRIM1#	11/1992 - 09/1993	2
86217-2005006	ST18#..CP,LB CHOCOLATE BROWN,TRIM4#	08/1990 - 08/1991	2
86217 - ORNAMENT, SPEAKER BOX
86217-2005003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 11/1992	2
86217-2005004	ST18#..CP,LB DARK BLUE,TRIM8#	09/1989 - 08/1991	2
86217-2005004	ST184..GTS DARK BLUE,TRIM8#	11/1992 - 09/1993	2
86217-2005002	ST18#..CP,LB RED,TRIM3#	09/1989 - 08/1990	2
86217-2005004	ST184..CP,LB DARK BLUE,TRIM8#	08/1991 - 11/1992	2
86217-2005003	ST18#..WIB;ST184..CVT SHADOW GRAY,TRIM1#	11/1992 - 09/1993	2
86217-2005006	ST18#..CP,LB CHOCOLATE BROWN,TRIM4#	08/1990 - 08/1991	2
Common parts
90179-06015
90333-35002
91665-60616

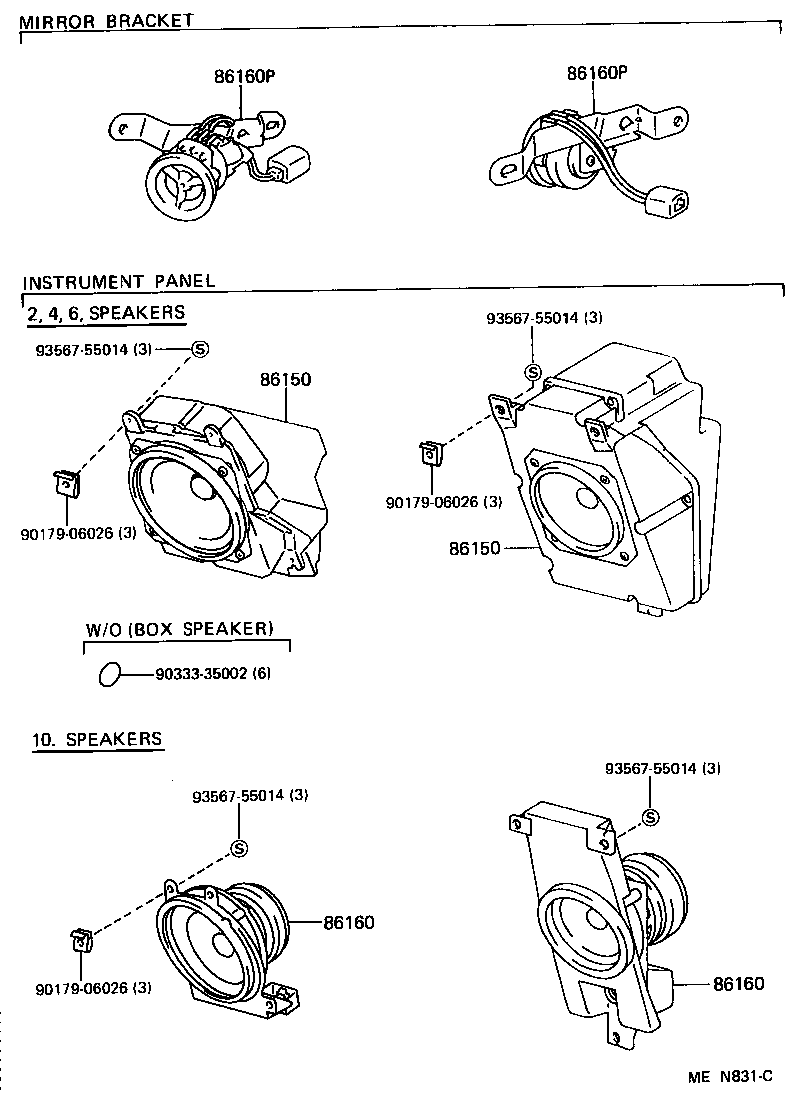

ILLUST NO. 2 OF 4(8909- )

Click highlighted areas on diagram

FR SPEAKER

Part #	Description	Period	Qty
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-20220	AT180,ST18#..CND RH	08/1991 - 09/1993	1
86150-20220	AT180,ST18#..CND LH	09/1989 - 08/1991	1
86150-20230	AT180,ST18#..CND LH	08/1991 - 09/1993	1
86150-20230	AT180,ST18# RH	09/1989 - 08/1991	1
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-20220	AT180,ST18#..CND RH	08/1991 - 09/1993	1
86150-20220	AT180,ST18#..CND LH	09/1989 - 08/1991	1
86150-20230	AT180,ST18#..CND LH	08/1991 - 09/1993	1
86150-20230	AT180,ST18# RH	09/1989 - 08/1991	1
86160 - SPEAKER ASSY, FRONT NO.1
86160-20480	ST18#..CND INSTRUMENT PANEL,LH	09/1989 - 08/1991	1
86160-20491	ST18#..CP,LB INSTRUMENT PANEL,RH	08/1991 - 09/1991	1
86160-20491	ST18# INSTRUMENT PANEL,RH	09/1991 - 11/1992	1
86160-20490	ST18# INSTRUMENT PANEL,RH	09/1989 - 08/1991	1
86160-20620	ST18# DOOR,LH	09/1989 - 11/1992	1
86160-20610	ST18# DOOR,RH	09/1989 - 11/1992	1
86160-20491	ST18#..WIB;ST184..CVT INSTRUMENT PANEL,RH	11/1992 - 09/1993	1
86160-20481	ST18#..WIB..CND INSTRUMENT PANEL,LH	11/1992 - 09/1993	1
86160-20610	ST18#..WIB;ST184..CVT DOOR,RH	11/1992 - 09/1993	1
86160-20620	ST18#..WIB;ST184..CVT DOOR,LH	11/1992 - 09/1993	1
86160-20481	ST18#..CND INSTRUMENT PANEL,LH	08/1991 - 11/1992	1
86160 - SPEAKER ASSY, FRONT NO.1
86160-20491	ST18#..WIB;ST184..CVT INSTRUMENT PANEL,RH	11/1992 - 09/1993	1
86160-20480	ST18#..CND INSTRUMENT PANEL,LH	09/1989 - 08/1991	1
86160-20491	ST18#..CP,LB INSTRUMENT PANEL,RH	08/1991 - 09/1991	1
86160-20491	ST18# INSTRUMENT PANEL,RH	09/1991 - 11/1992	1
86160-20490	ST18# INSTRUMENT PANEL,RH	09/1989 - 08/1991	1
86160-20620	ST18# DOOR,LH	09/1989 - 11/1992	1
86160-20610	ST18# DOOR,RH	09/1989 - 11/1992	1
86160-20481	ST18#..WIB..CND INSTRUMENT PANEL,LH	11/1992 - 09/1993	1
86160-20610	ST18#..WIB;ST184..CVT DOOR,RH	11/1992 - 09/1993	1
86160-20620	ST18#..WIB;ST184..CVT DOOR,LH	11/1992 - 09/1993	1
86160-20481	ST18#..CND INSTRUMENT PANEL,LH	08/1991 - 11/1992	1
86160P - SPEAKER ASSY, FRONT NO.2
86160-20571	AT180,ST18#..CP,LB RH	08/1991 - 09/1991	1
86160-20580	AT180,ST18# LH	09/1989 - 08/1991	1
86160-20581	AT180,ST18# LH	09/1991 - 05/1992	1
86160-20570	AT180,ST18# RH	09/1989 - 08/1991	1
86160-20571	AT180,ST18# RH	09/1991 - 05/1992	1
86160-20581	AT180,ST18#..CP,LB LH	08/1991 - 09/1991	1
86160-20581	ST18# LH	05/1992 - 09/1993	1
86160-20571	ST18# RH	05/1992 - 09/1993	1
86160P - SPEAKER ASSY, FRONT NO.2
86160-20571	AT180,ST18#..CP,LB RH	08/1991 - 09/1991	1
86160-20580	AT180,ST18# LH	09/1989 - 08/1991	1
86160-20581	AT180,ST18# LH	09/1991 - 05/1992	1
86160-20570	AT180,ST18# RH	09/1989 - 08/1991	1
86160-20571	AT180,ST18# RH	09/1991 - 05/1992	1
86160-20581	AT180,ST18#..CP,LB LH	08/1991 - 09/1991	1
86160-20581	ST18# LH	05/1992 - 09/1993	1
86160-20571	ST18# RH	05/1992 - 09/1993	1
Common parts
90179-06026
90333-35002
93567-55014

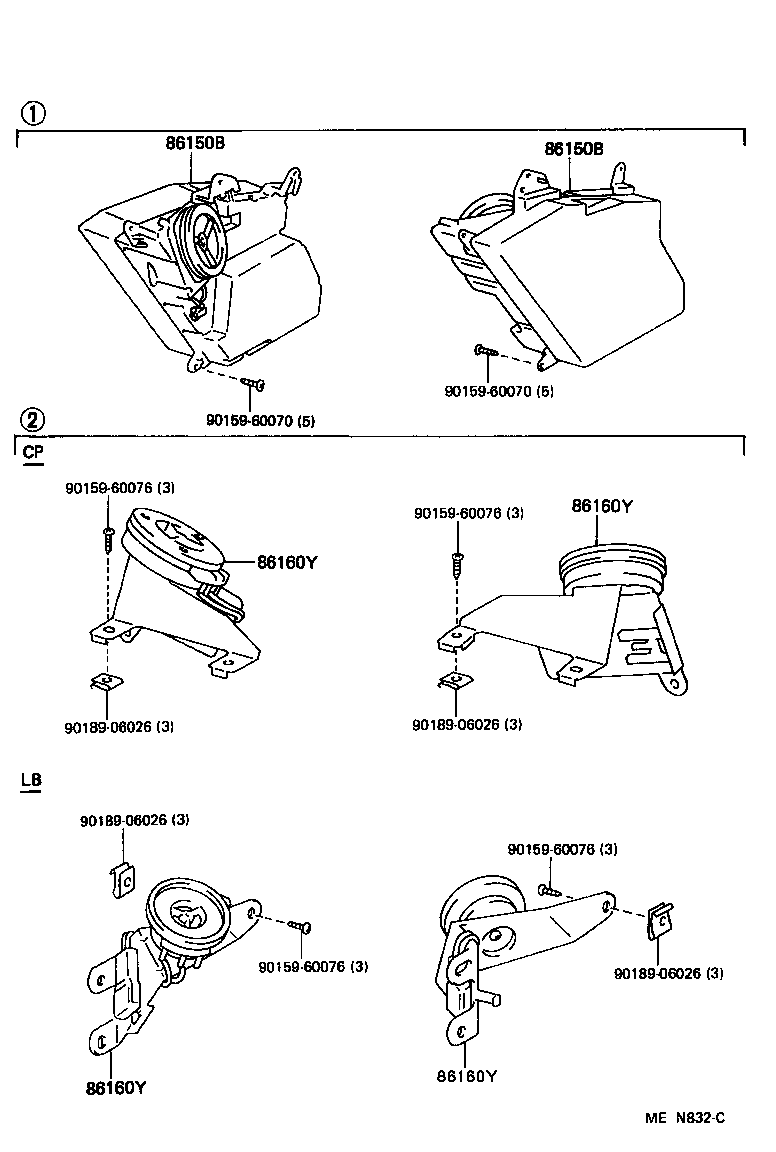

ILLUST NO. 4 OF 4(8909- )CP,LB

Click highlighted areas on diagram

RR SPEAKER

Part #	Description	Period	Qty
86150B - SPEAKER ASSY, W/BOX, NO.2
86150-20260	AT180,ST18#..CP,LB LH	09/1989 - 08/1991	1
86150-20250	AT180,ST18#..CP,LB RH	09/1989 - 08/1991	1
86150-20251	AT180,ST18#..CP,LB RH	08/1991 - 09/1993	1
86150-20261	AT180,ST18#..CP,LB LH	08/1991 - 09/1993	1
86150B - SPEAKER ASSY, W/BOX, NO.2
86150-20260	AT180,ST18#..CP,LB LH	09/1989 - 08/1991	1
86150-20250	AT180,ST18#..CP,LB RH	09/1989 - 08/1991	1
86150-20251	AT180,ST18#..CP,LB RH	08/1991 - 09/1993	1
86150-20261	AT180,ST18#..CP,LB LH	08/1991 - 09/1993	1
86160Y - SPEAKER ASSY, REAR NO.2
86160-20681	ST18#..LB LH	08/1991 - 11/1992	1
86160-20671	ST18#..WIB RH	11/1992 - 09/1993	1
86160-20670	ST18#..LB RH	09/1989 - 08/1991	1
86160-20681	ST18#..WIB LH	11/1992 - 09/1993	1
86160-20680	ST18#..LB LH	09/1989 - 08/1991	1
86160-20671	ST18#..LB RH	08/1991 - 11/1992	1
86160Y - SPEAKER ASSY, REAR NO.2
86160-20681	ST18#..LB LH	08/1991 - 11/1992	1
86160-20671	ST18#..WIB RH	11/1992 - 09/1993	1
86160-20670	ST18#..LB RH	09/1989 - 08/1991	1
86160-20681	ST18#..WIB LH	11/1992 - 09/1993	1
86160-20680	ST18#..LB LH	09/1989 - 08/1991	1
86160-20671	ST18#..LB RH	08/1991 - 11/1992	1
86160Y - SPEAKER ASSY, REAR NO.2
86160-20681	ST18#..LB LH	08/1991 - 11/1992	1
86160-20671	ST18#..WIB RH	11/1992 - 09/1993	1
86160-20670	ST18#..LB RH	09/1989 - 08/1991	1
86160-20681	ST18#..WIB LH	11/1992 - 09/1993	1
86160-20680	ST18#..LB LH	09/1989 - 08/1991	1
86160-20671	ST18#..LB RH	08/1991 - 11/1992	1
86160Y - SPEAKER ASSY, REAR NO.2
86160-20681	ST18#..LB LH	08/1991 - 11/1992	1
86160-20671	ST18#..WIB RH	11/1992 - 09/1993	1
86160-20670	ST18#..LB RH	09/1989 - 08/1991	1
86160-20681	ST18#..WIB LH	11/1992 - 09/1993	1
86160-20680	ST18#..LB LH	09/1989 - 08/1991	1
86160-20671	ST18#..LB RH	08/1991 - 11/1992	1
Common parts
90159-60070
90159-60076
90189-06026
