ST184L-BLPVKK (1989)

Toyota Celica

Production Sep 1989 - Sep 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

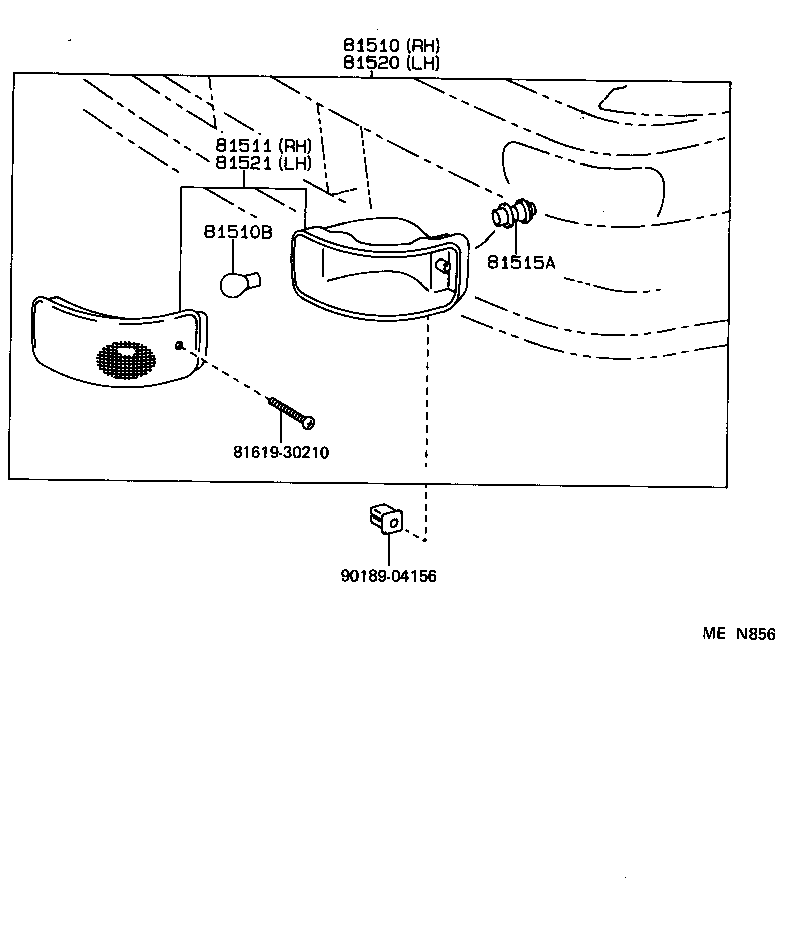

Click highlighted areas on diagram

diagram 81510 81510B 81511 81515A 81520 81521 8161930210 9018904156
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20570

AT180,ST18#

 1
81510-20571

AT180,ST18#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-21270

AT180,ST18#

12V 27/8W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20570

AT180,ST18#

 1
81511-20570

AT180,ST18#

 1
81511-20570

AT180,ST18#..CP,LB

 1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99021

AT180,ST18#

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-20571

AT180,ST18#

 1
81520-20570

AT180,ST18#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-20570

AT180,ST18#

 1
81521-20570

AT180,ST18#..CP,LB

 1
81521-20570

AT180,ST18#

 1
Common parts
81619-30210
90189-04156
