Toyota Celica ST184 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
US
CELICA
ST184L-BLPVKA (1989)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

ST184L-BLPVKA (1989)

Toyota Celica

Production Sep 1989 - Sep 1993

Engine 5SFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9108- )

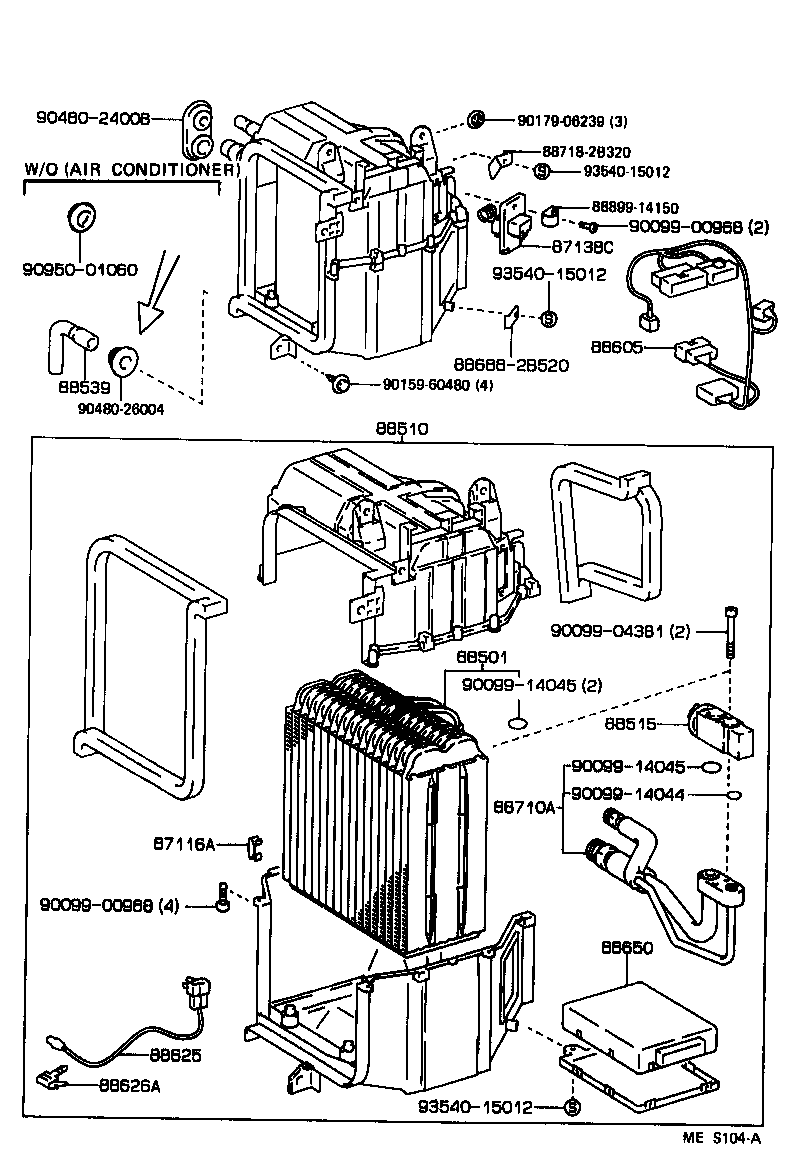

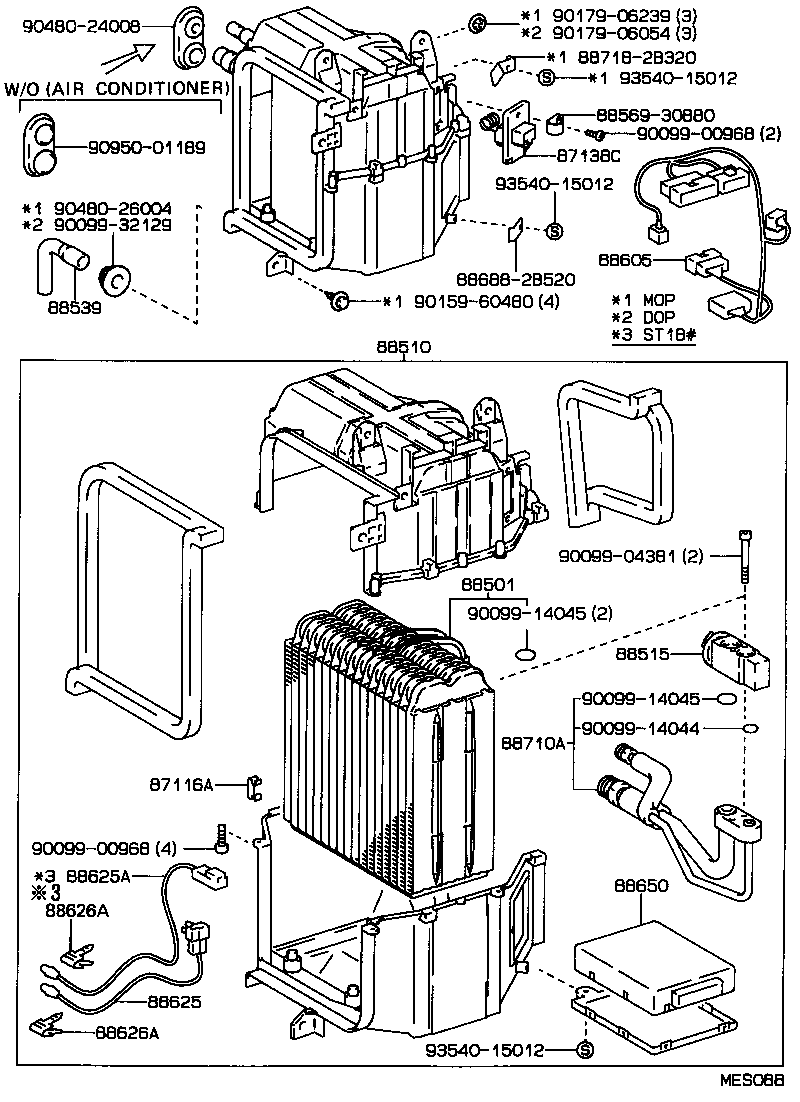

Click highlighted areas on diagram

MANUAL

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	AT180,ST185;ST184..(CVT,LB)..GT	09/1989 - 09/1993	4
87116-14010	ST184..CP;ST184..GTS	04/1990 - 08/1991	4
87116-14010	ST184..GTS	09/1989 - 04/1990	4
87116-14010	ST184..CP;ST184..GTS	08/1991 - 09/1993	4
87138C - RESISTOR, BLOWER
87138-20150	AT180,ST18#	08/1990 - 09/1993	1
87138-20150	ST18#..LB..(GT,TBOAT)..USA W(*66 & MANUAL AIR CONDITIONER)	08/1991 - 09/1991	1
87138-20160	ST184..GT W(AUTOMATIC AIR CONDITIONER)	09/1989 - 08/1991	1
87138-20150	ST18#	09/1989 - 08/1990	1
87138-20150	ST184..GTS..USA W(MANUAL AIR CONDITIONER)	08/1991 - 09/1993	1
87138-20160	ST18# W(AUTOMATIC AIR CONDITIONER)	08/1991 - 09/1993	1
87138-20150	ST18#..(CVT,LB)..(GT,TBOAT)..USA W(*66 & MANUAL AIR CONDITIONER)	09/1991 - 09/1993	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20270	AT180;ST184..LB	09/1989 - 10/1989	1
88501-20270	ST184..CP;ST184..GTS	04/1990 - 08/1991	1
88501-20270	AT180,ST185;ST184..(CVT,LB)..GT	10/1989 - 09/1993	1
88501-20270	ST184..CP;ST184..GTS	08/1991 - 09/1993	1
88501-20270	ST184..GTS	10/1989 - 04/1990	1
88510 - UNIT ASSY, COOLER
88510-2B021	ST184..GT AUTOMATIC	09/1989 - 08/1991	1
88510-2B070	ST184..GTS MANUAL	09/1989 - 04/1990	1
88510-2B070	ST18#..LB..(GT,TBO4W,TBOAT) MANUAL	09/1989 - 04/1990	1
88510-2B080	ST18#..WIB AUTOMATIC	09/1989 - 08/1991	1
88510-2B270	ST18#..CP,LB AUTOMATIC	08/1991 - 09/1991	1
88510-2B070	ST18# MANUAL	04/1990 - 08/1991	1
88510-2B330	ST18# MANUAL	09/1991 - 09/1993	1
88510-2B270	ST18# AUTOMATIC	09/1991 - 09/1993	1
88510-2B330	ST18#..CP,LB MANUAL	08/1991 - 09/1991	1
88515 - VALVE, COOLER EXPANSION
88515-14060	AT180,ST185;ST184..(CVT,LB)..GT	10/1989 - 08/1990	1
88515-14060	ST184..GT	09/1989 - 10/1989	1
88515-14062	AT180,ST185;ST184..(CVT,LB)..GT	08/1990 - 02/1991	1
88515-14061	ST184..CP;ST184..GTS	02/1991 - 08/1991	1
88515-14060	ST184..GTS EVP 2 PACKAGE OR W(MANUAL AIR CONDITIONER) OR W(AUTOMATIC AIR CONDITIONER)	09/1989 - 04/1990	1
88515-14062	ST184..CP;ST184..GTS	08/1990 - 02/1991	1
88515-14061	AT180,ST185;ST184..(CVT,LB)..GT	02/1991 - 08/1991	1
88515-14061	ST184..LB..GT	09/1989 - 10/1989	1
88515-14060	ST184..CP;ST184..GTS	04/1990 - 08/1990	1
88515-14061	ST184..CP;ST184..GTS	08/1991 - 09/1991	1
88515-14061	AT180,ST18# DEALER OPT	09/1991 - 09/1993	1
88515-14062	ST18#	09/1991 - 09/1993	1
88515-14061	ST18#..LB..(GT,TBO4W,TBOAT)	08/1991 - 09/1991	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22110	ST184..CP;ST184..GTS	04/1990 - 08/1991	1
88539-22110	ST184..GTS	10/1989 - 04/1990	1
88539-22110	AT180;ST184..LB	09/1989 - 10/1989	1
88539-22110	ST184..CP;ST184..GTS	08/1991 - 09/1993	1
88539-22110	AT180,ST185;ST184..(CVT,LB)..GT	10/1989 - 09/1993	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2B610	ST184..GTS MANUAL	09/1989 - 10/1989	1
88605-2B590	ST184..LB..GT MANUAL	09/1989 - 12/1989	1
88605-2B610	ST184..GTS MANUAL	10/1989 - 04/1990	1
88605-2B550	ST184..LB..GT MANUAL	12/1989 - 04/1990	1
88605-2D060	ST18#..WIB AUTOMATIC	08/1990 - 08/1991	1
88605-2B610	ST18#..WIB MANUAL	04/1990 - 08/1990	1
88605-2B620	ST18#..WIB AUTOMATIC	09/1989 - 08/1990	1
88605-2B600	ST184..GT AUTOMATIC	09/1989 - 08/1990	1
88605-2D081	ST18# AUTOMATIC	09/1991 - 09/1993	1
88605-2D081	ST18#..CP,LB AUTOMATIC	08/1991 - 09/1991	1
88605-2D091	ST18#..CP,LB MANUAL	08/1991 - 09/1991	1
88605-2D070	ST18#..WIB MANUAL	08/1990 - 08/1991	1
88605-2D080	ST184..GT AUTOMATIC	08/1990 - 08/1991	1
88605-2D090	ST184..GT MANUAL	08/1990 - 08/1991	1
88605-2D091	ST18# MANUAL	09/1991 - 09/1993	1
88605-2B550	ST184..GT MANUAL	04/1990 - 08/1990	1
88625 - THERMISTOR, COOLER, NO.1
88625-20270	ST184..LB MANUAL,MAKER OPT	09/1989 - 10/1989	1
88625-20270	ST18#..LB..(GT,TBO4W,TBOAT) MANUAL,MAKER OPT	10/1989 - 04/1990	1
88625-20270	ST184..GTS MANUAL	10/1989 - 04/1990	1
88625-60050	ST18#..CP,LB DEALER OPT	08/1991 - 09/1991	1
88625-20280	ST18# AUTOMATIC,MAKER OPT	09/1989 - 08/1991	1
88625-60050	ST18# DEALER OPT	09/1991 - 09/1993	1
88625-20270	ST18# MANUAL,MAKER OPT	04/1990 - 09/1993	1
88625-20350	ST18#..CP,LB AUTOMATIC,MAKER OPT	08/1991 - 09/1991	1
88625-20350	ST18# AUTOMATIC,MAKER OPT	09/1991 - 09/1993	1
88625A - THERMISTOR, COOLER NO.2
88625-20340	ST18#..LB..(GT,TBO4W,TBOAT)	08/1991 - 09/1991	1
88625-20340	ST184..CP;ST184..GTS	08/1991 - 09/1993	1
88625-20340	ST18#..(CVT,LB)..(GT,TBO4W,TBOAT)	09/1991 - 09/1993	1
88626A - HOLDER, THERMISTOR
88626-28010	ST184..GTS	09/1989 - 04/1990	1
88626-28010	ST18#..(CVT,LB)..(GT,TBO4W,TBOAT)	09/1991 - 09/1993	2
88626-28010	ST18#..LB..(GT,TBO4W,TBOAT)	08/1991 - 09/1991	2
88626-28010	AT180,ST185;ST184..(CVT,LB)..GT	09/1989 - 08/1991	1
88626-28010	ST184..CP;ST184..GTS	08/1991 - 09/1993	2
88626-28010	ST184..CP;ST184..GTS	04/1990 - 08/1991	1
88626A - HOLDER, THERMISTOR
88626-28010	ST184..GTS	09/1989 - 04/1990	1
88626-28010	ST18#..(CVT,LB)..(GT,TBO4W,TBOAT)	09/1991 - 09/1993	2
88626-28010	ST18#..LB..(GT,TBO4W,TBOAT)	08/1991 - 09/1991	2
88626-28010	AT180,ST185;ST184..(CVT,LB)..GT	09/1989 - 08/1991	1
88626-28010	ST184..CP;ST184..GTS	08/1991 - 09/1993	2
88626-28010	ST184..CP;ST184..GTS	04/1990 - 08/1991	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20660	ST18#	09/1989 - 08/1991	1
88650-2B140	ST18#..CP,LB	08/1991 - 09/1991	1
88650-2B140	ST18#	09/1991 - 09/1993	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20200	AT180,ST185;ST184..(CVT,LB)..GT	09/1989 - 09/1993	1
88710-20200	ST184..CP;ST184..GTS	04/1990 - 08/1991	1
88710-20200	ST184..CP;ST184..GTS	08/1991 - 09/1993	1
88710-20200	ST184..GTS	09/1989 - 04/1990	1
Common parts
88569-30880
88688-2B520
88718-2B320
90099-00968
90099-04381
90099-14044
90099-14045
90099-32129
90159-60480
90179-06054
90179-06239
90480-24008
90480-26004
90950-01189
93540-15012

(9108- )ST18#

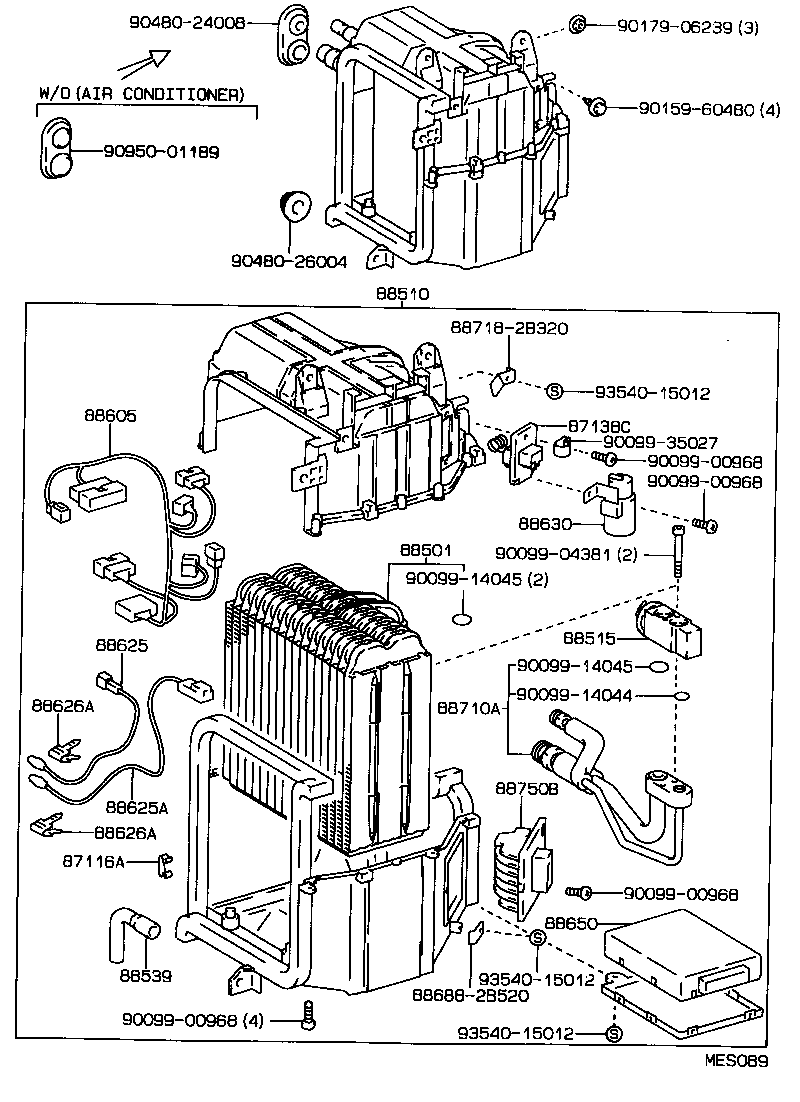

Click highlighted areas on diagram

AUTO

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	AT180,ST185;ST184..(CVT,LB)..GT	09/1989 - 09/1993	4
87116-14010	ST184..CP;ST184..GTS	04/1990 - 08/1991	4
87116-14010	ST184..GTS	09/1989 - 04/1990	4
87116-14010	ST184..CP;ST184..GTS	08/1991 - 09/1993	4
87138C - RESISTOR, BLOWER
87138-20150	AT180,ST18#	08/1990 - 09/1993	1
87138-20150	ST18#..LB..(GT,TBOAT)..USA W(*66 & MANUAL AIR CONDITIONER)	08/1991 - 09/1991	1
87138-20160	ST184..GT W(AUTOMATIC AIR CONDITIONER)	09/1989 - 08/1991	1
87138-20150	ST18#	09/1989 - 08/1990	1
87138-20150	ST184..GTS..USA W(MANUAL AIR CONDITIONER)	08/1991 - 09/1993	1
87138-20160	ST18# W(AUTOMATIC AIR CONDITIONER)	08/1991 - 09/1993	1
87138-20150	ST18#..(CVT,LB)..(GT,TBOAT)..USA W(*66 & MANUAL AIR CONDITIONER)	09/1991 - 09/1993	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20270	AT180;ST184..LB	09/1989 - 10/1989	1
88501-20270	ST184..CP;ST184..GTS	04/1990 - 08/1991	1
88501-20270	AT180,ST185;ST184..(CVT,LB)..GT	10/1989 - 09/1993	1
88501-20270	ST184..CP;ST184..GTS	08/1991 - 09/1993	1
88501-20270	ST184..GTS	10/1989 - 04/1990	1
88510 - UNIT ASSY, COOLER
88510-2B021	ST184..GT AUTOMATIC	09/1989 - 08/1991	1
88510-2B070	ST184..GTS MANUAL	09/1989 - 04/1990	1
88510-2B070	ST18#..LB..(GT,TBO4W,TBOAT) MANUAL	09/1989 - 04/1990	1
88510-2B080	ST18#..WIB AUTOMATIC	09/1989 - 08/1991	1
88510-2B270	ST18#..CP,LB AUTOMATIC	08/1991 - 09/1991	1
88510-2B070	ST18# MANUAL	04/1990 - 08/1991	1
88510-2B330	ST18# MANUAL	09/1991 - 09/1993	1
88510-2B270	ST18# AUTOMATIC	09/1991 - 09/1993	1
88510-2B330	ST18#..CP,LB MANUAL	08/1991 - 09/1991	1
88515 - VALVE, COOLER EXPANSION
88515-14060	AT180,ST185;ST184..(CVT,LB)..GT	10/1989 - 08/1990	1
88515-14060	ST184..GT	09/1989 - 10/1989	1
88515-14062	AT180,ST185;ST184..(CVT,LB)..GT	08/1990 - 02/1991	1
88515-14061	ST184..CP;ST184..GTS	02/1991 - 08/1991	1
88515-14060	ST184..GTS EVP 2 PACKAGE OR W(MANUAL AIR CONDITIONER) OR W(AUTOMATIC AIR CONDITIONER)	09/1989 - 04/1990	1
88515-14062	ST184..CP;ST184..GTS	08/1990 - 02/1991	1
88515-14061	AT180,ST185;ST184..(CVT,LB)..GT	02/1991 - 08/1991	1
88515-14061	ST184..LB..GT	09/1989 - 10/1989	1
88515-14060	ST184..CP;ST184..GTS	04/1990 - 08/1990	1
88515-14061	ST184..CP;ST184..GTS	08/1991 - 09/1991	1
88515-14061	AT180,ST18# DEALER OPT	09/1991 - 09/1993	1
88515-14062	ST18#	09/1991 - 09/1993	1
88515-14061	ST18#..LB..(GT,TBO4W,TBOAT)	08/1991 - 09/1991	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22110	ST184..CP;ST184..GTS	04/1990 - 08/1991	1
88539-22110	ST184..GTS	10/1989 - 04/1990	1
88539-22110	AT180;ST184..LB	09/1989 - 10/1989	1
88539-22110	ST184..CP;ST184..GTS	08/1991 - 09/1993	1
88539-22110	AT180,ST185;ST184..(CVT,LB)..GT	10/1989 - 09/1993	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2B610	ST184..GTS MANUAL	09/1989 - 10/1989	1
88605-2B590	ST184..LB..GT MANUAL	09/1989 - 12/1989	1
88605-2B610	ST184..GTS MANUAL	10/1989 - 04/1990	1
88605-2B550	ST184..LB..GT MANUAL	12/1989 - 04/1990	1
88605-2D060	ST18#..WIB AUTOMATIC	08/1990 - 08/1991	1
88605-2B610	ST18#..WIB MANUAL	04/1990 - 08/1990	1
88605-2B620	ST18#..WIB AUTOMATIC	09/1989 - 08/1990	1
88605-2B600	ST184..GT AUTOMATIC	09/1989 - 08/1990	1
88605-2D081	ST18# AUTOMATIC	09/1991 - 09/1993	1
88605-2D081	ST18#..CP,LB AUTOMATIC	08/1991 - 09/1991	1
88605-2D091	ST18#..CP,LB MANUAL	08/1991 - 09/1991	1
88605-2D070	ST18#..WIB MANUAL	08/1990 - 08/1991	1
88605-2D080	ST184..GT AUTOMATIC	08/1990 - 08/1991	1
88605-2D090	ST184..GT MANUAL	08/1990 - 08/1991	1
88605-2D091	ST18# MANUAL	09/1991 - 09/1993	1
88605-2B550	ST184..GT MANUAL	04/1990 - 08/1990	1
88625 - THERMISTOR, COOLER, NO.1
88625-20270	ST184..LB MANUAL,MAKER OPT	09/1989 - 10/1989	1
88625-20270	ST18#..LB..(GT,TBO4W,TBOAT) MANUAL,MAKER OPT	10/1989 - 04/1990	1
88625-20270	ST184..GTS MANUAL	10/1989 - 04/1990	1
88625-60050	ST18#..CP,LB DEALER OPT	08/1991 - 09/1991	1
88625-20280	ST18# AUTOMATIC,MAKER OPT	09/1989 - 08/1991	1
88625-60050	ST18# DEALER OPT	09/1991 - 09/1993	1
88625-20270	ST18# MANUAL,MAKER OPT	04/1990 - 09/1993	1
88625-20350	ST18#..CP,LB AUTOMATIC,MAKER OPT	08/1991 - 09/1991	1
88625-20350	ST18# AUTOMATIC,MAKER OPT	09/1991 - 09/1993	1
88625A - THERMISTOR, COOLER NO.2
88625-20340	ST18#..LB..(GT,TBO4W,TBOAT)	08/1991 - 09/1991	1
88625-20340	ST184..CP;ST184..GTS	08/1991 - 09/1993	1
88625-20340	ST18#..(CVT,LB)..(GT,TBO4W,TBOAT)	09/1991 - 09/1993	1
88626A - HOLDER, THERMISTOR
88626-28010	ST184..GTS	09/1989 - 04/1990	1
88626-28010	ST18#..(CVT,LB)..(GT,TBO4W,TBOAT)	09/1991 - 09/1993	2
88626-28010	ST18#..LB..(GT,TBO4W,TBOAT)	08/1991 - 09/1991	2
88626-28010	AT180,ST185;ST184..(CVT,LB)..GT	09/1989 - 08/1991	1
88626-28010	ST184..CP;ST184..GTS	08/1991 - 09/1993	2
88626-28010	ST184..CP;ST184..GTS	04/1990 - 08/1991	1
88626A - HOLDER, THERMISTOR
88626-28010	ST184..GTS	09/1989 - 04/1990	1
88626-28010	ST18#..(CVT,LB)..(GT,TBO4W,TBOAT)	09/1991 - 09/1993	2
88626-28010	ST18#..LB..(GT,TBO4W,TBOAT)	08/1991 - 09/1991	2
88626-28010	AT180,ST185;ST184..(CVT,LB)..GT	09/1989 - 08/1991	1
88626-28010	ST184..CP;ST184..GTS	08/1991 - 09/1993	2
88626-28010	ST184..CP;ST184..GTS	04/1990 - 08/1991	1
88630 - RELAY ASSY, COOLER
88630-20240	ST184..GT	09/1989 - 08/1991	1
88630-20240	ST18#	08/1991 - 09/1993	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20660	ST18#	09/1989 - 08/1991	1
88650-2B140	ST18#..CP,LB	08/1991 - 09/1991	1
88650-2B140	ST18#	09/1991 - 09/1993	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20200	AT180,ST185;ST184..(CVT,LB)..GT	09/1989 - 09/1993	1
88710-20200	ST184..CP;ST184..GTS	04/1990 - 08/1991	1
88710-20200	ST184..CP;ST184..GTS	08/1991 - 09/1993	1
88710-20200	ST184..GTS	09/1989 - 04/1990	1
88750B - TRANSISTOR ASSY, BLOWER RESISTOR
88750-20010	ST18#	09/1989 - 09/1993	1
Common parts
88688-2B520
88718-2B320
90099-00968
90099-04381
90099-14044
90099-14045
90099-35027
90159-60480
90179-06239
90480-24008
90480-26004
90950-01189
93540-15012

(8909-9108)ST18#

Click highlighted areas on diagram

ST184..NOB=MANUAL

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	AT180,ST185;ST184..(CVT,LB)..GT	09/1989 - 09/1993	4
87116-14010	ST184..CP;ST184..GTS	04/1990 - 08/1991	4
87116-14010	ST184..GTS	09/1989 - 04/1990	4
87116-14010	ST184..CP;ST184..GTS	08/1991 - 09/1993	4
87138C - RESISTOR, BLOWER
87138-20150	AT180,ST18#	08/1990 - 09/1993	1
87138-20150	ST18#..LB..(GT,TBOAT)..USA W(*66 & MANUAL AIR CONDITIONER)	08/1991 - 09/1991	1
87138-20160	ST184..GT W(AUTOMATIC AIR CONDITIONER)	09/1989 - 08/1991	1
87138-20150	ST18#	09/1989 - 08/1990	1
87138-20150	ST184..GTS..USA W(MANUAL AIR CONDITIONER)	08/1991 - 09/1993	1
87138-20160	ST18# W(AUTOMATIC AIR CONDITIONER)	08/1991 - 09/1993	1
87138-20150	ST18#..(CVT,LB)..(GT,TBOAT)..USA W(*66 & MANUAL AIR CONDITIONER)	09/1991 - 09/1993	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20270	AT180;ST184..LB	09/1989 - 10/1989	1
88501-20270	ST184..CP;ST184..GTS	04/1990 - 08/1991	1
88501-20270	AT180,ST185;ST184..(CVT,LB)..GT	10/1989 - 09/1993	1
88501-20270	ST184..CP;ST184..GTS	08/1991 - 09/1993	1
88501-20270	ST184..GTS	10/1989 - 04/1990	1
88510 - UNIT ASSY, COOLER
88510-2B021	ST184..GT AUTOMATIC	09/1989 - 08/1991	1
88510-2B070	ST184..GTS MANUAL	09/1989 - 04/1990	1
88510-2B070	ST18#..LB..(GT,TBO4W,TBOAT) MANUAL	09/1989 - 04/1990	1
88510-2B080	ST18#..WIB AUTOMATIC	09/1989 - 08/1991	1
88510-2B270	ST18#..CP,LB AUTOMATIC	08/1991 - 09/1991	1
88510-2B070	ST18# MANUAL	04/1990 - 08/1991	1
88510-2B330	ST18# MANUAL	09/1991 - 09/1993	1
88510-2B270	ST18# AUTOMATIC	09/1991 - 09/1993	1
88510-2B330	ST18#..CP,LB MANUAL	08/1991 - 09/1991	1
88515 - VALVE, COOLER EXPANSION
88515-14060	AT180,ST185;ST184..(CVT,LB)..GT	10/1989 - 08/1990	1
88515-14060	ST184..GT	09/1989 - 10/1989	1
88515-14062	AT180,ST185;ST184..(CVT,LB)..GT	08/1990 - 02/1991	1
88515-14061	ST184..CP;ST184..GTS	02/1991 - 08/1991	1
88515-14060	ST184..GTS EVP 2 PACKAGE OR W(MANUAL AIR CONDITIONER) OR W(AUTOMATIC AIR CONDITIONER)	09/1989 - 04/1990	1
88515-14062	ST184..CP;ST184..GTS	08/1990 - 02/1991	1
88515-14061	AT180,ST185;ST184..(CVT,LB)..GT	02/1991 - 08/1991	1
88515-14061	ST184..LB..GT	09/1989 - 10/1989	1
88515-14060	ST184..CP;ST184..GTS	04/1990 - 08/1990	1
88515-14061	ST184..CP;ST184..GTS	08/1991 - 09/1991	1
88515-14061	AT180,ST18# DEALER OPT	09/1991 - 09/1993	1
88515-14062	ST18#	09/1991 - 09/1993	1
88515-14061	ST18#..LB..(GT,TBO4W,TBOAT)	08/1991 - 09/1991	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22110	ST184..CP;ST184..GTS	04/1990 - 08/1991	1
88539-22110	ST184..GTS	10/1989 - 04/1990	1
88539-22110	AT180;ST184..LB	09/1989 - 10/1989	1
88539-22110	ST184..CP;ST184..GTS	08/1991 - 09/1993	1
88539-22110	AT180,ST185;ST184..(CVT,LB)..GT	10/1989 - 09/1993	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2B610	ST184..GTS MANUAL	09/1989 - 10/1989	1
88605-2B590	ST184..LB..GT MANUAL	09/1989 - 12/1989	1
88605-2B610	ST184..GTS MANUAL	10/1989 - 04/1990	1
88605-2B550	ST184..LB..GT MANUAL	12/1989 - 04/1990	1
88605-2D060	ST18#..WIB AUTOMATIC	08/1990 - 08/1991	1
88605-2B610	ST18#..WIB MANUAL	04/1990 - 08/1990	1
88605-2B620	ST18#..WIB AUTOMATIC	09/1989 - 08/1990	1
88605-2B600	ST184..GT AUTOMATIC	09/1989 - 08/1990	1
88605-2D081	ST18# AUTOMATIC	09/1991 - 09/1993	1
88605-2D081	ST18#..CP,LB AUTOMATIC	08/1991 - 09/1991	1
88605-2D091	ST18#..CP,LB MANUAL	08/1991 - 09/1991	1
88605-2D070	ST18#..WIB MANUAL	08/1990 - 08/1991	1
88605-2D080	ST184..GT AUTOMATIC	08/1990 - 08/1991	1
88605-2D090	ST184..GT MANUAL	08/1990 - 08/1991	1
88605-2D091	ST18# MANUAL	09/1991 - 09/1993	1
88605-2B550	ST184..GT MANUAL	04/1990 - 08/1990	1
88625 - THERMISTOR, COOLER, NO.1
88625-20270	ST184..LB MANUAL,MAKER OPT	09/1989 - 10/1989	1
88625-20270	ST18#..LB..(GT,TBO4W,TBOAT) MANUAL,MAKER OPT	10/1989 - 04/1990	1
88625-20270	ST184..GTS MANUAL	10/1989 - 04/1990	1
88625-60050	ST18#..CP,LB DEALER OPT	08/1991 - 09/1991	1
88625-20280	ST18# AUTOMATIC,MAKER OPT	09/1989 - 08/1991	1
88625-60050	ST18# DEALER OPT	09/1991 - 09/1993	1
88625-20270	ST18# MANUAL,MAKER OPT	04/1990 - 09/1993	1
88625-20350	ST18#..CP,LB AUTOMATIC,MAKER OPT	08/1991 - 09/1991	1
88625-20350	ST18# AUTOMATIC,MAKER OPT	09/1991 - 09/1993	1
88626A - HOLDER, THERMISTOR
88626-28010	ST184..GTS	09/1989 - 04/1990	1
88626-28010	ST18#..(CVT,LB)..(GT,TBO4W,TBOAT)	09/1991 - 09/1993	2
88626-28010	ST18#..LB..(GT,TBO4W,TBOAT)	08/1991 - 09/1991	2
88626-28010	AT180,ST185;ST184..(CVT,LB)..GT	09/1989 - 08/1991	1
88626-28010	ST184..CP;ST184..GTS	08/1991 - 09/1993	2
88626-28010	ST184..CP;ST184..GTS	04/1990 - 08/1991	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20660	ST18#	09/1989 - 08/1991	1
88650-2B140	ST18#..CP,LB	08/1991 - 09/1991	1
88650-2B140	ST18#	09/1991 - 09/1993	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20200	AT180,ST185;ST184..(CVT,LB)..GT	09/1989 - 09/1993	1
88710-20200	ST184..CP;ST184..GTS	04/1990 - 08/1991	1
88710-20200	ST184..CP;ST184..GTS	08/1991 - 09/1993	1
88710-20200	ST184..GTS	09/1989 - 04/1990	1
Common parts
88688-2B520
88718-2B320
88899-14150
90099-00968
90099-04381
90099-14044
90099-14045
90159-60480
90179-06239
90480-24008
90480-26004
90950-01060
93540-15012

ST184L-BLPVKA (1989)

(9108- )

(9108- )ST18#

(8909-9108)ST18#

Part Price Details
