ST184L-BLPVKA (1989)

Toyota Celica

Production Sep 1989 - Sep 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

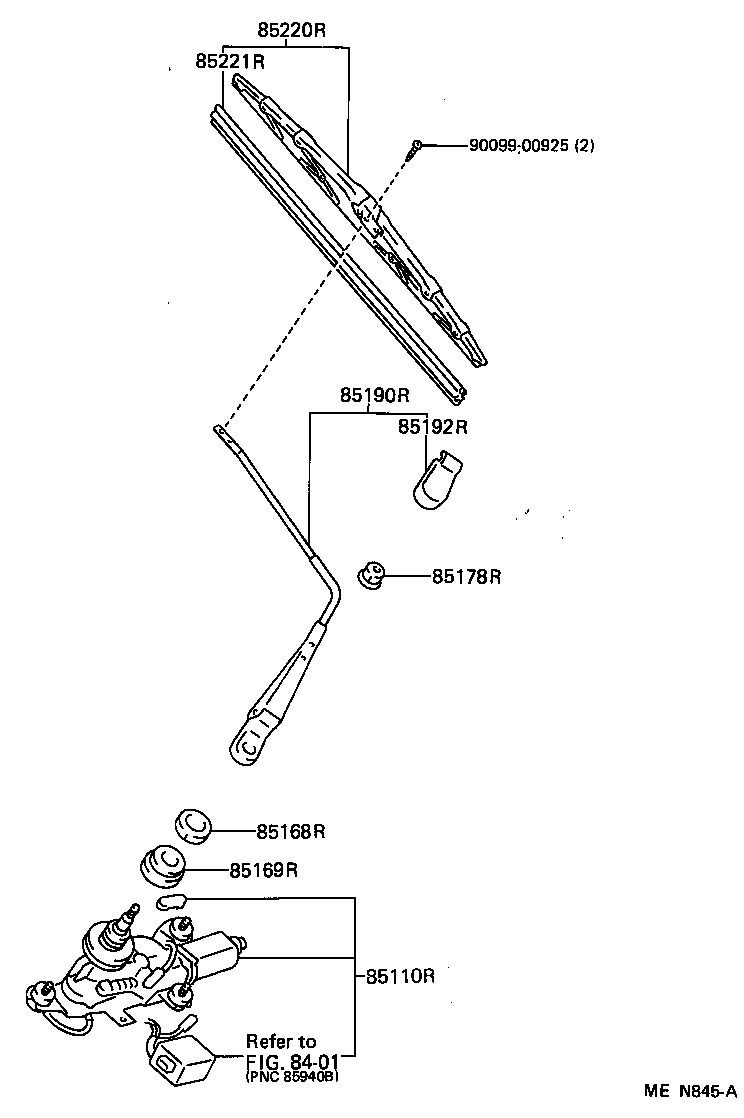

(8910- )LB..GT

Click highlighted areas on diagram

diagram 8401 85110R 85168R 85169R 85178R 85190R 85192R 85220R 85221R 9009900925
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85110-20660

ST184..LB..GT

 1
85110-20660

ST18#..LB

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05157

ST184..LB..GT

 1
90099-05157

ST18#..LB

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85179-20660

ST184..LB..GT

 1
85179-20660

ST18#..LB

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90176-06024

ST18#..WIB

 1
90179-06158

ST184..LB..GT

 1
85190R - ARM ASSY, REAR WIPER
85190-20750

ST18#..WIB

 1
85190-20740

ST184..LB..GT

 1
85192R - COVER, REAR WIPER ARM
85192-32010

ST184..LB..GT

 1
85220R - BLADE ASSY, REAR WIPER
85220-3A250

ST184..LB..GT

 1
85220-3A250

ST18#..LB

 1
85221R - BLADE, REAR WIPER
85221-20220

ST184..LB..GT

 1
85221-20220

ST18#..LB

 1
Common parts
90099-00925
Linked diagrams
8401

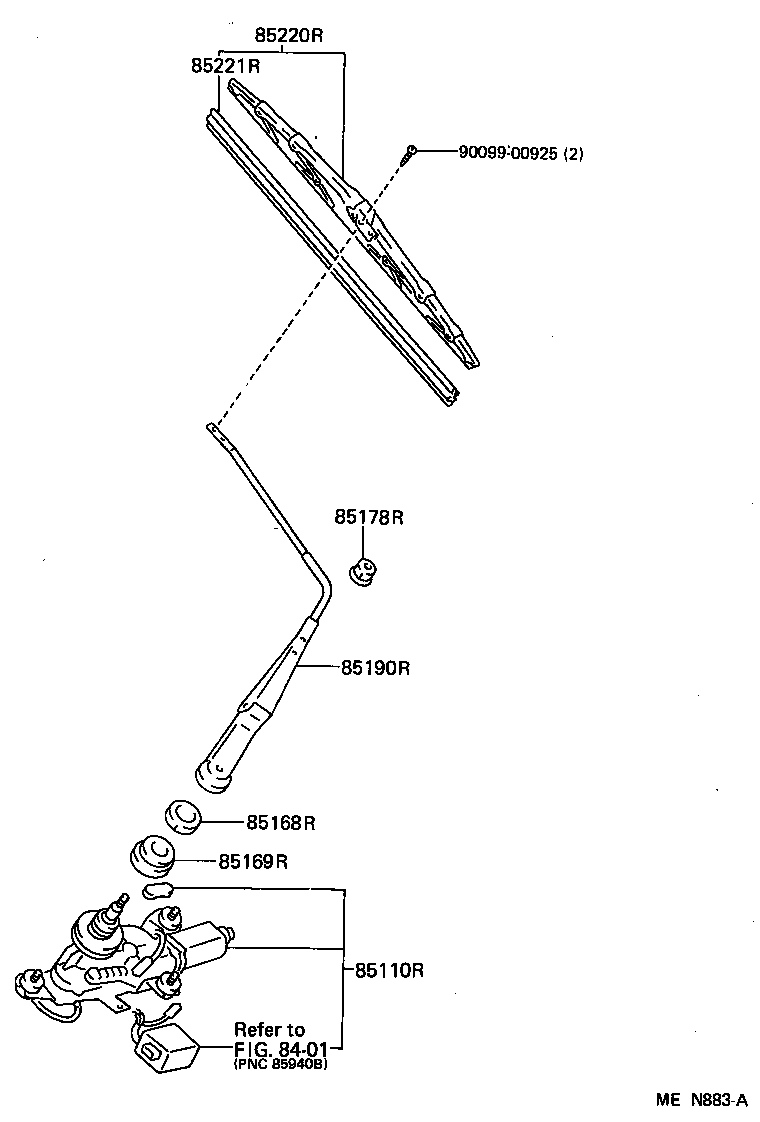

(8910- )WIB

Click highlighted areas on diagram

W(RR SPOILER)

diagram 8401 85110R 85168R 85169R 85178R 85190R 85220R 85221R 9009900925
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85110-20660

ST184..LB..GT

 1
85110-20660

ST18#..LB

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05157

ST184..LB..GT

 1
90099-05157

ST18#..LB

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85179-20660

ST184..LB..GT

 1
85179-20660

ST18#..LB

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90176-06024

ST18#..WIB

 1
90179-06158

ST184..LB..GT

 1
85190R - ARM ASSY, REAR WIPER
85190-20750

ST18#..WIB

 1
85190-20740

ST184..LB..GT

 1
85220R - BLADE ASSY, REAR WIPER
85220-3A250

ST184..LB..GT

 1
85220-3A250

ST18#..LB

 1
85221R - BLADE, REAR WIPER
85221-20220

ST184..LB..GT

 1
85221-20220

ST18#..LB

 1
Common parts
90099-00925
Linked diagrams
8401
