ST184L-BLPGKK (1989)
Toyota Celica

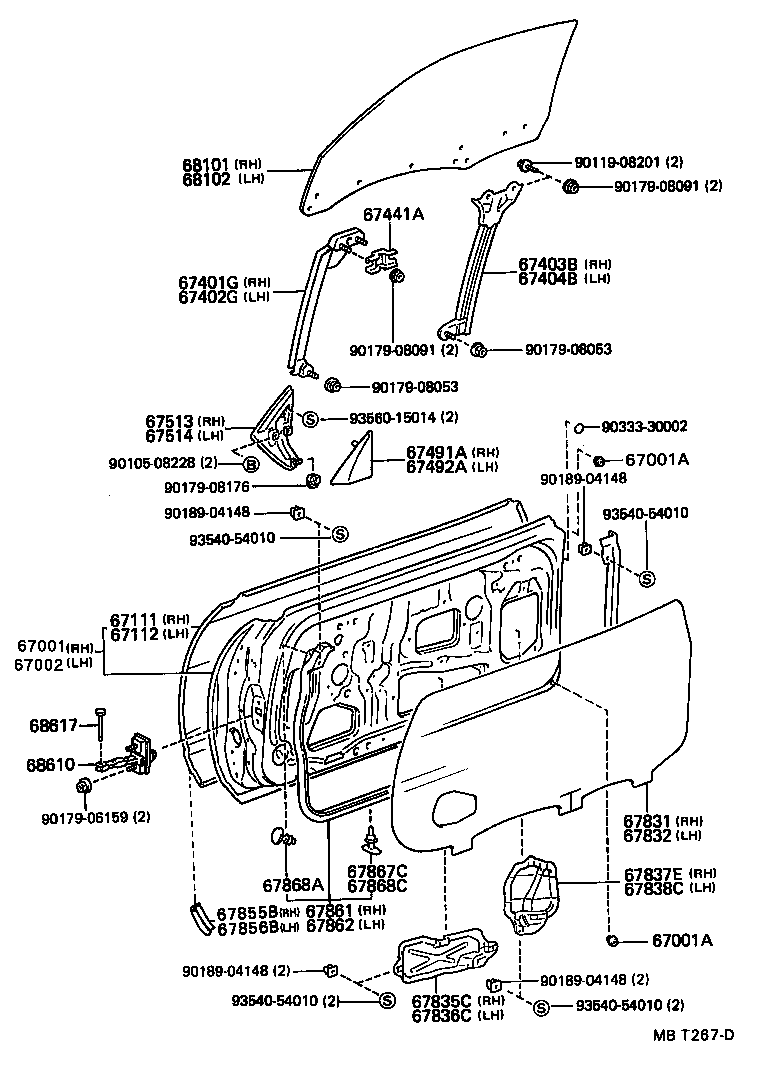

ILLUST NO. 1 OF 2(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-20830 |
AT180,ST18# |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
AT180,ST18# |
4 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
AT180,ST18# |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-20790 |
AT180,ST18# |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-20300 |
AT180,ST18# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-20320 |
AT180,ST18# |
1 | ||
| 67401G - GUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT RH | ||||
| 67401-20190 |
AT180,ST18# |
1 | ||
| 67402G - GUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT LH | ||||
| 67402-20180 |
AT180,ST18# |
1 | ||
| 67403B - GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR RH | ||||
| 67403-20080 |
AT180,ST18# |
1 | ||
| 67404B - GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR LH | ||||
| 67404-20080 |
AT180,ST18# |
1 | ||
| 67441A - PLATE, FRONT DOOR FRONT GUIDE, UPPER | ||||
| 67441-20060 |
AT180,ST18# |
2 | ||
| 67441-32020 |
AT180,ST18# |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-20230 |
ST184..LB..GT W(SPEAKER HOLE) |
1 | ||
| 67491-20230 |
ST184..LB..GT W(SPEAKER HOLE) |
1 | ||
| 67491-20230 |
ST184..LB..GT W(SPEAKER HOLE) |
1 | ||
| 67491-20190 |
AT180,ST184..NOB |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-20250 |
ST184..LB..GT W(SPEAKER) |
1 | ||
| 67492-20210 |
AT180,ST184..NOB |
1 | ||
| 67492-20250 |
ST184..LB..GT..CND W(SPEAKER) |
1 | ||
| 67492-20250 |
ST184..LB..GT W(SPEAKER) |
1 | ||
| 67513 - BRACKET, FRONT DOOR MIRROR, RH | ||||
| 67513-20081 |
AT180,ST18# |
1 | ||
| 67513-20081 |
AT180,ST184..NOB |
1 | ||
| 67513-20080 |
AT180,ST18# |
1 | ||
| 67513-20061 |
AT180,ST18# |
1 | ||
| 67513-20061 |
ST184..LB..GT W(SPEAKER) |
1 | ||
| 67514 - BRACKET, FRONT DOOR MIRROR, LH | ||||
| 67514-20061 |
ST184..LB..GT..CND W(SPEAKER) |
1 | ||
| 67514-20061 |
AT180,ST18# |
1 | ||
| 67514-20081 |
AT180,ST18# |
1 | ||
| 67514-20080 |
AT180,ST18# |
1 | ||
| 67514-20081 |
AT180,ST184..NOB |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-20370 |
ST18#..CP,LB W(SPEAKER HOLE) |
1 | ||
| 67831-20370 |
ST18#..CP,LB W(SPEAKER HOLE) |
1 | ||
| 67831-20360 |
AT180,ST18# |
1 | ||
| 67831-20370 |
ST18#..LB;ST184..CP..USA;ST184..CP..MTM..CND W(SPEAKER HOLE) |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-20370 |
ST18#..CP,LB W(SPEAKER HOLE) |
1 | ||
| 67831-20370 |
ST18#..LB;ST184..CP..USA;ST184..CP..MTM..CND W(SPEAKER HOLE) |
1 | ||
| 67831-20360 |
AT180,ST18# |
1 | ||
| 67831-20370 |
ST18#..CP,LB W(SPEAKER HOLE) |
1 | ||
| 67835C - COVER, FRONT DOOR SERVICE HOLE, NO.3 RH | ||||
| 67835-20030 |
ST18# |
1 | ||
| 67836C - COVER, FRONT DOOR SERVICE HOLE, NO.3 LH | ||||
| 67836-20070 |
ST18# |
1 | ||
| 67837E - COVER, FRONT DOOR SERVICE HOLE, NO.4 RH | ||||
| 67837-20080 |
ST18# |
1 | ||
| 67838C - COVER, FRONT DOOR SERVICE HOLE, NO.4 LH | ||||
| 67838-20070 |
ST18# |
1 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-20020 |
AT180,ST18# |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67855-20020 |
AT180,ST18# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-20320 |
AT180,ST18#..CP,LB |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-20320 |
AT180,ST18#..CP,LB |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-20130 |
AT180,ST18#..CP,LB |
19 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67869-20030 |
AT180,ST18# |
4 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-20130 |
AT180,ST18#..CP,LB |
19 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-20550 |
AT180,ST18# *TT,T=5.0,BLUE |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-20470 |
AT180,ST18# *TT,T=5.0,BLUE |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-20090 |
AT180,ST18#..CP,LB RH |
1 | ||
| 68610-20090 |
AT180,ST18# RH |
1 | ||
| 68610-20070 |
AT180,ST18# |
2 | ||
| 68620-20010 |
AT180,ST18#..CP,LB LH |
1 | ||
| 68620-20010 |
AT180,ST18# LH |
1 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-20020 |
AT180,ST18# |
2 | ||
| Common parts | ||||
| 90105-08228 | ||||
| 90119-08201 | ||||
| 90179-06159 | ||||
| 90179-08053 | ||||
| 90179-08091 | ||||
| 90179-08176 | ||||
| 90189-04148 | ||||
| 90333-30002 | ||||
| 93540-54010 | ||||
| 93560-15014 | ||||

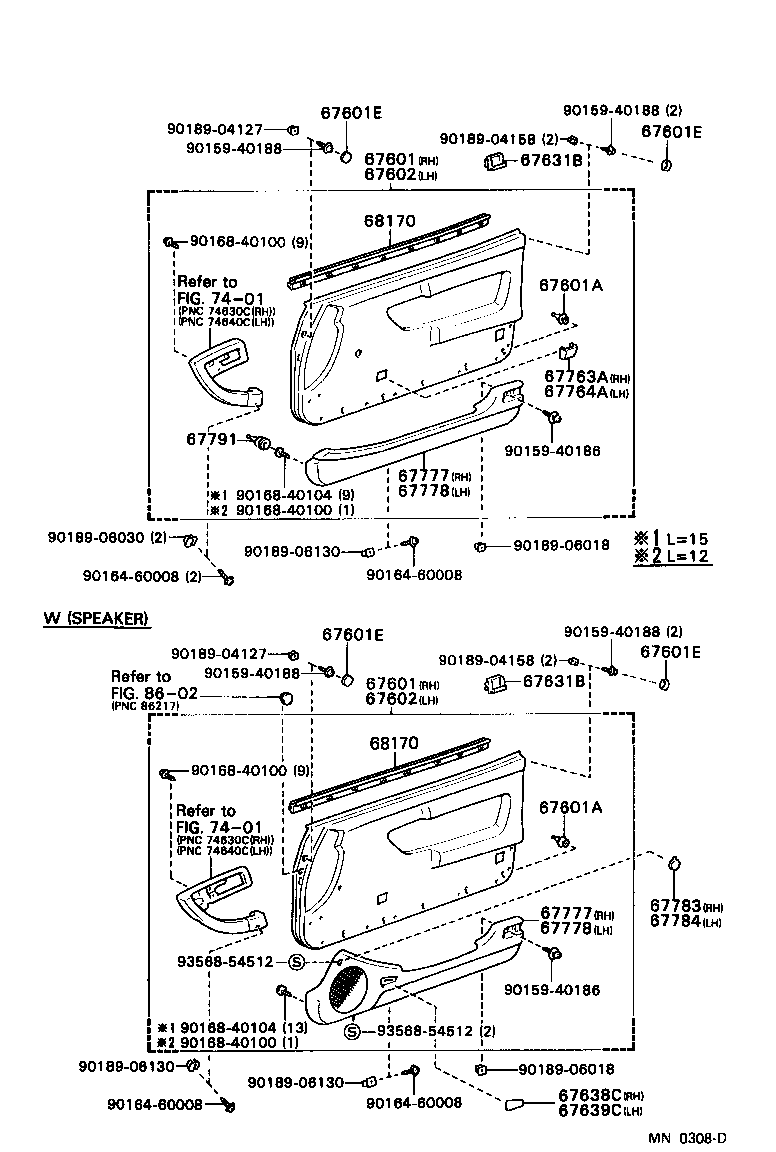

ILLUST NO. 2 OF 2(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2D43002 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),RED,TRIM3# |
1 | ||
| 67610-2D52003 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D52002 |
ST184..GT RED,TRIM3# |
1 | ||
| 67610-2D41004 |
ST184..GT W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67610-2D43003 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D41003 |
ST184..GT W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D41002 |
ST184..GT W(POWER WINDOW),RED,TRIM3# |
1 | ||
| 67610-2D43004 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-2D52004 |
ST184..GT DARK BLUE,TRIM8# |
1 | ||
| 67610-2D41102 |
ST184..(CP,LB)..GT W(POWER WINDOW),RED,TRIM3# |
1 | ||
| 67610-2D43103 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D43104 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-2D43102 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),RED,TRIM3# |
1 | ||
| 67610-2D52102 |
ST184..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 67610-2D52103 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D43103 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D52104 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 67610-2D41104 |
ST184..(CP,LB)..GT W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67610-2D41103 |
ST184..GT W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D43104 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-2D43206 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67610-2D43203 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D52206 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67610-2D43204 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-2D43204 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-2D43203 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D41206 |
ST184..(CP,LB)..GT W(POWER WINDOW),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67610-2D52203 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D41204 |
ST184..(CP,LB)..GT W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67610-2D41203 |
ST184..GT W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D52204 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2D43002 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),RED,TRIM3# |
1 | ||
| 67610-2D52003 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D52002 |
ST184..GT RED,TRIM3# |
1 | ||
| 67610-2D41004 |
ST184..GT W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67610-2D43003 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D41003 |
ST184..GT W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D41002 |
ST184..GT W(POWER WINDOW),RED,TRIM3# |
1 | ||
| 67610-2D43004 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-2D52004 |
ST184..GT DARK BLUE,TRIM8# |
1 | ||
| 67610-2D41102 |
ST184..(CP,LB)..GT W(POWER WINDOW),RED,TRIM3# |
1 | ||
| 67610-2D43103 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D43104 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-2D43102 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),RED,TRIM3# |
1 | ||
| 67610-2D52102 |
ST184..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 67610-2D52103 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D43103 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D52104 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 67610-2D41104 |
ST184..(CP,LB)..GT W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67610-2D41103 |
ST184..GT W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D43104 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-2D43206 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67610-2D43203 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D52206 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67610-2D43204 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-2D43204 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-2D43203 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D41206 |
ST184..(CP,LB)..GT W(POWER WINDOW),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67610-2D52203 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D41204 |
ST184..(CP,LB)..GT W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67610-2D41203 |
ST184..GT W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2D52204 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12030 |
AT180,ST184..NOB |
5 | ||
| 67771-12030 |
ST184..GT W(POWER WINDOW) & W(SPEAKER) |
6 | ||
| 67771-12030 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER) |
6 | ||
| 67771-12030 |
AT180,ST18# |
5 | ||
| 67771-12030 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER) |
6 | ||
| 67771-12030 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER) |
3 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12030 |
AT180,ST184..NOB |
5 | ||
| 67771-12030 |
ST184..GT W(POWER WINDOW) & W(SPEAKER) |
6 | ||
| 67771-12030 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER) |
6 | ||
| 67771-12030 |
AT180,ST18# |
5 | ||
| 67771-12030 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER) |
6 | ||
| 67771-12030 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER) |
3 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000804 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
6 | ||
| 90339-1000816 |
AT180,ST184..CP,LB SABLE,TRIM4# |
6 | ||
| 90339-1000802 |
AT180,ST18#..CP,LB RED,TRIM3# |
6 | ||
| 90339-1000804 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
6 | ||
| 90339-1000803 |
AT180,ST18# SHADOW GRAY,TRIM1# |
6 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000804 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
6 | ||
| 90339-1000816 |
AT180,ST184..CP,LB SABLE,TRIM4# |
6 | ||
| 90339-1000802 |
AT180,ST18#..CP,LB RED,TRIM3# |
6 | ||
| 90339-1000804 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
6 | ||
| 90339-1000803 |
AT180,ST18# SHADOW GRAY,TRIM1# |
6 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000804 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
6 | ||
| 90339-1000816 |
AT180,ST184..CP,LB SABLE,TRIM4# |
6 | ||
| 90339-1000802 |
AT180,ST18#..CP,LB RED,TRIM3# |
6 | ||
| 90339-1000804 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
6 | ||
| 90339-1000803 |
AT180,ST18# SHADOW GRAY,TRIM1# |
6 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000804 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
6 | ||
| 90339-1000816 |
AT180,ST184..CP,LB SABLE,TRIM4# |
6 | ||
| 90339-1000802 |
AT180,ST18#..CP,LB RED,TRIM3# |
6 | ||
| 90339-1000804 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
6 | ||
| 90339-1000803 |
AT180,ST18# SHADOW GRAY,TRIM1# |
6 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2G69003 |
ST184..GT W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G71002 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),RED,TRIM3# |
1 | ||
| 67620-2G69004 |
ST184..GT W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67620-2G71004 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-2G69002 |
ST184..GT W(POWER WINDOW),RED,TRIM3# |
1 | ||
| 67620-2G80002 |
ST184..GT RED,TRIM3# |
1 | ||
| 67620-2G80003 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G71003 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G80004 |
ST184..GT DARK BLUE,TRIM8# |
1 | ||
| 67620-2G71102 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),RED,TRIM3# |
1 | ||
| 67620-2G71103 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G71104 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-2G80102 |
ST184..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 67620-2G69102 |
ST184..(CP,LB)..GT W(POWER WINDOW),RED,TRIM3# |
1 | ||
| 67620-2G80104 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 67620-2G80103 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G69103 |
ST184..(CP,LB)..GT W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G71103 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G69104 |
ST184..(CP,LB)..GT W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67620-2G71104 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-2G71204 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUW,TRIM8# |
1 | ||
| 67620-2G71206 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67620-2G71204 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUW,TRIM8# |
1 | ||
| 67620-2G71203 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G69206 |
ST184..(CP,LB)..GT W(POWER WINDOW),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67620-2G71203 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G80206 |
ST184..(CP,LB)..GT DARK BLUE,TRIM4# |
1 | ||
| 67620-2G80203 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G69203 |
ST184..(CP,LB)..GT W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G80204 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM8# |
1 | ||
| 67620-2G69204 |
ST184..(CP,LB)..GT W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2G69003 |
ST184..GT W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G71002 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),RED,TRIM3# |
1 | ||
| 67620-2G69004 |
ST184..GT W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67620-2G71004 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-2G69002 |
ST184..GT W(POWER WINDOW),RED,TRIM3# |
1 | ||
| 67620-2G80002 |
ST184..GT RED,TRIM3# |
1 | ||
| 67620-2G80003 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G71003 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G80004 |
ST184..GT DARK BLUE,TRIM8# |
1 | ||
| 67620-2G71102 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),RED,TRIM3# |
1 | ||
| 67620-2G71103 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G71104 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-2G80102 |
ST184..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 67620-2G69102 |
ST184..(CP,LB)..GT W(POWER WINDOW),RED,TRIM3# |
1 | ||
| 67620-2G80104 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 67620-2G80103 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G69103 |
ST184..(CP,LB)..GT W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G71103 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G69104 |
ST184..(CP,LB)..GT W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67620-2G71104 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-2G71204 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUW,TRIM8# |
1 | ||
| 67620-2G71206 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67620-2G71204 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUW,TRIM8# |
1 | ||
| 67620-2G71203 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G69206 |
ST184..(CP,LB)..GT W(POWER WINDOW),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67620-2G71203 |
ST184..(CP,LB)..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G80206 |
ST184..(CP,LB)..GT DARK BLUE,TRIM4# |
1 | ||
| 67620-2G80203 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G69203 |
ST184..(CP,LB)..GT W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2G80204 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM8# |
1 | ||
| 67620-2G69204 |
ST184..(CP,LB)..GT W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67631B - RETAINER, FRONT DOOR TRIM, UPPER | ||||
| 67631-20010 |
AT180,ST18# |
2 | ||
| 67631B - RETAINER, FRONT DOOR TRIM, UPPER | ||||
| 67631-20010 |
AT180,ST18# |
2 | ||
| 67638C - PLATE, FRONT DOOR TRIM, NO.2 RH | ||||
| 67638-20040 |
ST18#..CP,LB |
1 | ||
| 67639C - PLATE, FRONT DOOR TRIM, NO.2 LH | ||||
| 67639-20040 |
ST18#..CP,LB |
1 | ||
| 67763A - COVER, FRONT DOOR TRIM, LOWER RH | ||||
| 67763-2009003 |
AT180,ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 67763-2009002 |
AT180,ST184..NOB RED,TRIM3# |
1 | ||
| 67763-2009004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 67763-2009004 |
AT180,ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 67763-2009004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 67763-2009003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 67763-2009016 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67763-2009002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 67764A - COVER, FRONT DOOR TRIM, LOWER LH | ||||
| 67764-2006002 |
AT180,ST184..NOB RED,TRIM3# |
1 | ||
| 67764-2006004 |
AT180,ST184..NOB DARK BLUE,TRIM8# |
1 | ||
| 67764-2006002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 67764-2006003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 67764-2006004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 67764-2006016 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67764-2006003 |
AT180,ST184..NOB SHADOW GRAY,TRIM1# |
1 | ||
| 67764-2006004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-2010003 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 67770-2010002 |
ST184..GT RED,TRIM3# |
1 | ||
| 67770-2011003 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67770-2011002 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),RED,TRIM3# |
1 | ||
| 67770-2011004 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67770-2010004 |
ST184..GT DARK BLUE,TRIM8# |
1 | ||
| 67770-2011002 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),RED,TRIM3# |
1 | ||
| 67770-2010002 |
ST18#..CP,LB RED,TRIM3# |
1 | ||
| 67770-2010016 |
ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67770-2010004 |
ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 67770-2011004 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67770-2011004 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67770-2011016 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67770-2011003 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67770-2011003 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67770-2011004 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67770-2010003 |
ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 67770-2010004 |
ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-2010003 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 67770-2010002 |
ST184..GT RED,TRIM3# |
1 | ||
| 67770-2011003 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67770-2011002 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),RED,TRIM3# |
1 | ||
| 67770-2011004 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67770-2010004 |
ST184..GT DARK BLUE,TRIM8# |
1 | ||
| 67770-2011002 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),RED,TRIM3# |
1 | ||
| 67770-2010002 |
ST18#..CP,LB RED,TRIM3# |
1 | ||
| 67770-2010016 |
ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67770-2010004 |
ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 67770-2011004 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67770-2011004 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67770-2011016 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67770-2011003 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67770-2011003 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67770-2011004 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67770-2010003 |
ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 67770-2010004 |
ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-2005004 |
ST184..GT DARK BLUE,TRIM8# |
1 | ||
| 67780-2005003 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 67780-2007002 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),RED,TRIM3# |
1 | ||
| 67780-2007003 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67780-2007004 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67780-2005002 |
ST184..GT RED,TRIM3# |
1 | ||
| 67780-2005002 |
ST18#..CP,LB RED,TRIM3# |
1 | ||
| 67780-2007002 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),RED,TRIM3# |
1 | ||
| 67780-2005016 |
ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67780-2007004 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67780-2005004 |
ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 67780-2007003 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67780-2007003 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67780-2007016 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67780-2005003 |
ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 67780-2007004 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67780-2005004 |
ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 67780-2007004 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-2005004 |
ST184..GT DARK BLUE,TRIM8# |
1 | ||
| 67780-2005003 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 67780-2007002 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),RED,TRIM3# |
1 | ||
| 67780-2007003 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67780-2007004 |
ST184..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67780-2005002 |
ST184..GT RED,TRIM3# |
1 | ||
| 67780-2005002 |
ST18#..CP,LB RED,TRIM3# |
1 | ||
| 67780-2007002 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),RED,TRIM3# |
1 | ||
| 67780-2005016 |
ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67780-2007004 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67780-2005004 |
ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 67780-2007003 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67780-2007003 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67780-2007016 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67780-2005003 |
ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 67780-2007004 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67780-2005004 |
ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 67780-2007004 |
ST184..LB..GT W(POWER WINDOW) & W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67783 - COVER, FRONT DOOR TRIM, CENTER RH | ||||
| 67783-2007002 |
ST18#..CP,LB RED,TRIM3# |
1 | ||
| 67783-2007003 |
ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 67783-2007006 |
ST184..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67783-2007004 |
ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 67783-2007004 |
ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 67784 - COVER, FRONT DOOR TRIM, CENTER LH | ||||
| 67783-2007004 |
ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 67783-2007004 |
ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 67783-2007003 |
ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 67783-2007006 |
ST184..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 67783-2007002 |
ST18#..CP,LB RED,TRIM3# |
1 | ||
| 67791 - RETAINER, FRONT DOOR POCKET | ||||
| 67791-20040 |
AT180,ST184..NOB |
1 | ||
| 67791-20040 |
AT180,ST18# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-20370 |
AT180,ST18# RH |
1 | ||
| 68220-20280 |
AT180,ST18# LH |
1 | ||
| 68170-20371 |
AT180,ST18# RH |
1 | ||
| 68220-20281 |
AT180,ST18# LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-20370 |
AT180,ST18# RH |
1 | ||
| 68220-20280 |
AT180,ST18# LH |
1 | ||
| 68170-20371 |
AT180,ST18# RH |
1 | ||
| 68220-20281 |
AT180,ST18# LH |
1 | ||
| Common parts | ||||
| 90159-40186 | ||||
| 90159-40188 | ||||
| 90164-60008 | ||||
| 90168-40100 | ||||
| 90168-40104 | ||||
| 90189-04127 | ||||
| 90189-04158 | ||||
| 90189-06018 | ||||
| 90189-06030 | ||||
| 90189-06130 | ||||
| 93568-54512 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8602 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
