ST184L-BLPGKA (1989)

Toyota Celica

Production Sep 1989 - Sep 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

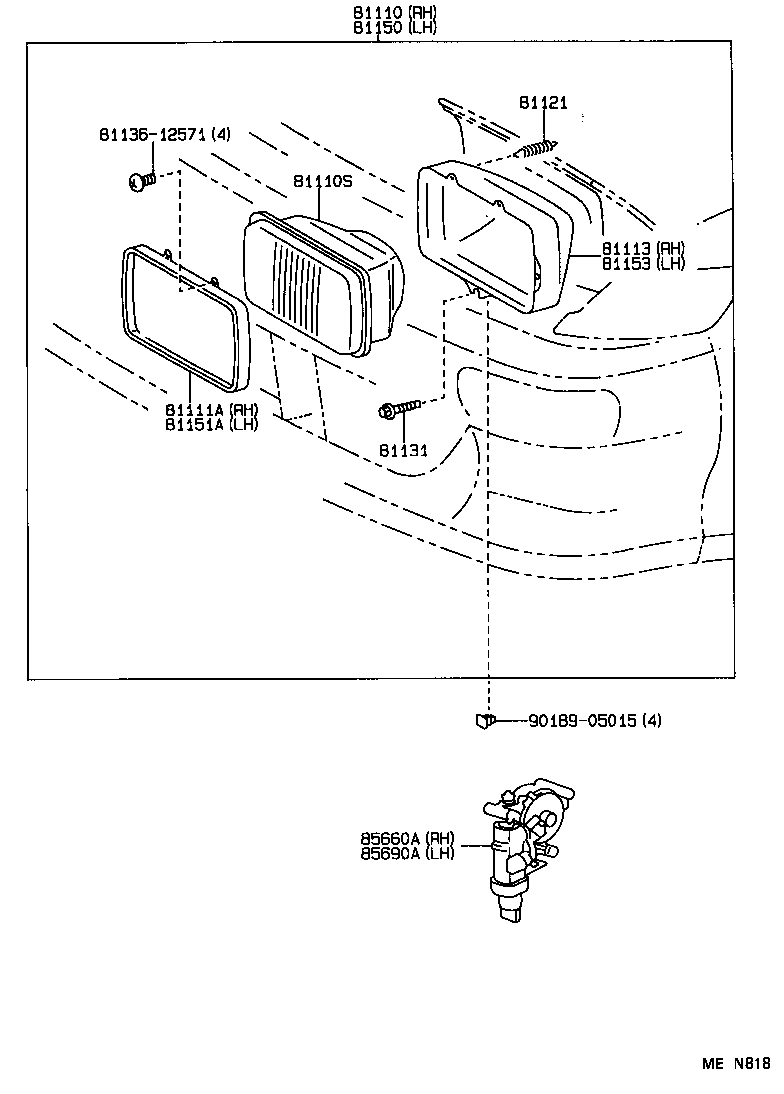

Click highlighted areas on diagram

diagram 81110 81110S 81111A 81113 81121 81131 8113612571 81150 81151A 81153 85660A 85690A 9018905015
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-2B440

AT180,ST18#

 1
81110-2B440

ST18#

 1
81110S - SEALED BEAM UNIT, NO.1
90981-04020

AT180,ST18#

12V 65/35W,*HAL,*WB

 2
90981-04020

ST18#

12V 65/35W,*HAL,*WB

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-2B360

AT180,ST18#..CP,LB

 1
81111-2B360

AT180,ST18#

 1
81111-2B360

AT180,ST18#

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-2B360

AT180,ST18#

 1
81121 - SPRING, HEADLAMP TENSION
81121-17010

AT180,ST18#

 2
81121-17010

AT180,ST18#

 2
81121-17010

ST18#

 2
81131 - SCREW, HEADLAMP ADJUSTING
90075-00003

AT180,ST18#

 4
81150 - HEADLAMP ASSY, LH
81150-2B440

AT180,ST18#

 1
81150-2B440

ST18#

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-2B360

AT180,ST18#

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-2B360

AT180,ST18#

 1
85660A - MOTOR ASSY, LIGHT RETRACTOR, RH
85660-20030

AT180,ST18#

 1
85660-20031

AT180,ST18#

 1
85690A - MOTOR ASSY, LIGHT RETRACTOR, LH
85690-20031

AT180,ST18#

 1
85690-20030

AT180,ST18#

 1
Common parts
81136-12571
90189-05015
