ST184L-BLPGKA (1989)

Toyota Celica

Production Sep 1989 - Sep 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

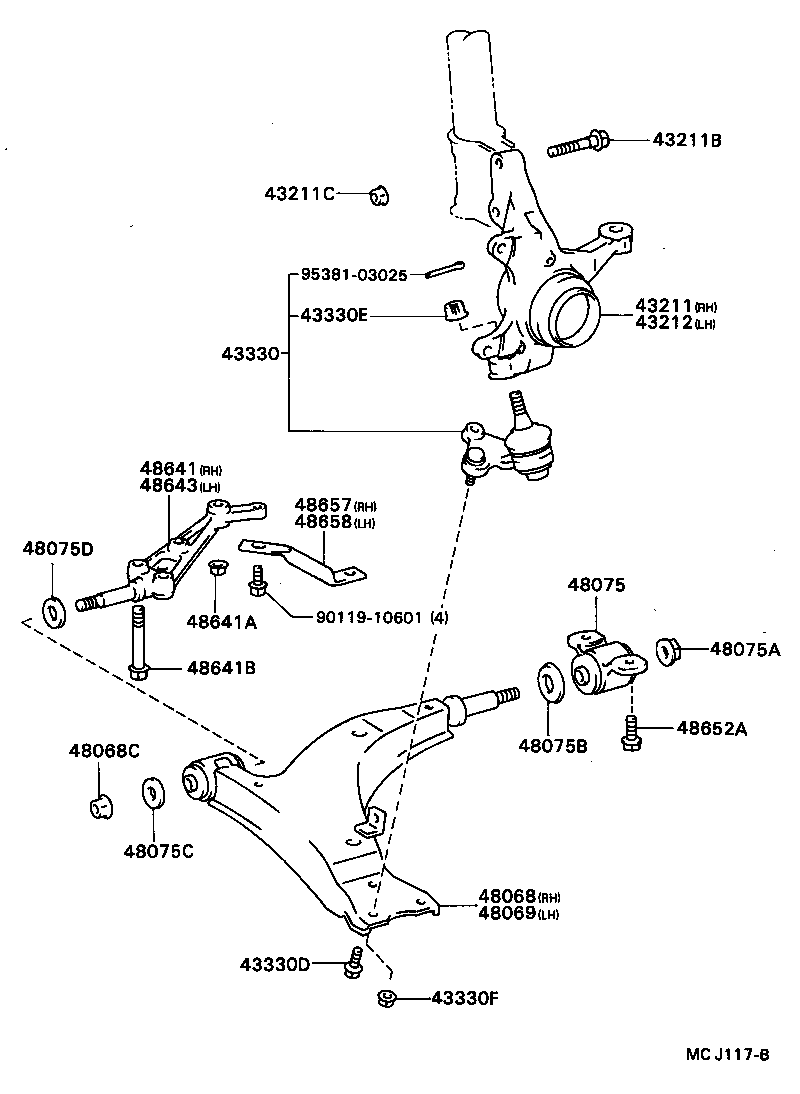

Click highlighted areas on diagram

diagram 43211 43211B 43211C 43212 43330 43330D 43330E 43330F 48068 48068C 48069 48075 48075A 48075B 48075C 48075D 48641 48641A 48641B 48643 48652A 48657 48658 9011910601 9538103025
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-20170

ST18#

W(*66)

 1
43211-20160

AT180,ST18#

 1
43211-20170

ST18#..CP,LB

W(*66)

 1
43211B - BOLT (FOR ABSORBER SETTING)
90105-17001

AT180,ST18#

 4
43211C - NUT (FOR ABSORBER SETTING)
90179-17001

AT180,ST18#

 4
43212 - KNUCKLE, STEERING, LH
43212-20130

ST18#..CP,LB

W(*66)

 1
43212-20130

ST18#

W(*66)

 1
43212-20120

AT180,ST18#

 1
43330 - JOINT ASSY, LOWER BALL, FRONT
43330-29225

AT180,ST18#

 1
43330D - BOLT (FOR FRONT LOWER BALL JOINT)
90105-12122

AT180,ST18#

 2
43330E - NUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)
90171-14003

AT180,ST18#

 1
43330F - NUT (FOR FRONT LOWER BALL JOINT SETTING)
90179-12052

AT180,ST18#

 4
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-20250

AT180,ST18#..CP,LB

 1
48068-20250

AT180,ST18#

 1
48068-20210

AT180,ST184..NOB

 1
48068C - NUT(FOR FRONT SUSPENSION LOWER ARM)
90179-16004

AT180,ST18#

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-20210

AT180,ST184..NOB

 1
48069-20250

AT180,ST18#..CP,LB

 1
48069-20250

AT180,ST18#

 1
48075 - BRACKET SUB-ASSY, LWR ARM, NO,1
48075-20030

ST184..GT

 2
48075-20040

AT180,ST18#

 2
48075-20040

AT180,ST18#..CP,LB

 2
48075A - NUT(FOR LOWER ARM BRACKET)
90179-14006

AT180,ST18#

 2
48075B - RETAINER, CUSHION(FOR LOWER ARM BRACKET)
90948-02090

AT180,ST18#

 2
48075C - RETAINER, CUSHION(FOR LOWER ARM BRACKET), NO.2
90948-02089

AT180,ST18#

 2
48075D - RETAINER, CUSHION(FOR LOWER ARM BRACKET), NO.3
90948-02128

AT180,ST18#

 2
48641 - SHAFT, LOWER ARM, RH
48641-20100

AT180,ST184

 1
48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT)
90179-14043

AT180,ST18#

 4
48641B - BOLT(FOR SUSPENSION LOWER ARM SHAFT)
90105-14070

AT180,ST18#

 4
48643 - SHAFT, LOWER ARM, LH
48643-20050

AT180,ST184

 1
48652A - BOLT(FOR FRONT LOWER ARM BRACKET)
90105-12188

AT180,ST18#

 4
48657 - STAY, LOWER ARM BRACKET, RH
48657-20040

AT180,ST18#

 1
48658 - STAY, LOWER ARM BRACKET, LH
48658-20030

AT180,ST18#

 1
Common parts
90119-10601
95381-03025
