ST184L-BLMVKK (1989)

Toyota Celica

Production Sep 1989 - Sep 1993
Engine 5SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

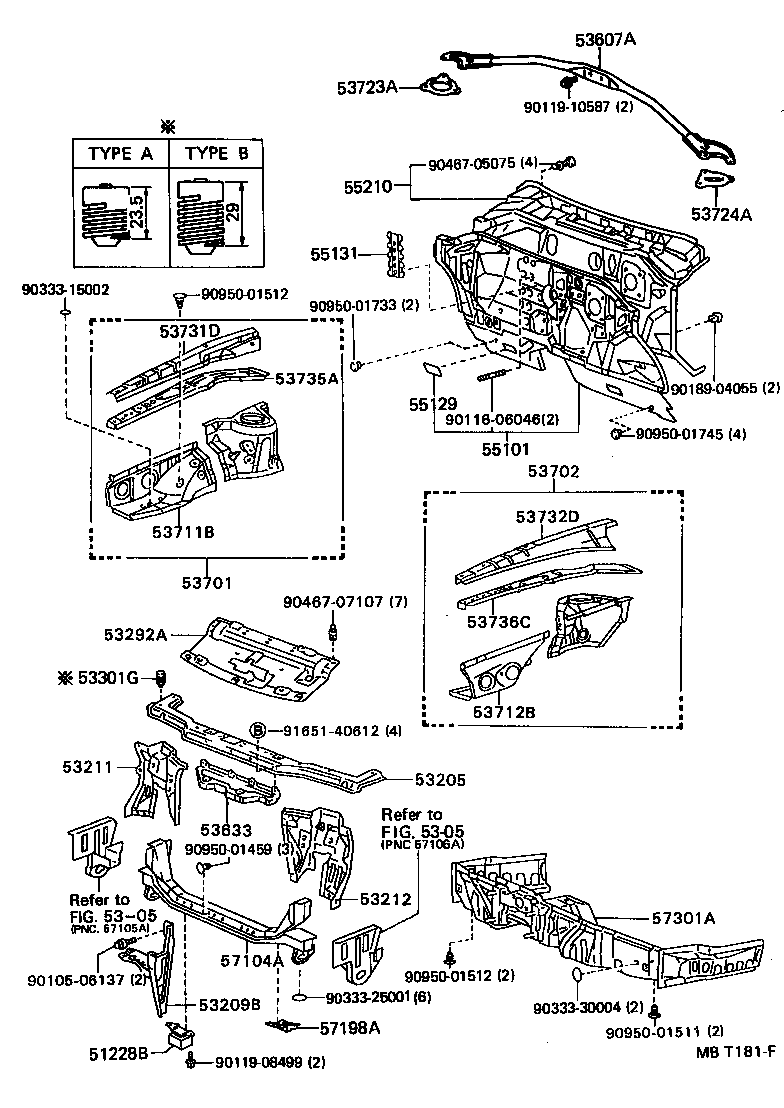

Click highlighted areas on diagram

diagram 51228B 5305 5305 53205 53209B 53211 53212 53292A 53301G 53607A 53633 53701 53702 53711B 53712B 53723A 53724A 53731D 53732D 53735A 53736C 55101 55129 55131 55210 57104A 57198A 57301A 9010506137 9011606046 9011908499 9011910587 9018904055 9033315002 9033325001 9033330004 9046705075 9046707107 9095001459 9095001511 9095001512 9095001512 9095001733 9095001745 9165140612
Part # Description Qty Price
51228B - WEIGHT, FRONT SUSPENSION MEMBER DUMPER, LH
51228-20040

ST18#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-20030

AT180,ST18#

 1
53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT
53209-20200

AT180,ST18#

 1
53211 - SUPPORT, RADIATOR, RH
53211-20210

AT180,ST18#

 1
53212 - SUPPORT, RADIATOR, LH
53212-20210

AT180,ST18#

 1
53292A - SEAL, RADIATOR SUPPORT, UPPER
53292-20050

AT180,ST18#

 1
53301G - CUSHION, HOOD BUMPER
90541-15016

AT180,ST18#

TYPE B

 4
90541-15011

AT180,ST18#

TYPE A

 4
90541-15011

AT180,ST184

 4
53607A - BRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER
53607-20080

ST18#

 1
53633 - SHIELD, HOOD LOCK CONTROL CABLE
53633-20010

AT180,ST18#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-20720

AT180,ST18#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-20690

AT180,ST18#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-20900

AT180,ST18#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-20290

AT180,ST18#

 1
53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH
53723-20040

ST18#..WIB

 1
53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH
53723-20040

ST18#..WIB

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-20090

AT180,ST18#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-20090

AT180,ST18#

 1
53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53735-20900

AT180,ST18#

 1
53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53736-20900

AT180,ST18#

 1
55101 - PANEL SUB-ASSY, DASH
55101-2B912

AT180,ST18#..(CP,LB)..MTM

 1
55101-2B926

AT180,ST18#..(CP,LB)..MTM

 1
55101-2B926

AT180,ST18#..MTM

 1
55129 - COVER, DASH PANEL HOLE
55129-20010

AT180,ST18#

 2
55131 - REINFORCEMENT, DASH PANEL
55131-20100

AT180,ST18#

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-20200

AT180,ST18#

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-20090

AT180,ST18#

 1
57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
57301-20210

AT180,ST184

 1
Common parts
90105-06137
90116-06046
90119-08499
90119-10587
90189-04055
90333-15002
90333-25001
90333-30004
90467-05075
90467-07107
90950-01459
90950-01511
90950-01512
90950-01733
90950-01745
91651-40612
Linked diagrams
5305
