ST184L-BLMVKK (1989)
Toyota Celica
Production
Sep 1989
-
Sep 1993
Engine
5SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8909- )

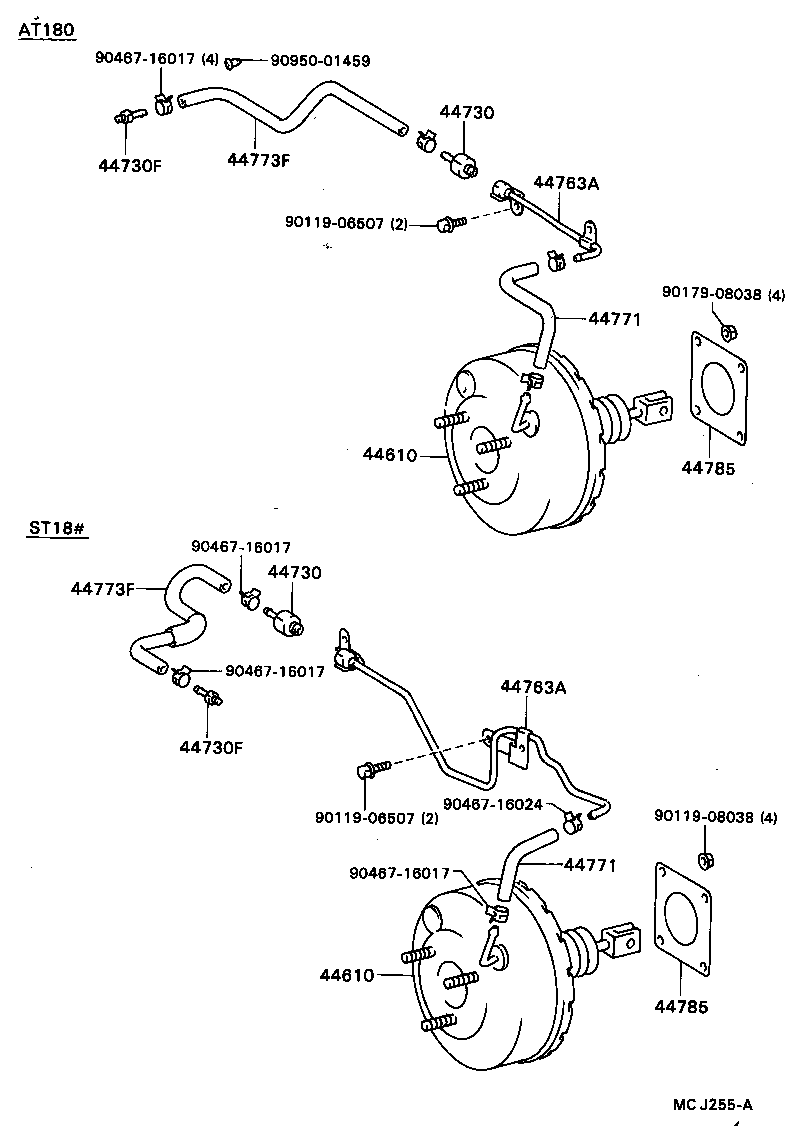

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-2B670 |
ST184..CND W(*66) |
1 | ||
| 44610-2B670 |
ST184..GTS W(*66) |
1 | ||
| 44610-2B670 |
ST184 |
1 | ||
| 44610-2D190 |
ST184..CND |
1 | ||
| 44610-2D190 |
ST184..CND;ST184..CVT |
1 | ||
| 44610-2B670 |
ST184 |
2 | ||
| 44610-2B670 |
ST184..CND;ST184..CVT W(*66) |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-2B670 |
ST184..CND W(*66) |
1 | ||
| 44610-2B670 |
ST184..GTS W(*66) |
1 | ||
| 44610-2B670 |
ST184 |
1 | ||
| 44610-2D190 |
ST184..CND |
1 | ||
| 44610-2D190 |
ST184..CND;ST184..CVT |
1 | ||
| 44610-2B670 |
ST184 |
2 | ||
| 44610-2B670 |
ST184..CND;ST184..CVT W(*66) |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20100 |
AT180,ST18# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20100 |
AT180,ST18# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
AT180,ST184 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
AT180,ST184 |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-20150 |
ST184 |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-20150 |
ST184 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-20010 |
ST18# |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-20010 |
ST18# |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-20620 |
ST184 |
1 | ||
| 44773-20800 |
ST184..CP,LB |
1 | ||
| 44773-20800 |
ST184 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-20620 |
ST184 |
1 | ||
| 44773-20800 |
ST184..CP,LB |
1 | ||
| 44773-20800 |
ST184 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT180,ST18# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT180,ST18# |
1 | ||
| Common parts | ||||
| 90119-06507 | ||||
| 90119-08038 | ||||
| 90179-08038 | ||||
| 90467-16017 | ||||
| 90467-16024 | ||||
| 90950-01459 | ||||
