ST184L-BLMVKK (1989)

Toyota Celica

Production Sep 1989 - Sep 1993
Engine 5SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

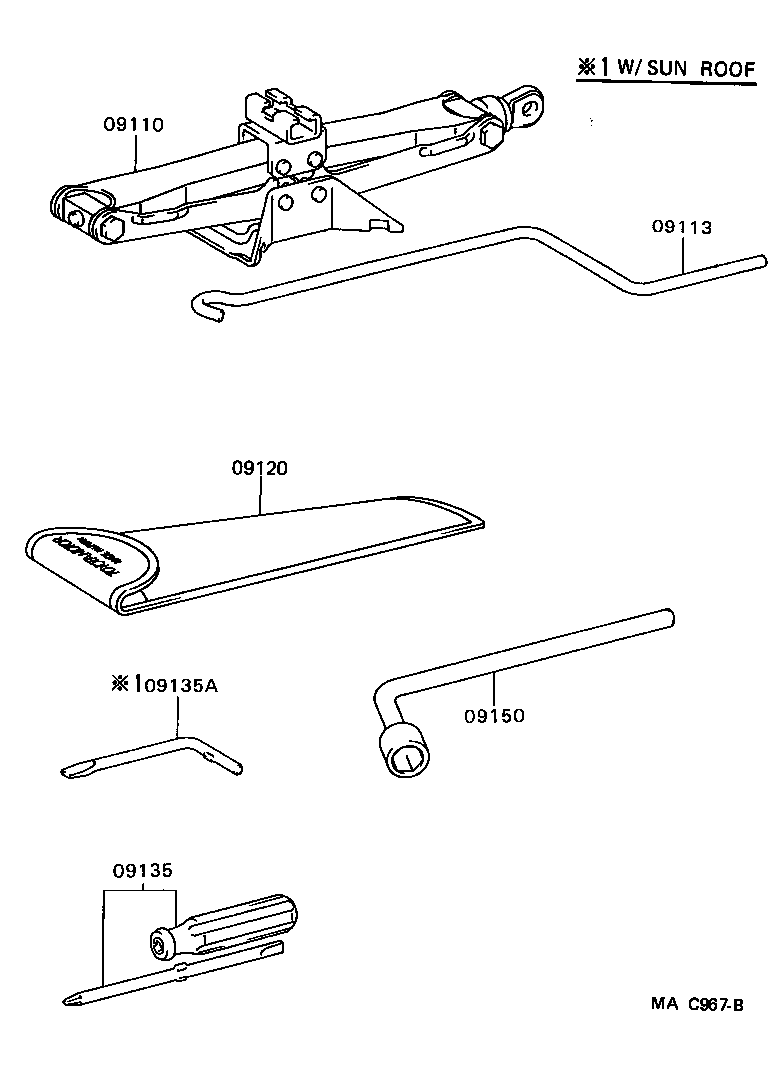

Click highlighted areas on diagram

diagram 09110 09113 09120 09135 09135A 09150
Part # Description Qty Price
09110 - JACK ASSY
09111-12100

AT180,ST184

 1
09113 - HANDLE, JACK
09113-20030

AT180,ST18#

 1
09120 - BAG, TOOL
09120-32010

AT180,ST18#

 1
09135 - DRIVER, SCREW
99915-10700

AT180,ST18#

 1
09135A - BIT, SCREW DRIVER
09135-00012

AT180,ST18#..CP,LB

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

AT180,ST18#

 1
