ST184L-BLMVKA (1989)
Toyota Celica

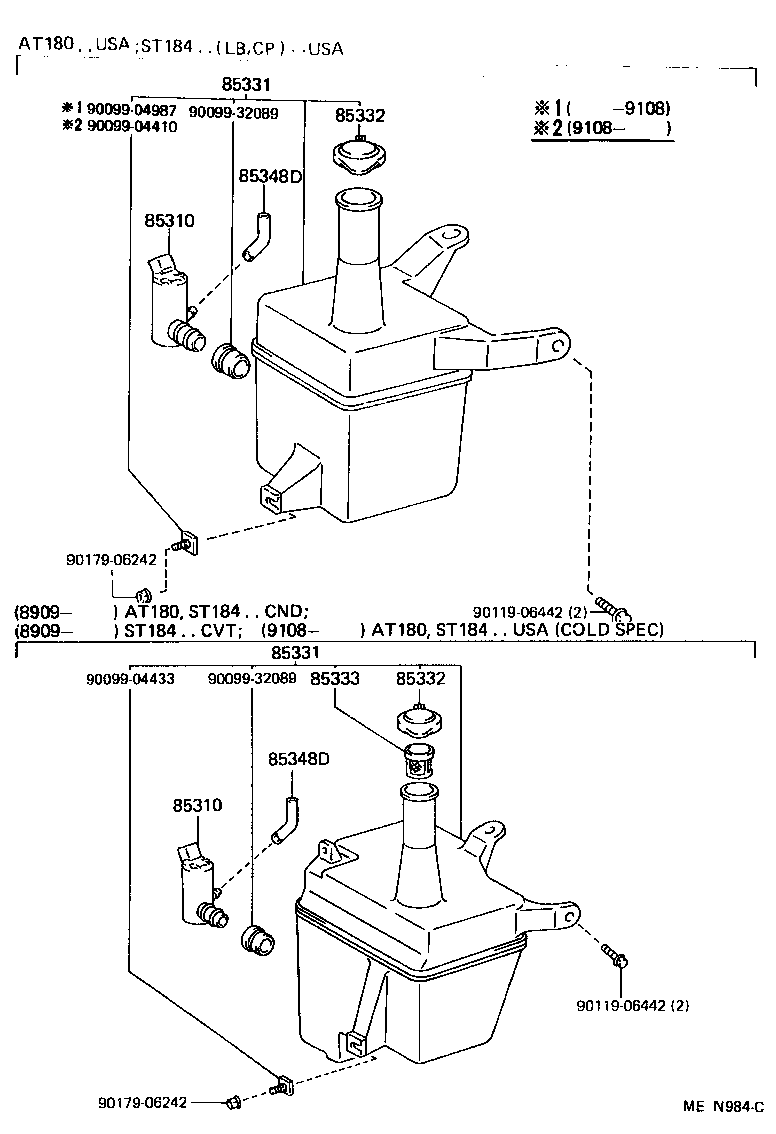

ILLUST NO. 1 OF 2(8909- )AT180,ST184
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20160 |
ST184..LB W(REAR WINDOW WIPER) |
1 | ||
| 85310-20210 |
AT180,ST184..(CP,LB)..USA |
1 | ||
| 85310-20190 |
AT180,ST184..(CP,LB)..USA COLD SPEC |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20160 |
ST184..LB W(REAR WINDOW WIPER) |
1 | ||
| 85310-20210 |
AT180,ST184..(CP,LB)..USA |
1 | ||
| 85310-20190 |
AT180,ST184..(CP,LB)..USA COLD SPEC |
1 | ||
| 85331 - JAR SUB-ASSY, WINDSHIELD WASHER | ||||
| 85331-20750 |
AT180,ST184..(CP,LB)..USA |
1 | ||
| 85331-20760 |
ST184..LB..USA W(REAR WINDOW WIPER) |
1 | ||
| 85331-20760 |
AT180,ST184..(CP,LB)..USA COLD SPEC |
1 | ||
| 85331-20760 |
ST184..LB W(REAR WINDOW WIPER) |
2 | ||
| 85331 - JAR SUB-ASSY, WINDSHIELD WASHER | ||||
| 85331-20750 |
AT180,ST184..(CP,LB)..USA |
1 | ||
| 85331-20760 |
ST184..LB..USA W(REAR WINDOW WIPER) |
1 | ||
| 85331-20760 |
AT180,ST184..(CP,LB)..USA COLD SPEC |
1 | ||
| 85331-20760 |
ST184..LB W(REAR WINDOW WIPER) |
2 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-20750 |
AT180,ST18# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-20750 |
AT180,ST18# |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85333-12470 |
ST184..LB..USA |
1 | ||
| 85333-12470 |
ST18#..CVT,LB;AT180,ST184..CP..CND |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
ST185;AT180,ST184..(CP,LB)..USA W(REAR WINDOW WIPER) |
1 | ||
| 85355-14481 |
ST184..LB..USA COLD SPEC OR W(REAR WINDOW WIPER) |
1 | ||
| 85355-32110 |
ST184..LB..USA COLD SPEC OR W(REAR WINDOW WIPER) |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
ST185;AT180,ST184..(CP,LB)..USA W(REAR WINDOW WIPER) |
1 | ||
| 85355-14481 |
ST184..LB..USA COLD SPEC OR W(REAR WINDOW WIPER) |
1 | ||
| 85355-32110 |
ST184..LB..USA COLD SPEC OR W(REAR WINDOW WIPER) |
1 | ||
| Common parts | ||||
| 90099-04410 | ||||
| 90099-04433 | ||||
| 90099-04987 | ||||
| 90099-32089 | ||||
| 90119-06442 | ||||
| 90179-06242 | ||||

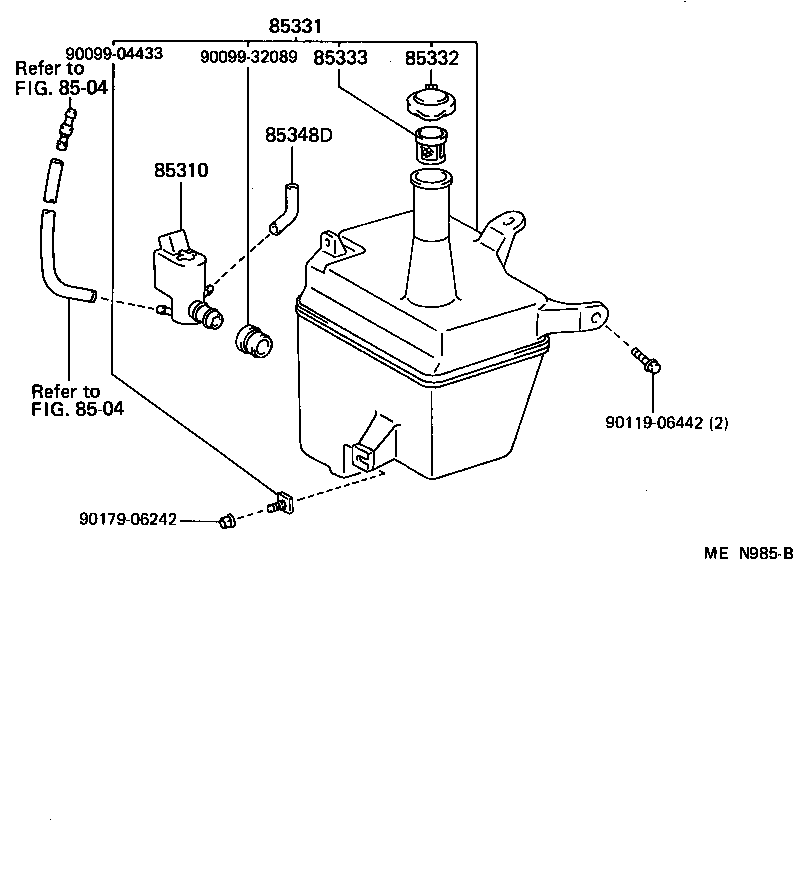

ILLUST NO. 1 OF 2(8909- )LB
W(REAR WINDOW WIPER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20160 |
ST184..LB W(REAR WINDOW WIPER) |
1 | ||
| 85310-20210 |
AT180,ST184..(CP,LB)..USA |
1 | ||
| 85310-20190 |
AT180,ST184..(CP,LB)..USA COLD SPEC |
1 | ||
| 85331 - JAR SUB-ASSY, WINDSHIELD WASHER | ||||
| 85331-20750 |
AT180,ST184..(CP,LB)..USA |
1 | ||
| 85331-20760 |
ST184..LB..USA W(REAR WINDOW WIPER) |
1 | ||
| 85331-20760 |
AT180,ST184..(CP,LB)..USA COLD SPEC |
1 | ||
| 85331-20760 |
ST184..LB W(REAR WINDOW WIPER) |
2 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-20750 |
AT180,ST18# |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85333-12470 |
ST184..LB..USA |
1 | ||
| 85333-12470 |
ST18#..CVT,LB;AT180,ST184..CP..CND |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
ST185;AT180,ST184..(CP,LB)..USA W(REAR WINDOW WIPER) |
1 | ||
| 85355-14481 |
ST184..LB..USA COLD SPEC OR W(REAR WINDOW WIPER) |
1 | ||
| 85355-32110 |
ST184..LB..USA COLD SPEC OR W(REAR WINDOW WIPER) |
1 | ||
| Common parts | ||||
| 90099-04433 | ||||
| 90099-32089 | ||||
| 90119-06442 | ||||
| 90179-06242 | ||||
| Linked diagrams | ||||
| 8504 | ||||

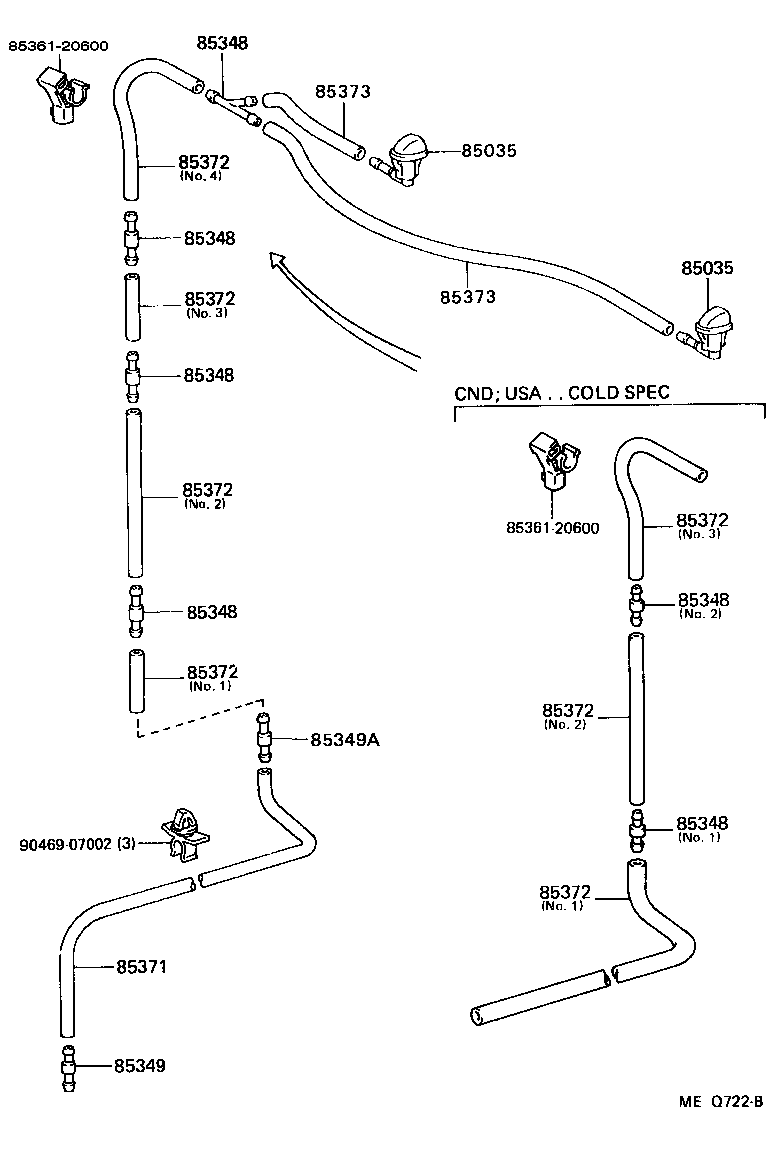

ILLUST NO. 2 OF 2(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-2032001 |
ST184..LB..USA BLACK,040 ,182 ,202 ,3E5 ,3H4 ,8G6 ,8G7 |
2 | ||
| 85035-2032001 |
AT180,ST184..CP,LB BLACK,040 ,181 ,182 ,202 ,3E5 ,3H4 ,742 ,8G6 ,8G7 |
2 | ||
| 85035-2032001 |
ST184..CP,LB BLACK,040 ,182 ,202 ,3E5 ,3J8 ,749 ,8G6 ,8J1 |
2 | ||
| 85035-2032001 |
AT180,ST184..CP,LB BLACK,040 ,182 ,202 ,3E5 ,3H4 ,8G6 ,8G7 |
2 | ||
| 85035-2032001 |
AT180,ST184..CP,LB BLACK,182 ,202 ,3E5 ,3J8 ,4J1 ,749 ,8G6 ,8J1 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-2032001 |
ST184..LB..USA BLACK,040 ,182 ,202 ,3E5 ,3H4 ,8G6 ,8G7 |
2 | ||
| 85035-2032001 |
AT180,ST184..CP,LB BLACK,040 ,181 ,182 ,202 ,3E5 ,3H4 ,742 ,8G6 ,8G7 |
2 | ||
| 85035-2032001 |
ST184..CP,LB BLACK,040 ,182 ,202 ,3E5 ,3J8 ,749 ,8G6 ,8J1 |
2 | ||
| 85035-2032001 |
AT180,ST184..CP,LB BLACK,040 ,182 ,202 ,3E5 ,3H4 ,8G6 ,8G7 |
2 | ||
| 85035-2032001 |
AT180,ST184..CP,LB BLACK,182 ,202 ,3E5 ,3J8 ,4J1 ,749 ,8G6 ,8J1 |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AT180,ST18#..CP,LB 3 WAY |
1 | ||
| 85334-22470 |
AT180,ST184..(CP,LB)..USA 2 WAY,NO.1 |
1 | ||
| 85348-12250 |
AT180,ST18# 3 WAY |
1 | ||
| 85348-12250 |
AT180,ST18#..CP,LB 3 WAY |
1 | ||
| 85349-89122 |
AT180,ST18# 2 WAY |
3 | ||
| 85349-89122 |
AT180,ST184..(CP,LB)..USA 2 WAY,NO.2 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AT180,ST18#..CP,LB 3 WAY |
1 | ||
| 85334-22470 |
AT180,ST184..(CP,LB)..USA 2 WAY,NO.1 |
1 | ||
| 85348-12250 |
AT180,ST18# 3 WAY |
1 | ||
| 85348-12250 |
AT180,ST18#..CP,LB 3 WAY |
1 | ||
| 85349-89122 |
AT180,ST18# 2 WAY |
3 | ||
| 85349-89122 |
AT180,ST184..(CP,LB)..USA 2 WAY,NO.2 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AT180,ST18#..CP,LB 3 WAY |
1 | ||
| 85334-22470 |
AT180,ST184..(CP,LB)..USA 2 WAY,NO.1 |
1 | ||
| 85348-12250 |
AT180,ST18# 3 WAY |
1 | ||
| 85348-12250 |
AT180,ST18#..CP,LB 3 WAY |
1 | ||
| 85349-89122 |
AT180,ST18# 2 WAY |
3 | ||
| 85349-89122 |
AT180,ST184..(CP,LB)..USA 2 WAY,NO.2 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AT180,ST18#..CP,LB 3 WAY |
1 | ||
| 85334-22470 |
AT180,ST184..(CP,LB)..USA 2 WAY,NO.1 |
1 | ||
| 85348-12250 |
AT180,ST18# 3 WAY |
1 | ||
| 85348-12250 |
AT180,ST18#..CP,LB 3 WAY |
1 | ||
| 85349-89122 |
AT180,ST18# 2 WAY |
3 | ||
| 85349-89122 |
AT180,ST184..(CP,LB)..USA 2 WAY,NO.2 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AT180,ST18#..CP,LB 3 WAY |
1 | ||
| 85334-22470 |
AT180,ST184..(CP,LB)..USA 2 WAY,NO.1 |
1 | ||
| 85348-12250 |
AT180,ST18# 3 WAY |
1 | ||
| 85348-12250 |
AT180,ST18#..CP,LB 3 WAY |
1 | ||
| 85349-89122 |
AT180,ST18# 2 WAY |
3 | ||
| 85349-89122 |
AT180,ST184..(CP,LB)..USA 2 WAY,NO.2 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AT180,ST18#..CP,LB 3 WAY |
1 | ||
| 85334-22470 |
AT180,ST184..(CP,LB)..USA 2 WAY,NO.1 |
1 | ||
| 85348-12250 |
AT180,ST18# 3 WAY |
1 | ||
| 85348-12250 |
AT180,ST18#..CP,LB 3 WAY |
1 | ||
| 85349-89122 |
AT180,ST18# 2 WAY |
3 | ||
| 85349-89122 |
AT180,ST184..(CP,LB)..USA 2 WAY,NO.2 |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AT180,ST184..(CP,LB)..USA |
1 | ||
| 85334-22480 |
ST184..LB..USA COLD SPEC OR W(REAR WINDOW WIPER) |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85334-22470 |
ST184..LB..USA W(REAR WINDOW WIPER) |
1 | ||
| 85334-22470 |
ST184..LB..USA COLD SPEC OR W(REAR WINDOW WIPER) |
1 | ||
| 85349-89122 |
AT180,ST184..(CP,LB)..USA |
1 | ||
| 85334-22480 |
ST184..LB..USA COLD SPEC OR W(REAR WINDOW WIPER) |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
AT180,ST184..(CP,LB)..USA L=800 |
1 | ||
| 90446-07001 |
AT180,ST184..(CP,LB)..USA |
1 | ||
| 90099-33072 |
ST184..LB..USA L=800,COLD SPEC OR W(REAR WINDOW WIPER) |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA *H,L=190,NO.3 & NO.4 |
2 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,NO.3,NO.4 |
2 | ||
| 90099-33827 |
AT180,ST184..(CP,LB)..USA L=420,COLD SPEC,NO.1 |
1 | ||
| 90446-07001 |
AT180,ST184..(CP,LB)..USA NO.2 |
1 | ||
| 90099-33299 |
AT180,ST184..(CP,LB)..USA L=1000,NO.1 |
1 | ||
| 90099-33299 |
AT180,ST184..(CP,LB)..USA *H,L=440,NO.2 |
1 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,COLD SPEC,NO.2,NO.3 |
2 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,COLD SPEC,NO.2,NO.3 |
1 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA *H,L=130,NO.3,NO.4,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA *H,L=190,NO.3 & NO.4 |
2 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,NO.3,NO.4 |
2 | ||
| 90099-33827 |
AT180,ST184..(CP,LB)..USA L=420,COLD SPEC,NO.1 |
1 | ||
| 90446-07001 |
AT180,ST184..(CP,LB)..USA NO.2 |
1 | ||
| 90099-33299 |
AT180,ST184..(CP,LB)..USA L=1000,NO.1 |
1 | ||
| 90099-33299 |
AT180,ST184..(CP,LB)..USA *H,L=440,NO.2 |
1 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,COLD SPEC,NO.2,NO.3 |
2 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,COLD SPEC,NO.2,NO.3 |
1 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA *H,L=130,NO.3,NO.4,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA *H,L=190,NO.3 & NO.4 |
2 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,NO.3,NO.4 |
2 | ||
| 90099-33827 |
AT180,ST184..(CP,LB)..USA L=420,COLD SPEC,NO.1 |
1 | ||
| 90446-07001 |
AT180,ST184..(CP,LB)..USA NO.2 |
1 | ||
| 90099-33299 |
AT180,ST184..(CP,LB)..USA L=1000,NO.1 |
1 | ||
| 90099-33299 |
AT180,ST184..(CP,LB)..USA *H,L=440,NO.2 |
1 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,COLD SPEC,NO.2,NO.3 |
2 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,COLD SPEC,NO.2,NO.3 |
1 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA *H,L=130,NO.3,NO.4,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA *H,L=190,NO.3 & NO.4 |
2 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,NO.3,NO.4 |
2 | ||
| 90099-33827 |
AT180,ST184..(CP,LB)..USA L=420,COLD SPEC,NO.1 |
1 | ||
| 90446-07001 |
AT180,ST184..(CP,LB)..USA NO.2 |
1 | ||
| 90099-33299 |
AT180,ST184..(CP,LB)..USA L=1000,NO.1 |
1 | ||
| 90099-33299 |
AT180,ST184..(CP,LB)..USA *H,L=440,NO.2 |
1 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,COLD SPEC,NO.2,NO.3 |
2 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,COLD SPEC,NO.2,NO.3 |
1 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA *H,L=130,NO.3,NO.4,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA *H,L=190,NO.3 & NO.4 |
2 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,NO.3,NO.4 |
2 | ||
| 90099-33827 |
AT180,ST184..(CP,LB)..USA L=420,COLD SPEC,NO.1 |
1 | ||
| 90446-07001 |
AT180,ST184..(CP,LB)..USA NO.2 |
1 | ||
| 90099-33299 |
AT180,ST184..(CP,LB)..USA L=1000,NO.1 |
1 | ||
| 90099-33299 |
AT180,ST184..(CP,LB)..USA *H,L=440,NO.2 |
1 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,COLD SPEC,NO.2,NO.3 |
2 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,COLD SPEC,NO.2,NO.3 |
1 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA *H,L=130,NO.3,NO.4,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA *H,L=190,NO.3 & NO.4 |
2 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,NO.3,NO.4 |
2 | ||
| 90099-33827 |
AT180,ST184..(CP,LB)..USA L=420,COLD SPEC,NO.1 |
1 | ||
| 90446-07001 |
AT180,ST184..(CP,LB)..USA NO.2 |
1 | ||
| 90099-33299 |
AT180,ST184..(CP,LB)..USA L=1000,NO.1 |
1 | ||
| 90099-33299 |
AT180,ST184..(CP,LB)..USA *H,L=440,NO.2 |
1 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,COLD SPEC,NO.2,NO.3 |
2 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,COLD SPEC,NO.2,NO.3 |
1 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA *H,L=130,NO.3,NO.4,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA *H,L=190,NO.3 & NO.4 |
2 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,NO.3,NO.4 |
2 | ||
| 90099-33827 |
AT180,ST184..(CP,LB)..USA L=420,COLD SPEC,NO.1 |
1 | ||
| 90446-07001 |
AT180,ST184..(CP,LB)..USA NO.2 |
1 | ||
| 90099-33299 |
AT180,ST184..(CP,LB)..USA L=1000,NO.1 |
1 | ||
| 90099-33299 |
AT180,ST184..(CP,LB)..USA *H,L=440,NO.2 |
1 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,COLD SPEC,NO.2,NO.3 |
2 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA L=1450,COLD SPEC,NO.2,NO.3 |
1 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA *H,L=130,NO.3,NO.4,NO.2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AT180,ST184 *H,L=580,LH,RH |
1 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA *H,L=580,LH,RH |
1 | ||
| 90099-33080 |
ST184..LB..USA L=1450,COLD SPEC OR W(REAR WINDOW WIPER),LH,RH |
1 | ||
| 90099-33080 |
AT180,ST18# L=1450,LH,RH |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AT180,ST184 *H,L=580,LH,RH |
1 | ||
| 90099-33080 |
AT180,ST184..(CP,LB)..USA *H,L=580,LH,RH |
1 | ||
| 90099-33080 |
ST184..LB..USA L=1450,COLD SPEC OR W(REAR WINDOW WIPER),LH,RH |
1 | ||
| 90099-33080 |
AT180,ST18# L=1450,LH,RH |
1 | ||
| Common parts | ||||
| 85361-20600 | ||||
| 90469-07002 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
