ST184L-BLMVKA (1989)

Toyota Celica

Production Sep 1989 - Sep 1993
Engine 5SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

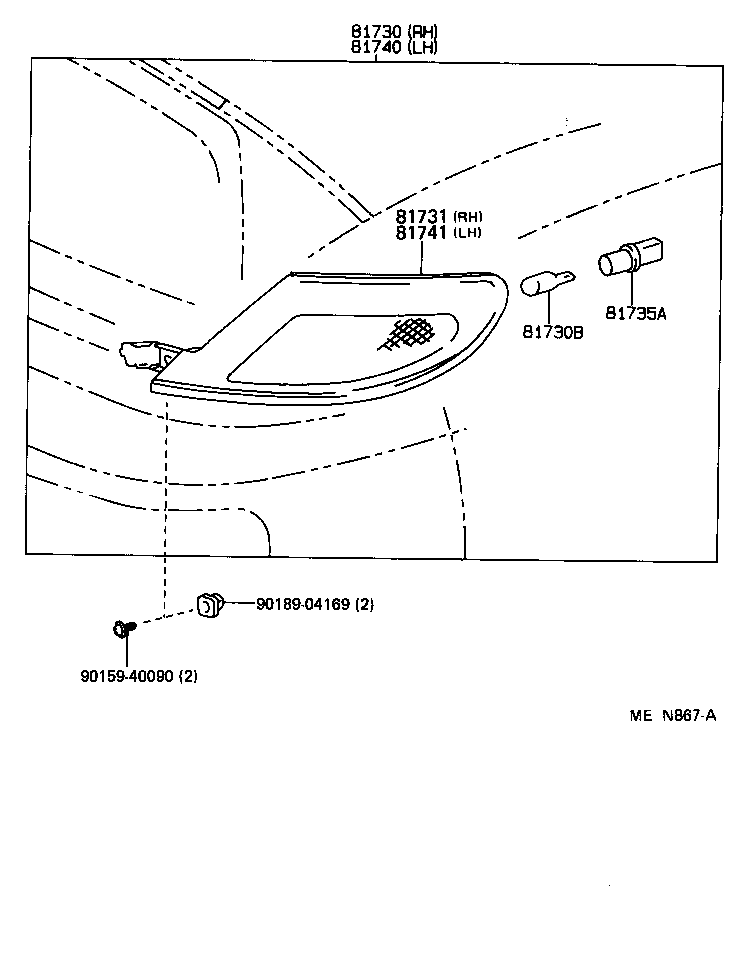

Click highlighted areas on diagram

diagram 81730 81730B 81731 81735A 81740 81741 9015940090 9018904169
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-20180

AT180,ST18#

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
90981-11020

AT180,ST18#

12V 3.8W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-20180

AT180,ST18#

 1
81735A - SOCKET & WIRE, SIDE TURN SIGNAL LAMP
81735-12180

AT180,ST18#

 2
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-20180

AT180,ST18#

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81741-20180

AT180,ST18#

 1
Common parts
90159-40090
90189-04169
