ST184L-BLMVKA (1989)
Toyota Celica
Production
Sep 1989
-
Sep 1993
Engine
5SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8909- )

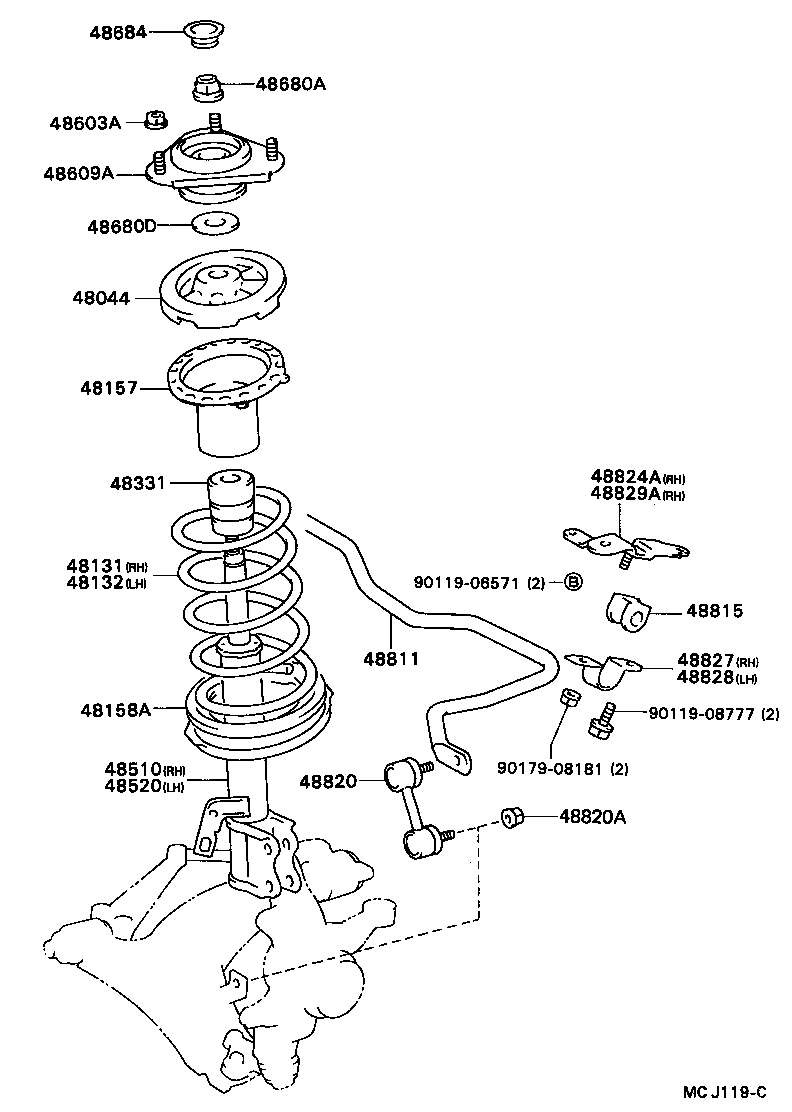

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48044-20030 |
AT180,ST18# |
2 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-2M180 |
ST184..MTM..GTS |
1 | ||
| 48131-2H370 |
ST184..(CP,LB)..MTM..GT |
1 | ||
| 48131-2M420 |
ST184..(CP,LB)..MTM..GT |
1 | ||
| 48131-2M490 |
ST184..MTM..GTS |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-2H370 |
ST184..(CP,LB)..MTM..GT |
1 | ||
| 48131-2M180 |
ST184..MTM..GTS |
1 | ||
| 48131-2M490 |
ST184..MTM..GTS |
1 | ||
| 48131-2M420 |
ST184..(CP,LB)..MTM..GT |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-20090 |
AT180,ST18# |
2 | ||
| 48158A - INSULATOR, FRONT COIL SPRING, LOWER | ||||
| 48158-32020 |
AT180,ST18# |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-12130 |
AT180,ST18# |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-20750 |
ST184..GTS |
1 | ||
| 48510-20680 |
ST184 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-20680 |
ST184 |
1 | ||
| 48520-20750 |
ST184..GTS |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-10143 |
AT180,ST18# |
6 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-20240 |
AT180,ST18# |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
AT180,ST18# |
2 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
AT180,ST18# |
2 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-32010 |
AT180,ST18# |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-20560 |
ST184..GT;AT180,ST184..ATM..(GTS,ST) |
1 | ||
| 48811-20580 |
ST184..MTM..GTS |
1 | ||
| 48811-20580 |
ST184..(CP,LB)..GT |
1 | ||
| 48811-20690 |
ST184..GTS |
1 | ||
| 48811-20580 |
ST184..GT |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-20200 |
ST184..GT;AT180,ST184..ATM..(GTS,ST) |
2 | ||
| 48815-20210 |
ST18#..WIB..MTM |
2 | ||
| 48815-20210 |
ST184..(CP,LB)..GT |
2 | ||
| 48815-20170 |
ST184..GTS |
1 | ||
| 48815-20210 |
ST184..GT |
2 | ||
| 48820 - LINK ASSY, FRONT STABILIZER | ||||
| 48820-20010 |
AT180,ST184 |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10054 |
AT180,ST18# |
4 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-20070 |
AT180,ST18# |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-20010 |
AT180,ST18# |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48827-20010 |
AT180,ST18# |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48829-20010 |
AT180,ST18# |
1 | ||
| Common parts | ||||
| 90119-06571 | ||||
| 90119-08777 | ||||
| 90179-08181 | ||||
