ST184L-BLMGKK (1989)
Toyota Celica
Production
Sep 1989
-
Sep 1993
Engine
5SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

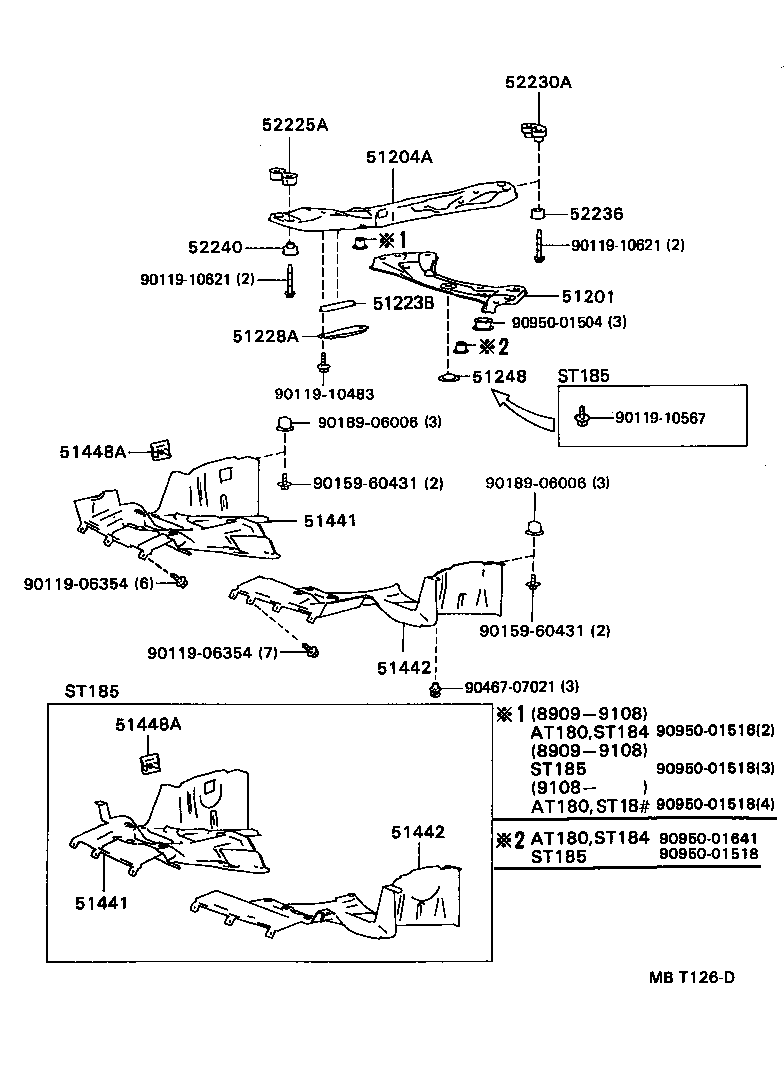

ILLUST NO. 1 OF 2(8909- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-20240 |
AT180,ST184 |
1 | ||
| 51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER | ||||
| 51204-20100 |
AT180,ST184 |
1 | ||
| 51204-20101 |
AT180,ST184 |
1 | ||
| 51223B - COVER, ENGINE MOUNTING HOLE | ||||
| 51223-20020 |
AT180,ST184 L=102.5 |
2 | ||
| 51223-20030 |
AT180,ST184 L=102.5 |
2 | ||
| 51223-20030 |
AT180,ST18# L=104 |
2 | ||
| 51223-20030 |
AT180,ST184 L=104 |
2 | ||
| 51223-20020 |
AT180,ST184..CP,LB L=102.5 |
2 | ||
| 51228A - WEIGHT, FRONT SUSPENSION MEMBER DAMPER, LH | ||||
| 51228-20050 |
AT180,ST18# |
1 | ||
| 51248 - SPACER, FLAME CROSSMEMBER | ||||
| 51248-32010 |
AT180,ST184 |
2 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-20231 |
AT180,ST184..NOB |
1 | ||
| 51441-20231 |
AT180,ST184 |
1 | ||
| 51441-20230 |
AT180,ST184 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-20231 |
AT180,ST184..NOB |
1 | ||
| 51441-20231 |
AT180,ST184 |
1 | ||
| 51441-20230 |
AT180,ST184 |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-20222 |
AT180,ST184..MTM |
1 | ||
| 51442-20220 |
AT180,ST184..MTM |
1 | ||
| 51442-20222 |
AT180,ST184..NOB..MTM |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-20222 |
AT180,ST184..MTM |
1 | ||
| 51442-20220 |
AT180,ST184..MTM |
1 | ||
| 51442-20222 |
AT180,ST184..NOB..MTM |
1 | ||
| 51448A - COVER, ENGINE SIDE UNDER, RH | ||||
| 51448-20030 |
AT180,ST18# |
1 | ||
| 51448A - COVER, ENGINE SIDE UNDER, RH | ||||
| 51448-20030 |
AT180,ST18# |
1 | ||
| 52225A - CUSHION, CENTER MEMBER MOUNTING, FRONT UPPER | ||||
| 52225-20040 |
AT180,ST184 |
1 | ||
| 52230A - CUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER | ||||
| 52230-20050 |
AT180,ST184 |
1 | ||
| 52236 - CUSHION, CENTER MEMBER MOUNTING, REAR LOWER | ||||
| 52236-20040 |
AT180,ST184 |
2 | ||
| 52240 - CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT LOWER | ||||
| 52240-20040 |
AT180,ST184 |
2 | ||
| Common parts | ||||
| 90119-06354 | ||||
| 90119-10483 | ||||
| 90119-10567 | ||||
| 90119-10621 | ||||
| 90159-60431 | ||||
| 90189-06006 | ||||
| 90467-07021 | ||||
| 90950-01504 | ||||
| 90950-01516 | ||||
| 90950-01518 | ||||
| 90950-01641 | ||||
