ST184L-BCPGKK (1989)
Toyota Celica

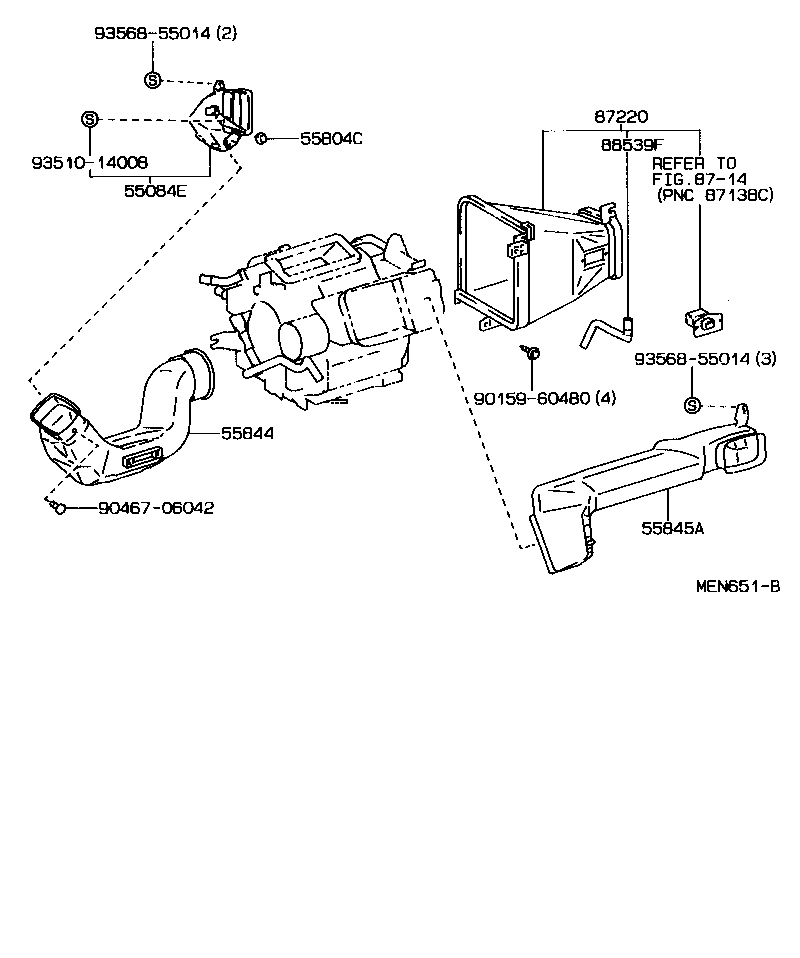

ILLUST NO. 2 OF 3(8909- )
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-20160 |
AT180,ST18# |
1 | ||
| 55804C - KNOB SUB-ASSY, AIR DAMPER CONTROL | ||||
| 55804-20050 |
AT180,ST18# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-20200 |
AT180,ST18# |
1 | ||
| 55844-20210 |
AT180,ST18# W(AIR CONDITIONER) |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-20190 |
AT180,ST18# |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-20130 |
ST18# |
1 | ||
| 87220-20131 |
ST18# |
1 | ||
| 87220-20131 |
AT180,ST18# |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-20190 |
AT180,ST18# |
1 | ||
| Common parts | ||||
| 90159-60480 | ||||
| 90467-06042 | ||||
| 93510-14008 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8714 | ||||

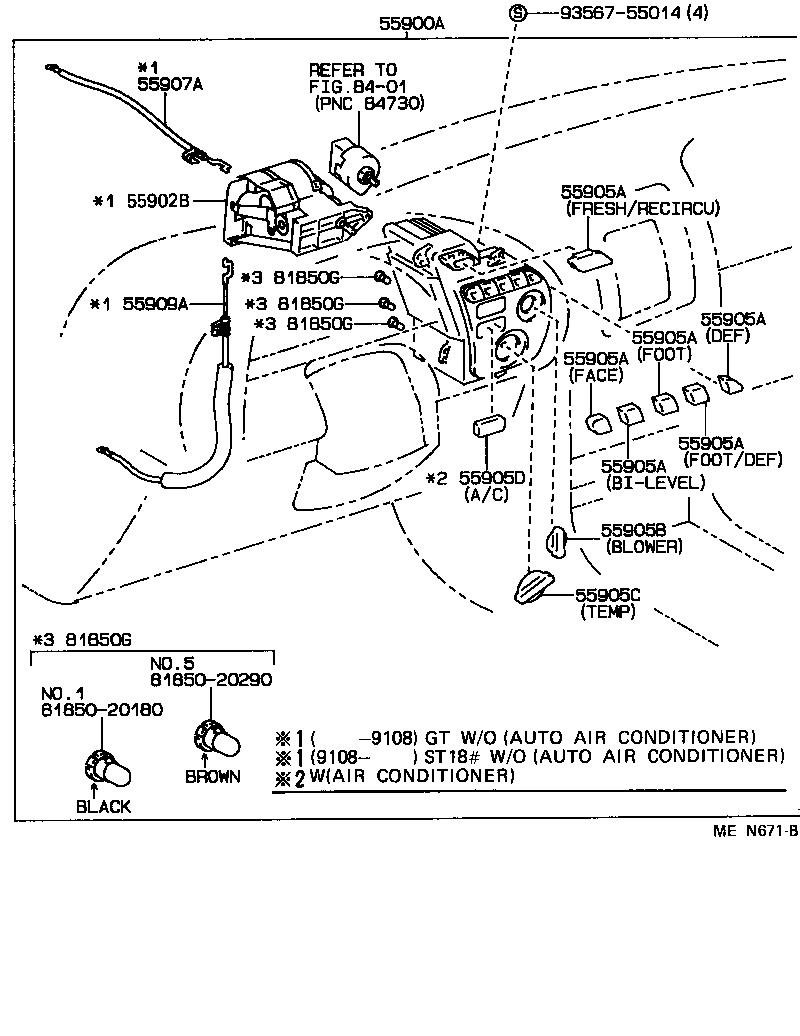

ILLUST NO. 1 OF 3(8909-9108)NOB ; (9108- )
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-20710 |
AT180,ST184..NOB |
1 | ||
| 55900-20860 |
AT180,ST18#..CP,LB |
1 | ||
| 55900-20870 |
AT180,ST18#..CP,LB W(MANUAL AIR CONDITIONER) |
1 | ||
| 55900-20720 |
AT180,ST184..NOB W(MANUAL AIR CONDITIONER) |
1 | ||
| 55900-20870 |
AT180,ST18# W(MANUAL AIR CONDITIONER) |
1 | ||
| 55900-20871 |
AT180,ST18# W(MANUAL AIR CONDITIONER) |
1 | ||
| 55900-20860 |
AT180,ST18# |
1 | ||
| 55900-20740 |
ST184..GT..CND W(AUTOMATIC AIR CONDITIONER) |
1 | ||
| 55900-20740 |
ST18#..CND W(AUTOMATIC AIR CONDITIONER) |
1 | ||
| 55900-20861 |
AT180,ST18# |
1 | ||
| 55900-20741 |
ST18#..CND W(AUTOMATIC AIR CONDITIONER) |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-20130 |
AT180,ST18# |
1 | ||
| 55902-20080 |
AT180,ST184..NOB |
1 | ||
| 55902-20130 |
AT180,ST18#..CP,LB |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20490 |
AT180,ST18#..CP,LB FRESH/RECIRCH |
1 | ||
| 55905-20540 |
AT180,ST18# DEF |
1 | ||
| 55905-20490 |
AT180,ST18# FRESH/RECIRCU |
1 | ||
| 55905-20510 |
AT180,ST18# BI-LEVEL |
1 | ||
| 55905-20520 |
AT180,ST18# FOOT |
1 | ||
| 55905-20490 |
AT180,ST18# FRESH/RECIRCH |
1 | ||
| 55905-20500 |
AT180,ST18# FACE |
1 | ||
| 55905-20530 |
AT180,ST18# FOOT/DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20490 |
AT180,ST18#..CP,LB FRESH/RECIRCH |
1 | ||
| 55905-20540 |
AT180,ST18# DEF |
1 | ||
| 55905-20490 |
AT180,ST18# FRESH/RECIRCU |
1 | ||
| 55905-20510 |
AT180,ST18# BI-LEVEL |
1 | ||
| 55905-20520 |
AT180,ST18# FOOT |
1 | ||
| 55905-20490 |
AT180,ST18# FRESH/RECIRCH |
1 | ||
| 55905-20500 |
AT180,ST18# FACE |
1 | ||
| 55905-20530 |
AT180,ST18# FOOT/DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20490 |
AT180,ST18#..CP,LB FRESH/RECIRCH |
1 | ||
| 55905-20540 |
AT180,ST18# DEF |
1 | ||
| 55905-20490 |
AT180,ST18# FRESH/RECIRCU |
1 | ||
| 55905-20510 |
AT180,ST18# BI-LEVEL |
1 | ||
| 55905-20520 |
AT180,ST18# FOOT |
1 | ||
| 55905-20490 |
AT180,ST18# FRESH/RECIRCH |
1 | ||
| 55905-20500 |
AT180,ST18# FACE |
1 | ||
| 55905-20530 |
AT180,ST18# FOOT/DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20490 |
AT180,ST18#..CP,LB FRESH/RECIRCH |
1 | ||
| 55905-20540 |
AT180,ST18# DEF |
1 | ||
| 55905-20490 |
AT180,ST18# FRESH/RECIRCU |
1 | ||
| 55905-20510 |
AT180,ST18# BI-LEVEL |
1 | ||
| 55905-20520 |
AT180,ST18# FOOT |
1 | ||
| 55905-20490 |
AT180,ST18# FRESH/RECIRCH |
1 | ||
| 55905-20500 |
AT180,ST18# FACE |
1 | ||
| 55905-20530 |
AT180,ST18# FOOT/DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20490 |
AT180,ST18#..CP,LB FRESH/RECIRCH |
1 | ||
| 55905-20540 |
AT180,ST18# DEF |
1 | ||
| 55905-20490 |
AT180,ST18# FRESH/RECIRCU |
1 | ||
| 55905-20510 |
AT180,ST18# BI-LEVEL |
1 | ||
| 55905-20520 |
AT180,ST18# FOOT |
1 | ||
| 55905-20490 |
AT180,ST18# FRESH/RECIRCH |
1 | ||
| 55905-20500 |
AT180,ST18# FACE |
1 | ||
| 55905-20530 |
AT180,ST18# FOOT/DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-20490 |
AT180,ST18#..CP,LB FRESH/RECIRCH |
1 | ||
| 55905-20540 |
AT180,ST18# DEF |
1 | ||
| 55905-20490 |
AT180,ST18# FRESH/RECIRCU |
1 | ||
| 55905-20510 |
AT180,ST18# BI-LEVEL |
1 | ||
| 55905-20520 |
AT180,ST18# FOOT |
1 | ||
| 55905-20490 |
AT180,ST18# FRESH/RECIRCH |
1 | ||
| 55905-20500 |
AT180,ST18# FACE |
1 | ||
| 55905-20530 |
AT180,ST18# FOOT/DEF |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-20660 |
ST18# W(AUTO A/C),BLOWER SWITCH |
1 | ||
| 55905-20660 |
AT180,ST18# BLOWER SWITCH |
1 | ||
| 55905-20660 |
AT180,ST18# BLOWER SWITCH |
1 | ||
| 55905-20660 |
AT180,ST184..NOB BLOWER SWITCH |
1 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-20680 |
AT180,ST18#..CP,LB TEMP |
1 | ||
| 55905-20680 |
AT180,ST184..NOB TEMP |
1 | ||
| 55905-20680 |
AT180,ST18# TEMP |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-20420 |
AT180,ST18# A/C |
1 | ||
| 55905-20420 |
ST18# A/C |
1 | ||
| 55905-20420 |
AT180,ST18# A/C |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-20250 |
AT180,ST184..NOB |
1 | ||
| 55907-20250 |
AT180,ST18# |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-20160 |
AT180,ST18#..CP,LB |
1 | ||
| 55909-20110 |
AT180,ST184..NOB |
1 | ||
| 55909-20160 |
AT180,ST18# |
1 | ||
| 81850G - LAMP ASSY, INDICATOR | ||||
| 81850-20180 |
AT180,ST184..NOB NO.1 |
3 | ||
| 81850-20290 |
AT180,ST184..NOB NO.5 |
1 | ||
| 81850-20180 |
AT180,ST18# NO.1 |
3 | ||
| 81850-20290 |
AT180,ST18# NO.5 |
1 | ||
| 81850G - LAMP ASSY, INDICATOR | ||||
| 81850-20180 |
AT180,ST184..NOB NO.1 |
3 | ||
| 81850-20290 |
AT180,ST184..NOB NO.5 |
1 | ||
| 81850-20180 |
AT180,ST18# NO.1 |
3 | ||
| 81850-20290 |
AT180,ST18# NO.5 |
1 | ||
| 81850G - LAMP ASSY, INDICATOR | ||||
| 81850-20180 |
AT180,ST184..NOB NO.1 |
3 | ||
| 81850-20290 |
AT180,ST184..NOB NO.5 |
1 | ||
| 81850-20180 |
AT180,ST18# NO.1 |
3 | ||
| 81850-20290 |
AT180,ST18# NO.5 |
1 | ||
| 81850G - LAMP ASSY, INDICATOR | ||||
| 81850-20180 |
AT180,ST184..NOB NO.1 |
3 | ||
| 81850-20290 |
AT180,ST184..NOB NO.5 |
1 | ||
| 81850-20180 |
AT180,ST18# NO.1 |
3 | ||
| 81850-20290 |
AT180,ST18# NO.5 |
1 | ||
| Common parts | ||||
| 81850-20180 | ||||
| 81850-20290 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

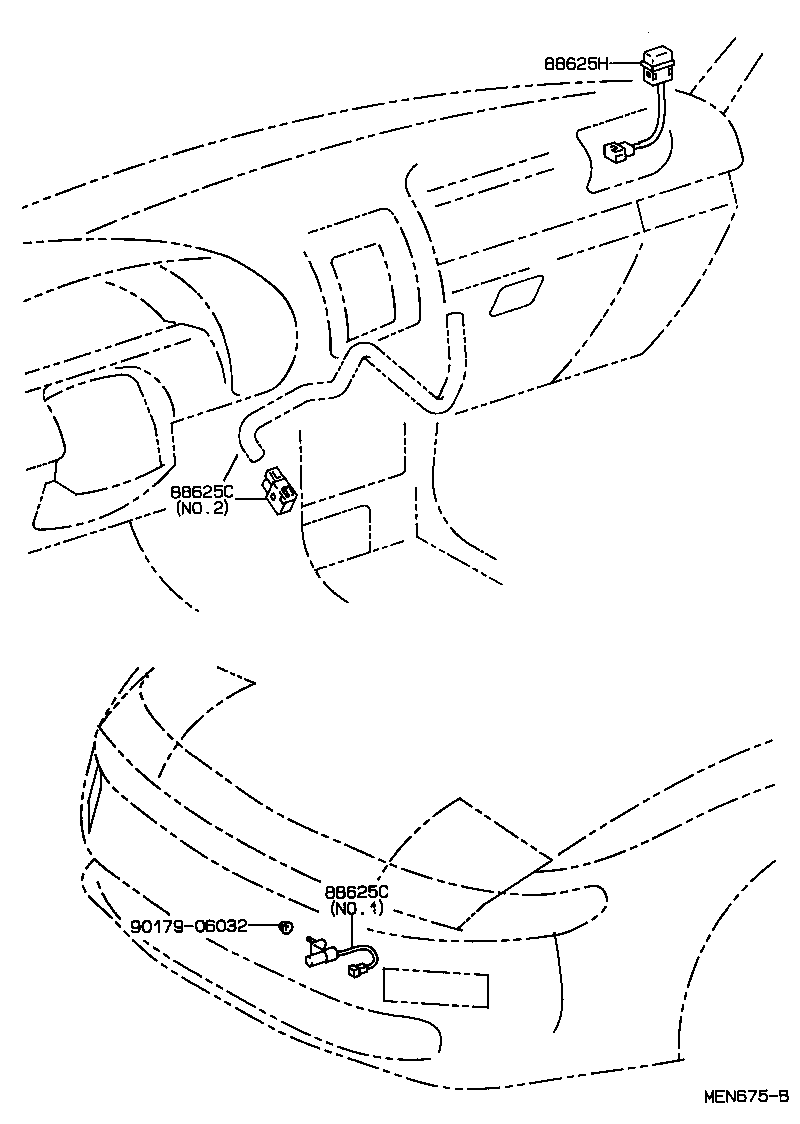

ILLUST NO. 3 OF 3(8909- )ST18#
AUTO AIR CONDITIONER SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-20252 |
ST18# NO.1 |
1 | ||
| 88625-20251 |
ST18# NO.1 |
1 | ||
| 88625-20260 |
ST18# NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-20252 |
ST18# NO.1 |
1 | ||
| 88625-20251 |
ST18# NO.1 |
1 | ||
| 88625-20260 |
ST18# NO.2 |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-20321 |
ST18#..CP,LB |
1 | ||
| 88625-20240 |
ST18# |
1 | ||
| 88625-20321 |
ST18# |
1 | ||
| Common parts | ||||
| 90179-06032 | ||||
