ST184L-BCPGKK (1989)

Toyota Celica

Production Sep 1989 - Sep 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )5SFE

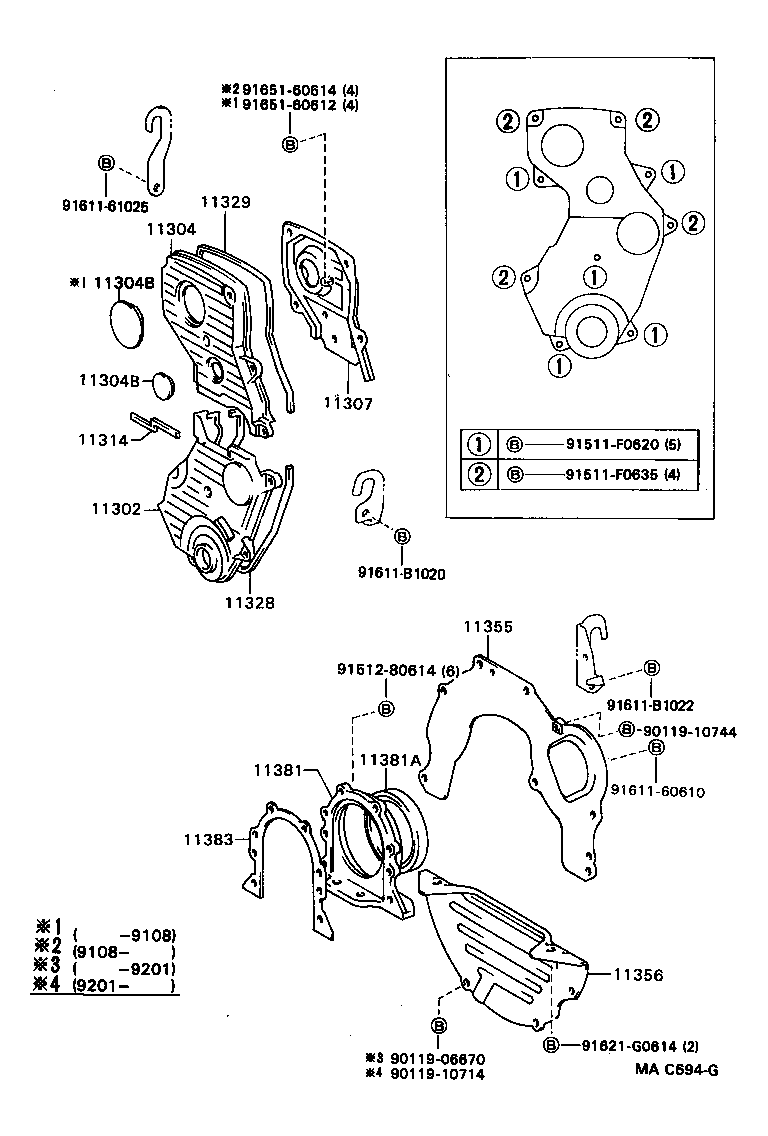

Click highlighted areas on diagram

diagram 11302 11304 11304B 11304B 11307 11314 11328 11329 11355 11356 11381 11381A 11383 9011906670 9011910714 9011910744 91511F0620 91511F0635 9151280614 9161160610 9161161025 91611B1020 91611B1022 91621G0614 9165160612 9165160614
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-74011

5SFE..ST184

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11303-74030

5SFE..ST184

 1
11303-74030

5SFE..ST184..CP,LB

 1
11303-74010

5SFE..ST184

 1
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01489

5SFE..ST184

OD=33

 1
90950-01497

5SFE..ST184

OD=76

 1
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01489

5SFE..ST184

OD=33

 1
90950-01497

5SFE..ST184

OD=76

 1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11304-74030

5SFE..ST184..CP,LB

 1
11304-74030

5SFE..ST184

 1
11304-74010

5SFE..ST184

 1
11314 - GASKET, TIMING CHAIN NO.2 COVER
11319-63010

5SFE..ST184

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-74010

5SFE..ST184

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-74050

5SFE..ST184..CP,LB

 1
11329-74050

5SFE..ST184

 1
11329-74010

5SFE..ST184

 1
11355 - PLATE, REAR END
11355-74010

5SFE..ST184

 1
11356 - PLATE, REAR END, NO.2
11356-74030

3SGTE,5SFE..ST18#

 1
11356-63031

3SGTE,5SFE..ST18#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-63012

3SGTE,5SFE..ST18#

 1
11381A - SEAL, ENGINE REAR OIL
90311-85003

5SFE..ST184

 1
90311-85006

5SFE..ST184

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-63011

5SFE..ST184

 1
11383-74021

5SFE..ST184

 1
11383-74020

5SFE..ST184

 1
Common parts
90119-06670
90119-10714
90119-10744
91511-F0620
91511-F0635
91512-80614
91611-60610
91611-61025
91611-B1020
91611-B1022
91621-G0614
91651-60612
91651-60614
