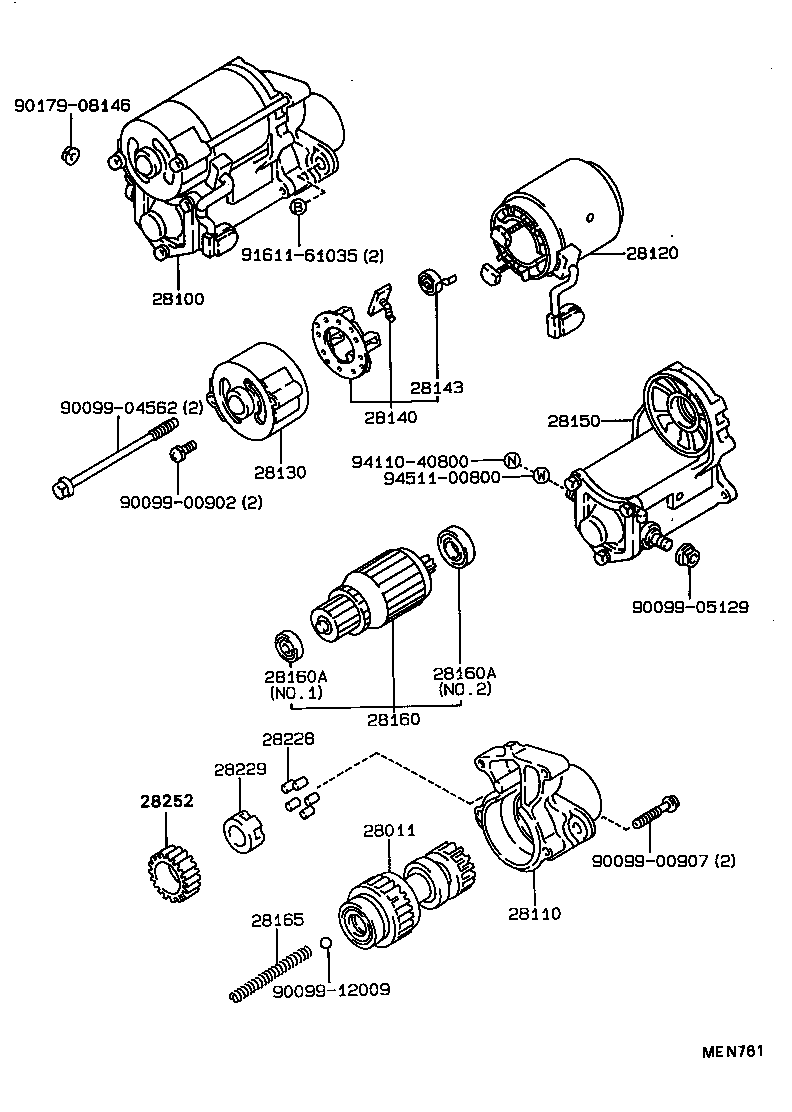

ST184L-BCPGKA (1989)
Toyota Celica
(8909- )5SFE..USA
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-74011 |
3SGTE,5SFE..ST18#..(CP,LB)..USA |
1 | ||
| 28011-74060 |
3SGTE,5SFE..ST18# |
1 | ||
| 28011-74060 |
3SGTE,5SFE..ST18#..(CP,LB)..USA COLD SPEC |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-74050 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W 12V 1.6KW |
1 | ||
| 28100-74050 |
3SGTE,5SFE..ST18#..(CP,LB)..USA 12V 1.6KW,COLD SPEC |
1 | ||
| 28100-74011 |
5SFE..ST184..(CP,LB)..USA 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-62020 |
3SGTE,5SFE..ST18#..(CP,LB)..USA COLD SPEC |
1 | ||
| 28110-74010 |
5SFE..ST184..(CP,LB)..USA |
1 | ||
| 28110-62020 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
4AFE,3SGTE,5SFE..AT180,ST18#..CP,LB |
1 | ||
| 28120-65030 |
3SGTE,5SFE..ST18#..(CP,LB)..USA COLD SPEC |
1 | ||
| 28120-65030 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-74010 |
3SGTE,5SFE..ST18#..CP,LB |
1 | ||
| 28130-62020 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W |
1 | ||
| 28130-62020 |
3SGTE,5SFE..ST18#..(CP,LB)..USA COLD SPEC |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-74020 |
3SGTE,5SFE..ST18#..CP,LB COLD SPEC |
1 | ||
| 28140-74020 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W |
1 | ||
| 28140-74010 |
3SGTE,5SFE..ST18#..(CP,LB)..USA |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
4AFE,3SGTE,5SFE..AT180,ST18# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-74010 |
3SGTE,5SFE..ST18#..(CP,LB)..USA |
1 | ||
| 28150-74020 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W |
1 | ||
| 28150-74020 |
3SGTE,5SFE..ST18#..(CP,LB)..USA COLD SPEC |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26071 |
4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA |
1 | ||
| 28160-65030 |
5SFE..ST184..USA COLD SPEC |
1 | ||
| 28160-65031 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W |
1 | ||
| 28160-65031 |
3SGTE,5SFE..ST18#..(CP,LB)..USA COLD SPEC |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA NO.2 |
1 | ||
| 28253-45020 |
4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA NO.1 |
1 | ||
| 90099-65030 |
3SGTE,5SFE..ST18#..(CP,LB)..USA COLD SPEC,NO.2 |
1 | ||
| 90099-10144 |
4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10144 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W NO.1 |
1 | ||
| 90099-10143 |
3SGTE,5SFE..ST18#..(CP,LB)..(GT,GTS,TBO4W) NO.2 |
1 | ||
| 90099-10143 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA NO.2 |
1 | ||
| 28253-45020 |
4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA NO.1 |
1 | ||
| 90099-65030 |
3SGTE,5SFE..ST18#..(CP,LB)..USA COLD SPEC,NO.2 |
1 | ||
| 90099-10144 |
4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10144 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W NO.1 |
1 | ||
| 90099-10143 |
3SGTE,5SFE..ST18#..(CP,LB)..(GT,GTS,TBO4W) NO.2 |
1 | ||
| 90099-10143 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-74010 |
3SGTE,5SFE..ST18# |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
4AFE,3SGTE,5SFE..AT180,ST18# |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
4AFE..AT180..USA;3SGTE,5SFE..ST18# |
1 | ||
| 28229-26040 |
4AFE,3SGTE,5SFE..AT180,ST18# |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
3SGTE,5SFE..ST18# |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91611-61035 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
(8909- )3SGTE,5SFE
12V 1.6KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-74011 |
3SGTE,5SFE..ST18#..(CP,LB)..USA |
1 | ||
| 28011-74060 |
3SGTE,5SFE..ST18# |
1 | ||
| 28011-74060 |
3SGTE,5SFE..ST18#..(CP,LB)..USA COLD SPEC |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-74050 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W 12V 1.6KW |
1 | ||
| 28100-74050 |
3SGTE,5SFE..ST18#..(CP,LB)..USA 12V 1.6KW,COLD SPEC |
1 | ||
| 28100-74011 |
5SFE..ST184..(CP,LB)..USA 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-62020 |
3SGTE,5SFE..ST18#..(CP,LB)..USA COLD SPEC |
1 | ||
| 28110-74010 |
5SFE..ST184..(CP,LB)..USA |
1 | ||
| 28110-62020 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
4AFE,3SGTE,5SFE..AT180,ST18#..CP,LB |
1 | ||
| 28120-65030 |
3SGTE,5SFE..ST18#..(CP,LB)..USA COLD SPEC |
1 | ||
| 28120-65030 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA COLD SPEC |
2 | ||
| 90099-14064 |
5SFE..ST184;4AFE,3SGTE..AT180,ST185..CND |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA COLD SPEC |
2 | ||
| 90099-14064 |
5SFE..ST184;4AFE,3SGTE..AT180,ST185..CND |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-74010 |
3SGTE,5SFE..ST18#..CP,LB |
1 | ||
| 28130-62020 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W |
1 | ||
| 28130-62020 |
3SGTE,5SFE..ST18#..(CP,LB)..USA COLD SPEC |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-74020 |
3SGTE,5SFE..ST18#..CP,LB COLD SPEC |
1 | ||
| 28140-74020 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W |
1 | ||
| 28140-74010 |
3SGTE,5SFE..ST18#..(CP,LB)..USA |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
4AFE,3SGTE,5SFE..AT180,ST18# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-74010 |
3SGTE,5SFE..ST18#..(CP,LB)..USA |
1 | ||
| 28150-74020 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W |
1 | ||
| 28150-74020 |
3SGTE,5SFE..ST18#..(CP,LB)..USA COLD SPEC |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26071 |
4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA |
1 | ||
| 28160-65030 |
5SFE..ST184..USA COLD SPEC |
1 | ||
| 28160-65031 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W |
1 | ||
| 28160-65031 |
3SGTE,5SFE..ST18#..(CP,LB)..USA COLD SPEC |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA NO.2 |
1 | ||
| 28253-45020 |
4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA NO.1 |
1 | ||
| 90099-65030 |
3SGTE,5SFE..ST18#..(CP,LB)..USA COLD SPEC,NO.2 |
1 | ||
| 90099-10144 |
4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10144 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W NO.1 |
1 | ||
| 90099-10143 |
3SGTE,5SFE..ST18#..(CP,LB)..(GT,GTS,TBO4W) NO.2 |
1 | ||
| 90099-10143 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA NO.2 |
1 | ||
| 28253-45020 |
4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA NO.1 |
1 | ||
| 90099-65030 |
3SGTE,5SFE..ST18#..(CP,LB)..USA COLD SPEC,NO.2 |
1 | ||
| 90099-10144 |
4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10144 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W NO.1 |
1 | ||
| 90099-10143 |
3SGTE,5SFE..ST18#..(CP,LB)..(GT,GTS,TBO4W) NO.2 |
1 | ||
| 90099-10143 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-74010 |
3SGTE,5SFE..ST18# |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-15090 |
3SGTE,5SFE..ST18#..(CP,LB)..USA COLD SPEC |
1 | ||
| 28199-15090 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
4AFE,3SGTE,5SFE..AT180,ST18# |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
4AFE..AT180..USA;3SGTE,5SFE..ST18# |
1 | ||
| 28229-26040 |
4AFE,3SGTE,5SFE..AT180,ST18# |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-15090 |
3SGTE,5SFE..ST18#..GT,GTS,TBO4W |
1 | ||
| 28251-15090 |
4AFE,3SGTE,5SFE..AT180,ST18#..(CP,LB)..USA COLD SPEC |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
3SGTE,5SFE..ST18# |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91611-61035 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
