ST184L-BCMGKK (1989)
Toyota Celica

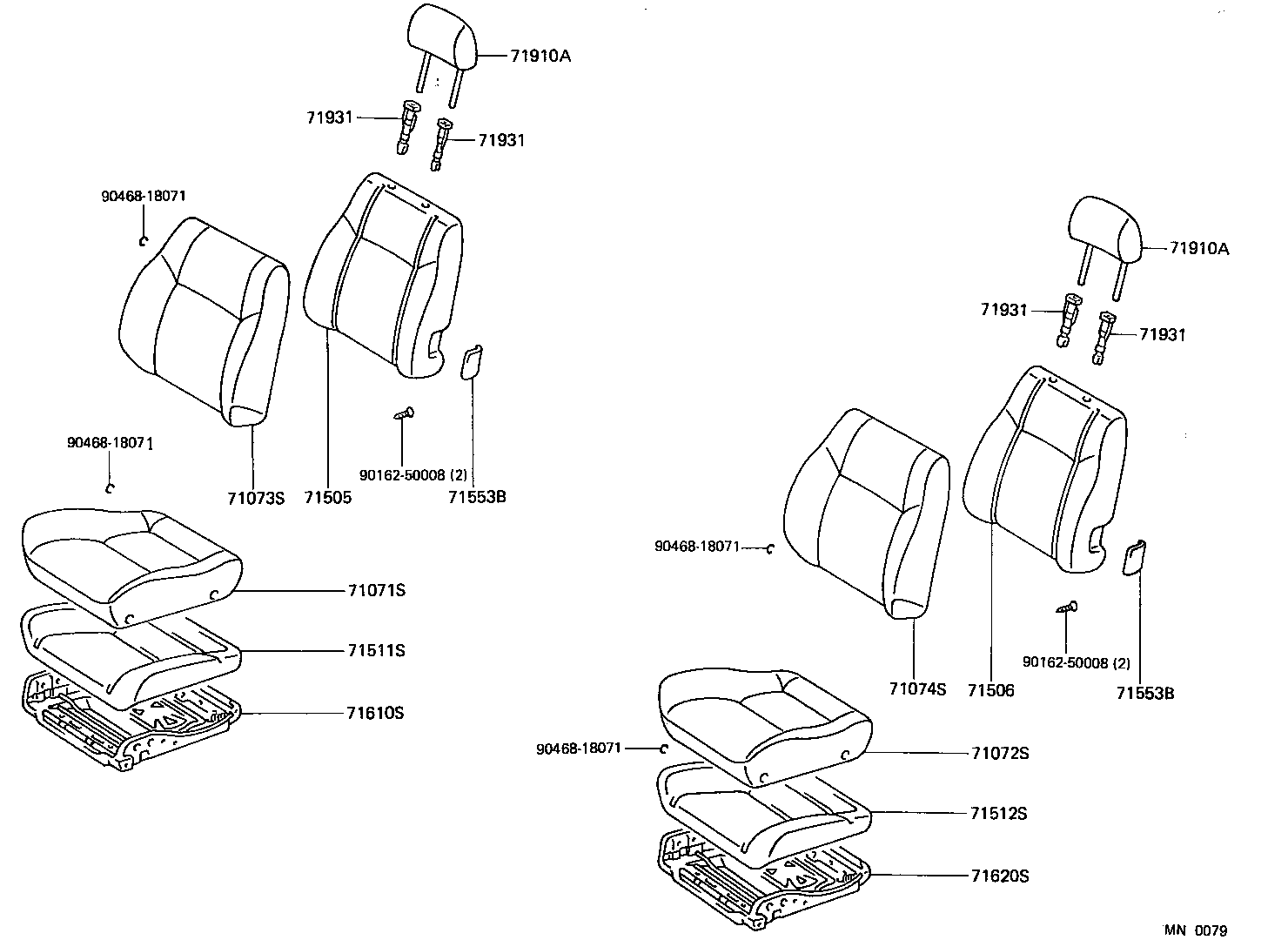

ILLUST NO. 1 OF 2(8909- )NOB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2D60002 |
ST184..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 71071-2D62002 |
ST184..CP;ST184..GTS W(LEATHER SEAT),RED,TRIM3# |
1 | ||
| 71071-2D60016 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71071-2D60004 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71071-2D60003 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2D62004 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-2D62006 |
ST184..CP;ST184..GTS W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71071-2D60106 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71071-2D60103 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2D62003 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2D60104 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71071-2D621B0 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2D621J0 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-2D602B0 |
ST184..(CP,LB)..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2D602J0 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71071-2D602B0 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2D17016 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71072-2D18002 |
ST184..CP;ST184..GTS W(LEATHER SEAT),RED,TRIM3# |
1 | ||
| 71072-2D17002 |
ST184..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 71072-2D17004 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71072-2D17003 |
ST184..(CP,LB)..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2D18006 |
ST184..CP;ST184..GTS W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71072-2D18004 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71072-2D17103 |
ST184..(CP,LB)..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2D172B0 |
ST184..(CP,LB)..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2D17106 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71072-2D17104 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71072-2D181B0 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2D18003 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2D181J0 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71072-2D172J0 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2D50002 |
ST184..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 71073-2D50004 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71073-2D52002 |
ST184..CP;ST184..GTS W(LEATHER SEAT),RED,TRIM3# |
1 | ||
| 71073-2D52003 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2D52004 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71073-2D50016 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71073-2D50003 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2D50204 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71073-2D52006 |
ST184..CP;ST184..GTS W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71073-2D50206 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71073-2D52003 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2D503B0 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2D503B0 |
ST184..(CP,LB)..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2D52004 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71073-2D503J0 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71073-2D50203 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2D20002 |
ST184..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 71074-2D22002 |
ST184..CP;ST184..GTS W(LEATHER SEAT),RED,TRIM3# |
1 | ||
| 71074-2D20004 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71074-2D20016 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71074-2D22003 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2D22004 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71074-2D22006 |
ST184..CP;ST184..GTS W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71074-2D20003 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2D20203 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2D503B0 |
ST184..(CP,LB)..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2D20204 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71074-2D20206 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71073-2D503B0 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2D503J0 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71074-2D221J0 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71074-2D221B0 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-20130 |
AT180,ST184..NOB |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71505-20130 |
AT180,ST184..NOB |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20581 |
AT180,ST184..(CP,LB)..NOB |
1 | ||
| 71511-20580 |
AT180,ST184..NOB |
1 | ||
| 71511-20581 |
AT180,ST184..NOB |
1 | ||
| 71511-20590 |
ST184..CP W(LEATHER SEAT) |
1 | ||
| 71511-20591 |
ST184..CP W(LEATHER SEAT) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20591 |
ST184..CP W(LEATHER SEAT) |
1 | ||
| 71511-20580 |
AT180,ST184..NOB |
1 | ||
| 71511-20581 |
AT180,ST184..(CP,LB)..NOB |
1 | ||
| 71511-20581 |
AT180,ST184..NOB |
1 | ||
| 71511-20590 |
ST184..CP W(LEATHER SEAT) |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20190 |
AT180,ST184..NOB |
4 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20190 |
AT180,ST184..NOB |
4 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20470 |
AT180,ST18# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-20460 |
ST18#..CP,LB |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B32002 |
ST184..(CP,LB)..GT RED,TRIM3# |
2 | ||
| 71910-2B32003 |
ST184..GT SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B32016 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71910-2B32004 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
2 | ||
| 71910-2B32106 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71910-2B34006 |
ST184..CP;ST184..GTS W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71910-2B34004 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71910-2B34002 |
ST184..CP;ST184..GTS W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71910-2B32103 |
ST184..GT SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B32104 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
2 | ||
| 71910-2B34003 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B34004 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71910-2B34003 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B32002 |
ST184..(CP,LB)..GT RED,TRIM3# |
2 | ||
| 71910-2B32003 |
ST184..GT SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B32016 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71910-2B32004 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
2 | ||
| 71910-2B32106 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71910-2B34006 |
ST184..CP;ST184..GTS W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71910-2B34004 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71910-2B34002 |
ST184..CP;ST184..GTS W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71910-2B32103 |
ST184..GT SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B32104 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
2 | ||
| 71910-2B34003 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B34004 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71910-2B34003 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-2011004 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011002 |
ST184..CP W(LOCK),W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71930-2011003 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006002 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71930-2204022 |
AT180,ST184..(CP,LB)..NOB W(LOCK),RED,TRIM3# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011026 |
ST184..CP W(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204026 |
AT180,ST184..(CP,LB)..NOB W(LOCK),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201012 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),RED,TRIM3# |
2 | ||
| 71930-2011003 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011004 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931-2006026 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201026 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2204014 |
AT180,ST184..(CP,LB)..NOB W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011104 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011106 |
ST184..CP W(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201013 |
AT180,ST184..NOB W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011103 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011103 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2201014 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011104 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204013 |
AT180,ST184..NOB W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-2011004 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011002 |
ST184..CP W(LOCK),W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71930-2011003 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006002 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71930-2204022 |
AT180,ST184..(CP,LB)..NOB W(LOCK),RED,TRIM3# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011026 |
ST184..CP W(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204026 |
AT180,ST184..(CP,LB)..NOB W(LOCK),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201012 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),RED,TRIM3# |
2 | ||
| 71930-2011003 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011004 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931-2006026 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201026 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2204014 |
AT180,ST184..(CP,LB)..NOB W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011104 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011106 |
ST184..CP W(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201013 |
AT180,ST184..NOB W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011103 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011103 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2201014 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011104 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204013 |
AT180,ST184..NOB W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-2011004 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011002 |
ST184..CP W(LOCK),W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71930-2011003 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006002 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71930-2204022 |
AT180,ST184..(CP,LB)..NOB W(LOCK),RED,TRIM3# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011026 |
ST184..CP W(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204026 |
AT180,ST184..(CP,LB)..NOB W(LOCK),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201012 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),RED,TRIM3# |
2 | ||
| 71930-2011003 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011004 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931-2006026 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201026 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2204014 |
AT180,ST184..(CP,LB)..NOB W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011104 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011106 |
ST184..CP W(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201013 |
AT180,ST184..NOB W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011103 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011103 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2201014 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011104 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204013 |
AT180,ST184..NOB W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-2011004 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011002 |
ST184..CP W(LOCK),W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71930-2011003 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006002 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71930-2204022 |
AT180,ST184..(CP,LB)..NOB W(LOCK),RED,TRIM3# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011026 |
ST184..CP W(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204026 |
AT180,ST184..(CP,LB)..NOB W(LOCK),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201012 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),RED,TRIM3# |
2 | ||
| 71930-2011003 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011004 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931-2006026 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201026 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2204014 |
AT180,ST184..(CP,LB)..NOB W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011104 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011106 |
ST184..CP W(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201013 |
AT180,ST184..NOB W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011103 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011103 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2201014 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011104 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204013 |
AT180,ST184..NOB W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90162-50008 | ||||
| 90468-18071 | ||||

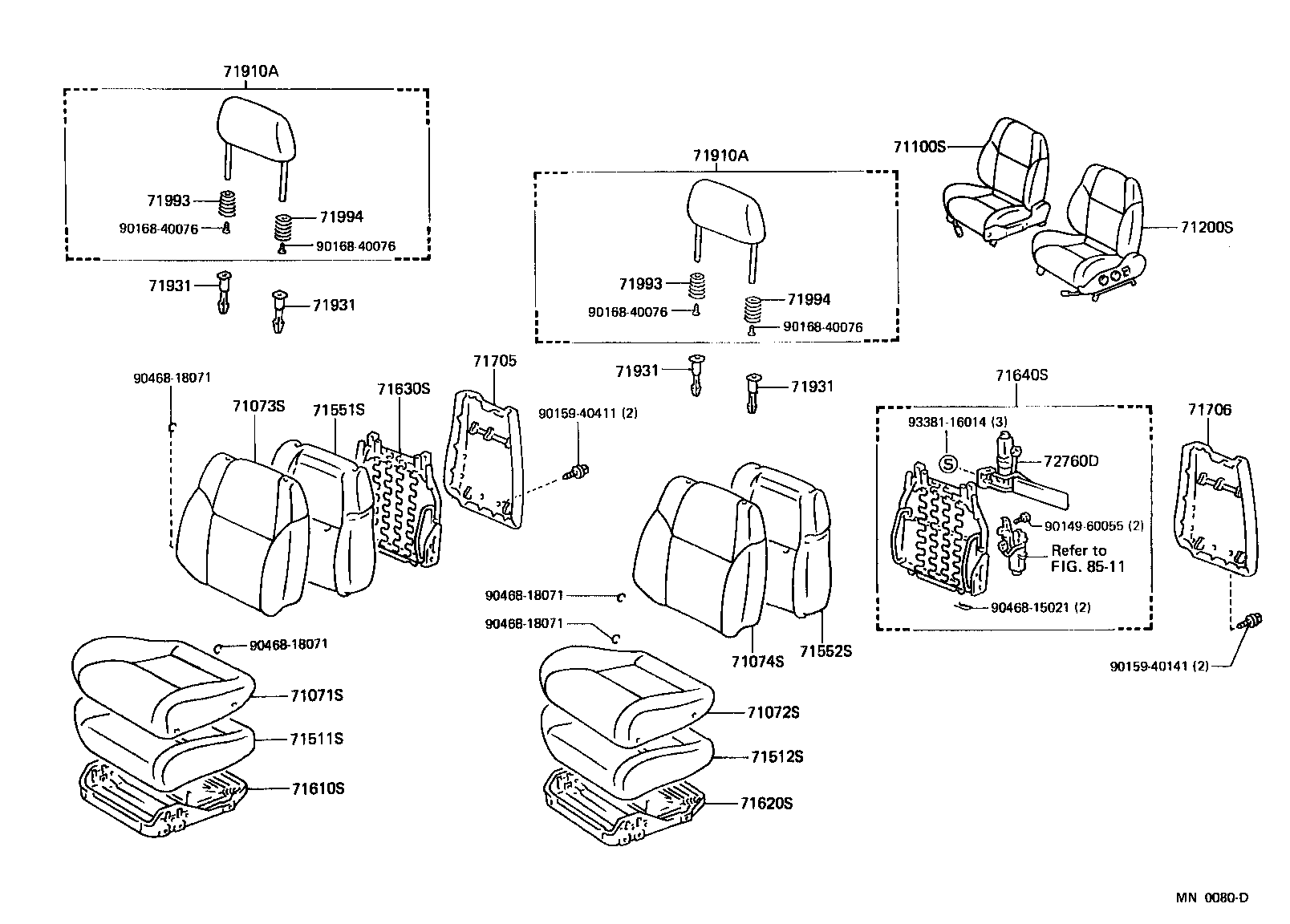

ILLUST NO. 1 OF 2(8909- )ST18#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2D60002 |
ST184..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 71071-2D62002 |
ST184..CP;ST184..GTS W(LEATHER SEAT),RED,TRIM3# |
1 | ||
| 71071-2D60016 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71071-2D60004 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71071-2D60003 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2D62004 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-2D62006 |
ST184..CP;ST184..GTS W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71071-2D60106 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71071-2D60103 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2D62003 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2D60104 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71071-2D621B0 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2D621J0 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-2D602B0 |
ST184..(CP,LB)..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2D602J0 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71071-2D602B0 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2D17016 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71072-2D18002 |
ST184..CP;ST184..GTS W(LEATHER SEAT),RED,TRIM3# |
1 | ||
| 71072-2D17002 |
ST184..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 71072-2D17004 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71072-2D17003 |
ST184..(CP,LB)..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2D18006 |
ST184..CP;ST184..GTS W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71072-2D18004 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71072-2D17103 |
ST184..(CP,LB)..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2D172B0 |
ST184..(CP,LB)..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2D17106 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71072-2D17104 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71072-2D181B0 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2D18003 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2D181J0 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71072-2D172J0 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2D50002 |
ST184..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 71073-2D50004 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71073-2D52002 |
ST184..CP;ST184..GTS W(LEATHER SEAT),RED,TRIM3# |
1 | ||
| 71073-2D52003 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2D52004 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71073-2D50016 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71073-2D50003 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2D50204 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71073-2D52006 |
ST184..CP;ST184..GTS W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71073-2D50206 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71073-2D52003 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2D503B0 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2D503B0 |
ST184..(CP,LB)..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2D52004 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71073-2D503J0 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71073-2D50203 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2D20002 |
ST184..(CP,LB)..GT RED,TRIM3# |
1 | ||
| 71074-2D22002 |
ST184..CP;ST184..GTS W(LEATHER SEAT),RED,TRIM3# |
1 | ||
| 71074-2D20004 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71074-2D20016 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71074-2D22003 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2D22004 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71074-2D22006 |
ST184..CP;ST184..GTS W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71074-2D20003 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2D20203 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2D503B0 |
ST184..(CP,LB)..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2D20204 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71074-2D20206 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71073-2D503B0 |
ST184..GT SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2D503J0 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
1 | ||
| 71074-2D221J0 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71074-2D221B0 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71010-2B50003 |
ST184..CP ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71010-2B50004 |
ST184..CP ***,DARK BLUE,TRIM8# |
1 | ||
| 71050-2B09006 |
ST184..CP ***,CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71010-2B50002 |
ST184..CP ***,RED,TRIM3# |
1 | ||
| 71050-2B09004 |
ST184..CP ***,DARK BLUE,TRIM8# |
1 | ||
| 71050-2B091J0 |
ST184..CP ***,DARK BLUE,TRIM8# |
1 | ||
| 71050-2B09003 |
ST184..CP ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71050-2B091B0 |
ST184..CP ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-2D05002 |
ST184..CP ***,RED,TRIM3# |
1 | ||
| 71200-2D05004 |
ST184..CP ***,DARK BLUE,TRIM8# |
1 | ||
| 71200-2D05003 |
ST184..CP ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71200-2D05006 |
ST184..CP ***,CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71200-2D051B0 |
ST184..CP ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71200-2D051J0 |
ST184..CP ***,DARK BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20581 |
AT180,ST184..(CP,LB)..NOB |
1 | ||
| 71511-20580 |
AT180,ST184..NOB |
1 | ||
| 71511-20581 |
AT180,ST184..NOB |
1 | ||
| 71511-20590 |
ST184..CP W(LEATHER SEAT) |
1 | ||
| 71511-20591 |
ST184..CP W(LEATHER SEAT) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20591 |
ST184..CP W(LEATHER SEAT) |
1 | ||
| 71511-20580 |
AT180,ST184..NOB |
1 | ||
| 71511-20581 |
AT180,ST184..(CP,LB)..NOB |
1 | ||
| 71511-20581 |
AT180,ST184..NOB |
1 | ||
| 71511-20590 |
ST184..CP W(LEATHER SEAT) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20420 |
ST184..CP;ST18#..WIB |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20420 |
ST184..CP;ST18#..WIB |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20470 |
AT180,ST18# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-20460 |
ST18#..CP,LB |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-20620 |
ST184..CP;ST18#..WIB |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-20610 |
ST184..CP |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-2015002 |
ST184..CP;ST18#..WIB RED,TRIM3# |
1 | ||
| 71705-2015003 |
ST184..CP;ST18#..WIB SHADOW GRAY,TRIM1# |
1 | ||
| 71705-2015016 |
ST184..CP;ST18#..WIB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71705-2015004 |
ST184..CP;ST18#..WIB DARK BLUE,TRIM8# |
1 | ||
| 71705-2015004 |
ST184..CP;ST184..GTS DARK BLUE,TRIM8# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-2015002 |
ST184..CP;ST18#..WIB RED,TRIM3# |
1 | ||
| 71705-2015004 |
ST184..CP;ST18#..WIB DARK BLUE,TRIM8# |
1 | ||
| 71705-2015004 |
ST184..CP;ST184..GTS DARK BLUE,TRIM8# |
1 | ||
| 71705-2015016 |
ST184..CP;ST18#..WIB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71705-2015003 |
ST184..CP;ST18#..WIB SHADOW GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B32002 |
ST184..(CP,LB)..GT RED,TRIM3# |
2 | ||
| 71910-2B32003 |
ST184..GT SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B32016 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71910-2B32004 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
2 | ||
| 71910-2B32106 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71910-2B34006 |
ST184..CP;ST184..GTS W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71910-2B34004 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71910-2B34002 |
ST184..CP;ST184..GTS W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71910-2B32103 |
ST184..GT SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B32104 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
2 | ||
| 71910-2B34003 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B34004 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71910-2B34003 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B32002 |
ST184..(CP,LB)..GT RED,TRIM3# |
2 | ||
| 71910-2B32003 |
ST184..GT SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B32016 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71910-2B32004 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
2 | ||
| 71910-2B32106 |
ST184..(CP,LB)..GT CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71910-2B34006 |
ST184..CP;ST184..GTS W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71910-2B34004 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71910-2B34002 |
ST184..CP;ST184..GTS W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71910-2B32103 |
ST184..GT SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B32104 |
ST184..(CP,LB)..GT DARK BLUE,TRIM8# |
2 | ||
| 71910-2B34003 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B34004 |
ST184..CP;ST184..GTS W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71910-2B34003 |
ST184..CP;ST18#..WIB W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-2011004 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011002 |
ST184..CP W(LOCK),W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71930-2011003 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006002 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71930-2204022 |
AT180,ST184..(CP,LB)..NOB W(LOCK),RED,TRIM3# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011026 |
ST184..CP W(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204026 |
AT180,ST184..(CP,LB)..NOB W(LOCK),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201012 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),RED,TRIM3# |
2 | ||
| 71930-2011003 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011004 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931-2006026 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201026 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2204014 |
AT180,ST184..(CP,LB)..NOB W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011104 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011106 |
ST184..CP W(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201013 |
AT180,ST184..NOB W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011103 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011103 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2201014 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011104 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204013 |
AT180,ST184..NOB W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-2011004 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011002 |
ST184..CP W(LOCK),W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71930-2011003 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006002 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71930-2204022 |
AT180,ST184..(CP,LB)..NOB W(LOCK),RED,TRIM3# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011026 |
ST184..CP W(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204026 |
AT180,ST184..(CP,LB)..NOB W(LOCK),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201012 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),RED,TRIM3# |
2 | ||
| 71930-2011003 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011004 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931-2006026 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201026 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2204014 |
AT180,ST184..(CP,LB)..NOB W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011104 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011106 |
ST184..CP W(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201013 |
AT180,ST184..NOB W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011103 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011103 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2201014 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011104 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204013 |
AT180,ST184..NOB W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-2011004 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011002 |
ST184..CP W(LOCK),W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71930-2011003 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006002 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71930-2204022 |
AT180,ST184..(CP,LB)..NOB W(LOCK),RED,TRIM3# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011026 |
ST184..CP W(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204026 |
AT180,ST184..(CP,LB)..NOB W(LOCK),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201012 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),RED,TRIM3# |
2 | ||
| 71930-2011003 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011004 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931-2006026 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201026 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2204014 |
AT180,ST184..(CP,LB)..NOB W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011104 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011106 |
ST184..CP W(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201013 |
AT180,ST184..NOB W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011103 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011103 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2201014 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011104 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204013 |
AT180,ST184..NOB W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-2011004 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011002 |
ST184..CP W(LOCK),W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71930-2011003 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006002 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),RED,TRIM3# |
2 | ||
| 71930-2204022 |
AT180,ST184..(CP,LB)..NOB W(LOCK),RED,TRIM3# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011026 |
ST184..CP W(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204026 |
AT180,ST184..(CP,LB)..NOB W(LOCK),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201012 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),RED,TRIM3# |
2 | ||
| 71930-2011003 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011004 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71931-2006026 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201026 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2204014 |
AT180,ST184..(CP,LB)..NOB W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011104 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011106 |
ST184..CP W(LOCK),W(LEATHER SEAT),CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71931-2201013 |
AT180,ST184..NOB W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011103 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006003 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-2011103 |
ST184..CP W(LOCK),W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2201014 |
AT180,ST184..(CP,LB)..NOB W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2011104 |
ST184..CP W(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204013 |
AT180,ST184..NOB W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-2006004 |
ST184..CP W/O(LOCK),W(LEATHER SEAT),DARK BLUE,TRIM8# |
2 | ||
| 71993 - BOOT, HEADREST STAY, RH | ||||
| 71993-2002016 |
ST184..CP;ST184..GTS CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71993-2002002 |
ST184..CP;ST18#..WIB RED,TRIM3# |
2 | ||
| 71993-2002003 |
ST184..CP;ST18#..WIB SHADOW GRAY,TRIM1# |
2 | ||
| 71993-2002004 |
ST184..CP;ST18#..WIB DARK BLUE,TRIM8# |
2 | ||
| 71993-2002004 |
ST184..CP;ST184..GTS DARK BLUE,TRIM8# |
2 | ||
| 71993 - BOOT, HEADREST STAY, RH | ||||
| 71993-2002016 |
ST184..CP;ST184..GTS CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71993-2002002 |
ST184..CP;ST18#..WIB RED,TRIM3# |
2 | ||
| 71993-2002003 |
ST184..CP;ST18#..WIB SHADOW GRAY,TRIM1# |
2 | ||
| 71993-2002004 |
ST184..CP;ST18#..WIB DARK BLUE,TRIM8# |
2 | ||
| 71993-2002004 |
ST184..CP;ST184..GTS DARK BLUE,TRIM8# |
2 | ||
| 71994 - BOOT, HEADREST STAY, LH | ||||
| 71994-2002004 |
ST184..CP;ST18#..WIB DARK BLUE,TRIM8# |
2 | ||
| 71994-2002004 |
ST184..CP DARK BLUE,TRIM8# |
2 | ||
| 71994-2002002 |
ST184..CP;ST18#..WIB RED,TRIM3# |
2 | ||
| 71994-2002004 |
ST184..CP;ST184..GTS DARK BLUE,TRIM8# |
2 | ||
| 71994-2002016 |
ST184..CP;ST18#..WIB CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71994-2002003 |
ST184..CP;ST18#..WIB SHADOW GRAY,TRIM1# |
2 | ||
| 71994 - BOOT, HEADREST STAY, LH | ||||
| 71994-2002004 |
ST184..CP;ST18#..WIB DARK BLUE,TRIM8# |
2 | ||
| 71994-2002004 |
ST184..CP DARK BLUE,TRIM8# |
2 | ||
| 71994-2002002 |
ST184..CP;ST18#..WIB RED,TRIM3# |
2 | ||
| 71994-2002004 |
ST184..CP;ST184..GTS DARK BLUE,TRIM8# |
2 | ||
| 71994-2002016 |
ST184..CP;ST18#..WIB CHOCOLATE BROWN,TRIM4# |
2 | ||
| 71994-2002003 |
ST184..CP;ST18#..WIB SHADOW GRAY,TRIM1# |
2 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72750-20070 |
ST184..CP;ST18#..WIB |
1 | ||
| Common parts | ||||
| 90149-60055 | ||||
| 90159-40141 | ||||
| 90159-40411 | ||||
| 90168-40076 | ||||
| 90468-15021 | ||||
| 90468-18071 | ||||
| 93381-16014 | ||||
| Linked diagrams | ||||
| 8511 | ||||

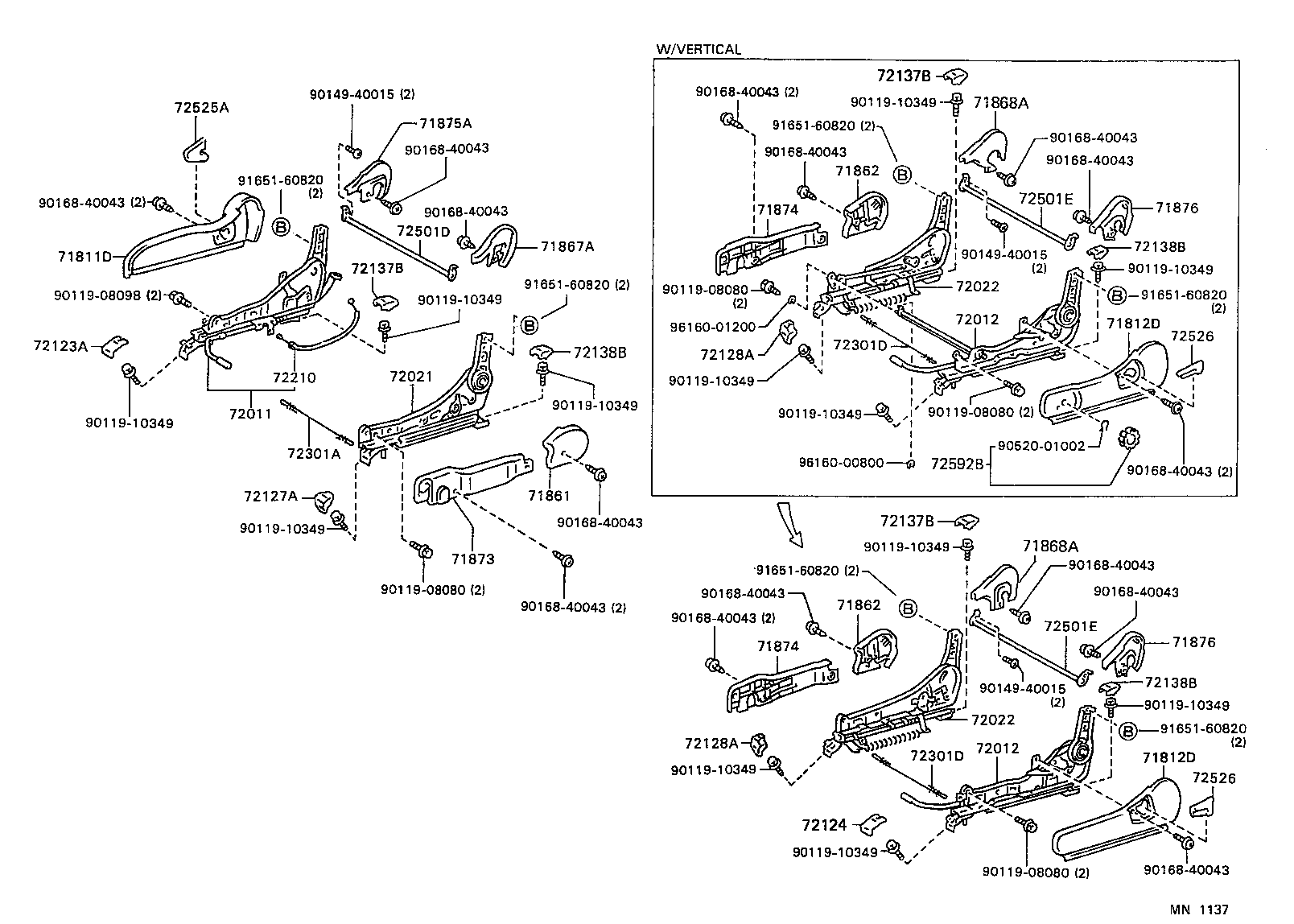

ILLUST NO. 2 OF 2(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2020002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 71811-2020004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71811-2020004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71811-2020003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-2020016 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2017002 |
ST18#..CP,LB RED,TRIM3# |
1 | ||
| 71812-2017016 |
ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71812-2017004 |
ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71812-2017003 |
ST18#..CP,LB SHADOW GRAY,TRIM1# |
1 | ||
| 71812-2017004 |
ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2017002 |
ST18#..CP,LB RED,TRIM3# |
1 | ||
| 71812-2017016 |
ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71812-2017004 |
ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71812-2017003 |
ST18#..CP,LB SHADOW GRAY,TRIM1# |
1 | ||
| 71812-2017004 |
ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2009004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71861-2009003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-2009004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71861-2009002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 71861-2009016 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2009002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 71862-2009003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-2009004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71862-2009026 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71862-2009004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2009002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 71862-2009003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-2009004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71862-2009026 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71862-2009004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-2001002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 71867-2001004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71867-2001016 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71867-2001004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71867-2001003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-2001003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 71868-2001026 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71868-2001004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71868-2001002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 71868-2001004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-2001003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 71868-2001026 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71868-2001004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71868-2001002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 71868-2001004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-20030 |
AT180,ST18# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-20030 |
AT180,ST18# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-20030 |
AT180,ST18# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-2002002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 71875-2002003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 71875-2002016 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71875-2002004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71875-2002004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-2002026 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71876-2002002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 71876-2002004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71876-2002003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 71876-2002004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-2002026 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 71876-2002002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 71876-2002004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 71876-2002003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 71876-2002004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20120 |
AT180,ST18#..CP,LB |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20170 |
ST18#..CP,LB |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20170 |
ST18#..CP,LB |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-20080 |
AT180,ST184..CP,LB |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-20120 |
ST184..CP,LB |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-20120 |
ST184..CP,LB |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-2012002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 72123-2012004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 72123-2012026 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 72123-2012004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 72123-2012003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-2004026 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 72127-2004002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 72127-2004004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 72127-2004003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 72127-2004004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-2003004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 72128-2003003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 72128-2003002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 72128-2003026 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 72128-2003004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-2003004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 72128-2003003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 72128-2003002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 72128-2003026 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 72128-2003004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-2005026 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
2 | ||
| 72137-2005004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
2 | ||
| 72137-2005002 |
AT180,ST18#..CP,LB RED,TRIM3# |
2 | ||
| 72137-2005004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
2 | ||
| 72137-2005003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-2005026 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
2 | ||
| 72137-2005004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
2 | ||
| 72137-2005002 |
AT180,ST18#..CP,LB RED,TRIM3# |
2 | ||
| 72137-2005004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
2 | ||
| 72137-2005003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-2005026 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
2 | ||
| 72137-2005004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
2 | ||
| 72137-2005002 |
AT180,ST18#..CP,LB RED,TRIM3# |
2 | ||
| 72137-2005004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
2 | ||
| 72137-2005003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-2005002 |
AT180,ST18#..CP,LB RED,TRIM3# |
2 | ||
| 72137-2005003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
2 | ||
| 72137-2005004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
2 | ||
| 72137-2005026 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
2 | ||
| 72137-2005004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-2005002 |
AT180,ST18#..CP,LB RED,TRIM3# |
2 | ||
| 72137-2005003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
2 | ||
| 72137-2005004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
2 | ||
| 72137-2005026 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
2 | ||
| 72137-2005004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-2005002 |
AT180,ST18#..CP,LB RED,TRIM3# |
2 | ||
| 72137-2005003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
2 | ||
| 72137-2005004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
2 | ||
| 72137-2005026 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
2 | ||
| 72137-2005004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
2 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-20070 |
AT180,ST18# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-20270 |
AT180,ST184 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-20270 |
AT180,ST18# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-20270 |
AT180,ST18# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-20030 |
AT180,ST18# |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-20030 |
AT180,ST18# |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-20030 |
AT180,ST18# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-2013002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 72525-2013004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 72525-2013016 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 72525-2013003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-2013004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-2009002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 72526-2009004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 72526-2009003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-2009026 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 72526-2009004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-2009002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 72526-2009004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 72526-2009003 |
AT180,ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-2009026 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| 72526-2009004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-2004004 |
AT180,ST184..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 72592-2004004 |
AT180,ST18#..CP,LB DARK BLUE,TRIM8# |
1 | ||
| 72592-2004003 |
AT180,ST18#..CP,LB SHADOW GRAY,TRIM1# |
1 | ||
| 72592-2004002 |
AT180,ST18#..CP,LB RED,TRIM3# |
1 | ||
| 72592-2004026 |
AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08098 | ||||
| 90119-10349 | ||||
| 90149-40015 | ||||
| 90168-40043 | ||||
| 90520-01002 | ||||
| 91651-60820 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
