ST184L-BCMGKA (1989)

Toyota Celica

Production Sep 1989 - Sep 1993
Engine 5SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )CP

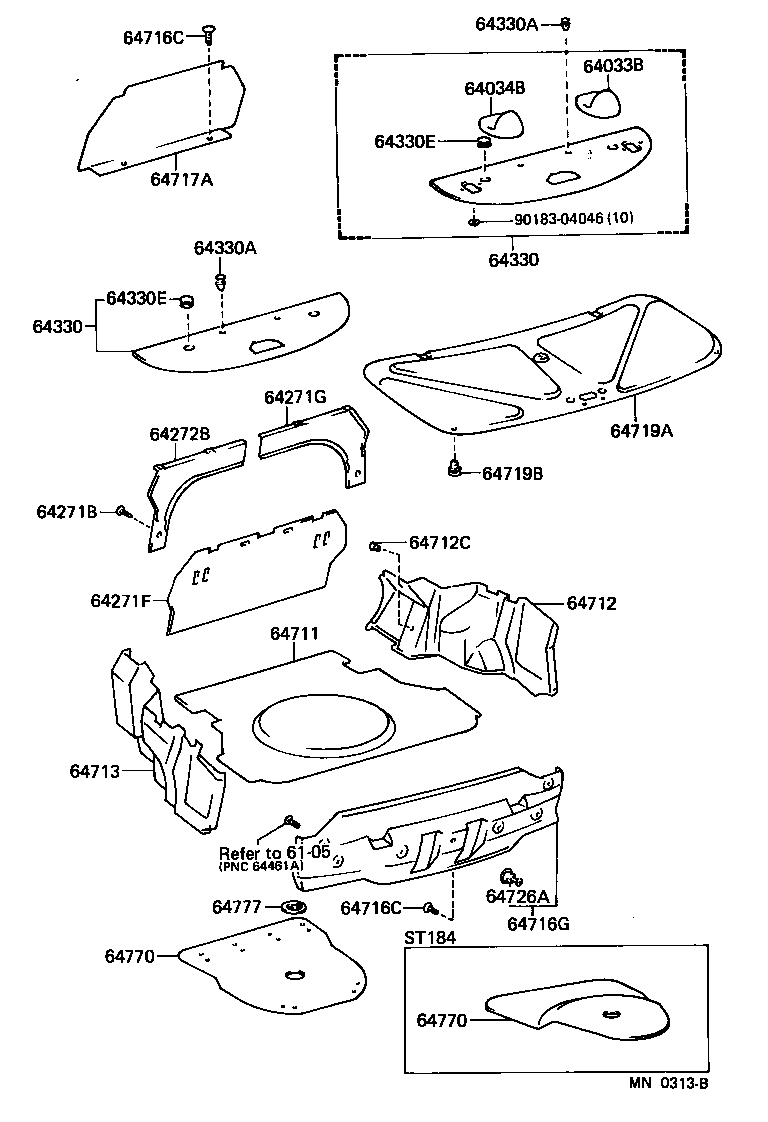

Click highlighted areas on diagram

diagram 6105 64033B 64034B 64271B 64271F 64271G 64272B 64330 64330 64330A 64330A 64330E 64330E 64711 64712 64712C 64713 64716C 64716C 64716G 64717A 64719A 64719B 64726A 64770 64770 64777 9018304046
Part # Description Qty Price
64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH
64383-2012003

ST184..CP

SHADOW GRAY,TRIM1#

 1
64383-2012016

ST184..CP

CHOCOLATE BROWN,TRIM4#

 1
64383-2012002

ST184..CP

RED,TRIM3#

 1
64383-2012004

ST184..CP

DARK BLUE,TRIM8#

 1
64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH
64383-2012002

ST184..CP

RED,TRIM3#

 1
64383-2012004

ST184..CP

DARK BLUE,TRIM8#

 1
64383-2012016

ST184..CP

CHOCOLATE BROWN,TRIM4#

 1
64383-2012003

ST184..CP

SHADOW GRAY,TRIM1#

 1
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-0601658

ST184..CP

GRAY,TRIM1#,3#,8#

 2
90467-0601658

ST184..CP

GRAY,TRIM1#,4#,8#

 2
64271G - BOARD, ROOM PARTITION, RH
64271-2018003

ST184..CP

GRAY,TRIM1#,3#,8#

 1
64271-2018003

ST184..CP

GRAY,TRIM1#,4#,8#

 1
64272B - BOARD, ROOM PARTITION, LH
64272-2002003

ST184..CP

GRAY,TRIM1#,4#,8#

 1
64272-2002003

ST184..CP

GRAY,TRIM1#,3#,8#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-2B23002

ST184..CP

W(TWITTER SPEAKER),RED,TRIM3#

 1
64330-2B23004

ST184..CP

W(TWITTER SPEAKER),DARK BLUE,TRIM8#

 1
64330-2B20016

ST184..CP

CHOCOLATE BROWN,TRIM4#

 1
64330-2B22004

ST184..CP

W(SPOILER),DARK BLUE,TRIM8#

 1
64330-2B20003

ST184..CP

SHADOW GRAY,TRIM1#

 1
64330-2B20004

ST184..CP

DARK BLUE,TRIM8#

 1
64330-2B22016

ST184..CP

W(SPOILER),CHOCOLATE BROWN,TRIM4#

 1
64330-2B24004

ST184..CP

W(SPOILER & TWITTER SPEAKER),DARK BLUE,TRIM8#

 1
64330-2B22003

ST184..CP

W(SPOILER),SHADOW GRAY,TRIM1#

 1
64330-2B20002

ST184..CP

RED,TRIM3#

 1
64330-2B23004

ST184..CP

W(TWITTER SPEAKER),DARK BLUE,TRIM8#

 1
64330-2B23003

ST184..CP

W(TWITTER SPEAKER),SHADOW GRAY,TRIM1#

 1
64330-2B24016

ST184..CP

W(SPOILER & TWITTER SPEAKER),CHOCOLATE BROWN,TRIM4#

 1
64330-2B24004

ST184..CP

W(TWITTER SPEAKER),DARK BLUE,TRIM8#

 1
64330-2B24003

ST184..CP

W(TWITTER SPEAKER),SHADOW GRAY,TRIM1#

 1
64330-2B23003

ST184..CP

W(TWITTER SPEAKER),SHADOW GRAY,TRIM1#

 1
64330-2B23016

ST184..CP

W(TWITTER SPEAKER),CHOCOLATE BROWN,TRIM4#

 1
64330-2B24003

ST184..CP

W(SPOILER & TWITTER SPEAKER),SHADOW GRAY,TRIM1#

 1
64330-2B22004

ST184..CP

DARK BLUE,TRIM8#

 1
64330-2B22003

ST184..CP

SHADOW GRAY,TRIM1#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-2B23002

ST184..CP

W(TWITTER SPEAKER),RED,TRIM3#

 1
64330-2B23004

ST184..CP

W(TWITTER SPEAKER),DARK BLUE,TRIM8#

 1
64330-2B20016

ST184..CP

CHOCOLATE BROWN,TRIM4#

 1
64330-2B22004

ST184..CP

W(SPOILER),DARK BLUE,TRIM8#

 1
64330-2B20003

ST184..CP

SHADOW GRAY,TRIM1#

 1
64330-2B20004

ST184..CP

DARK BLUE,TRIM8#

 1
64330-2B22016

ST184..CP

W(SPOILER),CHOCOLATE BROWN,TRIM4#

 1
64330-2B24004

ST184..CP

W(SPOILER & TWITTER SPEAKER),DARK BLUE,TRIM8#

 1
64330-2B22003

ST184..CP

W(SPOILER),SHADOW GRAY,TRIM1#

 1
64330-2B20002

ST184..CP

RED,TRIM3#

 1
64330-2B23004

ST184..CP

W(TWITTER SPEAKER),DARK BLUE,TRIM8#

 1
64330-2B23003

ST184..CP

W(TWITTER SPEAKER),SHADOW GRAY,TRIM1#

 1
64330-2B24016

ST184..CP

W(SPOILER & TWITTER SPEAKER),CHOCOLATE BROWN,TRIM4#

 1
64330-2B24004

ST184..CP

W(TWITTER SPEAKER),DARK BLUE,TRIM8#

 1
64330-2B24003

ST184..CP

W(TWITTER SPEAKER),SHADOW GRAY,TRIM1#

 1
64330-2B23003

ST184..CP

W(TWITTER SPEAKER),SHADOW GRAY,TRIM1#

 1
64330-2B23016

ST184..CP

W(TWITTER SPEAKER),CHOCOLATE BROWN,TRIM4#

 1
64330-2B24003

ST184..CP

W(SPOILER & TWITTER SPEAKER),SHADOW GRAY,TRIM1#

 1
64330-2B22004

ST184..CP

DARK BLUE,TRIM8#

 1
64330-2B22003

ST184..CP

SHADOW GRAY,TRIM1#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-0803722

AT180,ST184..CP

RED,TRIM3#

 6
90467-0803713

AT180,ST184..CP

SHADOW GRAY,TRIM1#

 6
90467-0803724

AT180,ST184..CP

DARK BLUE,TRIM8#

 6
90467-0803746

AT180,ST184..CP

SABLE,TRIM4#

 6
90467-08046B1

ST184..CP

W(SPOILER & TWITTER SPEAKER),SHADOW GRAY,TRIM1#

 6
90467-08037J0

AT180,ST184..CP

DARK BLUE,TRIM8#

 6
90467-08037J0

AT180,ST184..CP

DARK BLUE,TRIM8#

 6
90467-0803713

AT180,ST184..CP

SHADOW GRAY,TRIM1#

 6
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-0803722

AT180,ST184..CP

RED,TRIM3#

 6
90467-0803713

AT180,ST184..CP

SHADOW GRAY,TRIM1#

 6
90467-0803724

AT180,ST184..CP

DARK BLUE,TRIM8#

 6
90467-0803746

AT180,ST184..CP

SABLE,TRIM4#

 6
90467-08046B1

ST184..CP

W(SPOILER & TWITTER SPEAKER),SHADOW GRAY,TRIM1#

 6
90467-08037J0

AT180,ST184..CP

DARK BLUE,TRIM8#

 6
90467-08037J0

AT180,ST184..CP

DARK BLUE,TRIM8#

 6
90467-0803713

AT180,ST184..CP

SHADOW GRAY,TRIM1#

 6
64330E - PLUG(FOR PACKAGE TRAY TRIM PANEL)
90950-0143613

AT180,ST184..CP

GRAY,TRIM1#

 2
90950-01436B1

ST184..CP

SHADOW GRAY,TRIM1#

 2
90950-0143626

AT180,ST184..CP

SABLE,TRIM4#

 2
90950-0143632

AT180,ST184..CP

RED,TRIM3#

 2
90950-01436J0

ST184..CP

DARK BLUE,TRIM8#

 2
90950-01436J0

AT180,ST184..CP

DARK BLUE,TRIM8#

 2
90950-01436B1

AT180,ST184..CP

SHADOW GRAY,TRIM1#

 2
90950-01436J0

AT180,ST184..CP

DARK BLUE,TRIM8#

 2
90950-01436J0

AT180,ST184..CP

DARK BLUE,TRIM8#

 2
90950-01436B1

AT180,ST184..CP

SHADOW GRAY,TRIM1#

 2
90950-0143626

ST184..CP

SABLE,TRIM4#

 2
64330E - PLUG(FOR PACKAGE TRAY TRIM PANEL)
90950-0143613

AT180,ST184..CP

GRAY,TRIM1#

 2
90950-01436B1

ST184..CP

SHADOW GRAY,TRIM1#

 2
90950-0143626

AT180,ST184..CP

SABLE,TRIM4#

 2
90950-0143632

AT180,ST184..CP

RED,TRIM3#

 2
90950-01436J0

ST184..CP

DARK BLUE,TRIM8#

 2
90950-01436J0

AT180,ST184..CP

DARK BLUE,TRIM8#

 2
90950-01436B1

AT180,ST184..CP

SHADOW GRAY,TRIM1#

 2
90950-01436J0

AT180,ST184..CP

DARK BLUE,TRIM8#

 2
90950-01436J0

AT180,ST184..CP

DARK BLUE,TRIM8#

 2
90950-01436B1

AT180,ST184..CP

SHADOW GRAY,TRIM1#

 2
90950-0143626

ST184..CP

SABLE,TRIM4#

 2
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-2064003

ST184..CP

GRAY,TRIM1#,4#,8#

 1
64711-2064003

ST184..CP

GRAY,TRIM1#,3#,8#

 1
64711-20730B0

ST184..CP..USA

SHADOW GRAY,TRIM1#,8#

 1
64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH
64712-2017003

AT180,ST184..CP

GRAY,TRIM1#,3#,8#

 1
64712-20170C0

AT180,ST184..CP

BLACK,TRIM1#,8#

 1
64712-2017003

AT180,ST184..CP

GRAY,TRIM1#,4#,8#

 1
64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
90467-0805623

AT180,ST184..CP

GRAY,TRIM1#,4#,8#

 6
90467-0805623

AT180,ST184..CP

GRAY,TRIM1#,3#,8#

 6
90467-08056C0

AT180,ST184..CP

BLACK,TRIM1#,8#

 6
64713 - COVER, LUGGAGE COMPARTMENT TRIM, LH
64713-20170C0

AT180,ST184..CP

BLACK,TRIM1#,8#

 1
64713-2017003

AT180,ST184..CP

GRAY,TRIM1#,3#,8#

 1
64713-2017003

AT180,ST184..CP

GRAY,TRIM1#,4#,8#

 1
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-0705323

AT180,ST184..CP

GRAY,TRIM1#,4#,8#

 1
90467-0705301

AT180,ST184..CP

BLACK,TRIM1#,8#

 1
90467-0705323

AT180,ST184..CP

GRAY,TRIM1#,3#,8#

 1
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-0705323

AT180,ST184..CP

GRAY,TRIM1#,4#,8#

 1
90467-0705301

AT180,ST184..CP

BLACK,TRIM1#,8#

 1
90467-0705323

AT180,ST184..CP

GRAY,TRIM1#,3#,8#

 1
64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR
64716-2032003

AT180,ST184..CP

GRAY,TRIM1#,3#,8#

 1
64716-2032003

AT180,ST184..CP

GRAY,TRIM1#,4#,8#

 1
64716-20320C0

AT180,ST184..CP

BLACK,TRIM1#,8#

 1
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-20090C0

ST184..CP

BLACK,TRIM1#,8#

 1
64719-2004003

ST184..CP

GRAY,TRIM1#,3#,8#

 1
64719-2009003

ST184..CP

W(REAR SPOILER),GRAY,TRIM1#,4#,8#

 1
64719-2004003

ST184..CP

GRAY,TRIM1#,4#,8#

 1
64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR)
90467-0705903

ST184..CP

GRAY,TRIM1#,3#,8#

 13
90467-0705922

ST184..CP

BLACK,TRIM1#,8#

 13
90467-0705903

ST184..CP

GRAY,TRIM1#,4#,8#

 13
64726A - CLIP, LUGGAGE TRIM, REAR
64726-2002003

AT180,ST184..CP

GRAY,TRIM1#,4#,8#

 6
64726-2002003

AT180,ST184..CP

GRAY,TRIM1#,3#,8#

 6
64726-2002001

AT180,ST184..CP

BLACK,TRIM1#,8#

 6
64770 - COVER ASSY, SPARE WHEEL
64770-20080

AT180;ST184..CP..USA

 1
64770-20080

AT180;ST184..(CP,CVT)..USA

 1
64770-20090

ST184..CP,CVT

 1
64770 - COVER ASSY, SPARE WHEEL
64770-20080

AT180;ST184..CP..USA

 1
64770-20080

AT180;ST184..(CP,CVT)..USA

 1
64770-20090

ST184..CP,CVT

 1
64777 - CLAMP, SPARE WHEEL COVER
64777-32030

AT180;ST184..(CP,CVT)..USA

 1
64777-32030

AT180;ST184..CP..USA

 1
Common parts
90183-04046
Linked diagrams
6105
