ST184L-BCMGKA (1989)

Toyota Celica

Production Sep 1989 - Sep 1993
Engine 5SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )CP ; (9004- )CVT

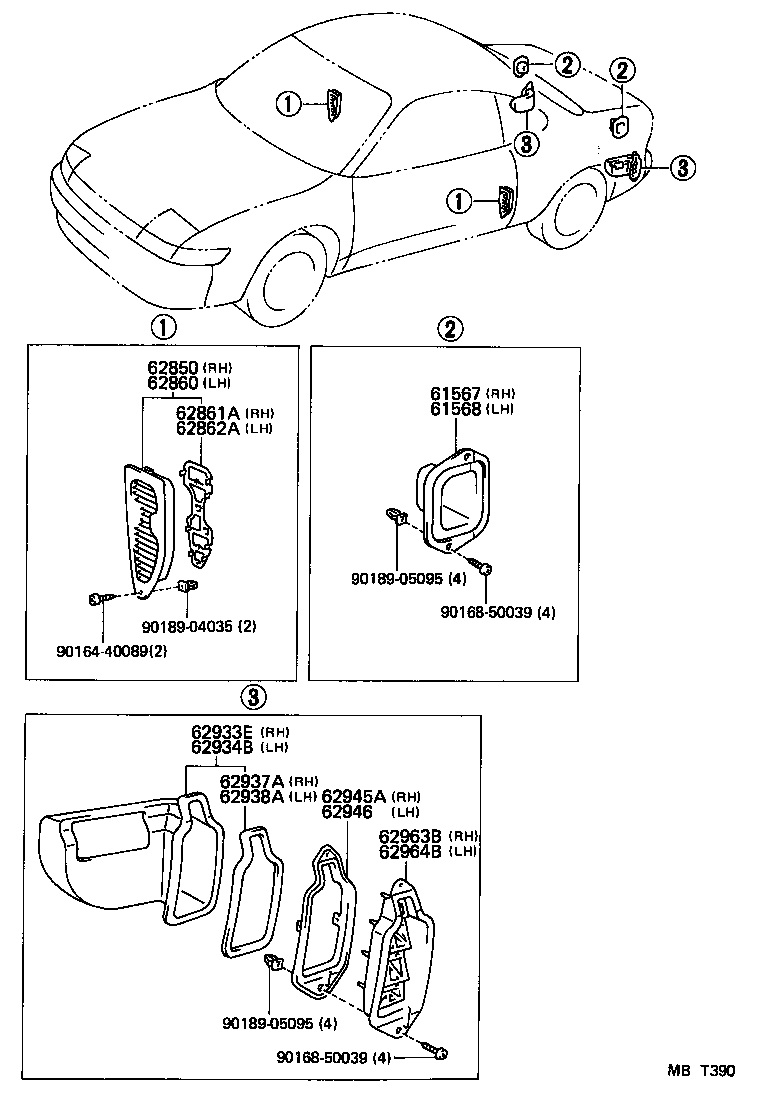

Click highlighted areas on diagram

diagram 61567 61568 62850 62860 62861A 62862A 62933E 62934B 62937A 62938A 62945A 62946 62963B 62964B 9016440089 9016850039 9016850039 9018904035 9018905095 9018905095
Part # Description Qty Price
61567 - PLATE, QUARTER PANEL END, RH
61567-20030

AT180,ST184..CP,CVT

 1
61568 - PLATE, QUARTER PANEL END, LH
61568-20020

AT180,ST184..CP,CVT

 1
62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH
62850-20050

AT180,ST18#

 1
62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH
62860-20060

AT180,ST18#

 1
62861A - GASKET, ROOM PRESSURE RELIEF VALVE, RH
62861-20050

AT180,ST18#

 1
62862A - GASKET, ROOM PRESSURE RELIEF VALVE, LH
62862-20040

AT180,ST18#

 1
62933E - DUCT, QUARTER VENT, INNER RH
62933-20040

AT180,ST18#

 1
62934B - DUCT, QUARTER VENT, INNER LH
62934-20040

AT180,ST18#

 1
62937A - PACKING, QUARTER VENT DUCT, RH
62937-20050

AT180,ST18#

 1
62938A - PACKING, QUARTER VENT DUCT, LH
62938-20020

AT180,ST18#

 1
62945A - RETAINER, QUARTER VENT DUCT, NO.3
62945-20010

AT180,ST18#

 1
62946 - RETAINER, QUARTER VENT DUCT, NO.4
62946-20010

AT180,ST18#

 1
62963B - PLATE, QUARTER VENT LOUVER, RH
62963-20050

AT180,ST18#

 1
62964B - PLATE, QUARTER VENT LOUVER, LH
62964-20030

AT180,ST18#

 1
Common parts
90164-40089
90168-50039
90189-04035
90189-05095
