ST162L-BLPVKK (1986)
Toyota Celica
Production
Aug 1986
-
Aug 1987
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )GT,ST

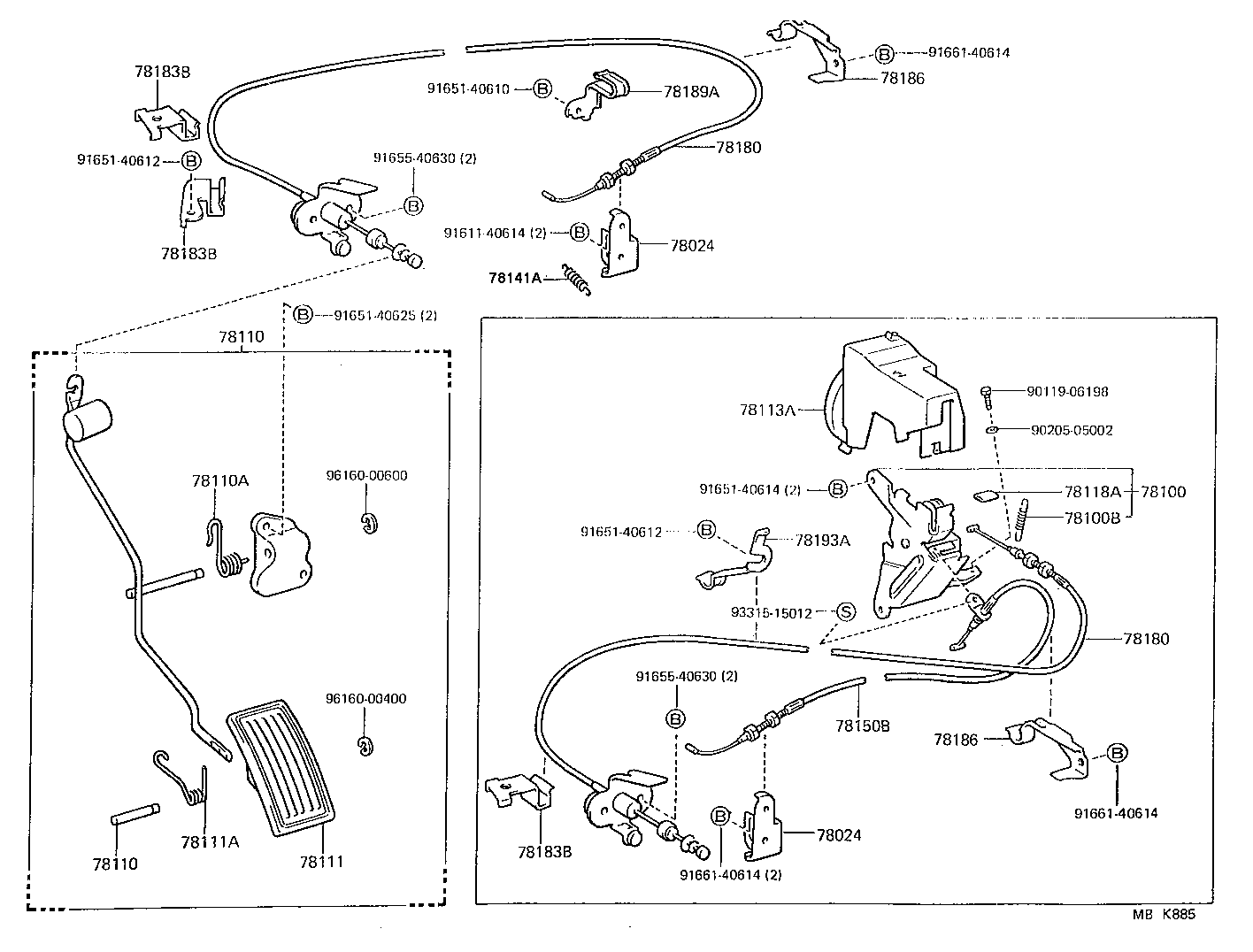

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-32070 |
ST162..GTS,ST |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-32070 |
ST162..GTS,ST |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-20030 |
ST162 |
1 | ||
| 78100-20030 |
ST16#..GT,GTS |
1 | ||
| 78100B - SPRING (FOR ACCELERATOR LINK) | ||||
| 90506-08019 |
ST162 |
1 | ||
| 90506-08019 |
ST16#..GT,GTS |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18054 |
ST16#..4FC |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-20030 |
ST16# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18050 |
ST16# |
1 | ||
| 78113A - COVER, AUTO DRIVE ACCELERATOR LINK | ||||
| 78113-20140 |
ST16#..GT,GTS |
1 | ||
| 78113-20140 |
ST162 |
1 | ||
| 78118A - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-12010 |
ST16#..GT,GTS |
1 | ||
| 78118-12010 |
ST162 |
1 | ||
| 78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE | ||||
| 78150-20110 |
ST162..GT,ST |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-20700 |
ST162..GT,ST W/O AUTO DRIVE |
1 | ||
| 78180-20760 |
ST162..GT W/AUTO DRIVE |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-20700 |
ST162..GT,ST W/O AUTO DRIVE |
1 | ||
| 78180-20760 |
ST162..GT W/AUTO DRIVE |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20090 |
ST162..GT,ST |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20090 |
ST162..GT,ST |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20090 |
ST162..GT,ST |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-32040 |
ST162..GT,ST |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-32040 |
ST162..GT,ST |
1 | ||
| 78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78189-20050 |
ST162..GT,ST |
1 | ||
| 78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3 | ||||
| 78193-20040 |
ST162..GT W/AUTO DRIVE |
1 | ||
| Common parts | ||||
| 90119-06198 | ||||
| 90205-05002 | ||||
| 91611-40614 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40625 | ||||
| 91655-40630 | ||||
| 91661-40614 | ||||
| 93315-15012 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
